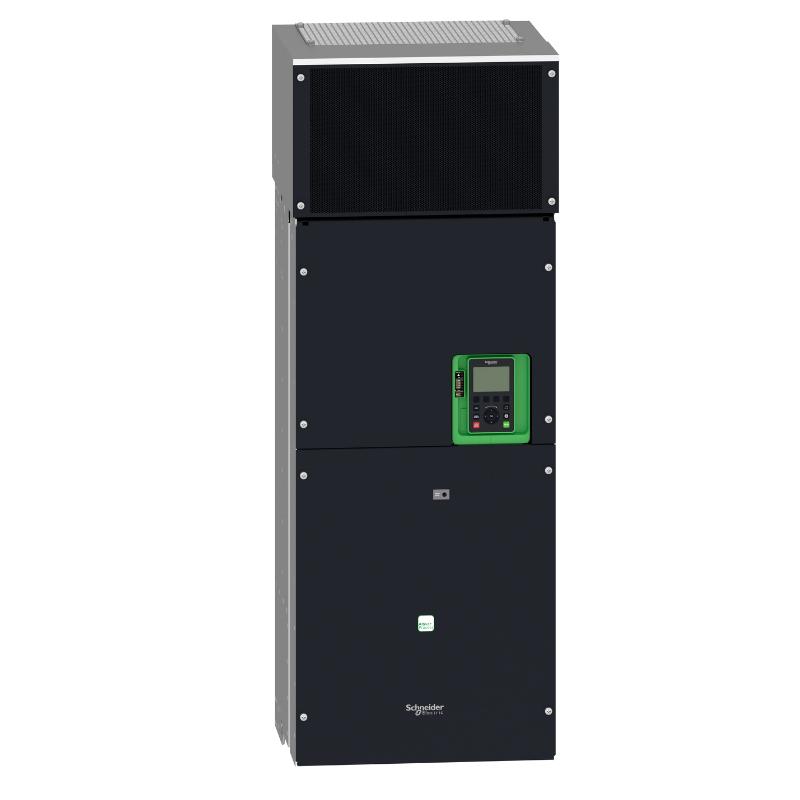

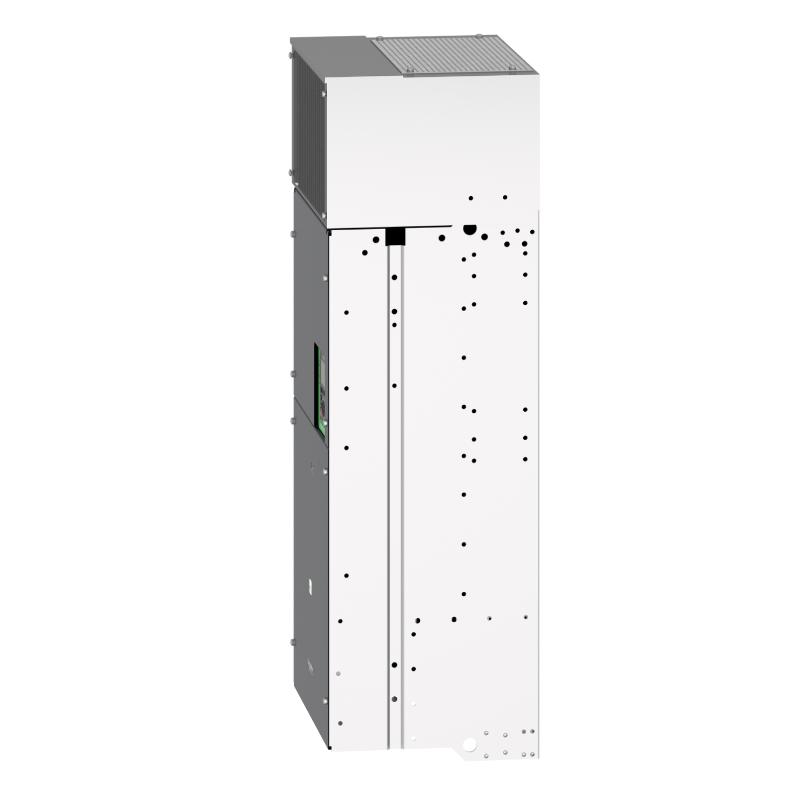

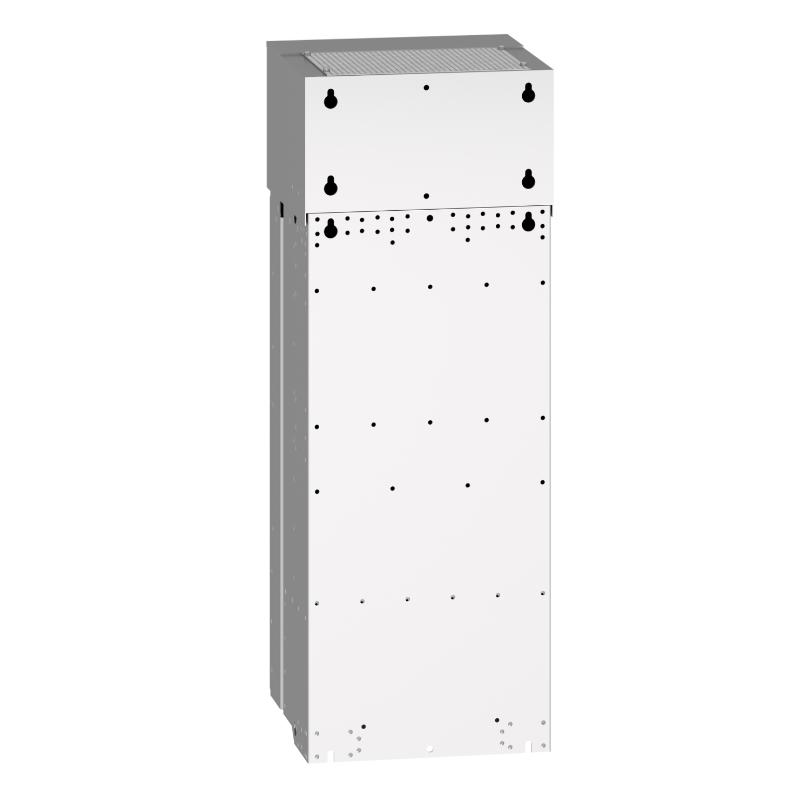

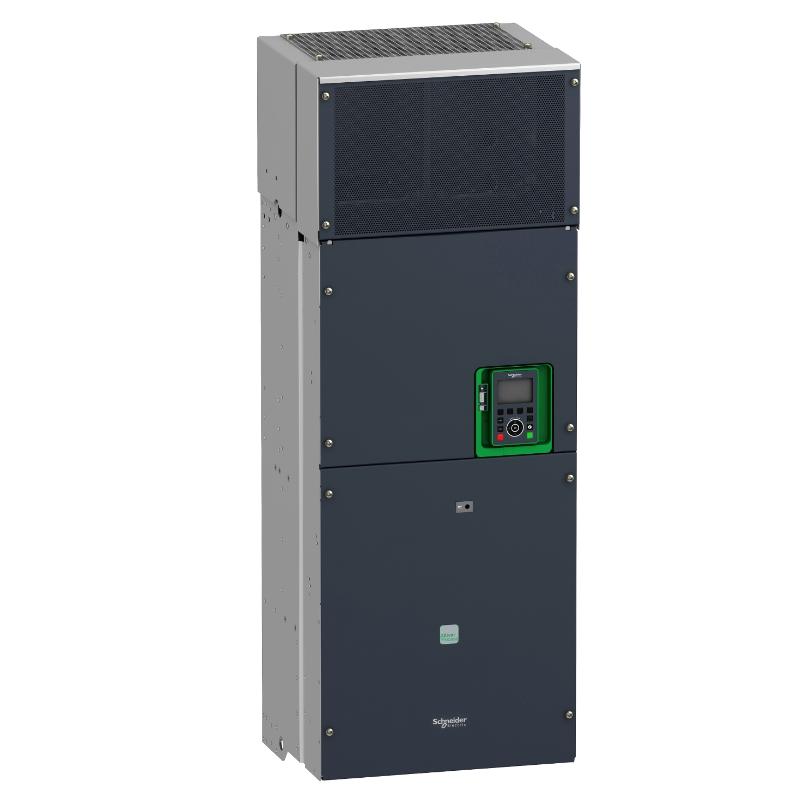

The Schneider Electric ATV930C22N4 is a flagship Altivar Process ATV900 series variable frequency drive designed for large-scale, heavy-duty industrial operations. With a powerful 220 kW (350 HP) rating, it is engineered to handle the most demanding process applications while delivering precise motor control and maximum energy efficiency.
Built for industries such as oil & gas, mining, and water treatment, this drive supports continuous operation, advanced diagnostics, and seamless automation integration—making it a top-tier solution for mission-critical systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | Up to 427 A |
| Motor Power | 220 kW (350 hp) |
| Overload Capacity | 120% (ND), 150% (HD up to 160 kW) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Protection Class | IP00 (cabinet integration) |
| Integrated Features | PID control, EMC filter, energy monitoring |
| Ambient Operating Temperature | 0°C to 40–50°C |
| Dimensions (H × W × D) | Approx. 1200 × 320 × 400 mm |
| Weight | Approx. 140 – 155 kg |
Recommended Related Models
- ATV930C16N4 – 160 kW for slightly lower process demand
- ATV930C25N4C – 250 kW IP21 wall-mounted version
- ATV930C22N4C – Same power with enclosed wall-mounted design
