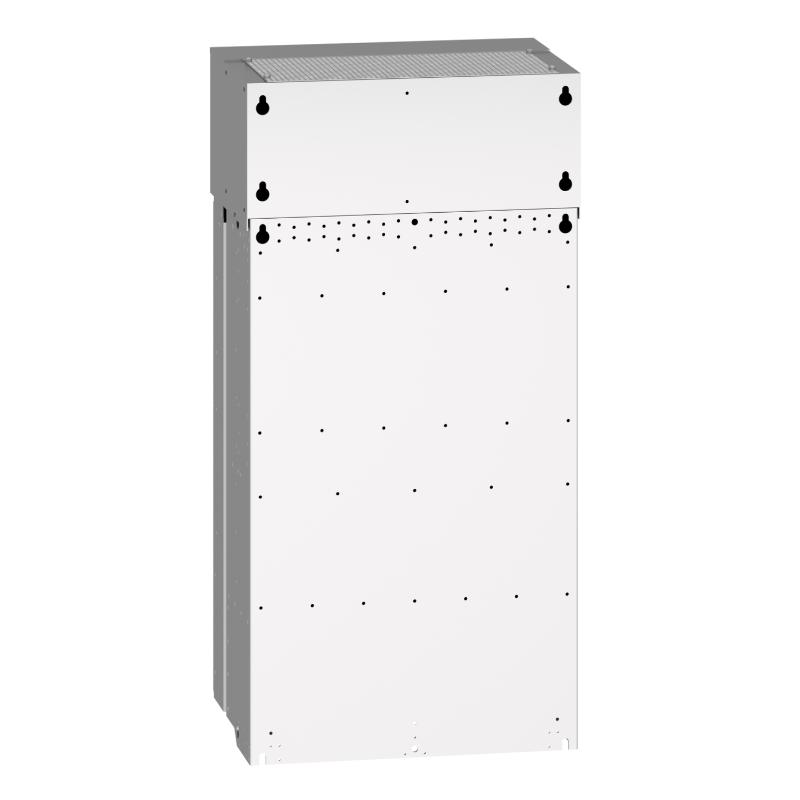

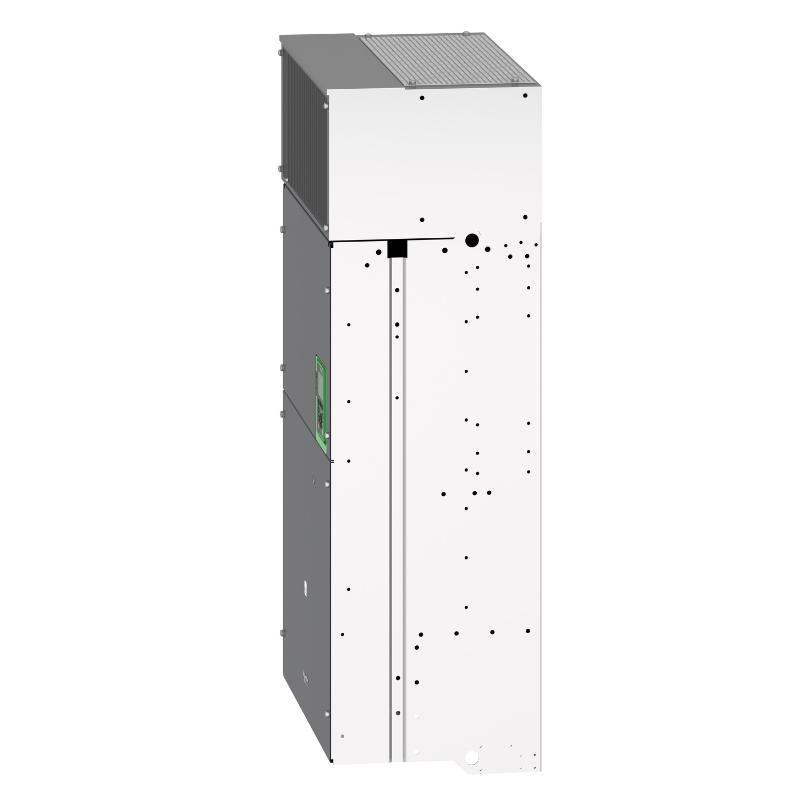

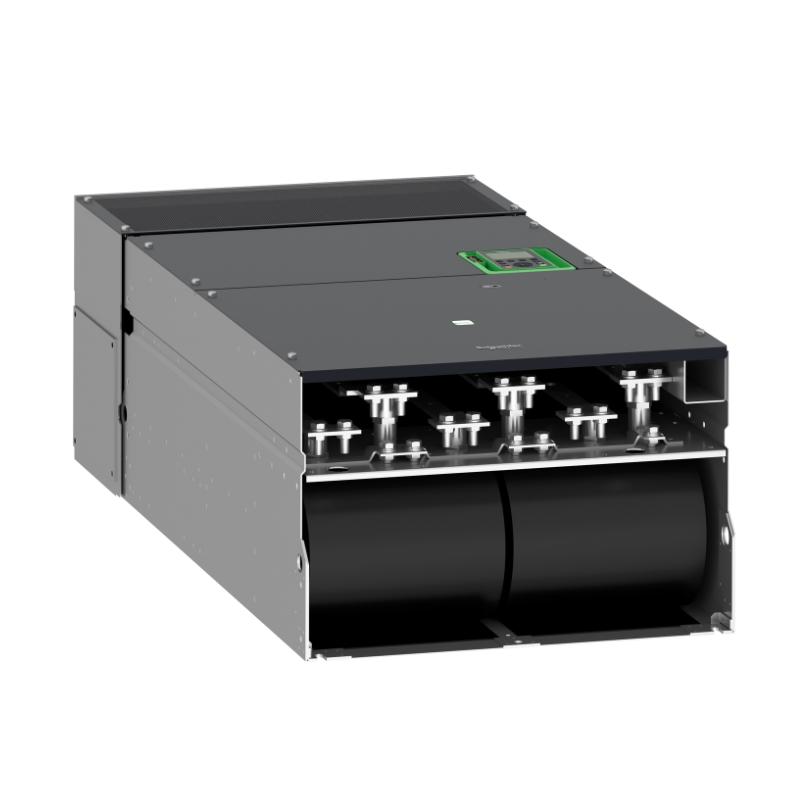

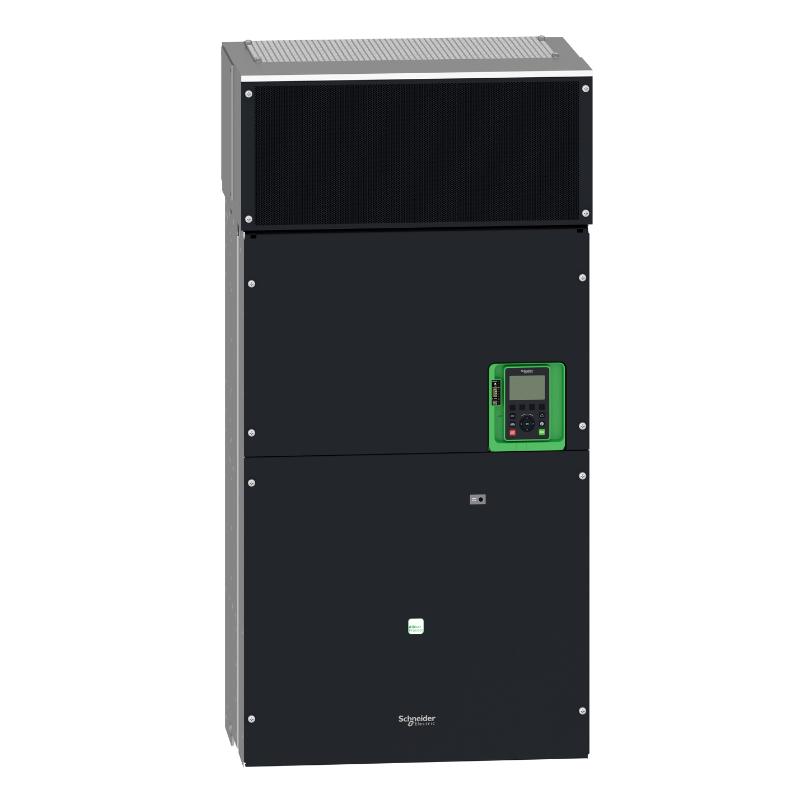

The Schneider Electric ATV930C25N4C is a top-tier Altivar Process ATV900 series variable frequency drive designed for large-scale, mission-critical industrial systems. With a powerful 250 kW (400 HP) rating, it is engineered for industries that demand continuous operation, advanced diagnostics, and maximum energy efficiency.
The “C” enclosure version (IP21) provides built-in protection and wall-mounted convenience, making it ideal for installations where panel space is limited while still requiring industrial-grade durability. It supports both synchronous and asynchronous motors and is optimized for process-driven environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | Up to ~481 A |
| Motor Power | 250 kW (400 hp) |
| Overload Capacity | 120% (ND), up to 150% (HD conditions) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Mounting Type | Wall-mounted (enclosed) |
| Protection Class | IP21 |
| Ambient Operating Temperature | 0°C to 40–50°C |
| Dimensions (H × W × D) | Approx. 1200 × 320 × 400 mm |
| Weight | Approx. 150 – 170 kg |
