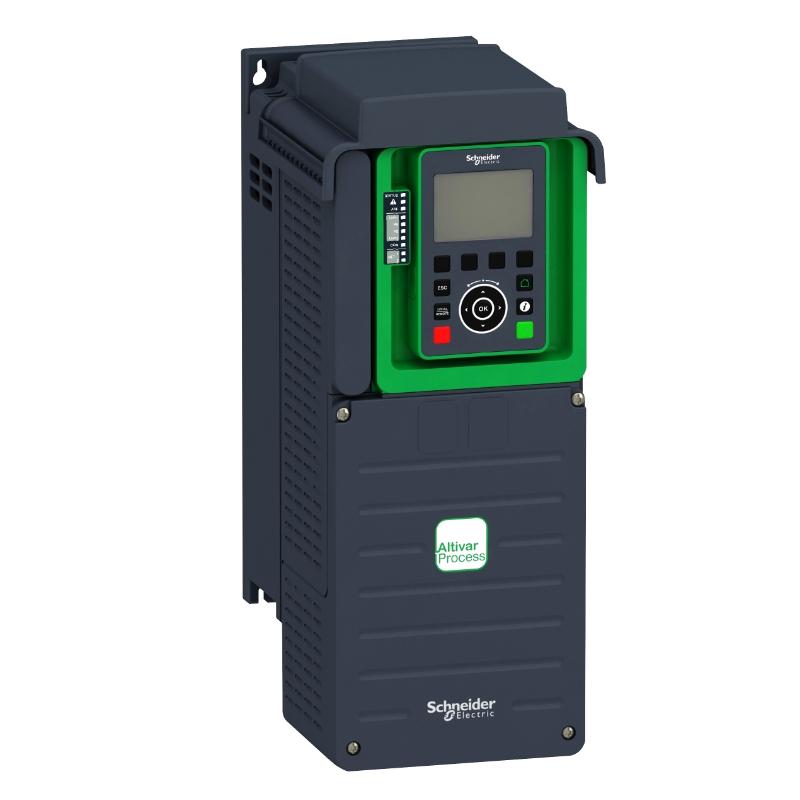

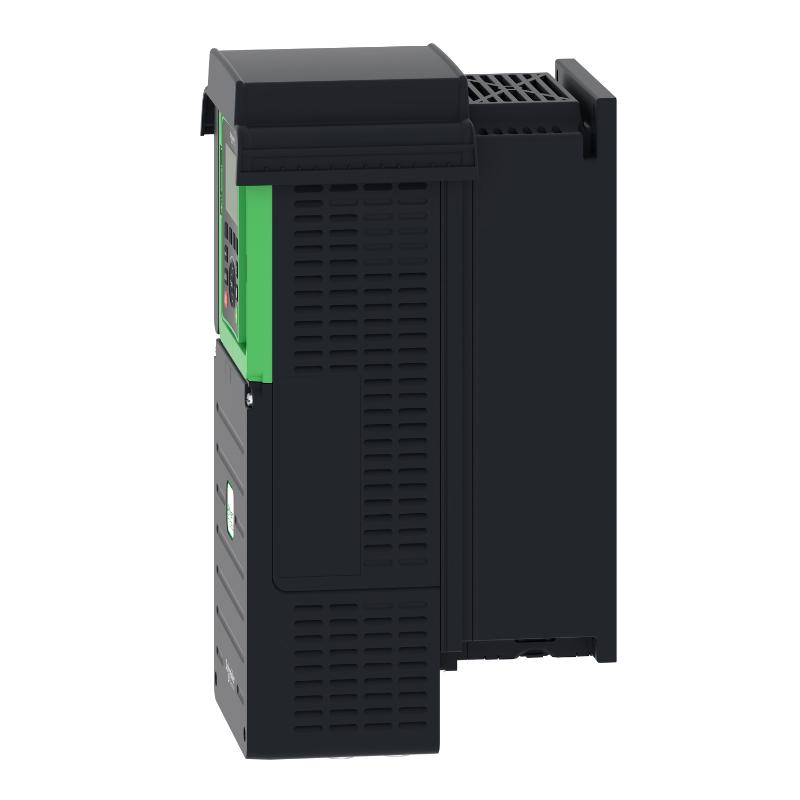

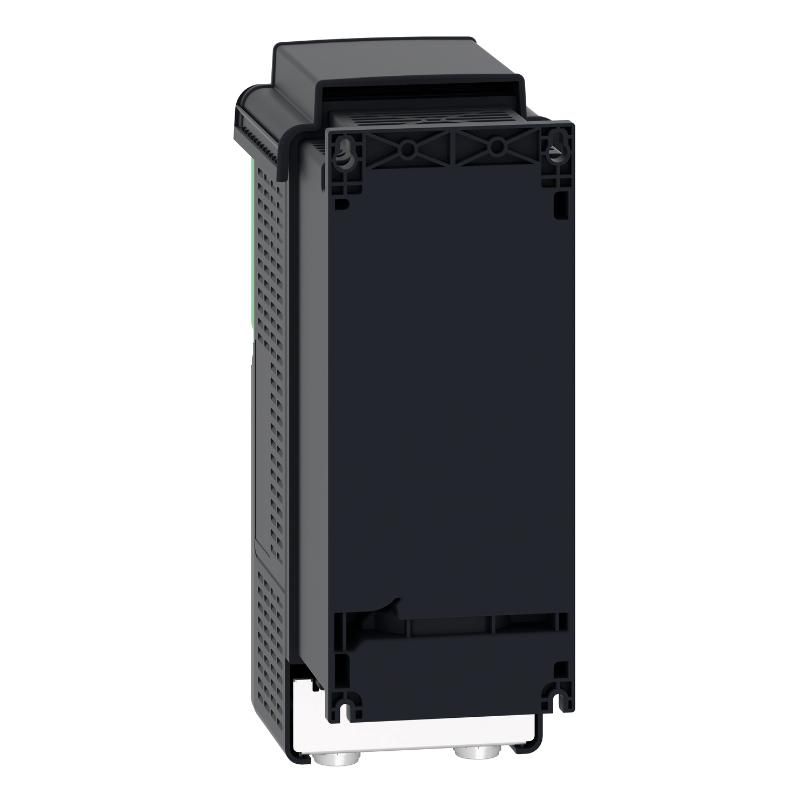

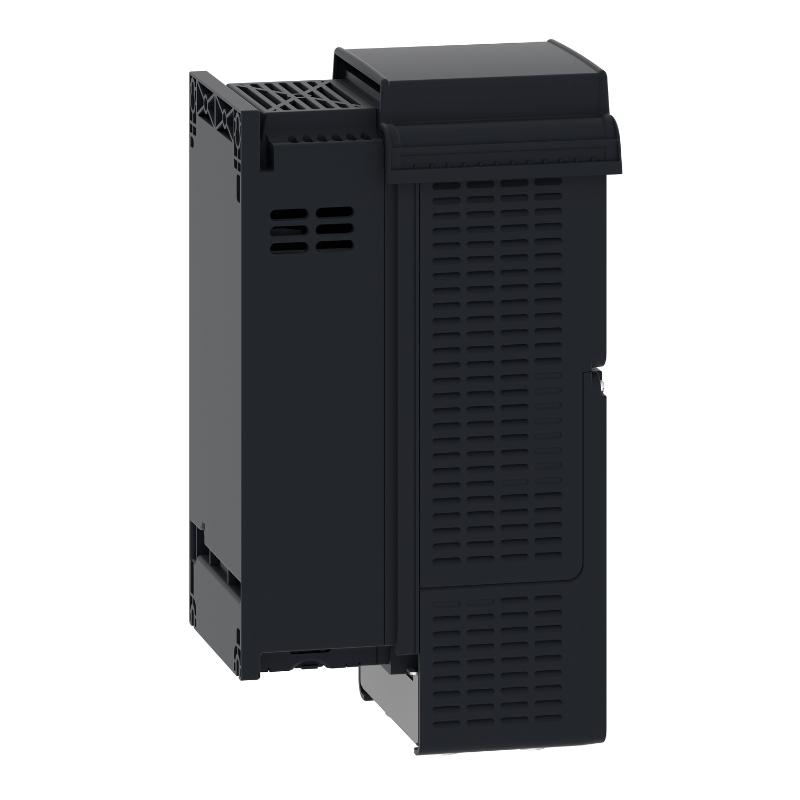

The Schneider Electric ATV930D11N4 is a compact yet powerful Altivar Process ATV900 series variable frequency drive designed for precision motor control in process-oriented industries. Rated at 11 kW (15 HP), it is ideal for applications requiring both energy efficiency and reliable performance.
This model features a built-in braking unit and IP21 enclosure, making it especially suitable for installations that demand controlled deceleration and simplified setup. With embedded process monitoring and energy management tools, it enhances system efficiency and reduces downtime in industrial operations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | Approx. 23.5 A |
| Motor Power | 11 kW (15 hp) |
| Overload Capacity | 120% (ND), 150% (HD up to 7.5 kW) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Enclosure Type | IP21 (wall / cabinet mount) |
| Integrated Features | Braking chopper, EMC filter, energy dashboard |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | Approx. 410 × 180 × 230 mm |
| Weight | Approx. 10 – 14 kg |
Recommended Related Models
- ATV930D15N4 – 15 kW for higher motor load applications
- ATV930D11N4C – Same power with enhanced enclosure configuration
- ATV930C11N4 – Cabinet-mounted high-power process version
