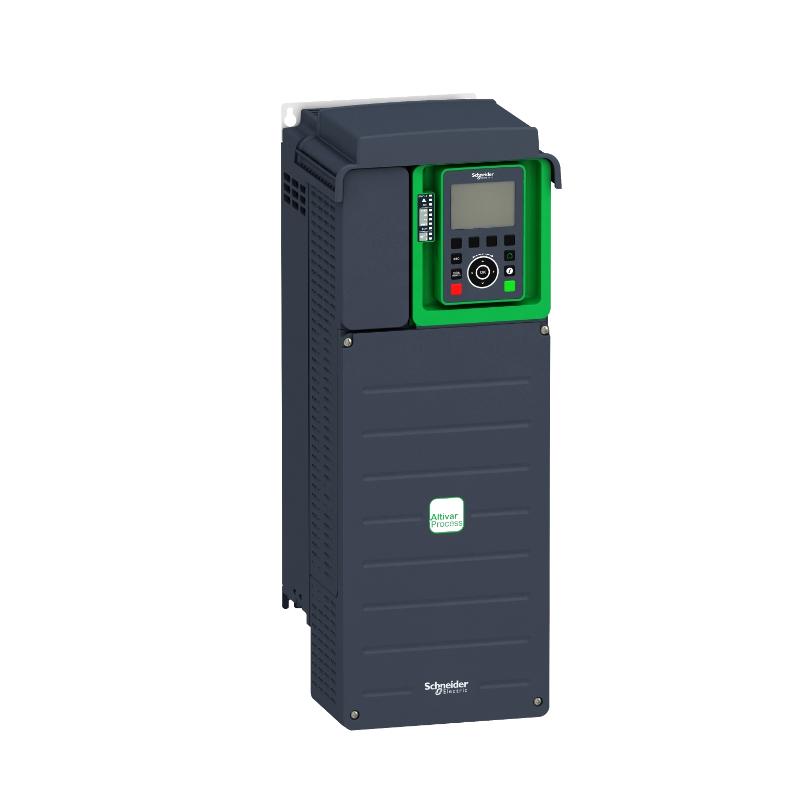

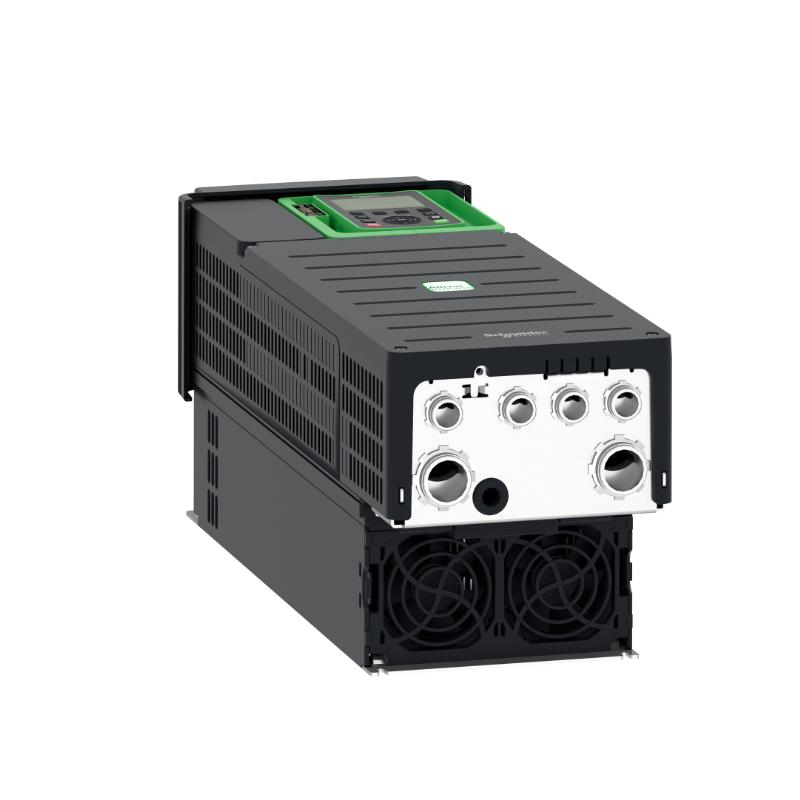

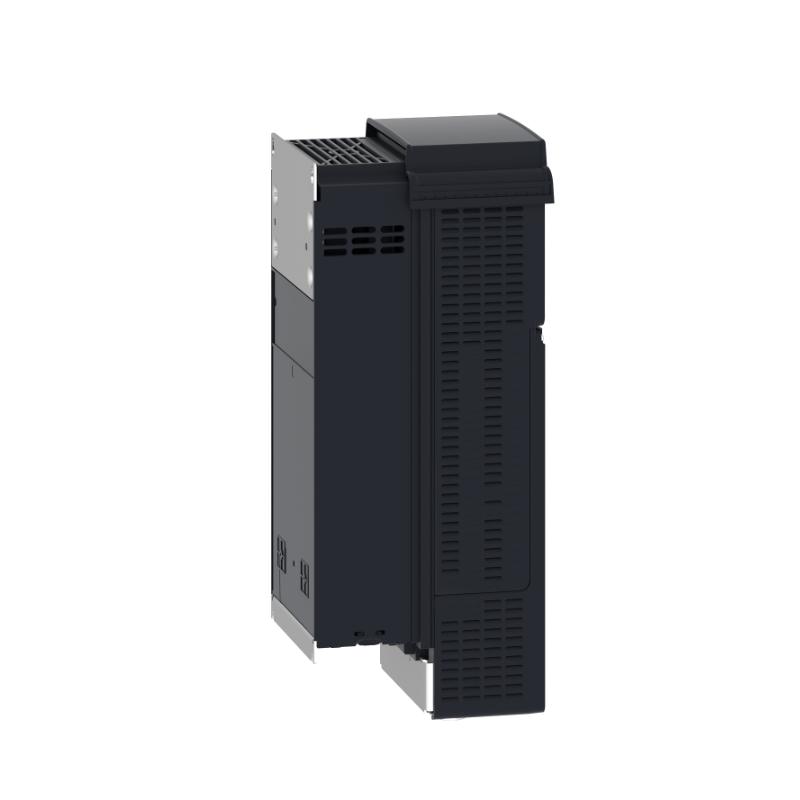

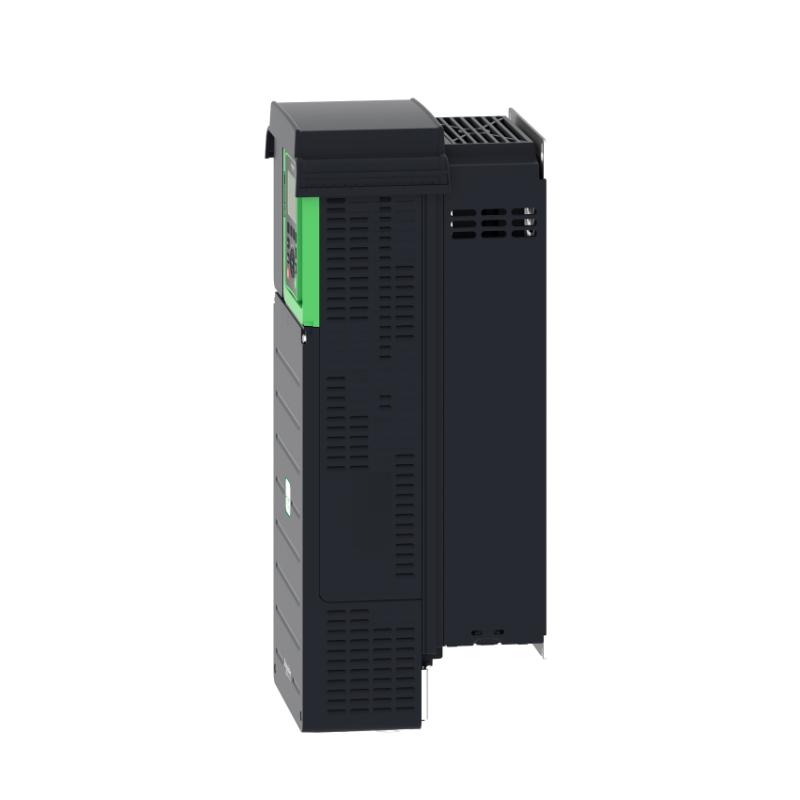

The Schneider Electric ATV930D15N4 is a high-performance Altivar Process ATV900 series variable frequency drive designed for process-oriented industrial applications requiring precision, reliability, and energy efficiency. With a rated power of 15 kW (20 HP), this drive is ideal for medium-duty systems such as pumps, fans, and conveyors.
Equipped with a built-in braking unit and IP21 enclosure, it simplifies installation while enabling controlled deceleration for dynamic loads. The drive supports both asynchronous and synchronous motors, making it a versatile solution across industries.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3-phase |
| Output Voltage | 0 – 480 V AC |
| Rated Current | ~31.7 A |
| Motor Power | 15 kW (20 hp) |
| Overload Capacity | 120% (ND), up to 150% (HD conditions) |
| Control Modes | V/F, Sensorless Vector, Closed-loop Vector |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen |
| Enclosure Type | IP21 (wall / cabinet mount) |
| Integrated Features | Braking unit, EMC filter, energy monitoring |
| Ambient Operating Temperature | -10°C to 50°C |
| Dimensions (H × W × D) | Approx. 420 × 180 × 240 mm |
| Weight | Approx. 12 – 15 kg |
