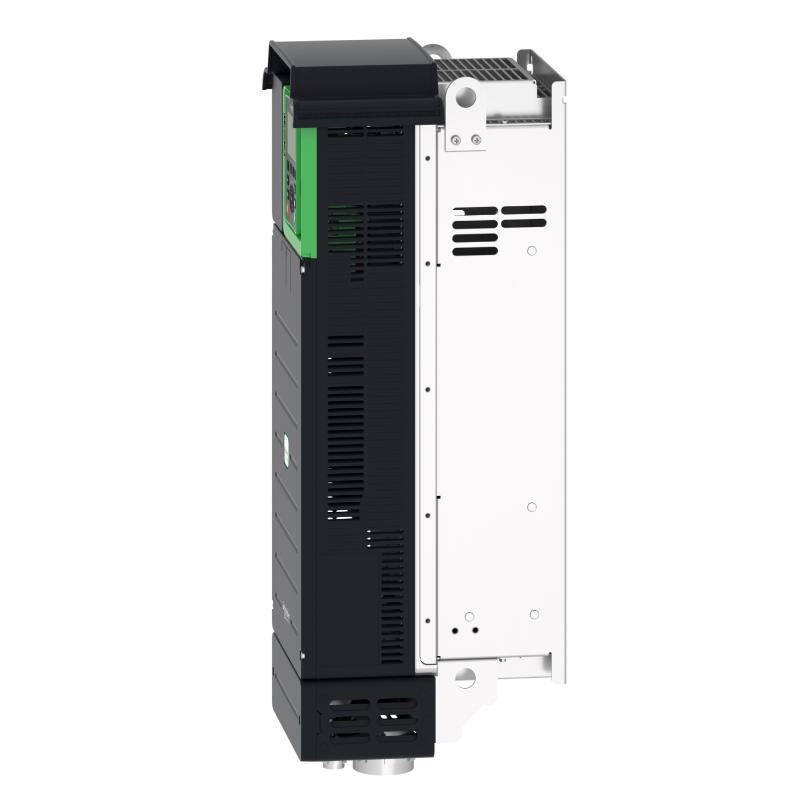

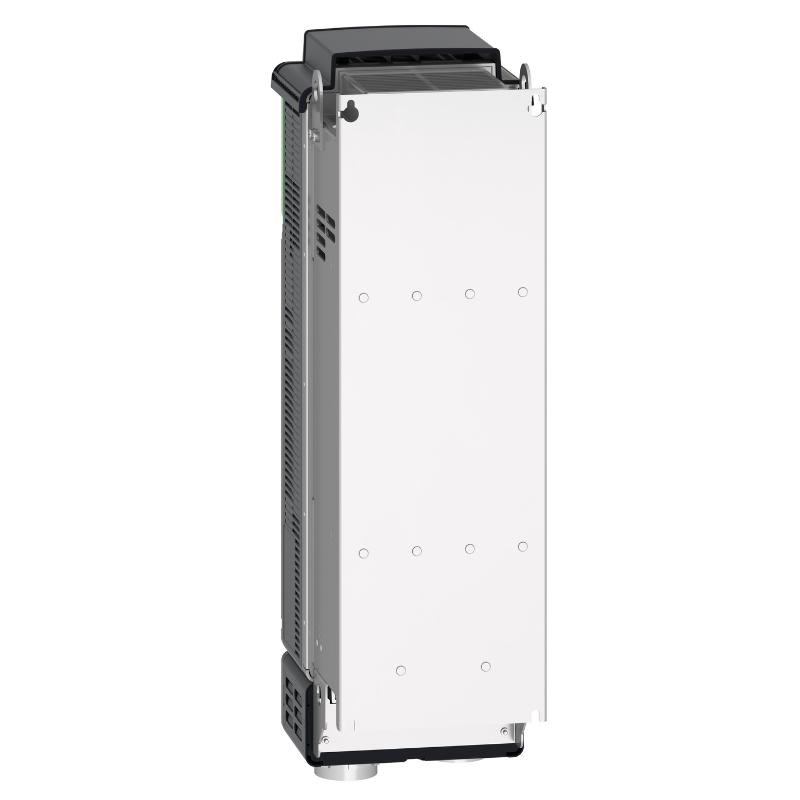

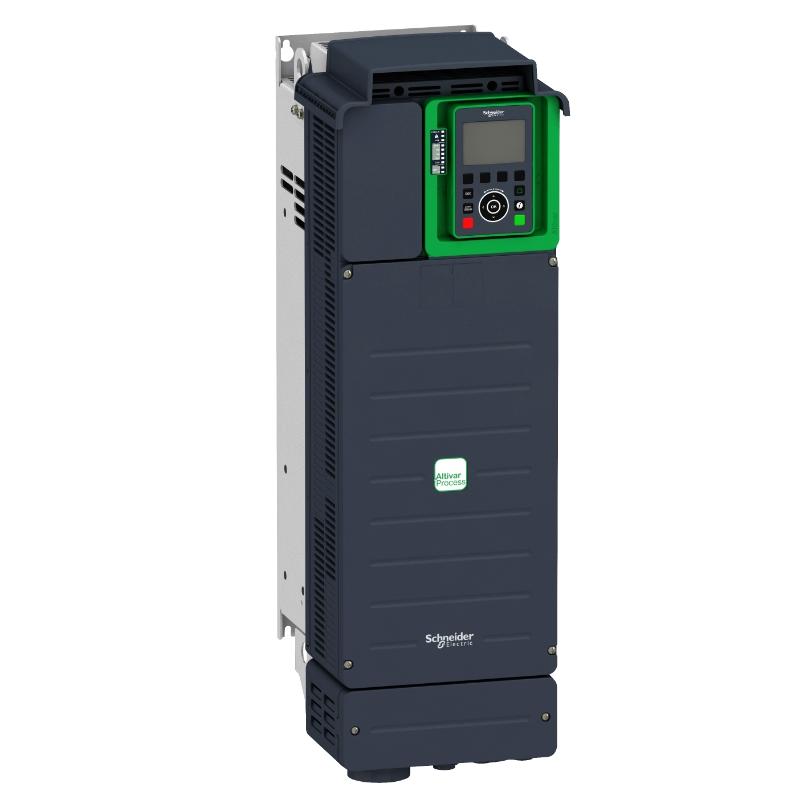

The Schneider Electric ATV930D30N4 is a process‑optimized variable frequency drive from the Altivar Process ATV900 series, designed for industrial applications requiring precise motor control, robust performance, and built‑in braking functionality. With a 30 kW (40 HP) power rating, this drive is engineered to support optimization of energy use, improve process control, and enhance equipment reliability in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380 – 480 V AC, 3‑phase |
| Output Voltage | 0 – 480 V AC |
| Rated Motor Power | 30 kW (40 HP) |
| Rated Current | ~53.3 A (Normal Duty) / ~40.5 A (Heavy Duty) |
| Overload Capacity | 120 % (Normal Duty) / 150 % (Heavy Duty) |
| Control Modes | V/F, Sensorless Vector, Closed‑loop Vector |
| Protection & Enclosure | IP21 (Wall or cabinet mount) |
| Integrated Features | Braking chopper, EMC filters, energy dashboard |
| Communication Protocols | Modbus TCP, Ethernet/IP, CANopen, RS‑485 |
| Dimensions (H × W × D) | ~673 × 226 × 274 mm |
| Weight | ~28–35 kg |
| Ambient Operating Temperature | –10°C to 50°C |
