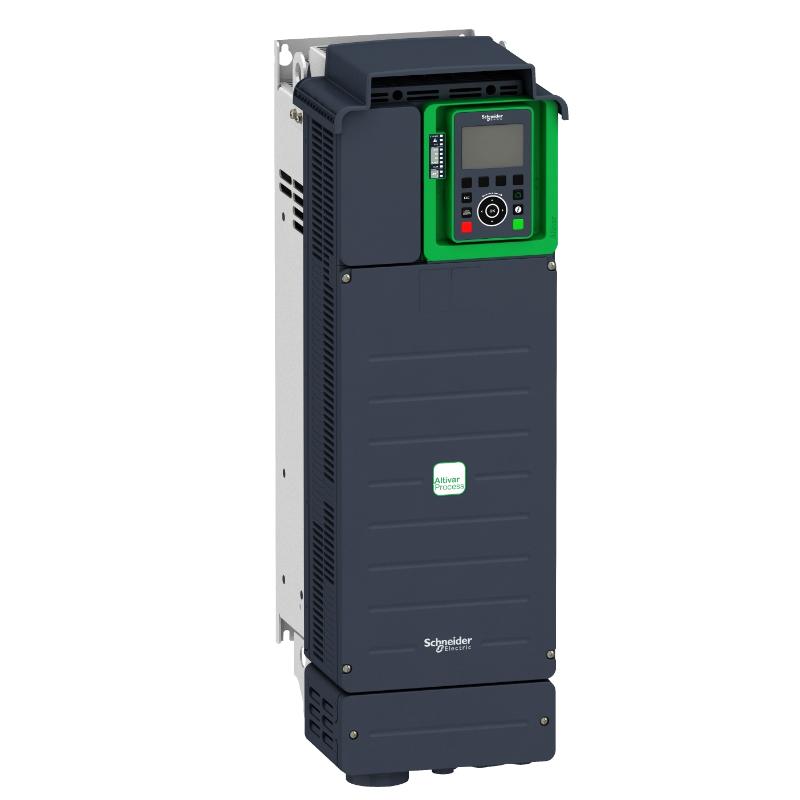

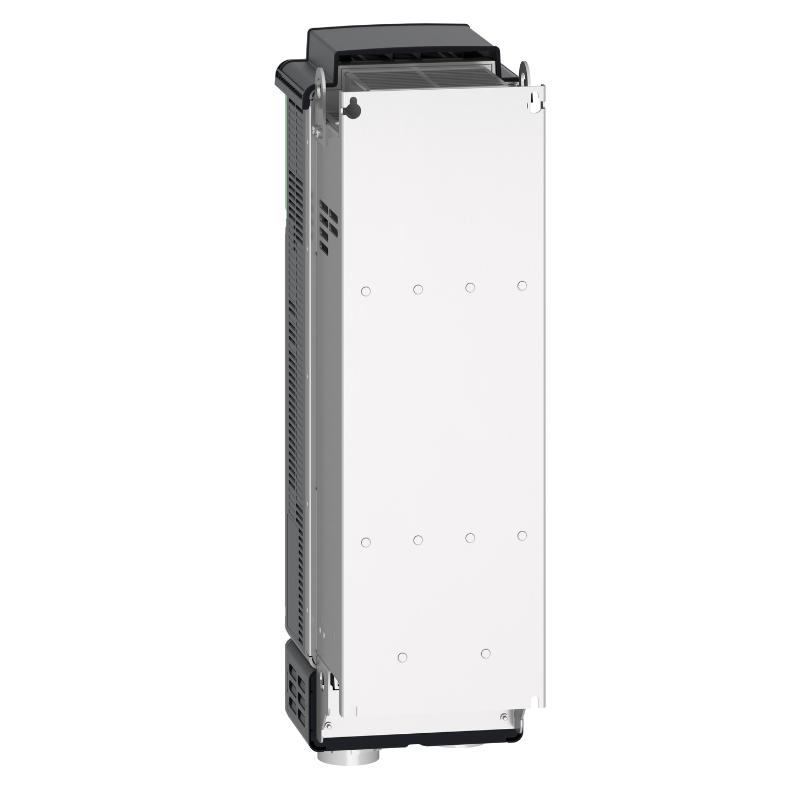

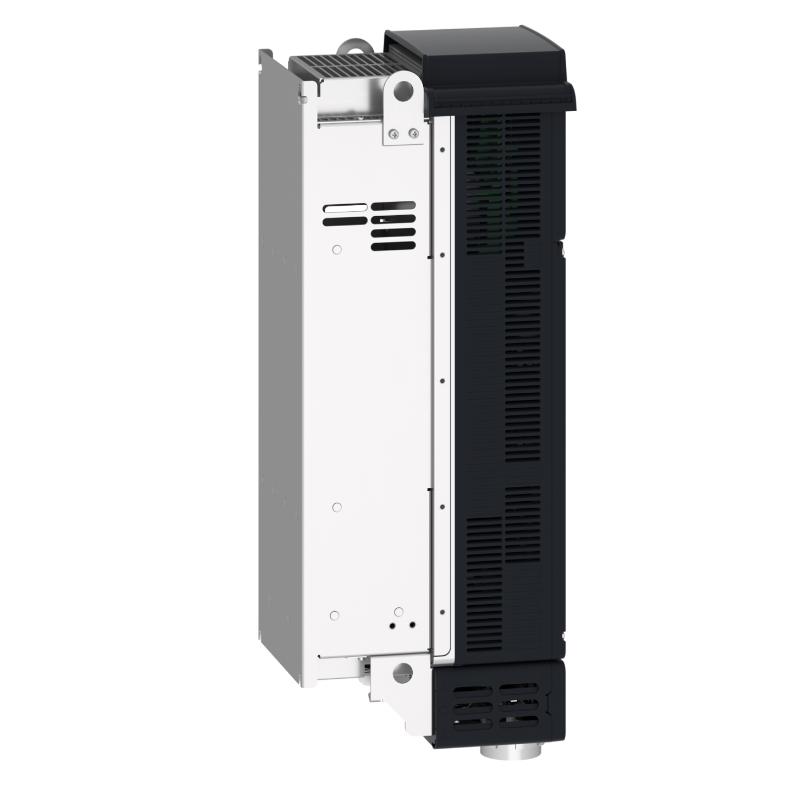

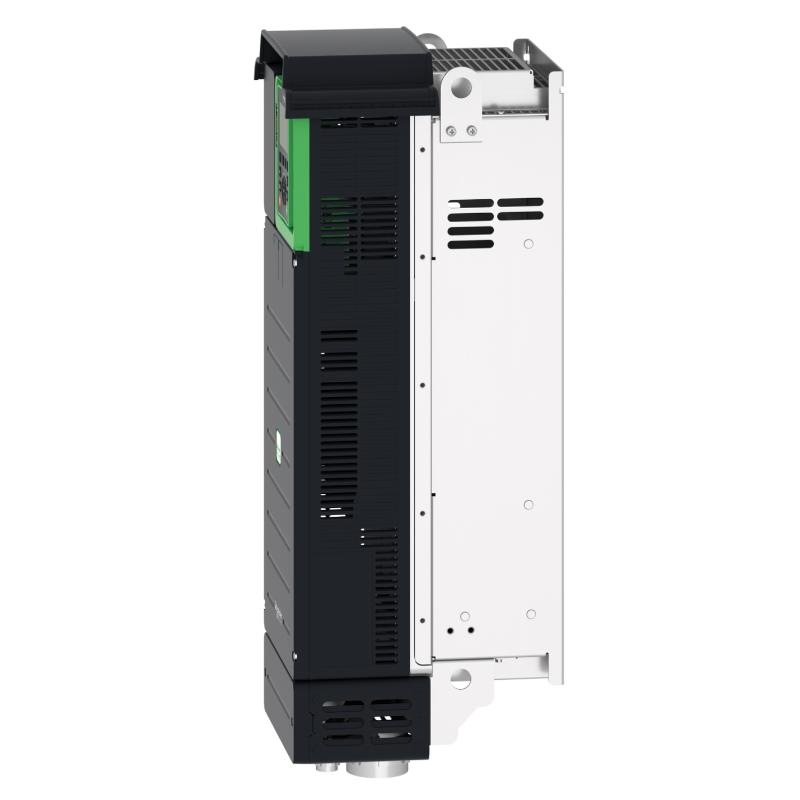

The Schneider Electric ATV930D45N4 is a robust 45 kW (60 HP) industrial variable frequency drive from the advanced Altivar Process ATV900 series, engineered for precision motor control and process automation. Designed for demanding industrial environments, this drive combines energy‑efficient performance with built‑in braking capability, making it ideal for applications where controlled deceleration, reliability, and continuous operation are essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 380–480 V AC, 3‑phase |
| Output Voltage | 0–480 V AC |
| Motor Power | 45 kW (60 HP) normal duty / 37 kW (50 HP) heavy duty |
| Continuous Output Current | ~88 A (normal duty) / ~74.5 A (heavy duty) |
| Overload Capacity | 120 % (normal duty), 150 % (heavy duty) |
| Control Modes | V/F, Sensorless Vector, Closed‑loop Vector |
| Communication Protocols | Modbus TCP, Modbus Serial, Ethernet/IP, CANopen |
| Integrated Features | Braking chopper, EMC filter, energy & process monitoring |
| Enclosure & Protection | IP21 (UL Type 1), wall or cabinet mount |
| Ambient Operating Temperature | –10°C to 50°C |
| Dimensions (Approx.) | 410 × 226 × 274 mm (HxWxD) |
| Weight | 28.7 kg |
Note: The listed weight is based on distributor data for the ATV930D45N4 model.
