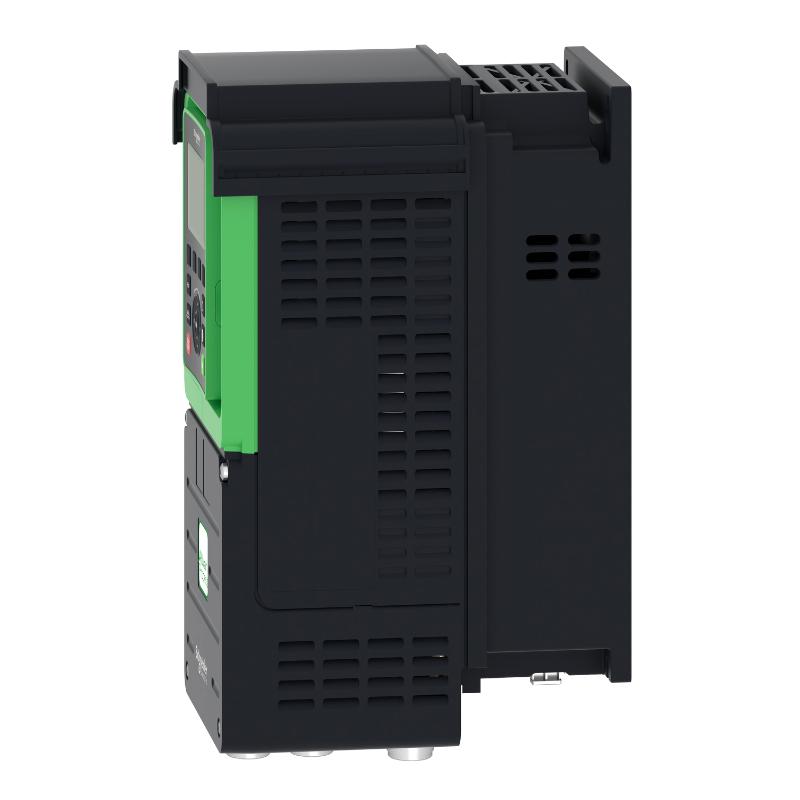

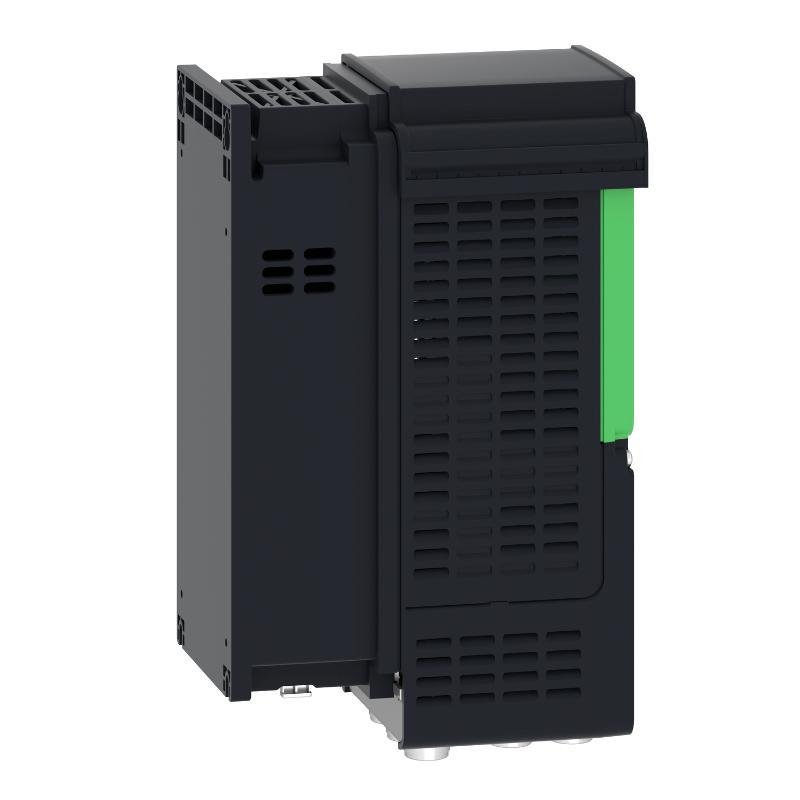

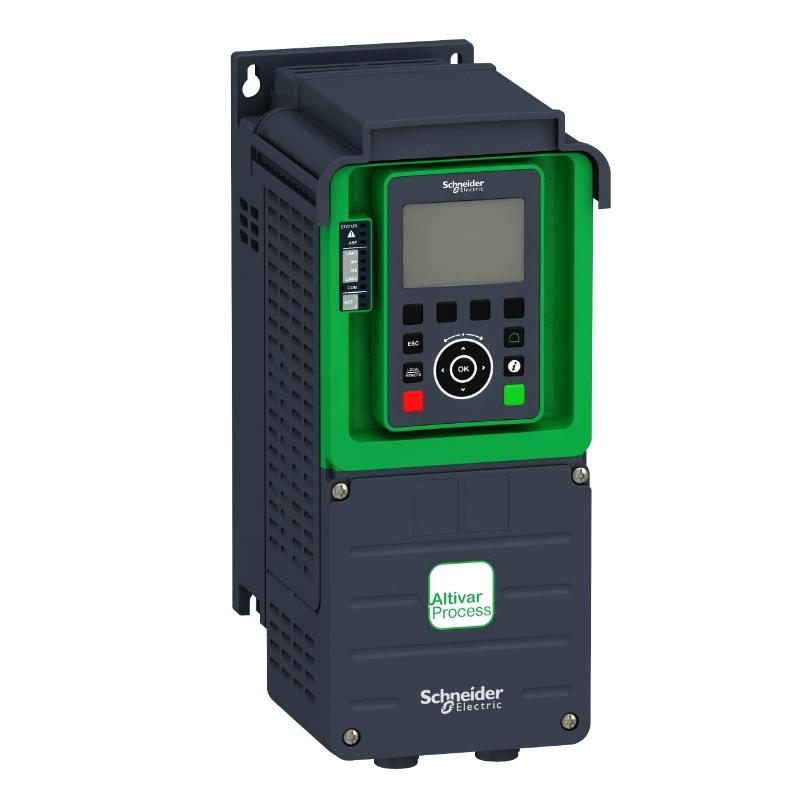

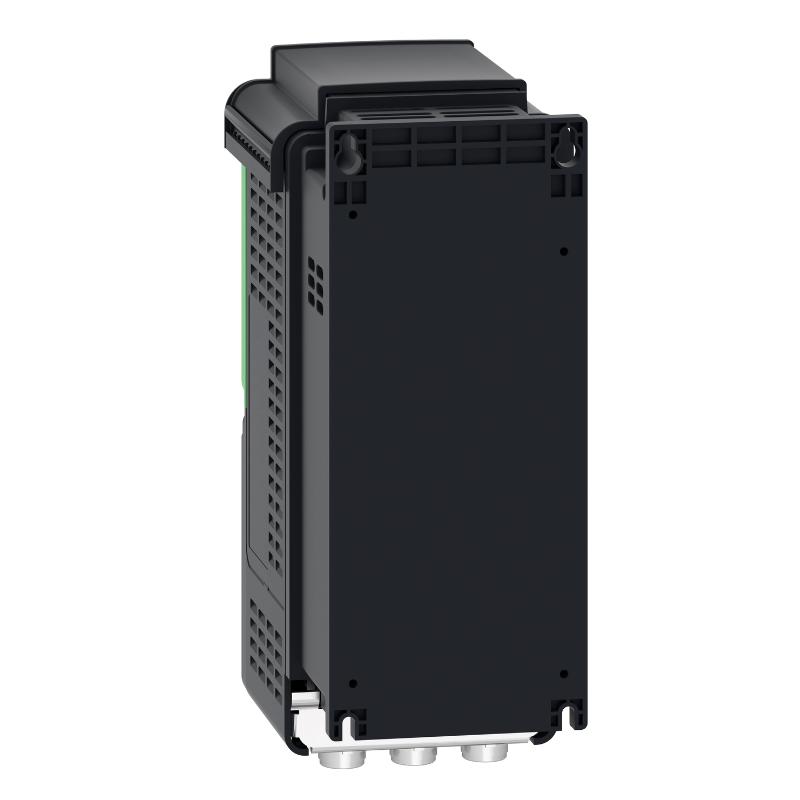

The Schneider ATV930U07N4 is a compact and versatile variable frequency drive (VFD) engineered for light to medium industrial applications. Delivering precise motor control, energy efficiency, and reliable performance, it is ideal for small pumps, fans, and conveyor systems. The ATV930U07N4 combines a user-friendly interface with robust protection features, making it an excellent choice for plants that prioritize operational efficiency and minimal maintenance. Its compact footprint allows easy installation even in tight control panels, without compromising on control flexibility or reliability.

Technical Specifications

Feature	Specification
Brand	Schneider Electric
Model	ATV930U07N4
Type	Variable Frequency Drive (VFD)
Rated Power	0.75 kW
Input Voltage	200–240 V AC, 1-phase
Output Voltage	0–240 V AC
Output Current	4.0 A
Frequency Range	0.1–500 Hz
Control Modes	V/f, Sensorless Vector
Dimensions (H × W × D)	140 × 90 × 155 mm
Weight	1.4 kg
Cooling Method	Natural Convection / Forced Air Optional
Communication	Modbus RTU
Protection	Overcurrent, Overvoltage, Undervoltage, Thermal, Short-Circuit Protection

Recommended Related Models

Schneider ATV930U15N4 – 1.5 kW compact VFD
Schneider ATV930U22N4 – 2.2 kW light-duty VFD
Schneider ATV930U37N4 – 3.7 kW medium-power solution

Popular Schneider Models

Schneider ATV930U07N4 – compact 0.75 kW VFD
Schneider ATV930D11N4 – versatile 11 kW industrial VFD
Schneider ATV930D30N4 – 30 kW heavy-duty drive

Applications

Small industrial pumps and fans
Light conveyor and material handling systems
HVAC systems for commercial buildings
Packaging machines and assembly lines
Water treatment and filtration systems

Advantages

Compact and lightweight design for easy installation
High efficiency reduces energy consumption
Precise motor control ensures smooth start and stop
Robust protection against overcurrent, voltage fluctuations, and thermal overload
Simple integration with Modbus RTU automation networks

Technical FAQs

What is the maximum ambient temperature for the ATV930U07N4?
Operates reliably up to 50°C (122°F) without derating.
Can it drive both single-phase and three-phase motors?
It is designed for single-phase input, driving three-phase motors.
Does it support sensorless vector control?
Yes, it provides smooth speed and torque control without an encoder.
Is remote monitoring available?
Yes, via Modbus RTU for integration with PLCs and SCADA systems.
What is the protection rating of this VFD?
IP20 enclosure, suitable for indoor installation.
Is it suitable for variable torque loads like fans and pumps?
Yes, optimized for light variable torque applications.
What is the typical efficiency of this drive?
Exceeds 95% at nominal load.
Can it handle frequent start-stop cycles?
Yes, designed for continuous operation with frequent cycling.
What safety protections are included?
Overcurrent, overvoltage, undervoltage, thermal, and short-circuit protections.
Can it be mounted in tight control panels?
Yes, its compact size and lightweight design allow flexible installation.
