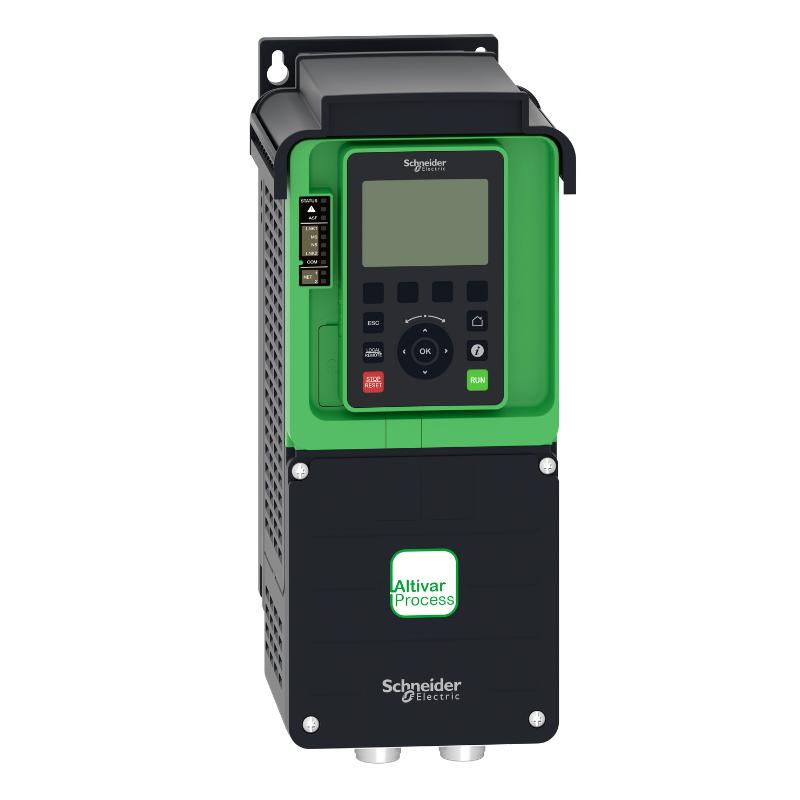

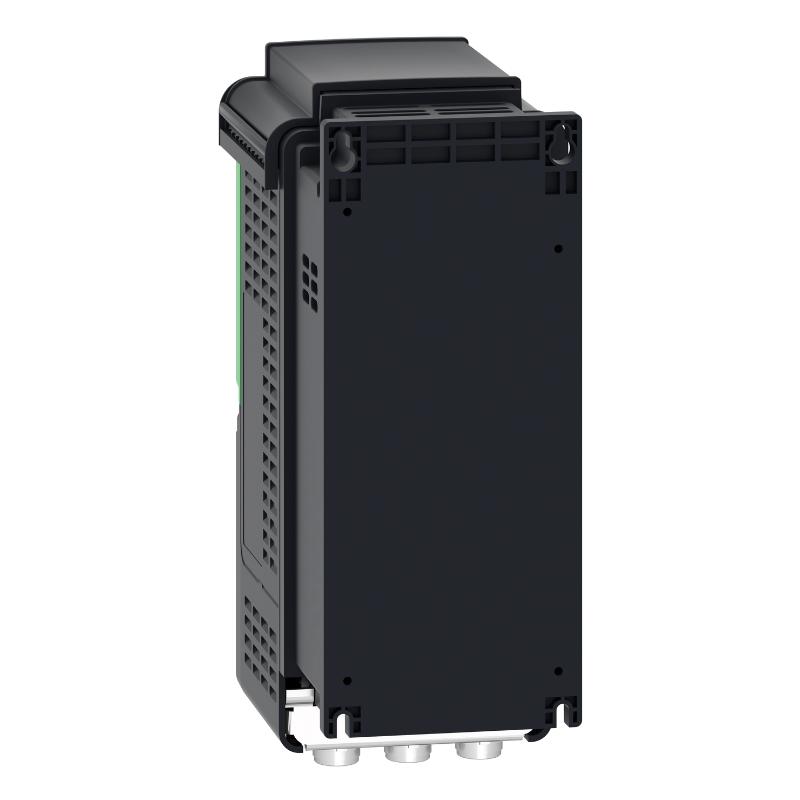

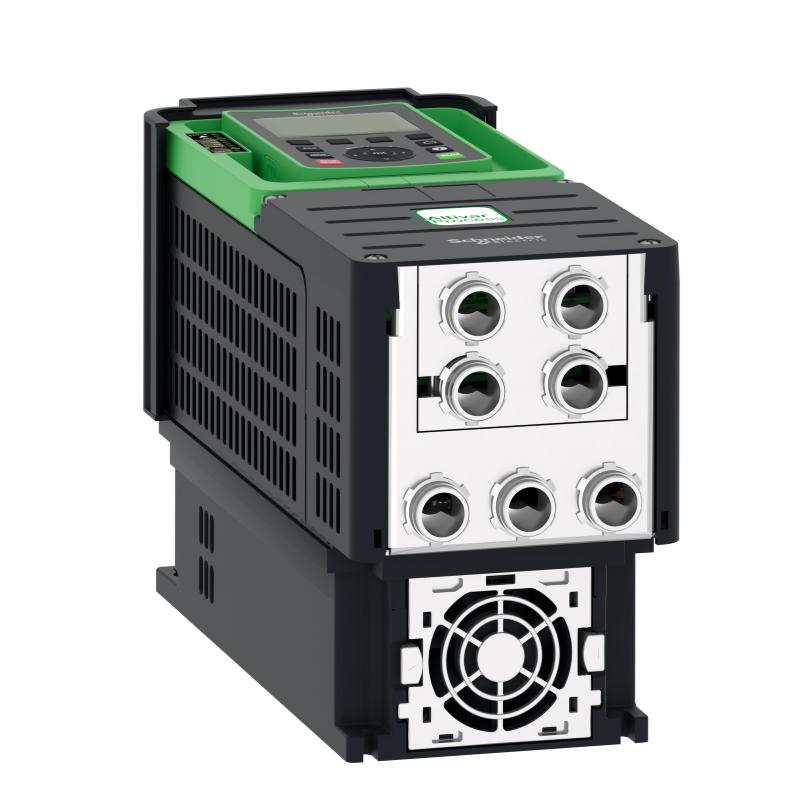

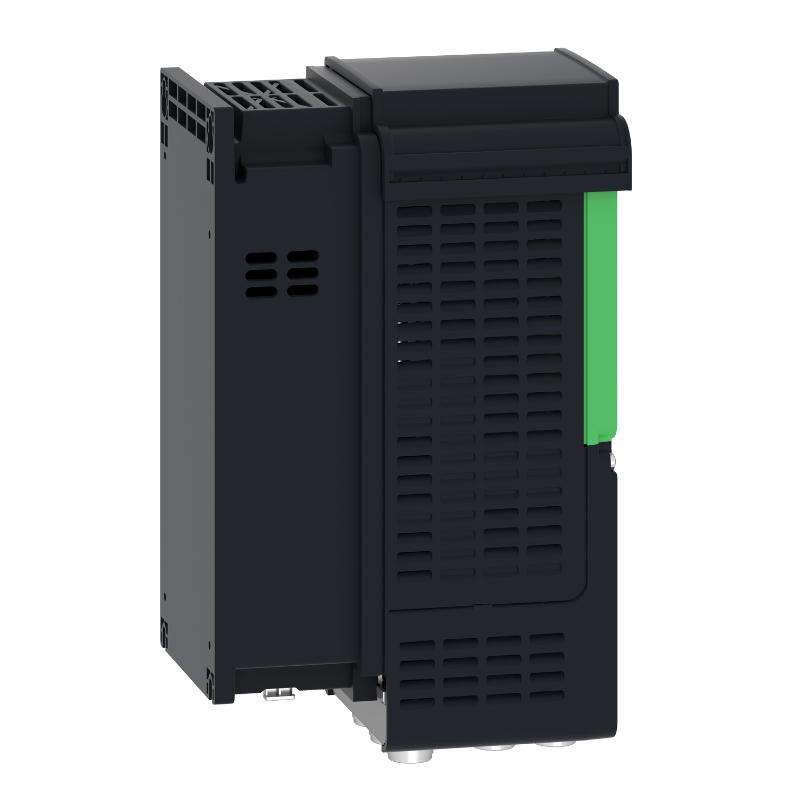

ATV930U15N4-3 ATV930U15N4-4 ATV930U15N4-1 ATV930U15N4-2 The Schneider ATV930U15N4 is a versatile and compact variable frequency drive designed to deliver reliable performance in light to medium industrial applications. Optimized for efficiency and precise motor control, this VFD is ideal for small pumps, fans, and conveyor systems. Its intuitive interface, combined with robust safety features, ensures smooth operation and reduces maintenance requirements. The ATV930U15N4 offers a perfect balance between power, compactness, and cost-effectiveness, making it an essential tool for modern automation environments.

Technical Specifications

Feature	Specification
Brand	Schneider Electric
Model	ATV930U15N4
Type	Variable Frequency Drive (VFD)
Rated Power	1.5 kW
Input Voltage	200–240 V AC, 1-phase
Output Voltage	0–240 V AC
Output Current	8.0 A
Frequency Range	0.1–500 Hz
Control Modes	V/f, Sensorless Vector
Dimensions (H × W × D)	165 × 90 × 170 mm
Weight	2.1 kg
Cooling Method	Natural Convection / Optional Forced Air
Communication	Modbus RTU
Protection	Overcurrent, Overvoltage, Undervoltage, Thermal, Short-Circuit Protection

Recommended Related Models

Schneider ATV930U07N4 – 0.75 kW compact VFD
Schneider ATV930U22N4 – 2.2 kW light-duty VFD
Schneider ATV930U37N4 – 3.7 kW medium-power solution

Popular Schneider Models

Schneider ATV930U15N4 – 1.5 kW versatile VFD
Schneider ATV930D11N4 – 11 kW industrial-grade VFD
Schneider ATV930D30N4 – 30 kW heavy-duty drive

Applications

Small pumps, fans, and blowers
Light conveyor and material handling systems
HVAC systems in commercial buildings
Packaging and assembly machinery
Water and wastewater treatment facilities

Advantages

Compact and lightweight for easy installation in tight spaces
Energy-efficient operation reduces electricity costs
Smooth motor start and stop for minimal mechanical stress
Comprehensive protection against overcurrent, voltage fluctuations, and thermal overload
Easy integration with Modbus RTU-enabled automation systems

Technical FAQs

What is the maximum ambient temperature for the ATV930U15N4?
The drive operates reliably up to 50°C (122°F) without derating.
Can it drive single-phase motors?
Designed for single-phase input, it drives standard three-phase motors efficiently.
Does it support sensorless vector control?
Yes, enabling precise speed and torque control without additional sensors.
Is remote monitoring possible?
Yes, through Modbus RTU for integration with PLCs or SCADA systems.
What is the protection rating?
IP20, suitable for indoor industrial environments.
Is it suitable for variable torque applications like fans and pumps?
Yes, it is optimized for light to medium variable torque loads.
What is the efficiency of this VFD?
Typical efficiency exceeds 96% at nominal load.
Can it handle frequent start-stop cycles?
Yes, it is built for frequent cycling and continuous operation.
What safety protections are included?
Overcurrent, overvoltage, undervoltage, thermal, and short-circuit protection.
Can it be installed in small control panels?
Absolutely, its compact size and lightweight design allow flexible mounting.
