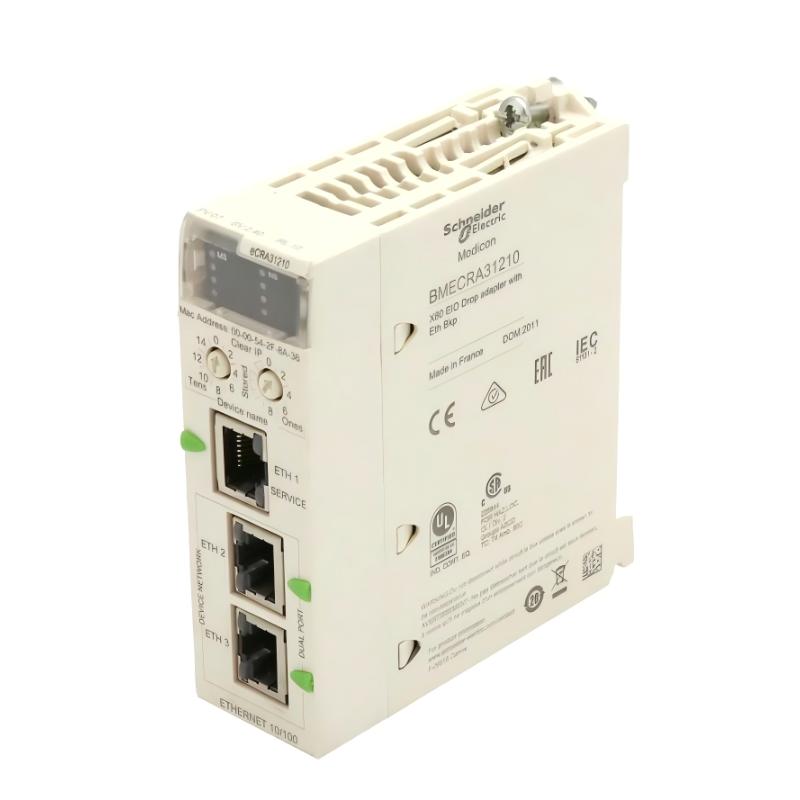

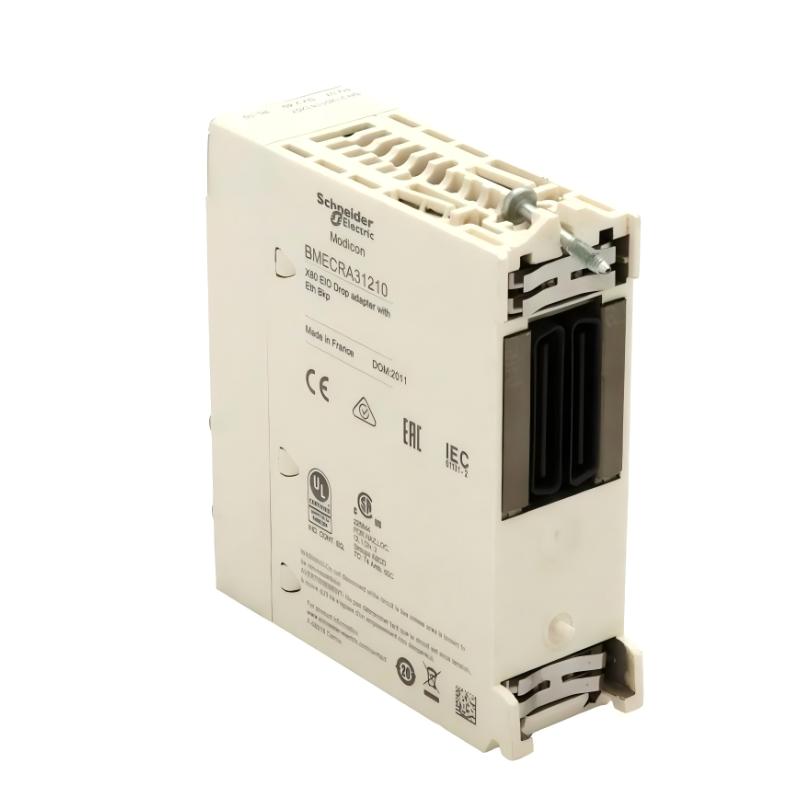

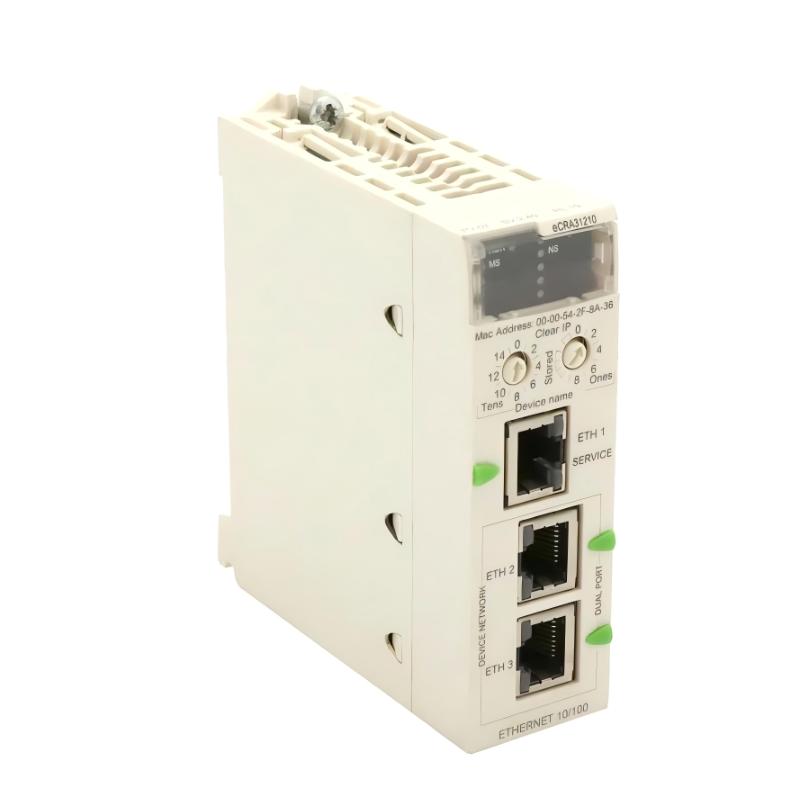

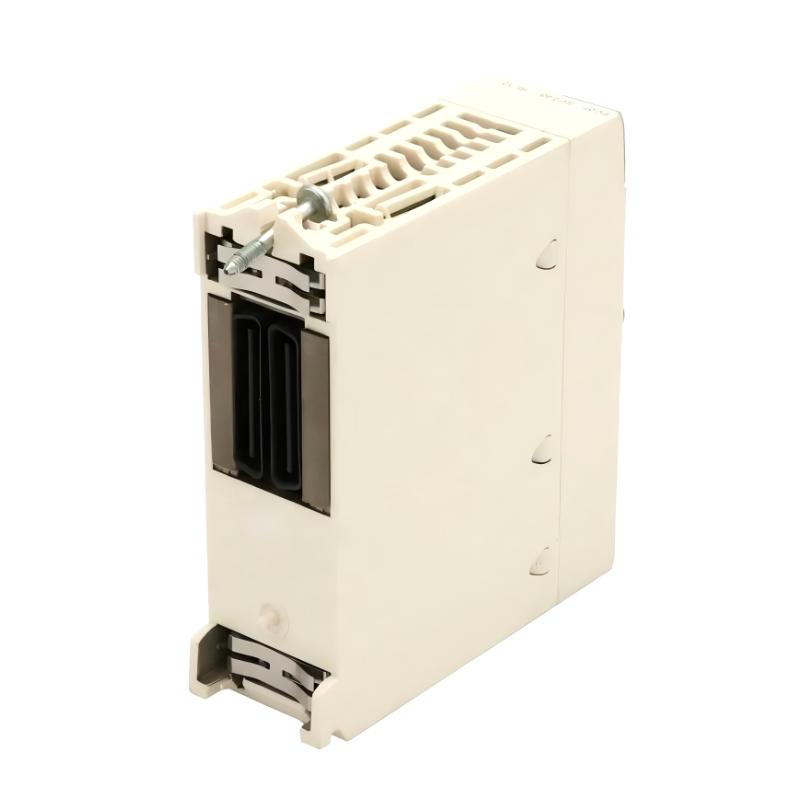

The Schneider BMECRA31210 is a premium communication module engineered for seamless connectivity and data exchange in industrial automation systems. Designed specifically for robust performance in demanding environments, it facilitates reliable communication between controllers, I/O networks, and supervisory systems. With support for industry-standard protocols and optimized firmware, this module enhances system responsiveness, reduces integration complexity, and ensures scalable network expansion. Whether deployed in process control, manufacturing lines, or distributed automation architectures, the BMECRA31210 delivers dependable performance and future-ready connectivity.

Technical Specifications

Feature	Specification
Brand	Schneider Electric
Model	BMECRA31210
Module Type	Communication Module
Protocol Support	Industry-standard protocols (e.g., Modbus, Ethernet/IP)
Interface	Dual-port Ethernet / Fieldbus (specific configuration may vary)
Data Rate	Up to 100 Mbps
Mounting	DIN rail or chassis mount
Power Supply	24 V DC
Operating Temperature	–20°C to +60°C
Storage Temperature	–40°C to +85°C
Humidity	5% to 95% non-condensing
Dimensions (H × W × D)	90 × 45 × 82 mm
Weight	0.15 kg
Status Indicators	Multi-color LEDs for link/activity diagnosis
Certifications	CE, UL, RoHS compliant
Protection Rating	IP20 (standard)

Recommended Related Models

Schneider BMECRA31200 – Base communication module with essential connectivity
Schneider BMECRA31230 – Enhanced communication module with extended protocol support
Schneider BMENOC30220 – Network I/O controller with fieldbus integration

Popular Schneider Models

Schneider Modicon M340 – Compact PLC platform for industrial automation
Schneider Modicon M580 – High-performance Ethernet-based automation controller
Schneider BMXP342010 – I/O expansion module for distributed architectures

Applications

Industrial automation communication backbones
Distributed I/O networks in factories
Machine-to-machine data exchange
Process control system networking
Integration with SCADA and MES systems

Advantages

Reliable Connectivity: Ensures stable communication across automation networks with minimal latency.
Scalable Integration: Works seamlessly with a broad range of Schneider controllers and network architectures.
Compact & Flexible: Small footprint supports use in tight control cabinets without sacrificing performance.
Protocol Flexibility: Supports multiple industrial protocols to fit diverse automation requirements.
Diagnostic Clarity: Built-in status LEDs enable quick troubleshooting and real-time network monitoring.

Technical FAQs

What type of communication protocols does the BMECRA31210 support?
It supports industry-standard protocols such as Modbus and Ethernet/IP for flexible system integration.
Can this module be mounted on DIN rails?
Yes, it is designed for easy DIN rail or chassis mounting.
What is the operating temperature range for this module?
–20°C to +60°C, making it suitable for most industrial environments.
Is it compatible with Schneider Modicon PLCs?
Yes, the module integrates seamlessly with Schneider Modicon PLC families.
Does it provide diagnostic indicators?
Yes, multi-color LEDs indicate link status, activity, and error conditions.
What is the maximum data rate supported?
Up to 100 Mbps Ethernet communication throughput.
Is a separate power supply required?
Yes, it requires a 24 V DC supply for operation.
Can it be used in process control networks?
Absolutely, it is optimized for both discrete and continuous process automation networks.
What certifications does this module have?
It carries CE, UL, and RoHS compliance for industrial deployments.
Does it support hot swapping?
While diagnostics are robust, hot swapping depends on the host system architecture and is generally not recommended for live systems.
