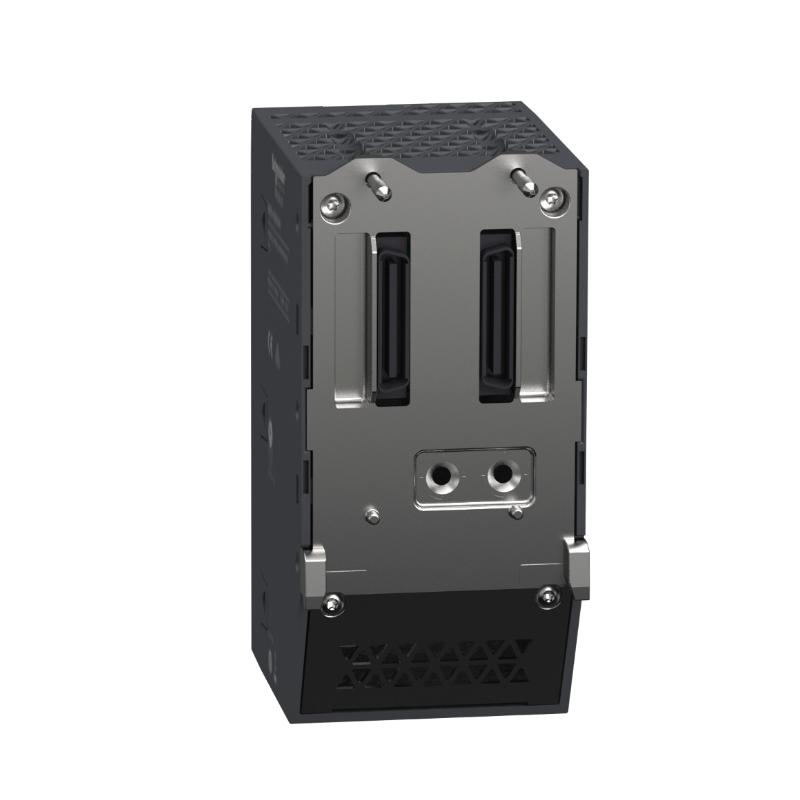

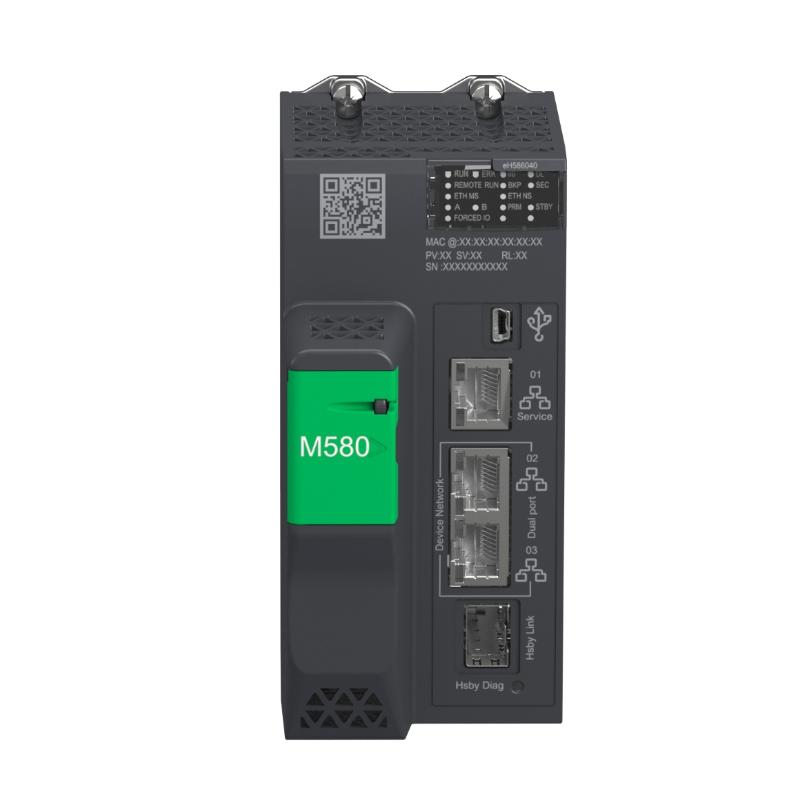

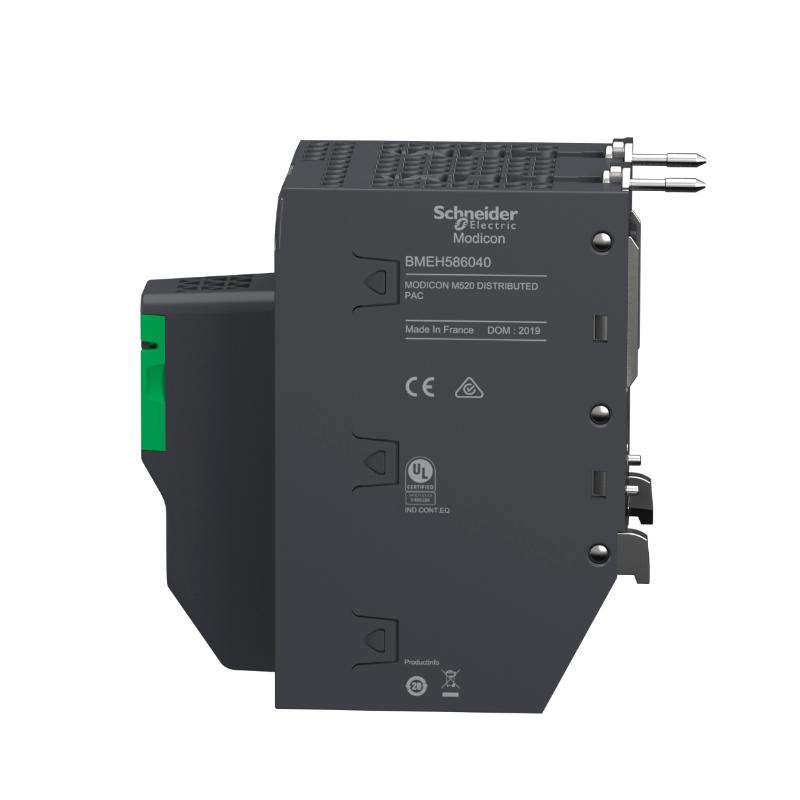

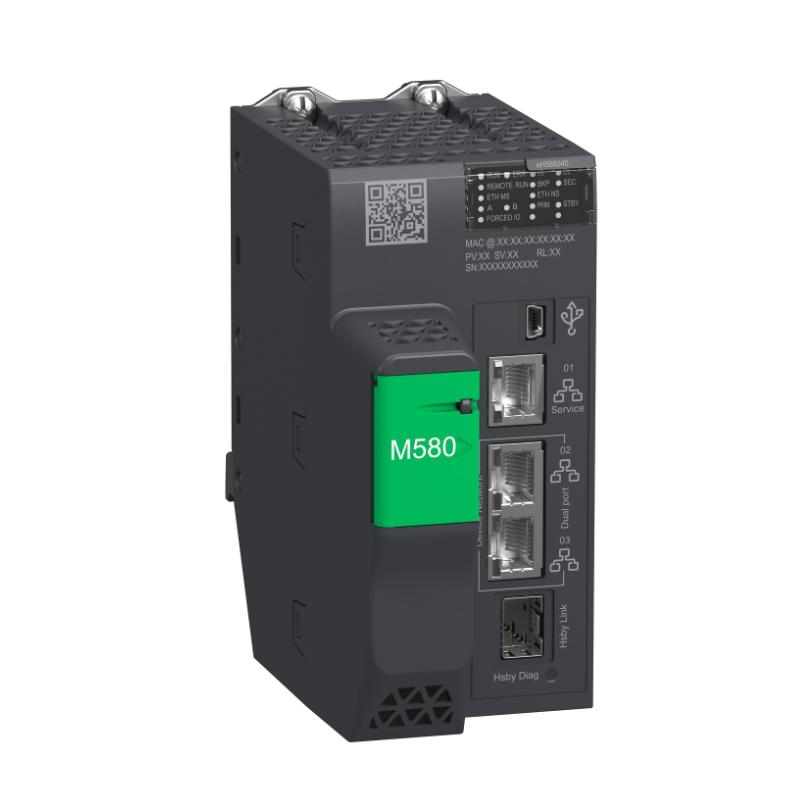

The Schneider BMEH586040 is a high‑end redundant processor module from the Modicon M580 automation platform, engineered for advanced industrial process control and network applications. Designed to support robust hot‑standby configurations (HSBY Level 6), this CPU module delivers maximum uptime and resilient performance in critical automation environments. With powerful processing memory, extensive communication support, and scalability for distributed I/O, the BMEH586040 is ideal for systems where continuous operation and data integrity are essential.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMEH586040 |
| Module Type | Redundant Processor Module (Hot Standby CPU) |
| Product Range | Modicon M580 |
| Redundancy Level | HSBY Level 6 |
| Number of Racks | 1 |
| Processor RAM | 64 MB (program & data) |
| System Memory | 10 kB |
| HSBY Data RAM | 4096 kB |
| Expandable Flash | 4 GB |
| Remote I/O Stations | Up to 31 (2 racks per X80/Quantum drop) |
| Distributed Equipment | Up to 64 devices |
| Communication Ports | 1 Service Ethernet TCP/IP, 2 Device Ethernet TCP/IP, 1 HSBY Ethernet port, 1 USB mini‑B |
| Power Supply | Internal via rack (24 V DC typical, 295 mA) |
| Operating Temperature | 0–60 °C |
| Storage Temperature | –40–85 °C |
| Humidity | 5–95 % non‑condensing |
| Vibration Resistance | 3 gn |
| Shock Resistance | 30 gn |
| Protection Rating | IP20 |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy |
| Dimensions (H × W × D) | 90 × 45 × 82 mm (approx.) |
| Weight | 0.849 kg |
| Status LEDs | RUN, ERR, I/O FAULT, DL, BACKUP, ETH MS/NS, REMOTE RUN, PRIMARY/STANDBY indicators |
