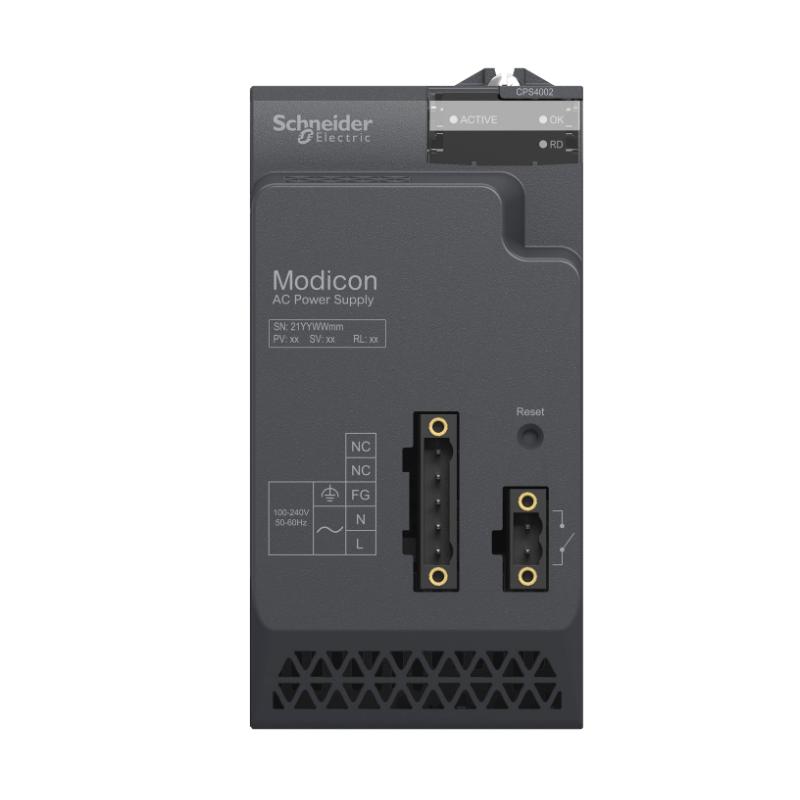

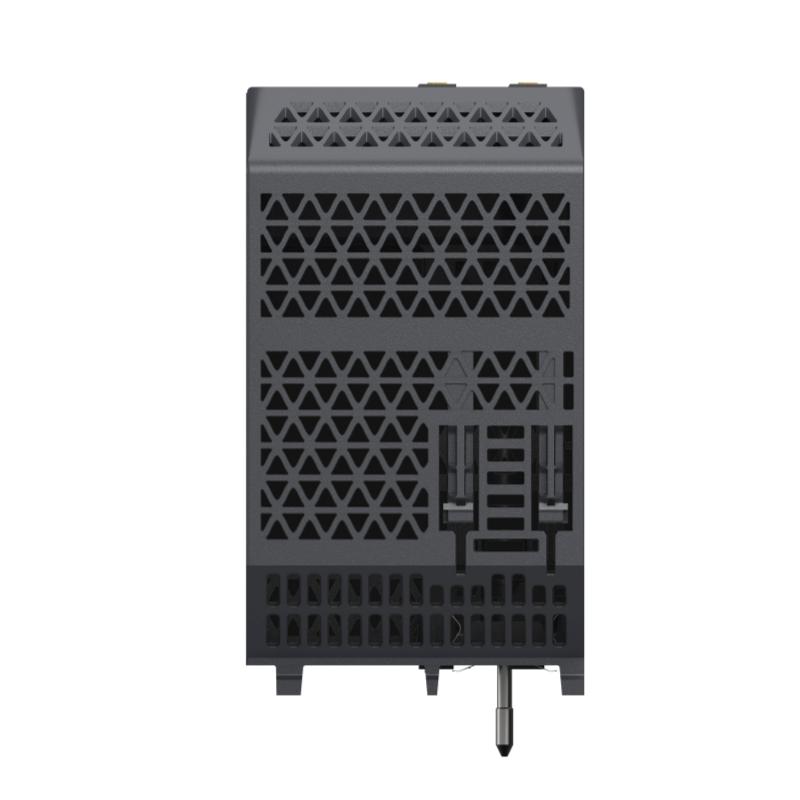

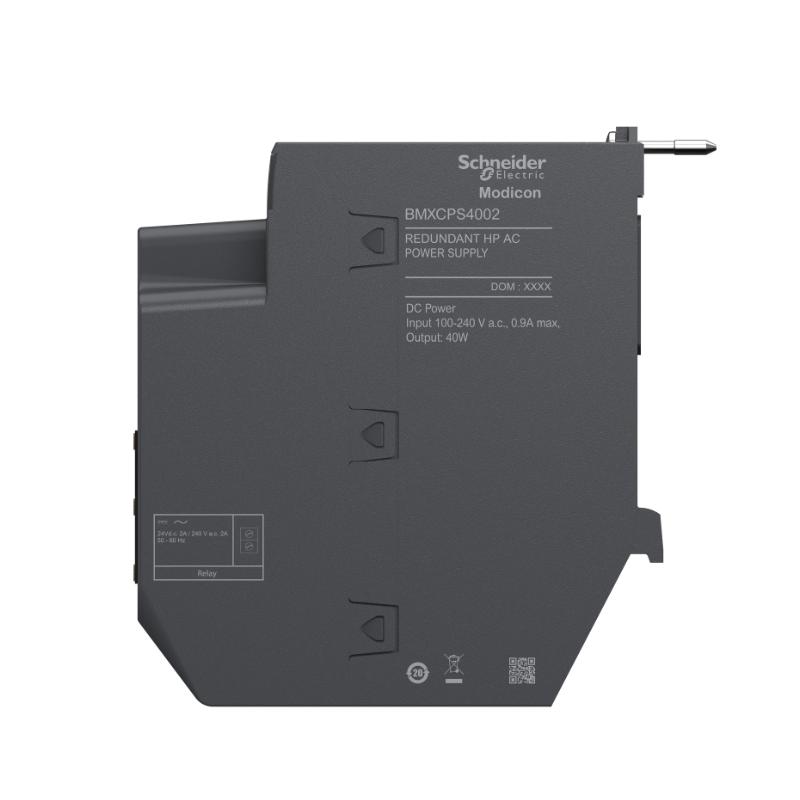

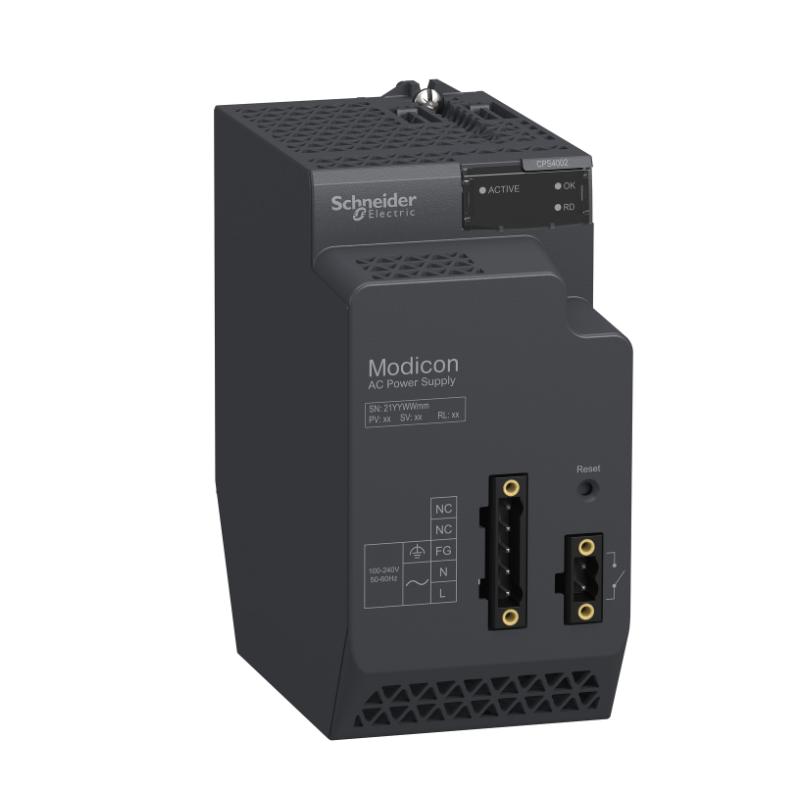

The Schneider BMXCPS4002 is a robust power supply module designed for the Modicon X80 automation system. It provides stable and regulated DC power to support PLC processors, I/O modules, and communication devices. Engineered for industrial environments, it ensures high reliability, continuous operation, and efficient energy delivery, making it ideal for mission‑critical automation systems.

Technical Specifications

Feature	Specification
Brand	Schneider Electric
Model	BMXCPS4002
Product Type	Power Supply Module (Modicon X80)
Input Voltage	100–240 V AC
Frequency	50/60 Hz
Output Voltage	24 V DC (main), 3.3 V DC (logic)
Output Power	40 W (24 V DC), 18 W (3.3 V DC)
Output Current	1.67 A (24 V), 5.5 A (3.3 V)
Protection	Overload, short-circuit, overvoltage
Mounting	Modicon X80 backplane
Operating Temperature	0–60 °C
Protection Rating	IP20
Dimensions (L×W×H)	250 × 177 × 88 mm
Weight	~0.78 kg

Recommended Related Models

Schneider BMXCPS4002S – Redundant power supply variant
Schneider BMEXBP1002 – 10‑slot backplane rack for X80 modules
Schneider BMENOC0301 – Ethernet communication module

Popular Schneider Models

Modicon M580 – High-performance automation controller
BMEH586040 – Redundant processor module
BMEXBP0602 – 6‑slot backplane rack

Applications

Powering Modicon X80 PLC racks in industrial control panels
Driving logic and I/O modules in distributed automation systems
Redundant and critical power supply architectures for manufacturing
Ensuring uninterrupted operation in factory automation and machine control

Advantages

Stable Output: Maintains reliable 24 V and 3.3 V DC outputs under varying input conditions
Industrial-Grade Design: Shock and vibration resistant, suitable for harsh environments
Diagnostic Feedback: LEDs provide clear status of power supply operation
Modicon X80 Compatible: Fully compatible with X80 backplanes and modules
Easy Integration: Fits directly into standard X80 racks for seamless deployment

Technical FAQs

What input voltage does the BMXCPS4002 accept?
100–240 V AC.
What are the output voltages?
24 V DC (main) and 3.3 V DC (logic).
Is the module suitable for redundant power systems?
Redundant variants exist (e.g., BMXCPS4002S) for dual power supply configurations.
What protections does the module provide?
Overload, short-circuit, and overvoltage protection.
What is the operating temperature range?
0–60 °C.
Is it compatible with Modicon X80 backplanes?
Yes, it mounts directly on X80 backplanes.
Can it power both processor and I/O modules?
Yes, it supports the power requirements for logic and I/O modules.
What is the protection rating?
IP20 for indoor industrial cabinets.
What are the module dimensions and weight?
250 × 177 × 88 mm, ~0.78 kg.
Does it provide diagnostic LEDs?
Yes, for power and status monitoring.
