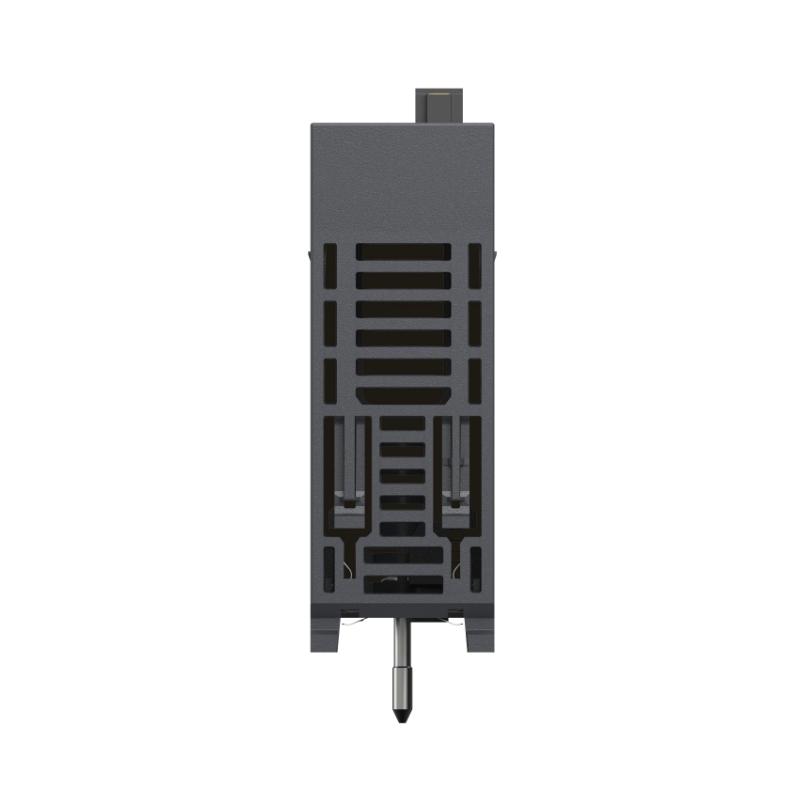

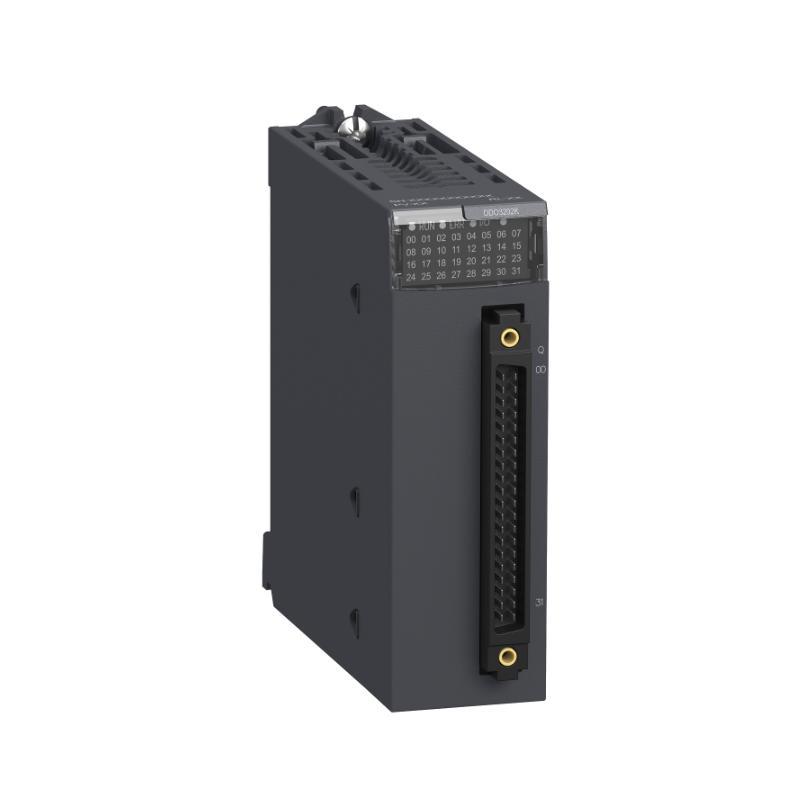

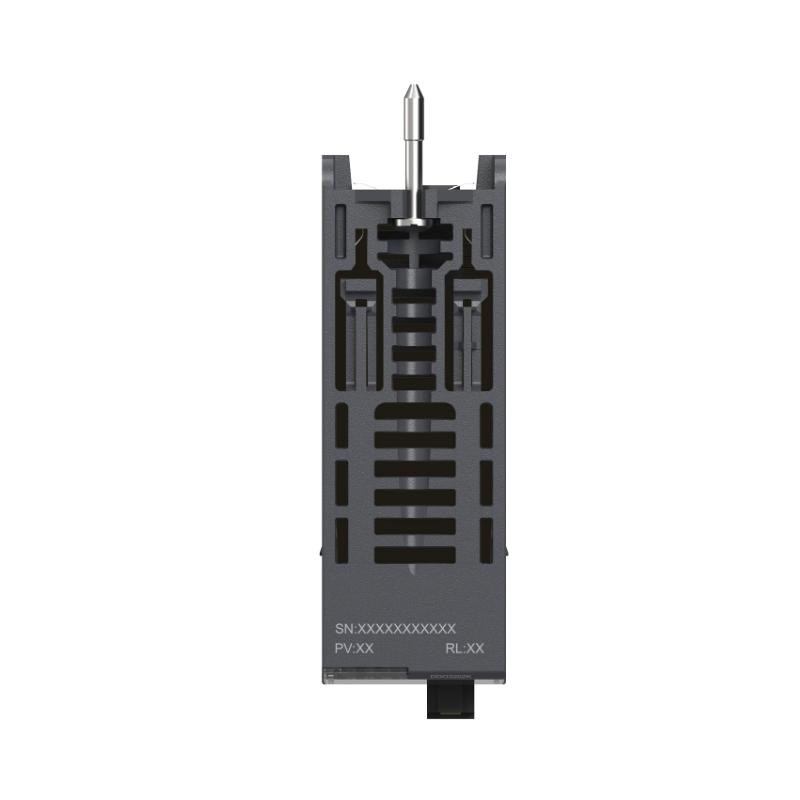

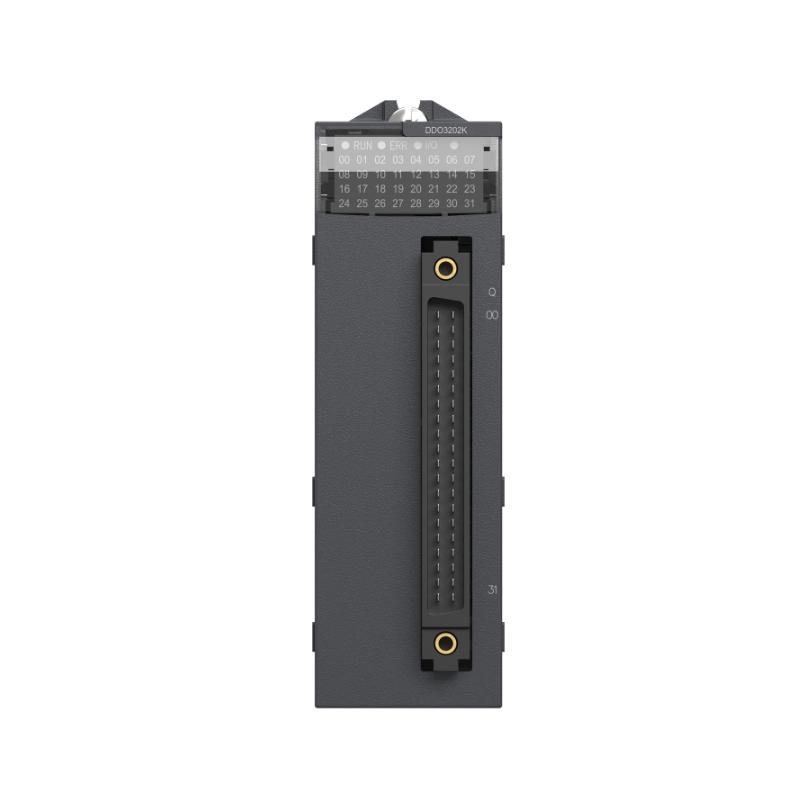

The Schneider BMXDDO3202K is a high-reliability discrete output module designed for the Modicon X80 PLC and I/O system. With 32 solid-state 24 V DC outputs, it ensures stable and precise control of actuators, indicators, and other industrial devices. Engineered for durability, the module provides integrated protection and clear diagnostic feedback, making it ideal for factory automation, machine control, and distributed I/O systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXDDO3202K |
| Module Type | Discrete Output Module (Modicon X80 Series) |
| Number of Outputs | 32 solid-state channels |
| Output Logic | Positive (source) |
| Rated Output Voltage | 24 V DC (operating range 19–30 V DC) |
| Output Current (per channel) | 0.1 A |
| Maximum Module Current | 3.2 A |
| Output Protection | Overcurrent and overload limiter |
| Response Time | ~1.2 ms |
| Status Indicators | RUN, ERR, individual channel LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Shock Resistance | 30 gn |
| Vibration Resistance | 3 gn |
| Protection Rating | IP20 |
| Insulation Resistance | >10 MΩ at 500 V DC |
| Dimensions (L×W×H) | 45 × 90 × 80 mm |
| Weight | ~110 g |
