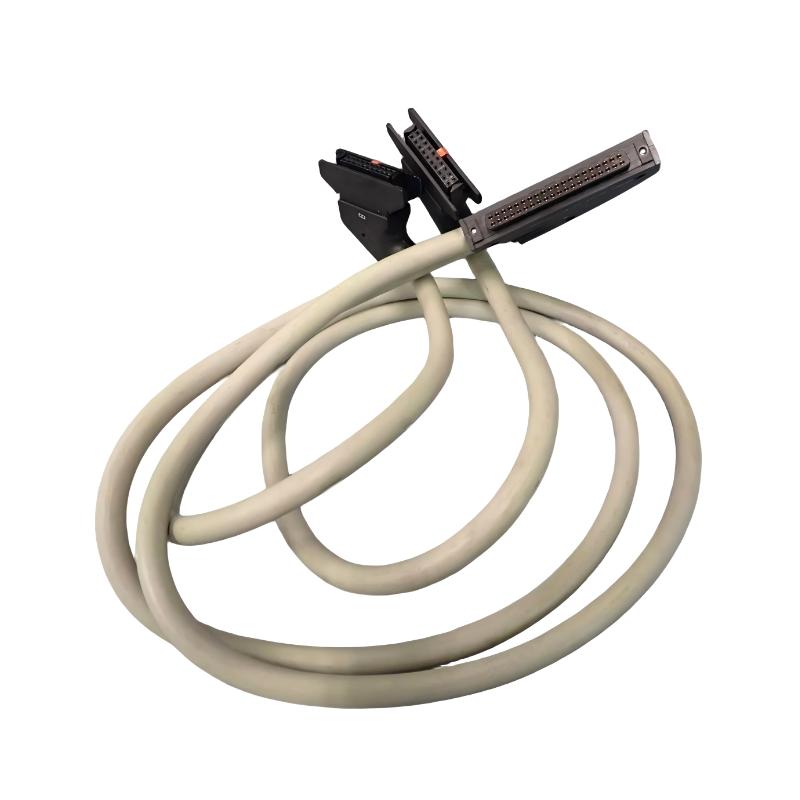

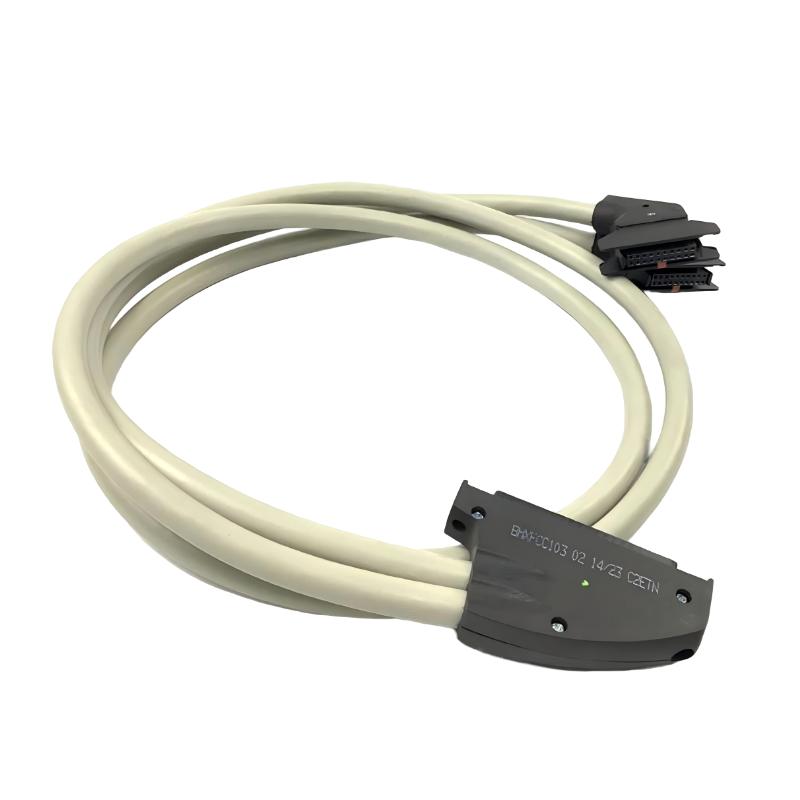

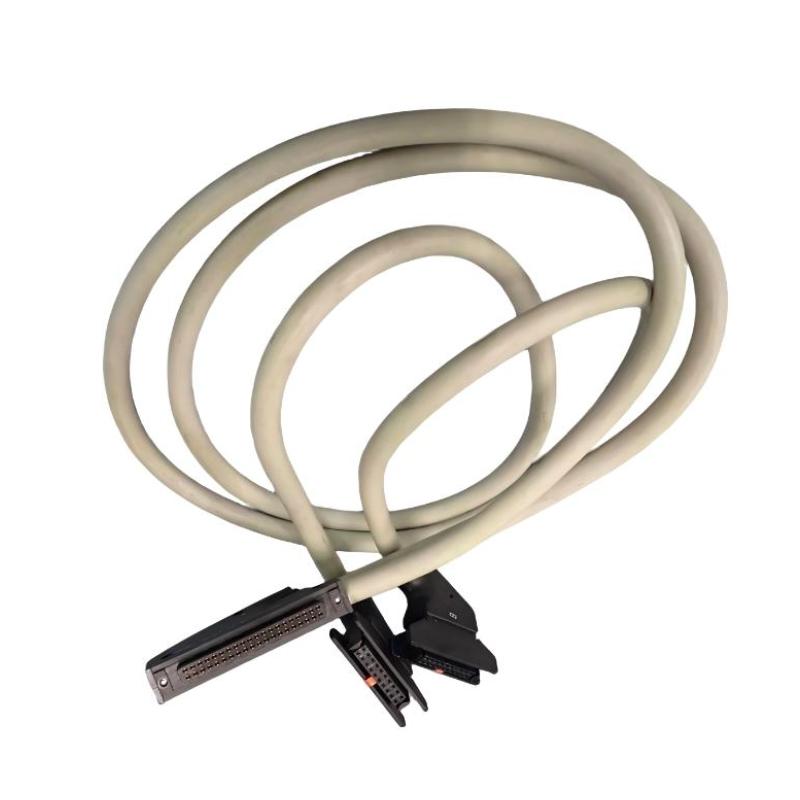

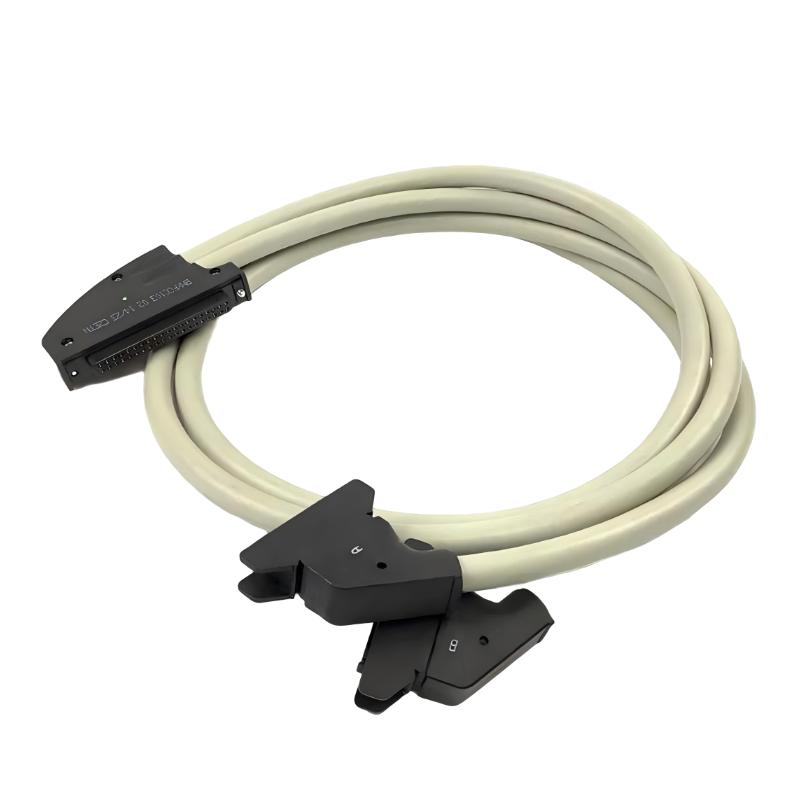

The Schneider BMXFCC103 is a robust communication module designed for Modicon X80 PLC and I/O systems. It provides reliable fieldbus connectivity, enabling seamless integration between controllers and distributed I/O modules. With high data throughput, industrial-grade durability, and clear diagnostic indicators, the BMXFCC103 ensures uninterrupted communication in factory automation, process control, and machine management environments.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXFCC103 |
| Module Type | Communication Module (Modicon X80) |
| Communication Protocol | Fieldbus (e.g., Profibus DP compatible) |
| Data Rate | Up to 12 Mbps (dependent on bus type) |
| Connector Type | Standard X80 backplane and field connectors |
| Status Indicators | RUN, ERR, LINK LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Shock Resistance | 30 gn |
| Vibration Resistance | 3 gn |
| Protection Rating | IP20 |
| Power Consumption | ~5 W |
| Dimensions (L × W × H, mm) | 120 × 90 × 70 mm |
| Weight | ~250 g |
Recommended Related Modules
- Schneider BMEXBP1002 – 10-slot X80 backplane rack
- Schneider BMXDDO3202K – 32-channel discrete output module
- Schneider BMXDDI3202K – 32-channel discrete input module
