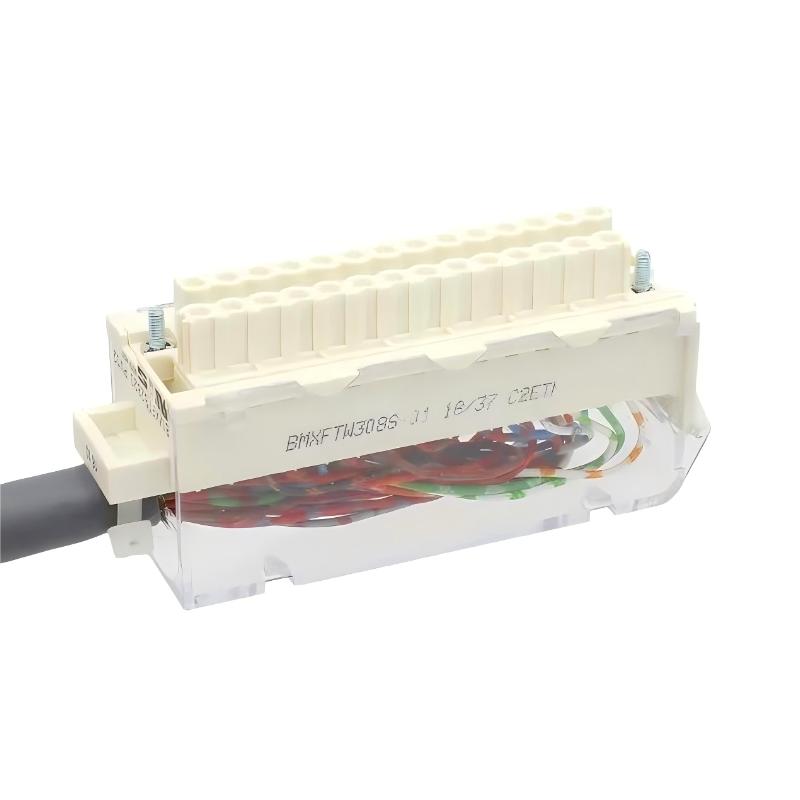

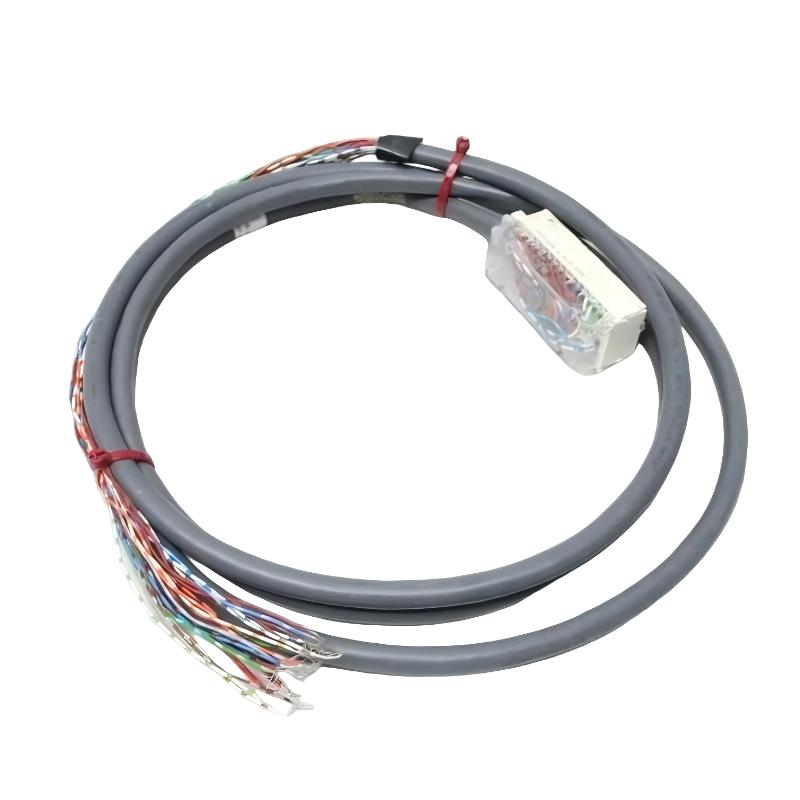

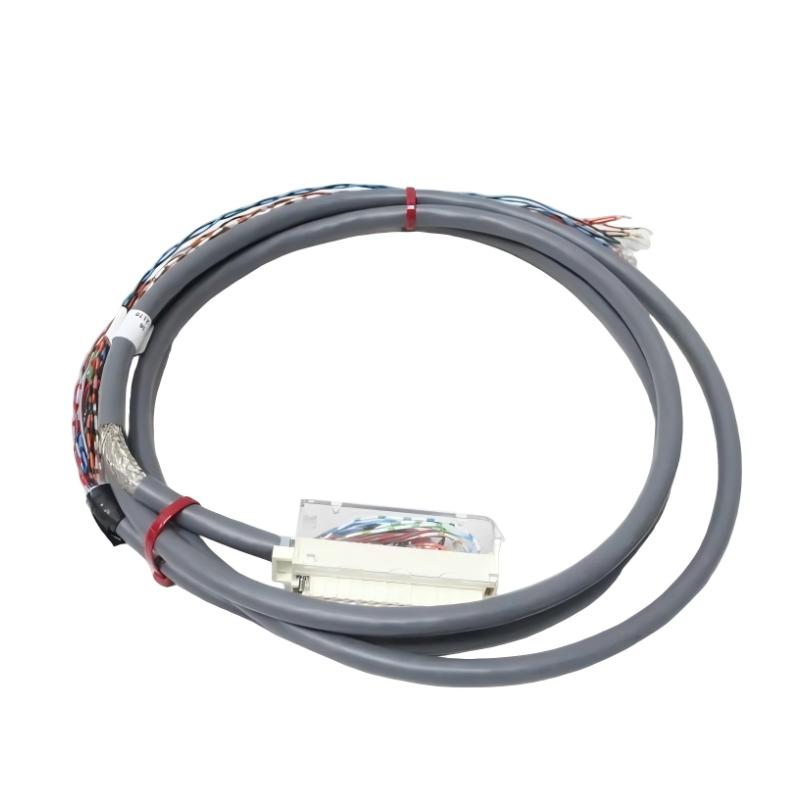

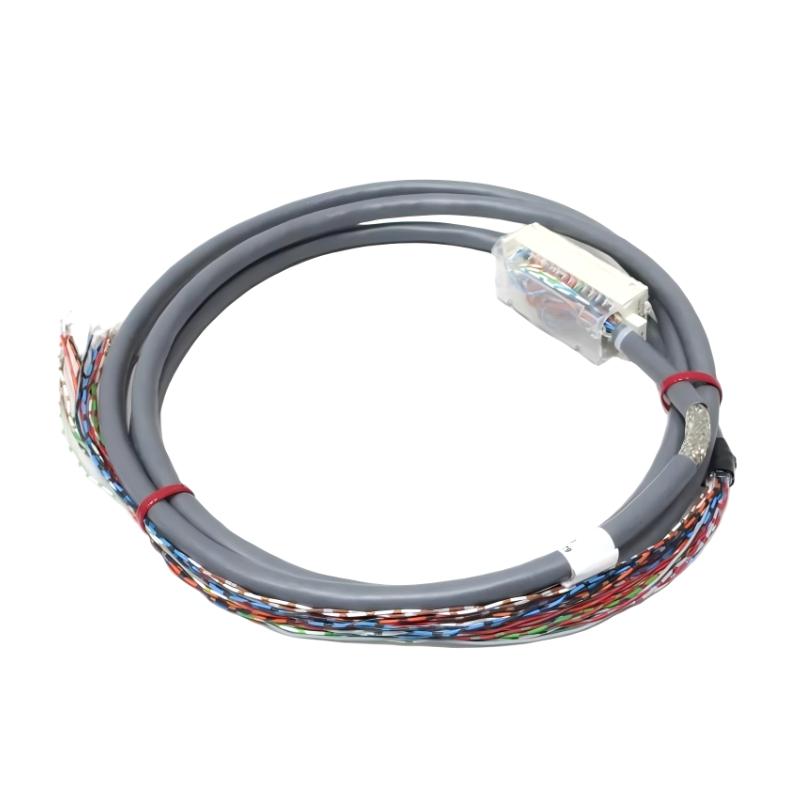

The Schneider BMXFTW308S is a high-speed communication module specifically designed for Modicon X80 PLC and I/O systems. It provides robust 8-port fieldbus connectivity, enabling reliable integration between controllers and distributed I/O devices. Built for industrial environments, this module ensures continuous, low-latency communication, supports advanced diagnostics, and guarantees efficient data exchange for automated manufacturing, machine control, and process management applications.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | BMXFTW308S |
| Module Type | Communication Module (Modicon X80) |
| Number of Ports | 8 fieldbus ports |
| Supported Protocols | Profibus DP, CANopen, Modbus RTU (dependent on configuration) |
| Maximum Data Rate | Up to 12 Mbps |
| Connector Type | Standard X80 backplane and field connectors |
| Status Indicators | RUN, ERR, LINK LEDs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Shock Resistance | 30 gn |
| Vibration Resistance | 3 gn |
| Protection Rating | IP20 |
| Power Consumption | ~6 W |
| Dimensions (L × W × H, mm) | 120 × 90 × 70 mm |
| Weight | ~270 g |
