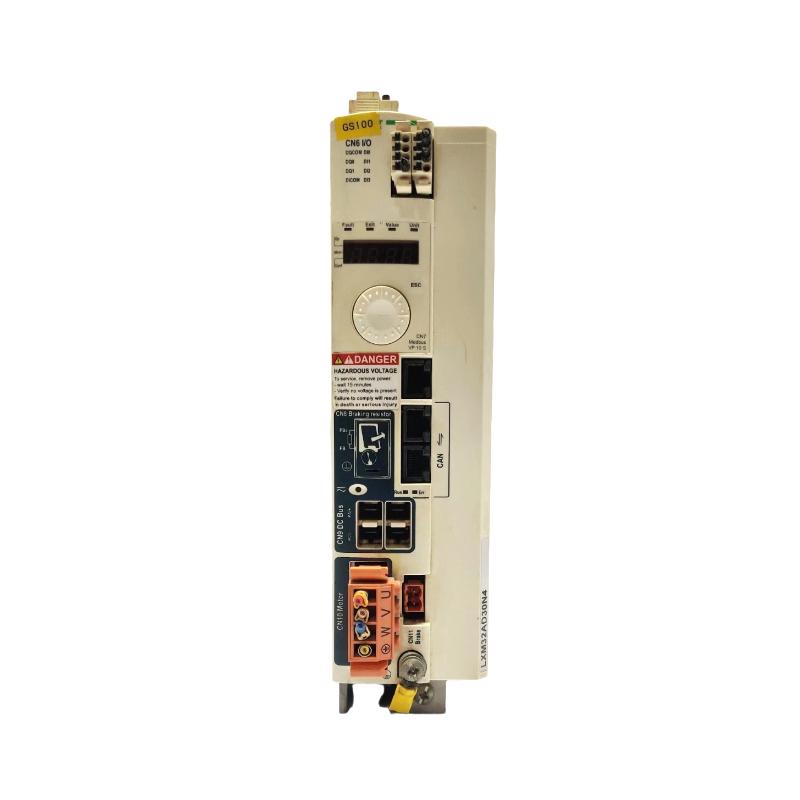

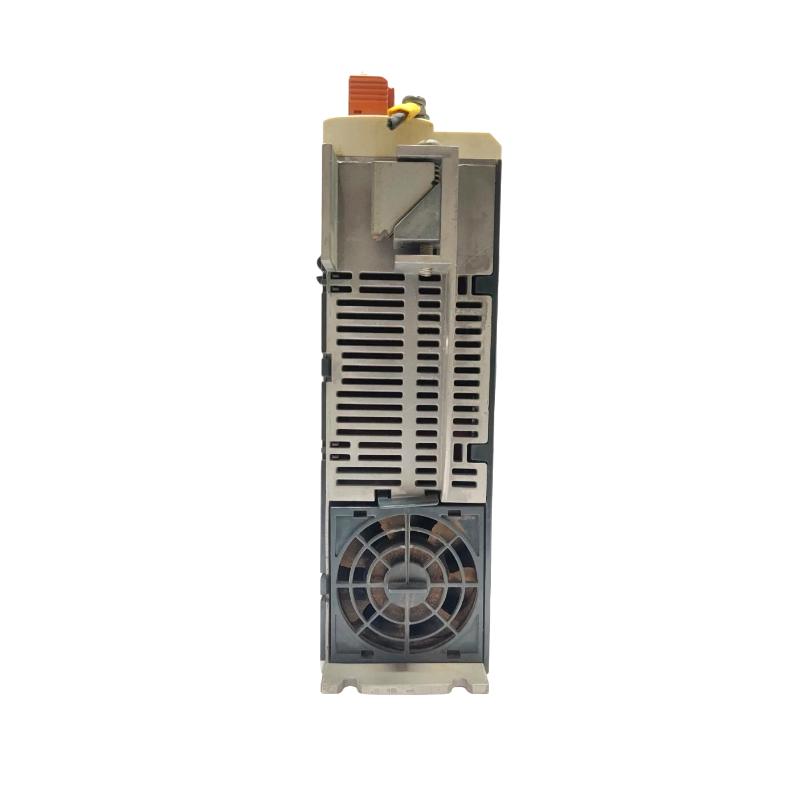

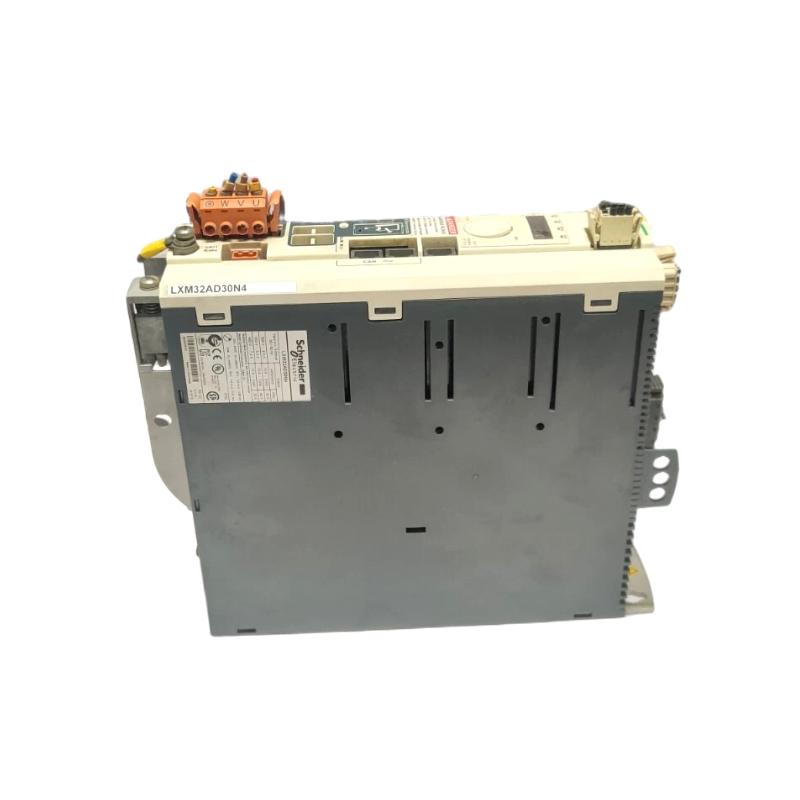

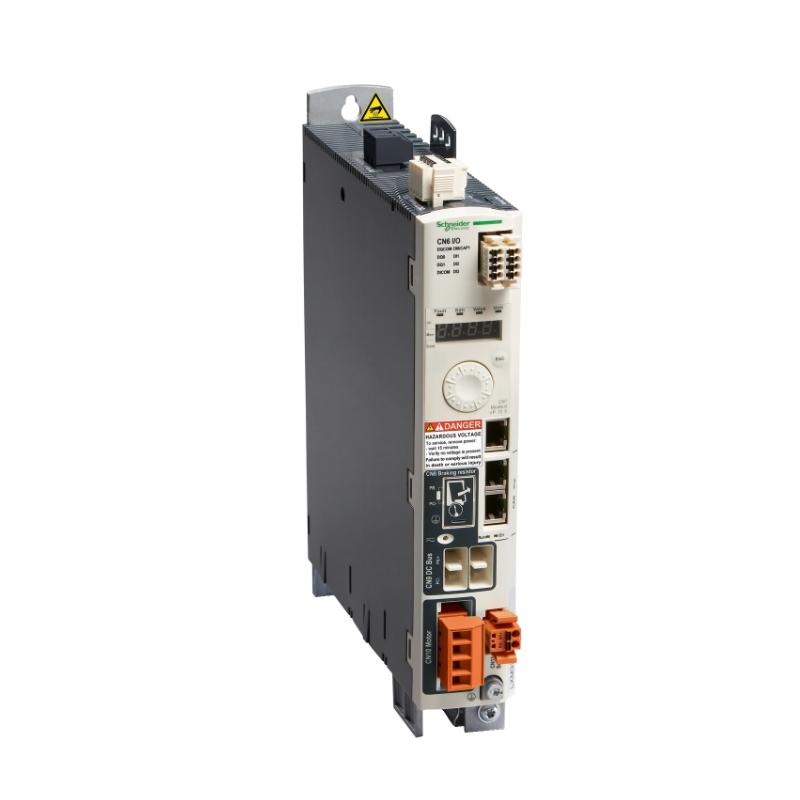

The Schneider LXM32AD30N4 is a high-performance Lexium 32 series motion servo drive, engineered for precise motor control in demanding industrial automation environments. Designed for three-phase applications, it delivers reliable speed, torque, and position control for servo motors.
With integrated communication interfaces and advanced motion control capabilities, this drive enables seamless integration into PLC-based systems. It is widely used in packaging, material handling, and high-precision manufacturing applications where stability and responsiveness are critical.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | LXM32AD30N4 |
| Product Type | Motion Servo Drive (Lexium 32 Series) |
| Control Type | AC Servo Drive |
| Rated Power | ~3 kW |
| Supply Voltage | 200–240 V / 380–480 V AC (3-phase) |
| Output Current | 30 A peak |
| Continuous Current | ~10 A |
| Frequency | 50/60 Hz |
| Communication Interfaces | CANopen, Modbus TCP, RS-485 |
| Number of Motors | 1 |
| Mounting Type | Chassis Mount |
| Operating Temperature | 0 °C to +50 °C |
| Protection Rating | IP20 |
| Cooling | Integrated fan cooling |
| Dimensions (L × W × H) | 270 × 68 × 237 mm (approx.) |
| Weight | ~3.3 kg |
