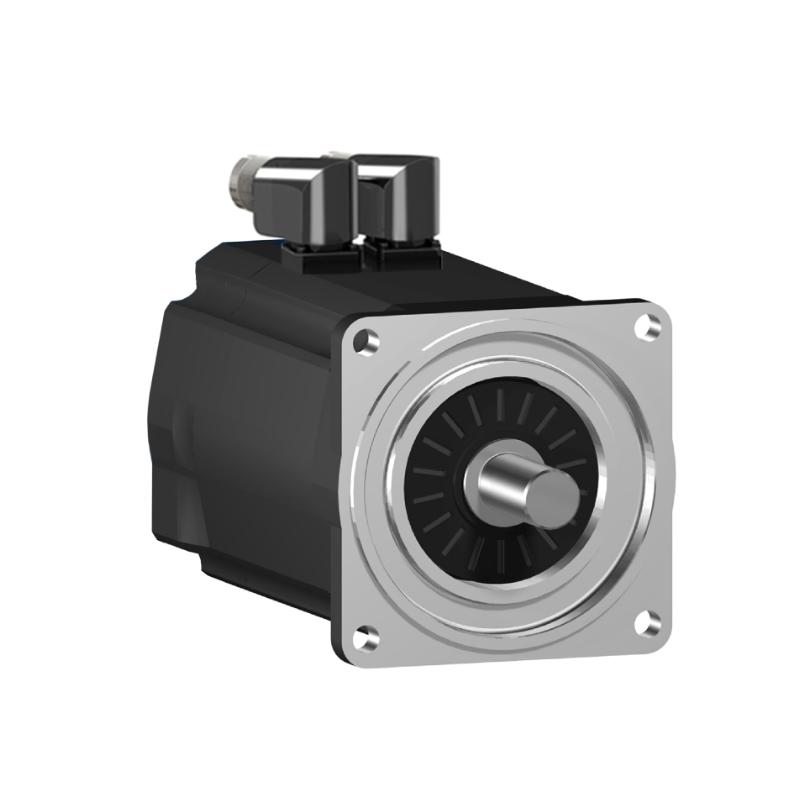

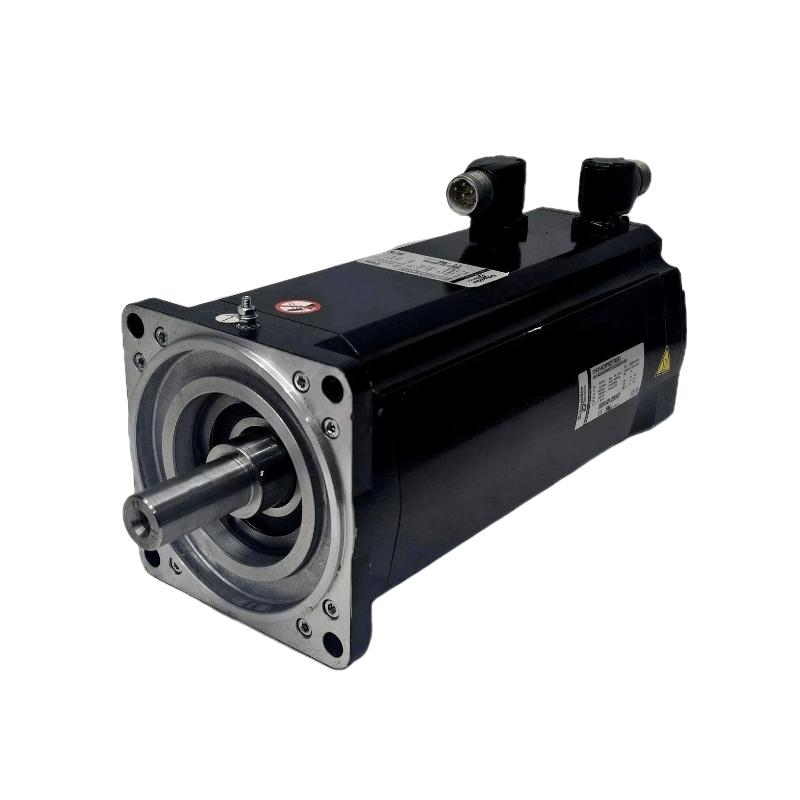

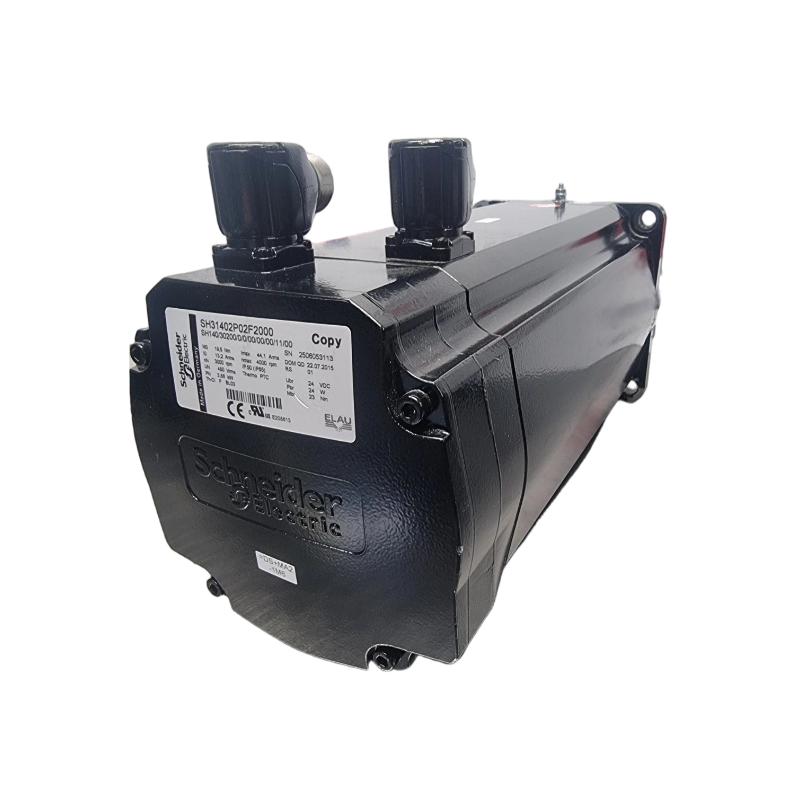

The Schneider SH31402P02F2000 is a high-performance Lexium SH3 series AC servo motor, engineered for precision motion control in advanced industrial automation systems. Designed for compatibility with PacDrive platforms, it delivers excellent dynamic response, high torque density, and reliable operation in demanding environments.
With a continuous stall torque of 19.5 Nm and peak torque up to 60.1 Nm, this motor is ideal for high-load applications such as packaging machinery, robotics, and material handling systems. Its compact yet powerful design ensures efficient integration into modern control cabinets and machine architectures.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | SH31402P02F2000 |
| Product Type | AC Servo Motor (Lexium SH3 Series) |
| Rated Power | 3.9 kW |
| Supply Voltage | 115–480 V AC (3-phase) |
| Continuous Stall Torque | 19.5 Nm |
| Peak Torque | 60.1 Nm |
| Maximum Speed | Up to 4000–6000 rpm |
| Shaft Diameter | 24 mm |
| Encoder Type | Absolute multiturn SinCos (Hiperface) |
| Holding Brake Torque | ~23 Nm |
| Mounting Type | Flange mount (standard 140 mm) |
| Protection Rating | IP54 / IP65 (depending on configuration) |
| Operating Temperature | Industrial standard |
| Dimensions (L × W × H) | 620 × 320 × 480 mm |
| Weight | ~18 kg |
