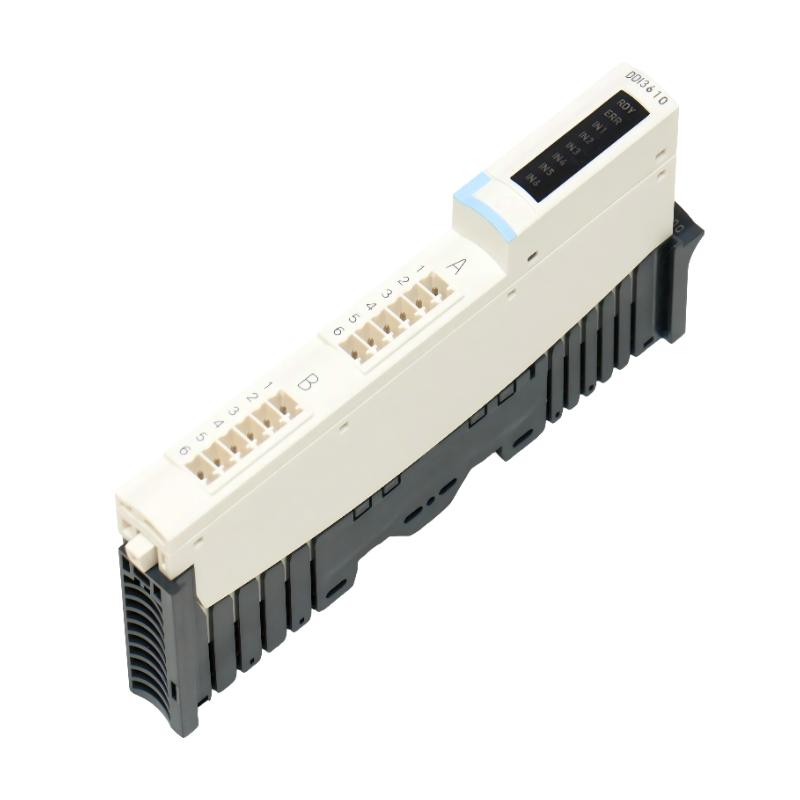

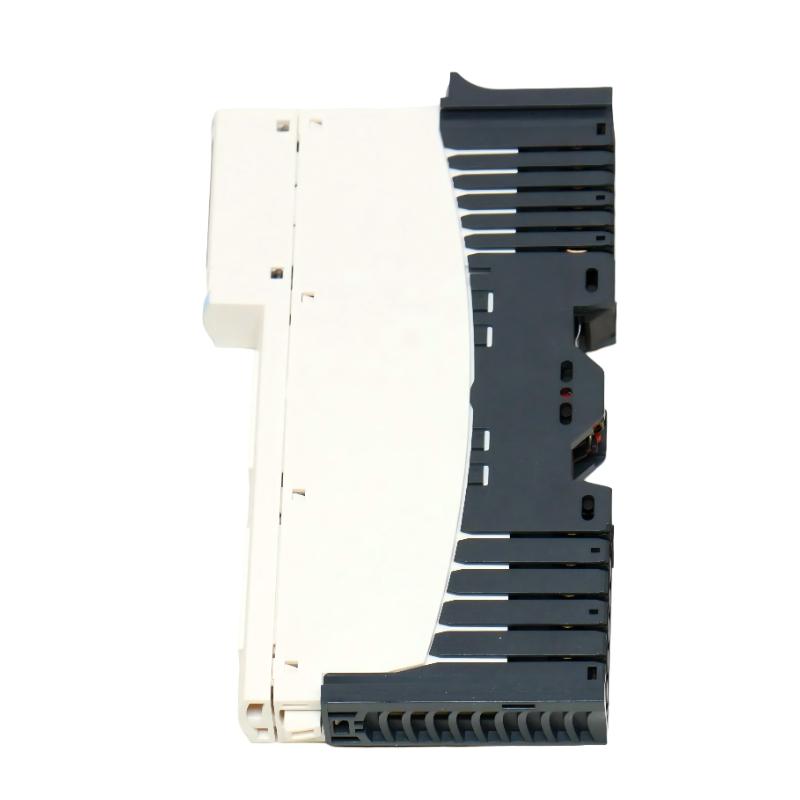

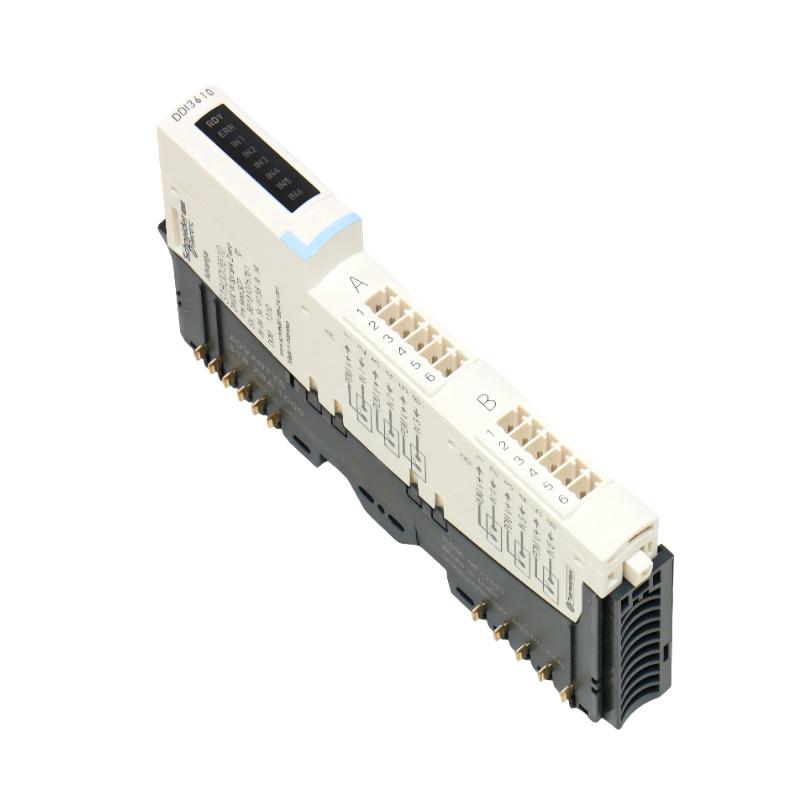

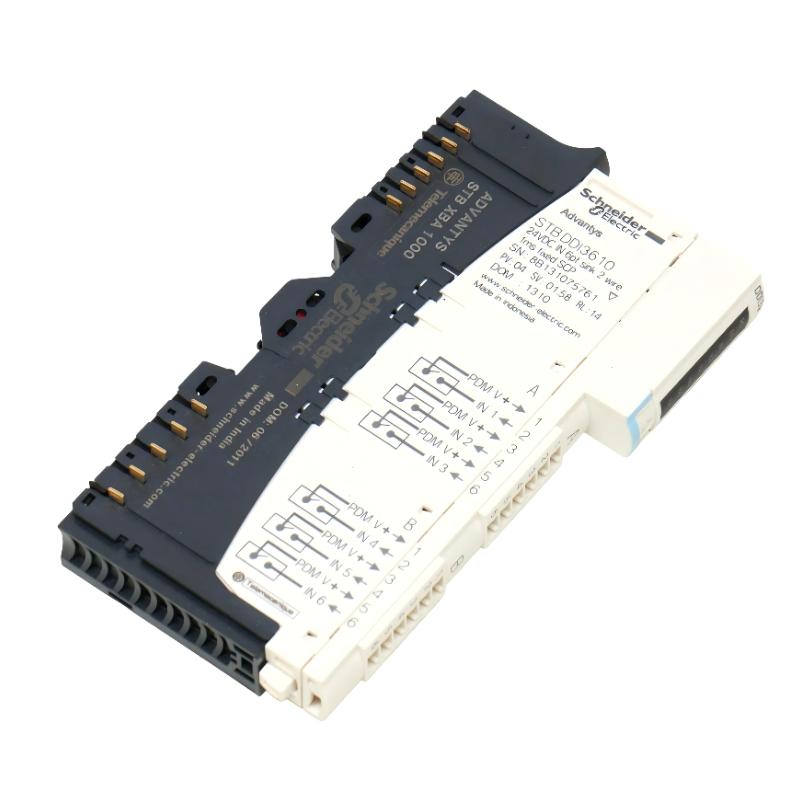

The Schneider STBDDI3610K is a compact digital input module kit designed for the Modicon STB distributed I/O system. It provides reliable acquisition of discrete 24 V DC signals and is suitable for a wide range of industrial automation applications.
Delivered as a complete kit with integrated base, the module simplifies installation and reduces wiring complexity. Its stable performance and industrial-grade design make it a dependable choice for machine control, packaging systems, and distributed automation architectures.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | STBDDI3610K |
| Product Type | Digital Input Module Kit (Modicon STB) |
| Number of Inputs | 6 channels |
| Rated Input Voltage | 24 V DC |
| Logic Type | Compatible with industrial discrete input standards |
| Standard Compliance | IEC 61131-2 |
| Mounting | STB distributed I/O base (included in kit) |
| Protection Rating | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Dimensions (L × W × H) | 125 × 65 × 20 mm (approx.) |
| Weight | ~0.1 kg (approx.) |
Recommended Related Modules
- Schneider STBDDO3600K – Digital output module kit
- Schneider STBXBA1000 – STB I/O base module
- Schneider STBNIP2212 – Ethernet network interface module
Popular Schneider Distributed I/O Products
- Modicon STB Distributed I/O System – Modular fieldbus I/O platform
- Modicon M580 Controller – Advanced PLC for distributed control
- Modicon X80 I/O Modules – High-performance automation I/O system
