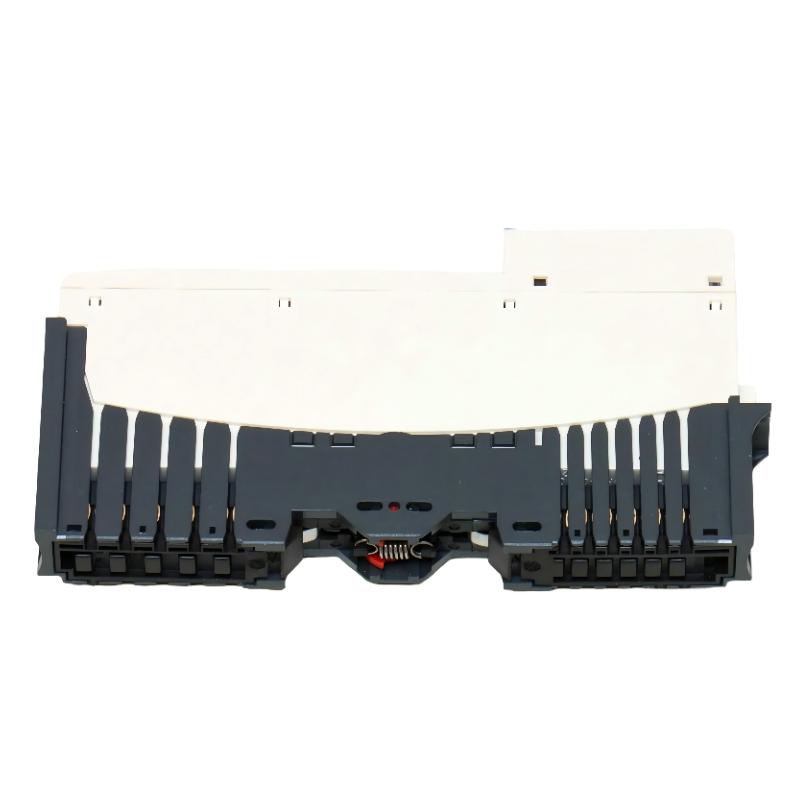

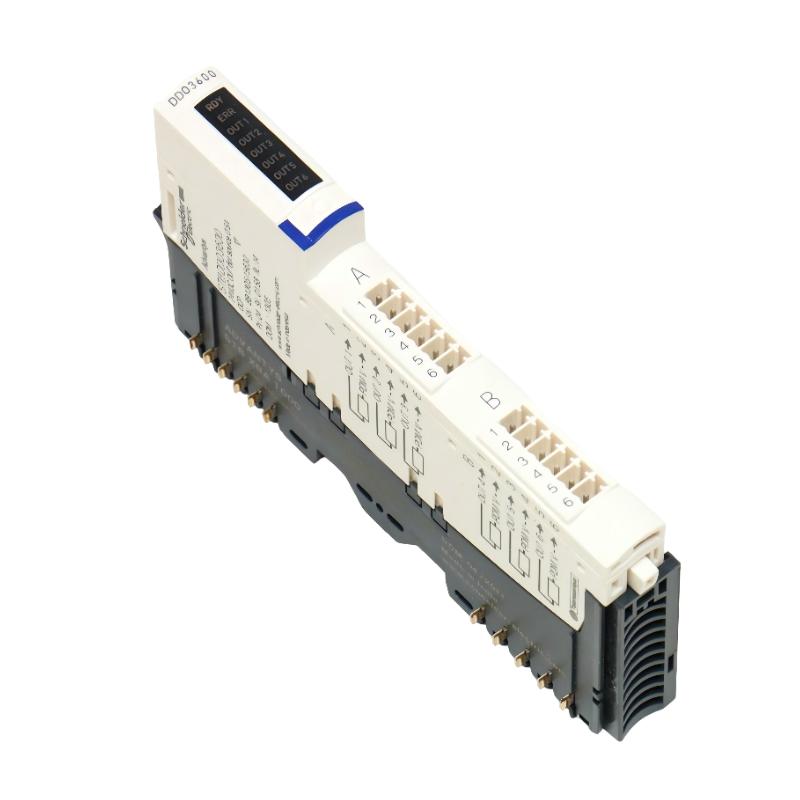

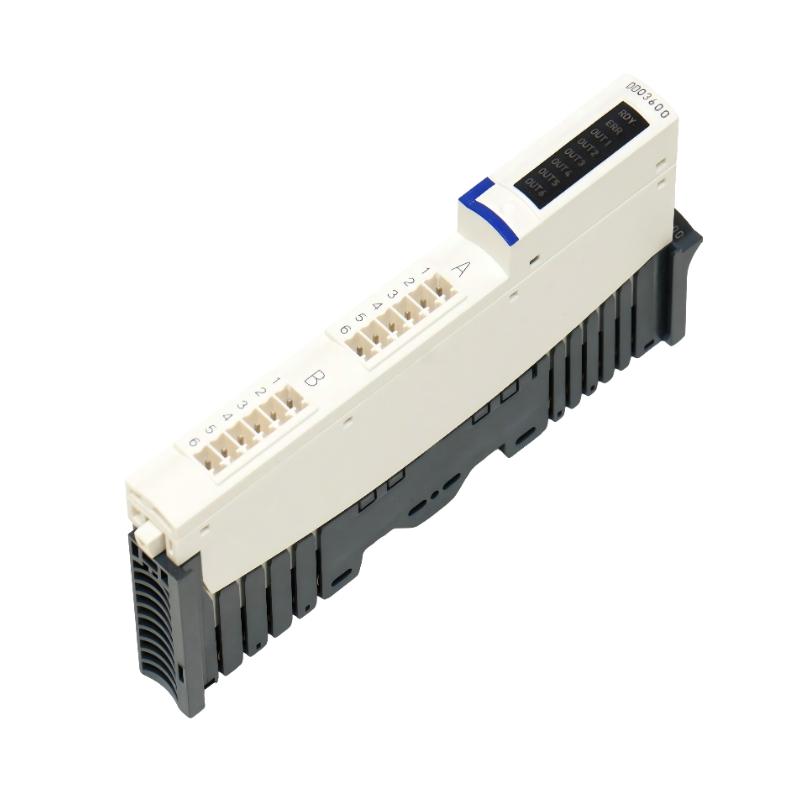

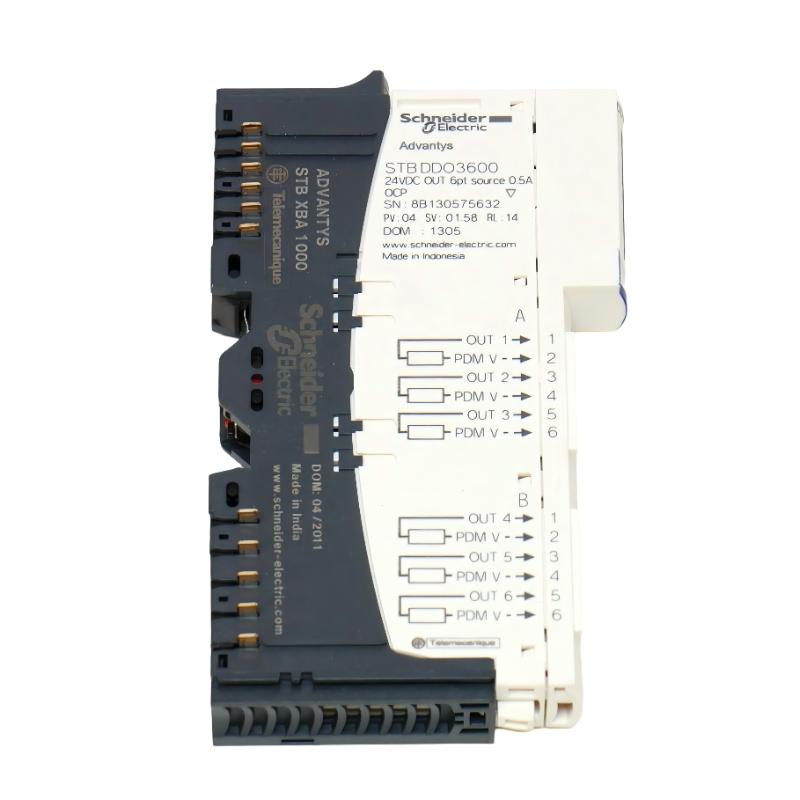

The Schneider STBDDO3600K is a standard digital output module kit from the Modicon STB distributed I/O platform, designed for reliable control of industrial actuators and field devices.
With 6 solid-state 24 V DC outputs, this module enables precise switching for relays, solenoids, and indicators. Delivered as a complete kit (including base and connectors), it simplifies installation while ensuring high reliability, fast response, and seamless integration into distributed automation systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | STBDDO3600K |
| Product Type | Digital Output Module Kit (Modicon STB) |
| Number of Outputs | 6 discrete channels |
| Output Type | Solid-state |
| Rated Output Voltage | 24 V DC |
| Output Voltage Range | 19.2–30 V DC |
| Output Current | 0.5 A per channel |
| Response Time | ~0.7 ms ON / ~0.95 ms OFF |
| Logic Type | Positive / Negative logic |
| Bus Current Consumption | ~90 mA @ 5 V DC |
| Protection Features | Short-circuit, reverse polarity, thermal overload, fuse protection |
| Standard Compliance | IEC 61131-2 |
| Protection Rating | IP20 |
| Mounting | STB base (included), DIN rail compatible |
| Dimensions (L × W × H) | 128.3 × 70 × 13.9 mm |
| Weight | ~0.114 kg |
