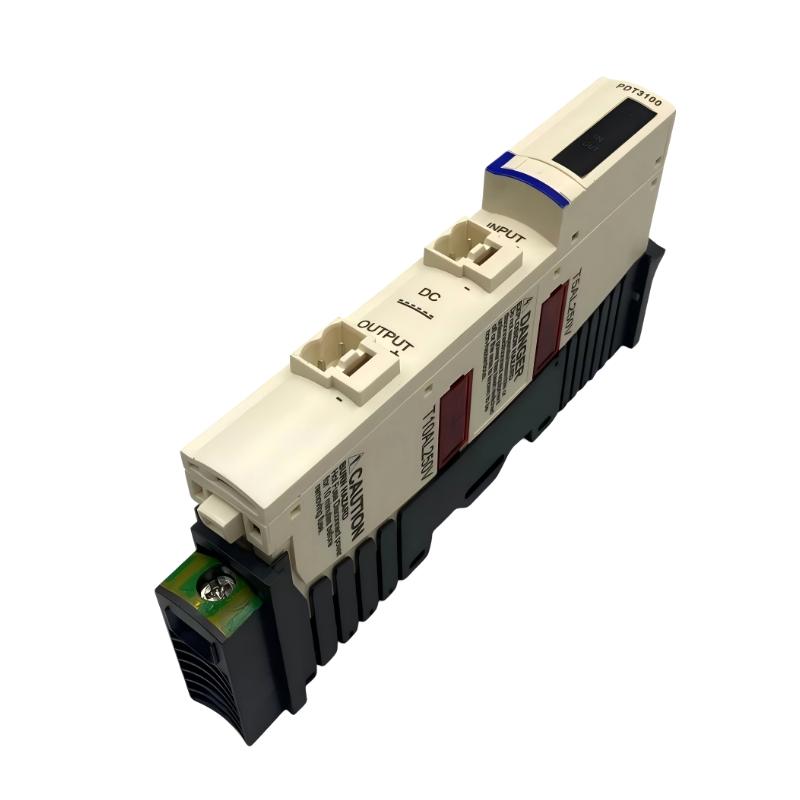

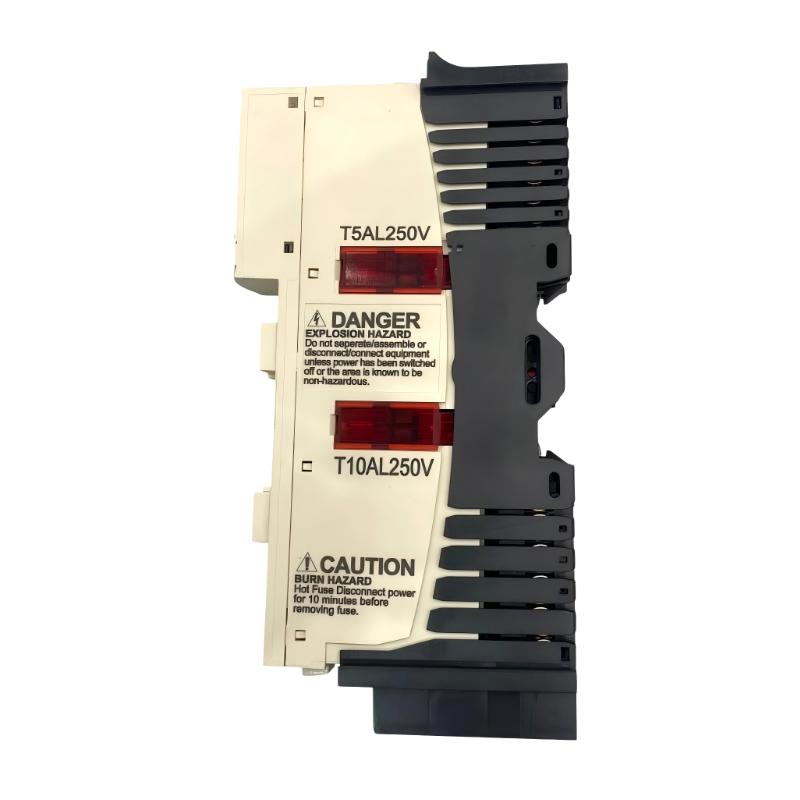

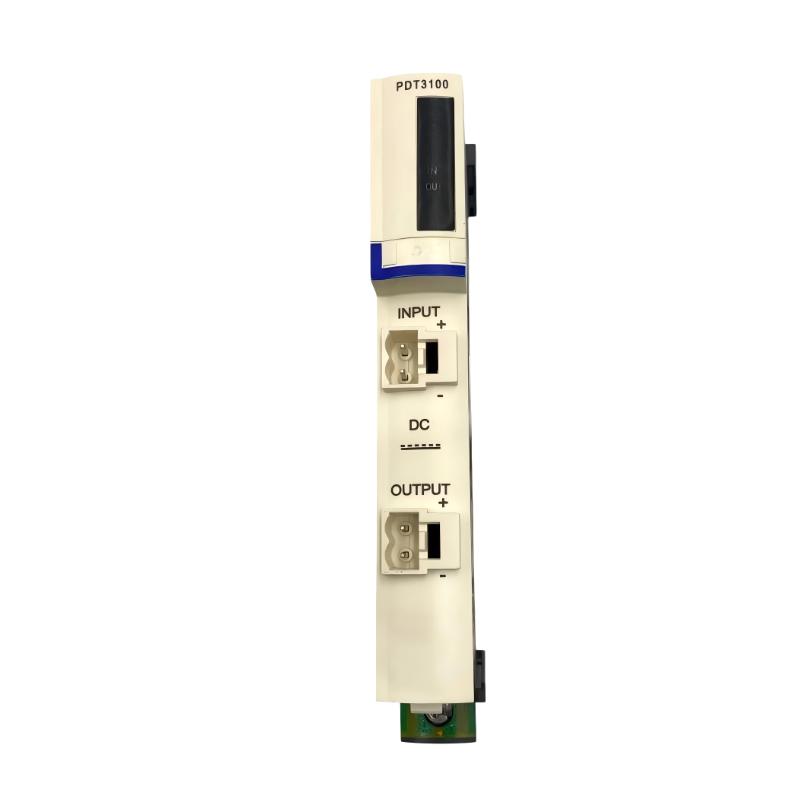

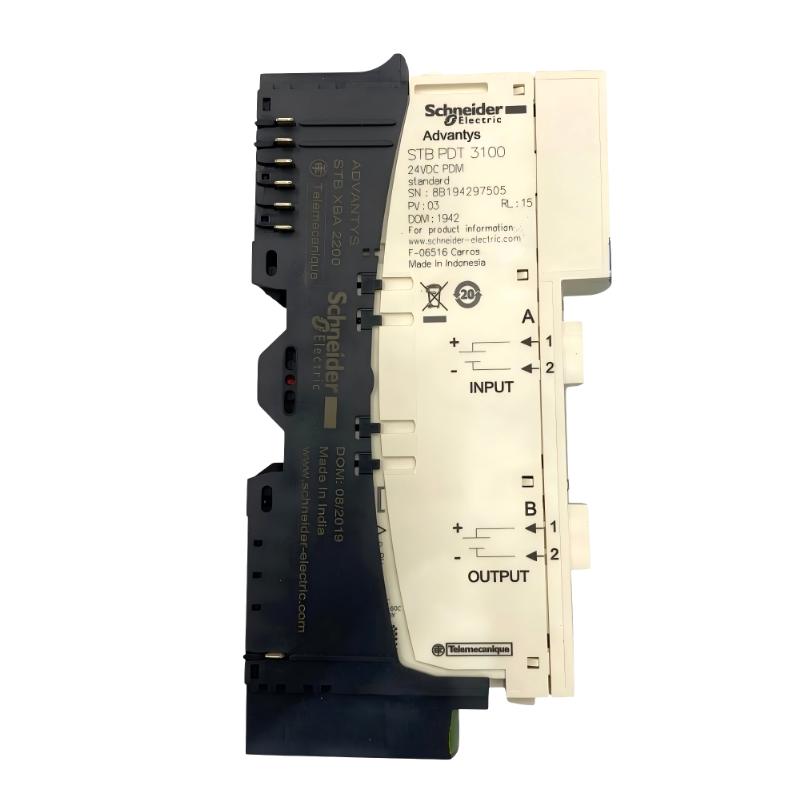

The Schneider STBPDT3100K is a standard power distribution module kit designed for the Modicon STB distributed I/O system. It provides stable 24 V DC power distribution for sensor and actuator buses, ensuring reliable operation of connected I/O modules in industrial automation environments.
Delivered as a complete kit with base and connectors, it simplifies wiring and system integration. With built-in protection and industrial-grade design, this module is ideal for machine automation, packaging systems, and distributed control architectures.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | STBPDT3100K |
| Product Type | Power Distribution Module Kit (Modicon STB) |
| Rated Supply Voltage | 24 V DC |
| Voltage Range | 19.2 – 30 V DC |
| Output Current | Up to 12 A (depending on temperature conditions) |
| Circuit Type | DC sensor/actuator bus |
| Protection Features | Overcurrent protection, fuse protection, reverse polarity protection |
| Status Indicators | LED indicators for input/output power status |
| Standard Compliance | Industrial automation standards (IEC compliant) |
| Protection Rating | IP20 |
| Mounting | STB base (included), DIN rail compatible |
| Dimensions (L × W × H) | 125 × 65.1 × 18.4 mm |
| Weight | ~0.13 kg |
