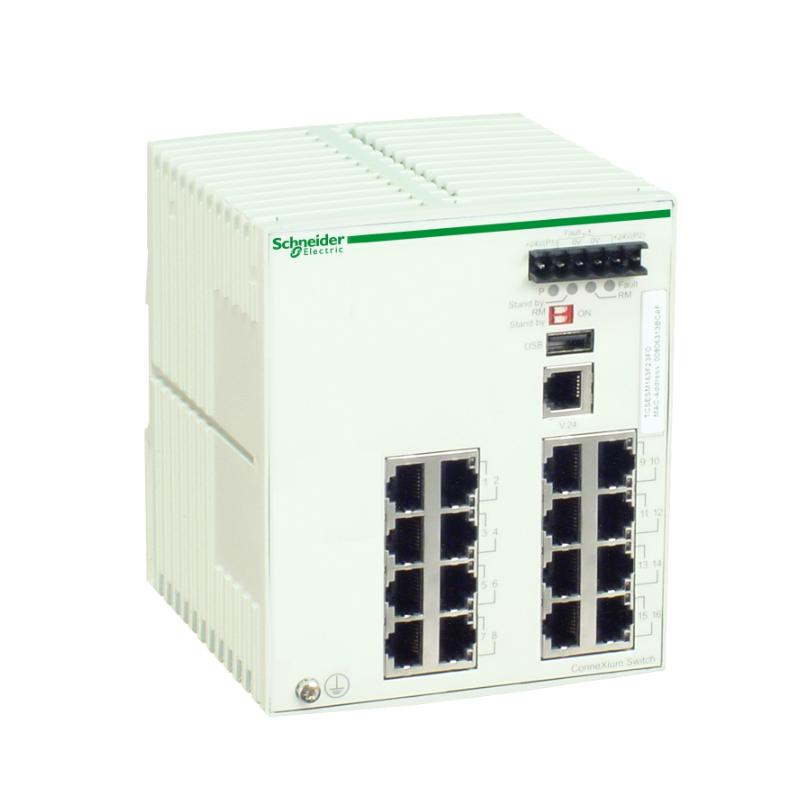

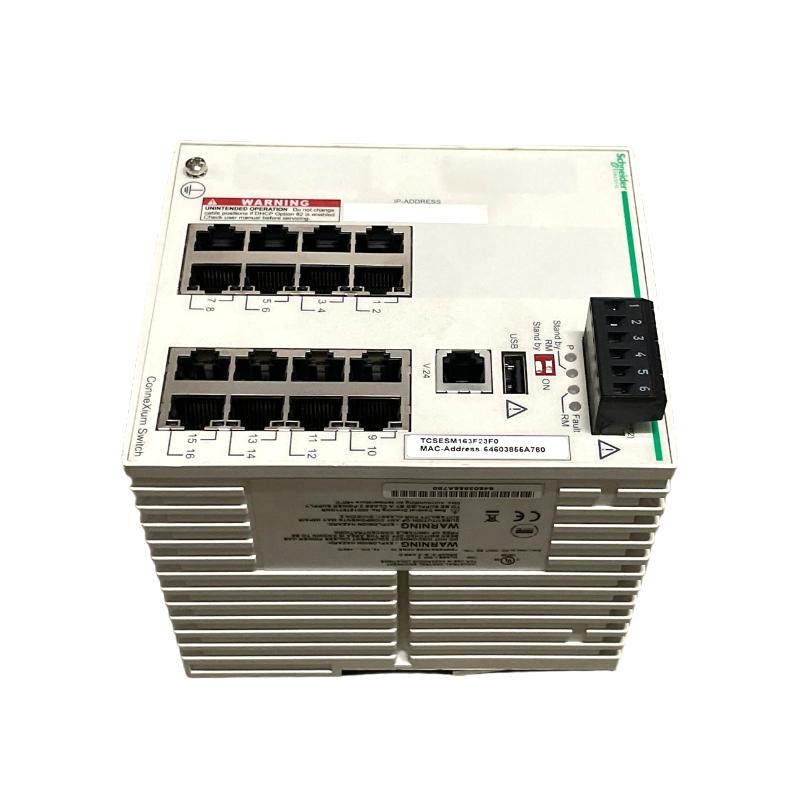

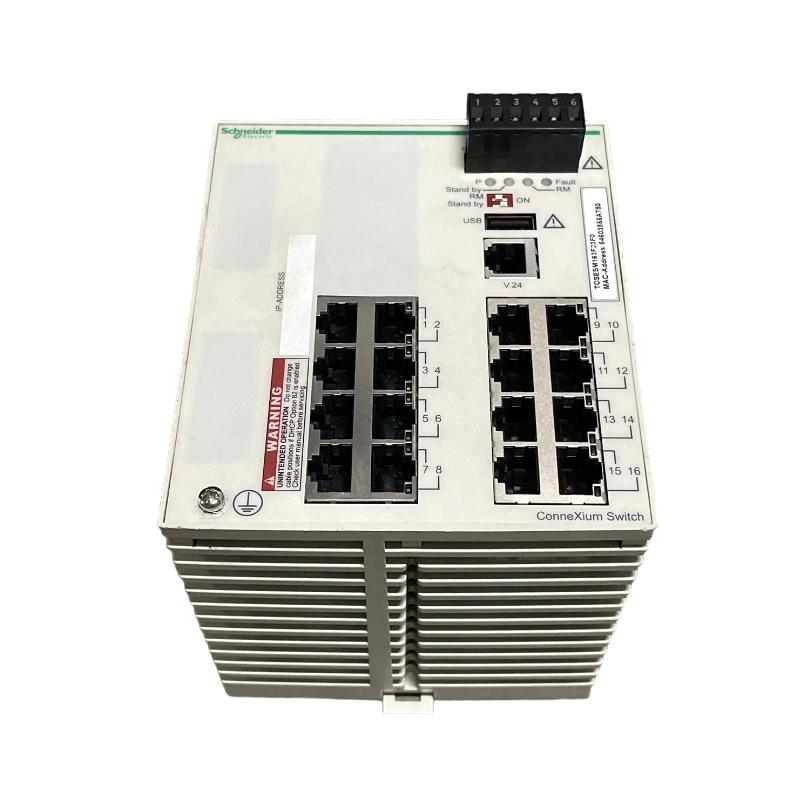

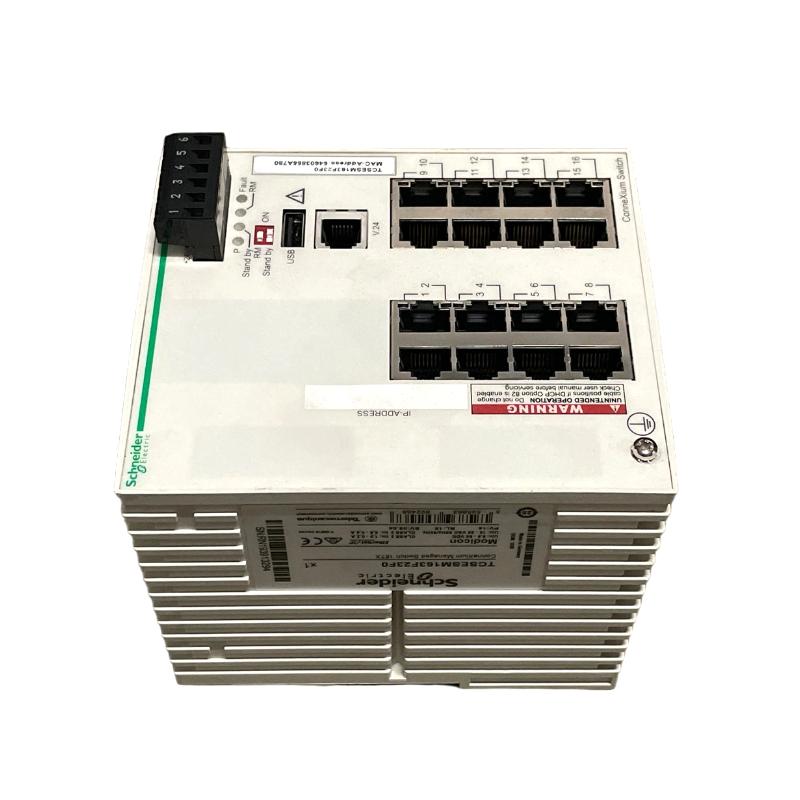

The Schneider TCSESM163F23F0 is a high-performance ConneXium managed Ethernet switch designed for industrial automation networks. With 16 Fast Ethernet copper ports, it enables reliable communication between PLCs, I/O systems, and industrial devices.
Engineered for harsh environments, this switch supports advanced networking features such as VLAN segmentation, redundancy protocols, and real-time diagnostics. It is widely used in factory automation, process control, and infrastructure systems requiring stable and secure industrial Ethernet connectivity.
Technical Specifications
| Feature | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | TCSESM163F23F0 |
| Product Type | Managed Ethernet Switch (ConneXium Series) |
| Number of Ports | 16 × RJ45 (10/100BASE-TX) |
| Ethernet Protocols | Ethernet TCP/IP |
| Port Speed | 10/100 Mbps |
| Switch Type | Managed |
| Configuration | Web server, SNMP, VLAN, IGMP, SYSLOG |
| Redundancy | Ring redundancy supported (up to ~50 switches) |
| Transmission Media | Cat5e shielded twisted pair (up to 100 m) |
| Power Supply | 24 V DC (12–48 V range) |
| Power Consumption | ~9.4 W |
| Mounting | DIN rail |
| Protection Rating | IP20 |
| Operating Temperature | 0 °C to +60 °C |
| Humidity | 10–95% non-condensing |
| Dimensions (H × W × D) | 131 × 111 × 65 mm (approx.) |
| Weight | ~2.0 kg |
