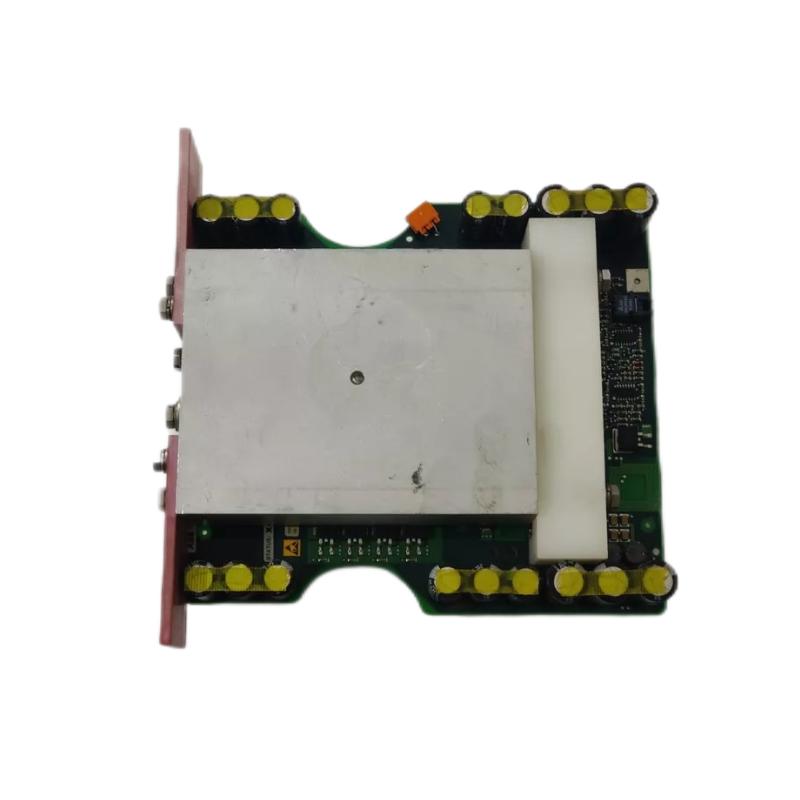

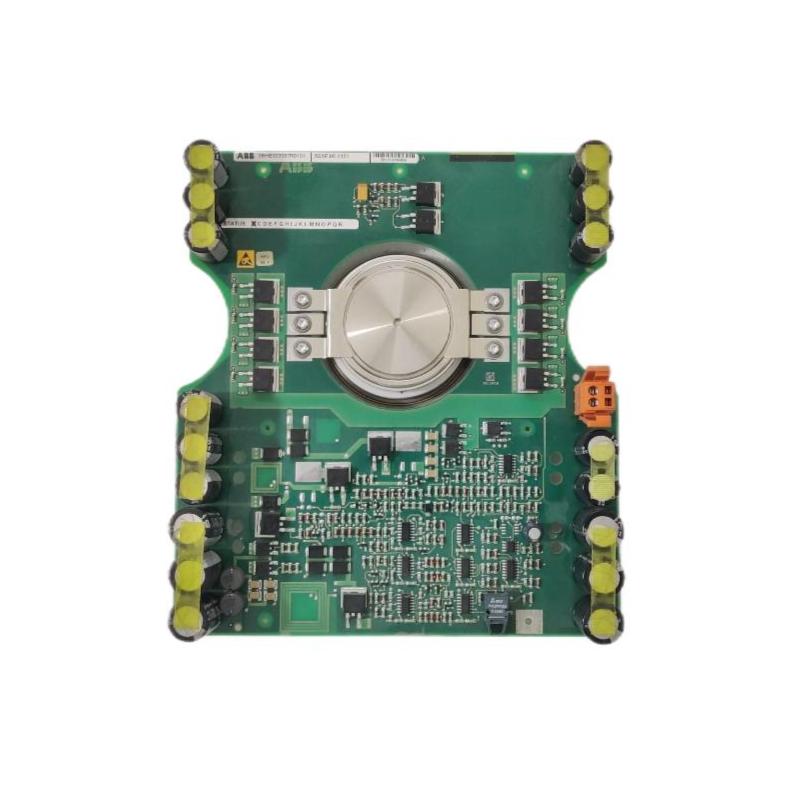

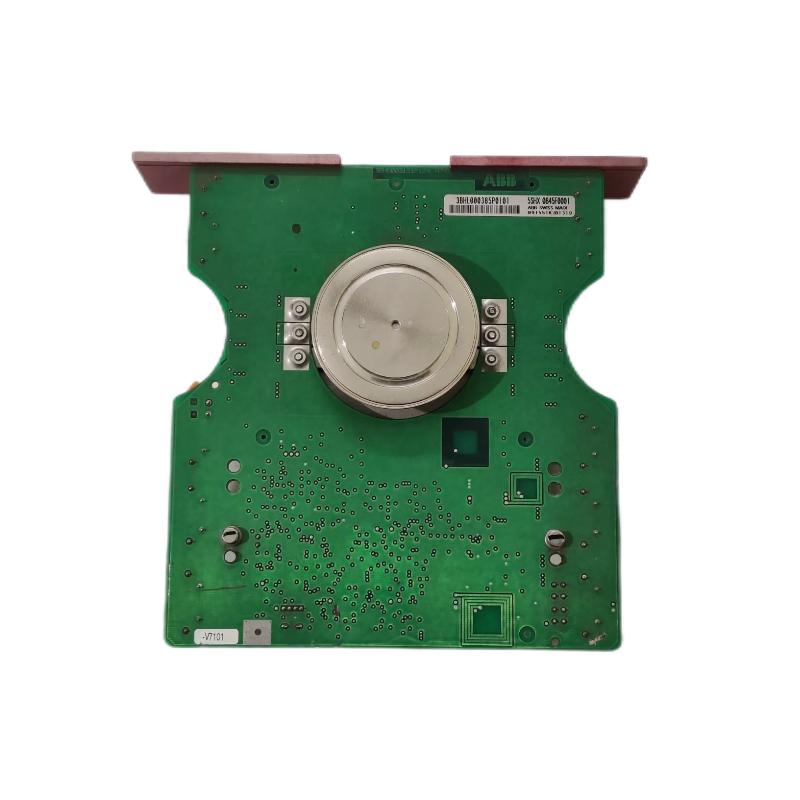

ABB 5SGX0845F0001 Power Supply Module

Introduction

The ABB 5SGX0845F0001 is a robust Power Supply Module designed for industrial control systems requiring reliable power conversion and distribution. This module is specifically engineered for use in high-performance automation environments, offering stable, consistent DC power to support ABB’s control systems, including CPUs, I/O modules, and other integral automation components.

With high efficiency and advanced protection features, the 5SGX0845F0001 ensures that your system maintains operational reliability and safety even in harsh industrial environments. Whether used in process automation, manufacturing systems, or energy management applications, this module provides the necessary power to keep critical operations running smoothly.

Technical Specifications

Specification	Details
Model	5SGX0845F0001
Module Type	Power Supply Module
Input Voltage	100-240 V AC, 50/60 Hz
Output Voltage	24 V DC
Output Current	45 A
Rated Power	1080 W
Efficiency	>90%
Protection	Short-circuit, Over-voltage, Overload Protection
Dimensions (W x H x D)	125 × 150 × 200 mm
Weight	2.3 kg
Operating Temperature	0°C to +60°C
Storage Temperature	-20°C to +85°C
Certifications	CE, UL, RoHS

Recommended Related Models

Model	Module Type	Key Feature
ABB 5SGX0855F0001	Power Supply Module	Provides higher current output for large-scale applications
ABB 5SGX0860F0001	Power Supply Module	Enhanced power delivery with improved efficiency
ABB 5SHY3545L0010	Power Supply Module	Compact design for smaller control systems

Popular ABB Models

Model	Module Type	Key Feature
ABB 5SGX0840F0001	Power Supply Module	High-efficiency solution for standard applications
ABB 5SGX0850F0001	Power Supply Module	Ideal for industrial automation in harsh conditions
ABB 5SDF0460F0001	Power Supply Module	Provides reliable power in industrial automation

Applications

Industrial Automation: The 5SGX0845F0001 provides a stable DC power supply for controllers, sensors, and actuators, making it ideal for automated production lines, robotics, and machinery control.
Energy & Utilities: Ensures reliable power distribution and supports critical systems in power generation and distribution plants, as well as water treatment facilities.
Manufacturing: Powers control systems within manufacturing environments, including assembly lines, automated inspection systems, and material handling systems.
Building Automation: Essential for HVAC systems, lighting control, and security systems in smart buildings, ensuring operational continuity and energy efficiency.

Advantages

High Efficiency: The 5SGX0845F0001 boasts an efficiency of over 90%, ensuring reduced power consumption and lower operational costs.
Versatile Power Output: With a 45 A current rating and 1080 W output, the module is capable of powering a wide range of ABB industrial systems and applications.
Compact & Durable Design: Measuring just 125 × 150 × 200 mm and weighing 2.3 kg, this module is compact yet powerful, ideal for confined spaces with high power demands.
Advanced Protection Features: Equipped with short-circuit, over-voltage, and overload protection, it ensures safe and reliable operation even in challenging environments.
Wide Temperature Range: Designed for operation in temperatures from 0°C to +60°C, it performs well in diverse industrial settings, ensuring system stability across a variety of environments.

Technical FAQs

What is the input voltage for the 5SGX0845F0001?
It supports an input voltage of 100-240 V AC, which makes it compatible with most industrial power grids globally.
What output voltage does the 5SGX0845F0001 provide?
The module outputs a stable 24 V DC, ideal for powering ABB control systems.
What is the output current capacity of the 5SGX0845F0001?
It delivers 45 A, providing ample current for most industrial control systems and applications.
What is the efficiency of the 5SGX0845F0001?
The power supply module has an efficiency greater than 90%, ensuring minimal energy loss during power conversion.
What are the protection features of the 5SGX0845F0001?
It includes short-circuit, over-voltage, and overload protection to safeguard the system from electrical faults.
What are the dimensions and weight of this module?
The module measures 125 × 150 × 200 mm and weighs 2.3 kg.
What is the operating temperature range of the 5SGX0845F0001?
The module operates within a temperature range of 0°C to +60°C, making it suitable for most industrial environments.
Is the 5SGX0845F0001 certified for use in global markets?
Yes, it is certified with CE, UL, and RoHS, ensuring compliance with international safety and environmental standards.
What industries benefit from the 5SGX0845F0001?
The module is ideal for manufacturing, energy, building automation, and industrial control systems, where continuous, reliable power is essential.
Can the 5SGX0845F0001 be used in high-demand applications?
Yes, it provides 1080 W of power, making it suitable for demanding industrial systems that require high and stable DC power.
