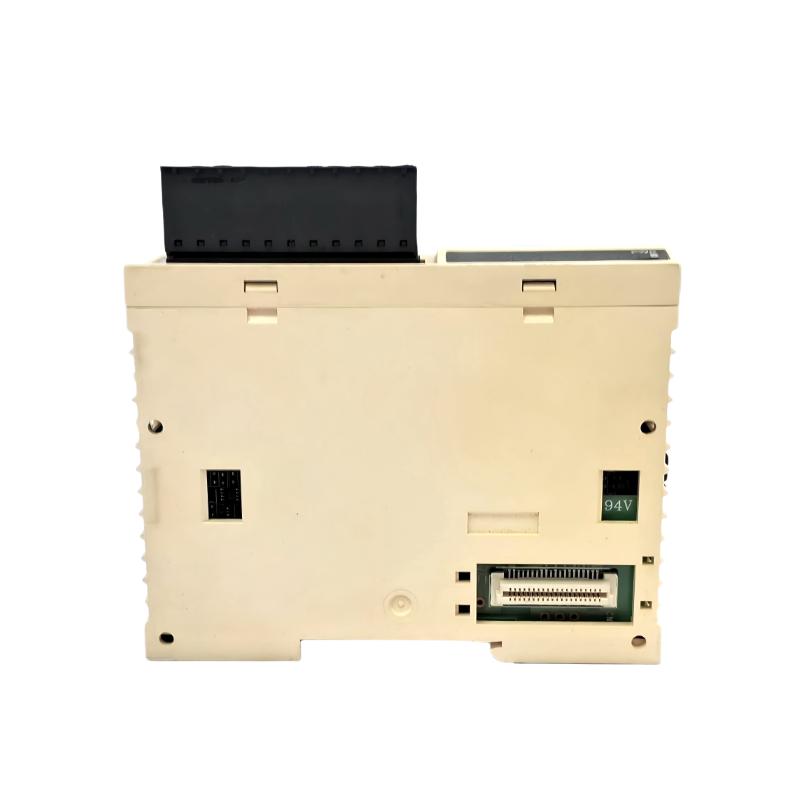

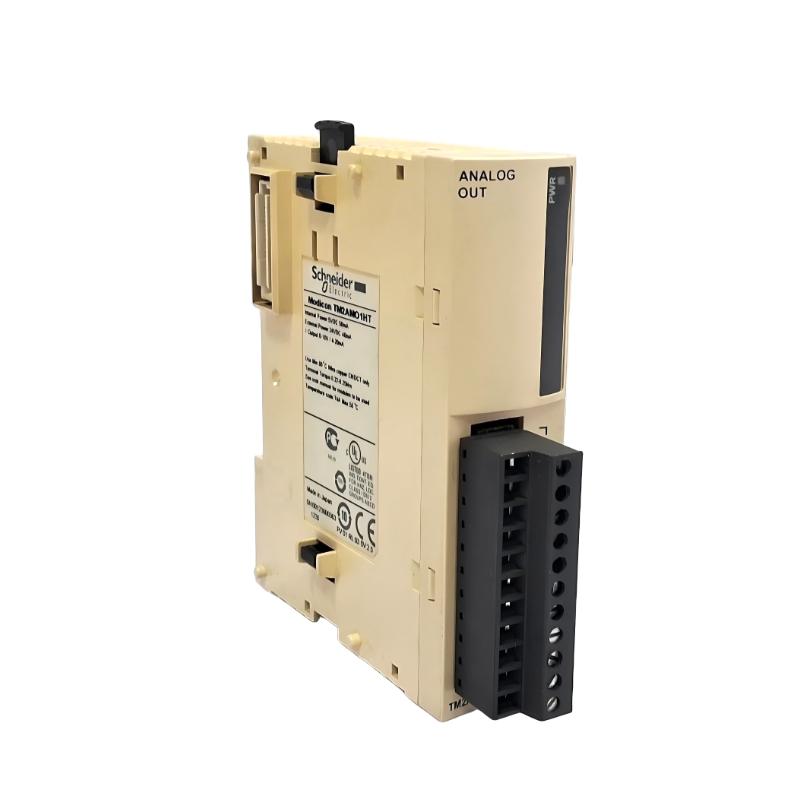

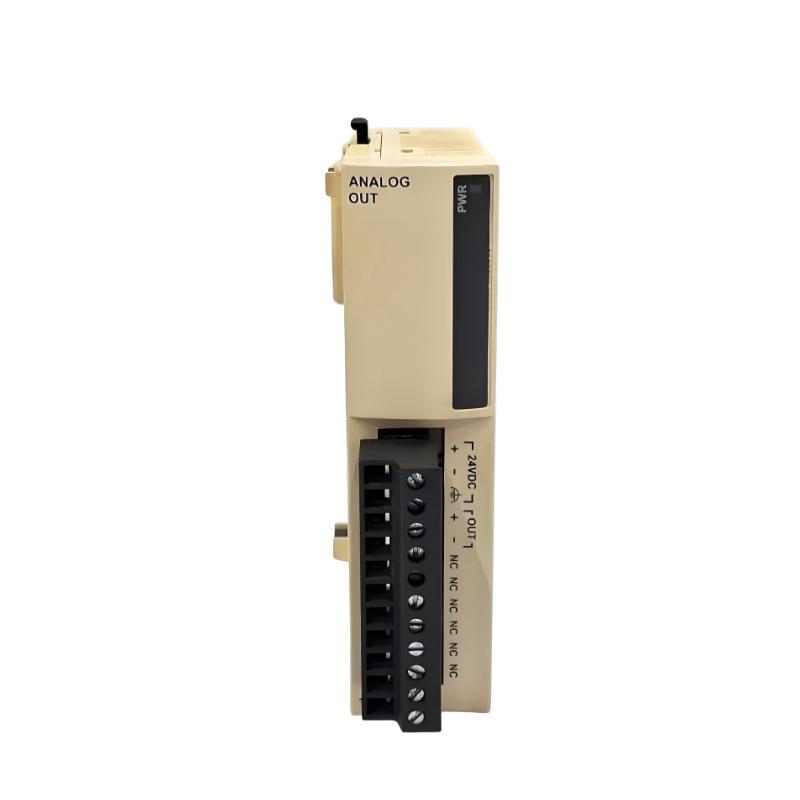

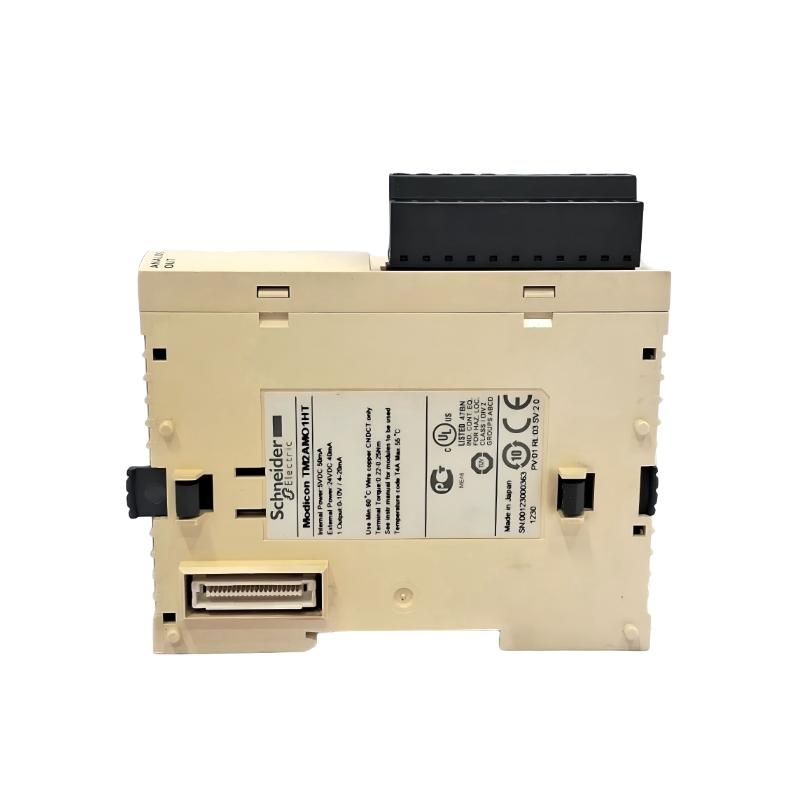

The Schneider Electric TM2AMO1HT is a high-performance analog output module designed for Modicon M238 PLC systems, offering 1 high-speed single-ended output channel. It delivers precise voltage or current signals to control actuators, valves, or other industrial devices with fast and accurate responses.
Ideal for process control, automation, and industrial machinery, this module ensures reliable performance in harsh environments while integrating seamlessly with TM2 modular PLC systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Analog Output Module |
| Series | Modicon TM2 (for M238 PLC) |
| Output Channels | 1 |
| Output Type | Single-ended |
| Output Range (Voltage) | 0–10 V / ±10 V |
| Output Range (Current) | 0–20 mA / 4–20 mA |
| Resolution | 12-bit |
| Update Time | Approx. 5 ms |
| Output Impedance | ≤ 1 Ω (voltage) / ≥ 500 Ω (current) |
| Power Supply | Via PLC backplane ribbon cable |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 25 × 70 mm |
| Weight | Approx. 0.085 kg |
| Operating Temperature | 0°C to 55°C |
