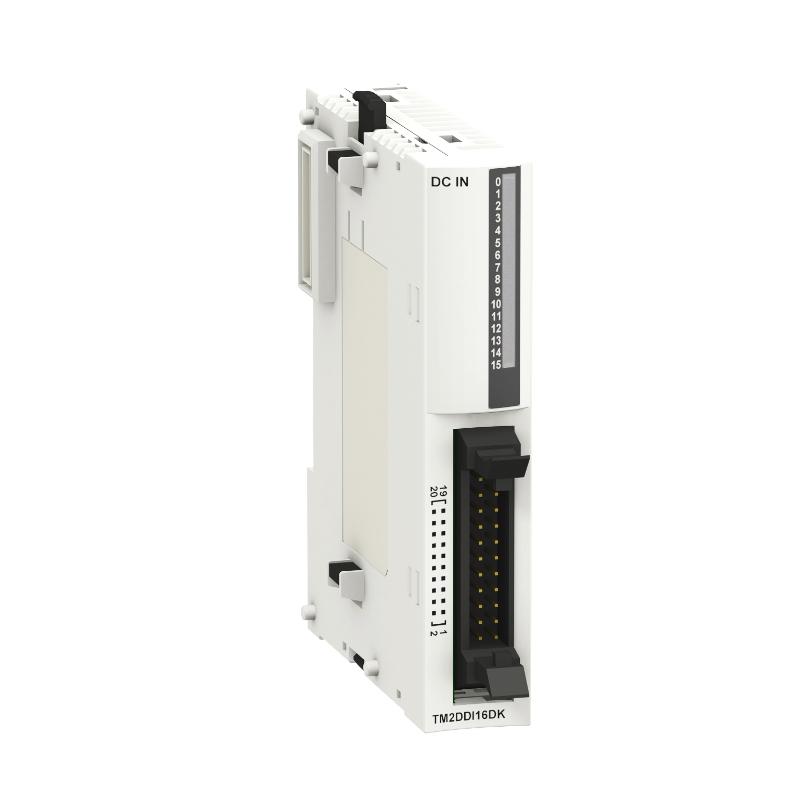

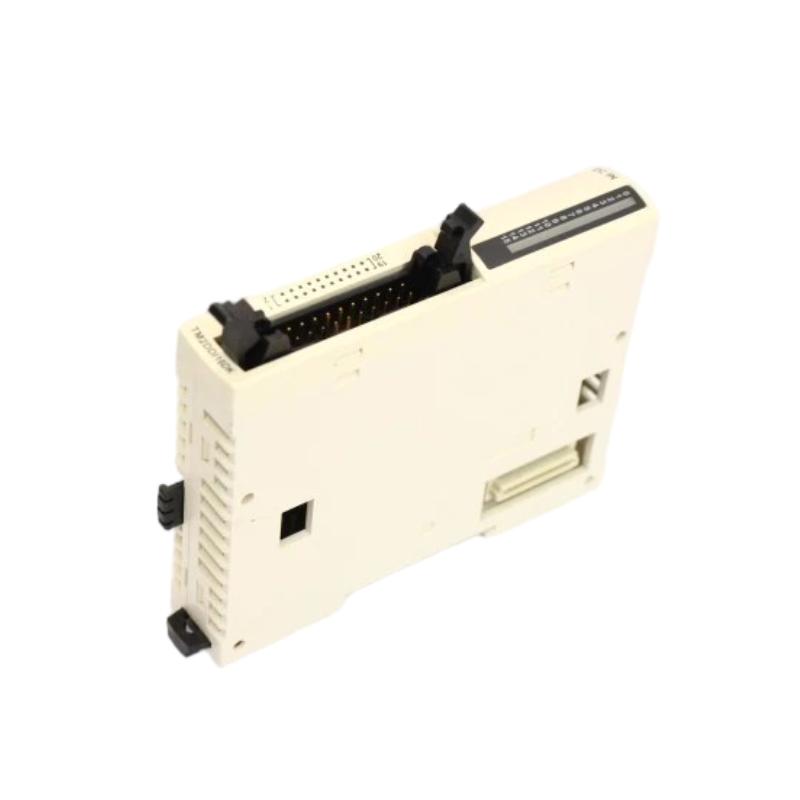

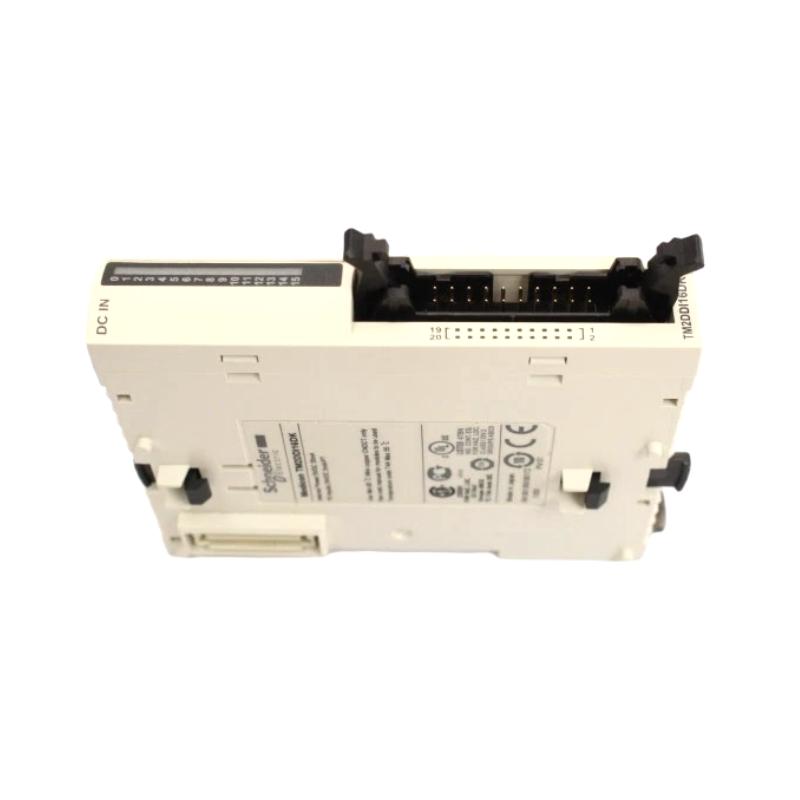

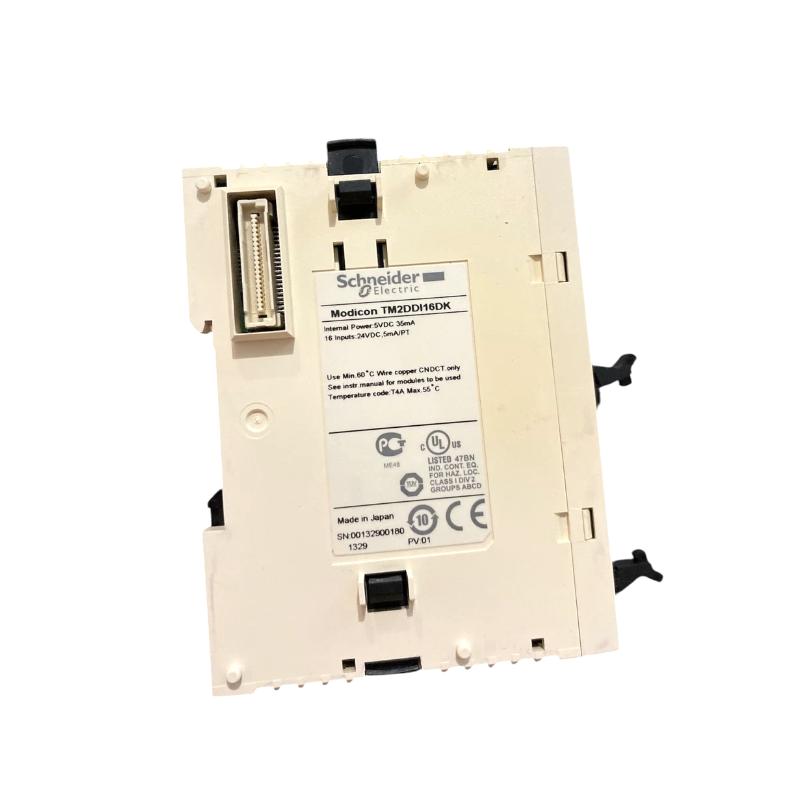

The Schneider Electric TM2DDI16DK is a 16-channel digital input module designed for Modicon M238 PLC systems, providing reliable and fast detection of digital signals. This module is ideal for monitoring switches, sensors, and other binary devices in industrial automation, machine control, and process monitoring applications.
With a compact design and seamless integration with TM2 modular PLC systems, the TM2DDI16DK ensures high operational reliability and ease of installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Input Module |
| Series | Modicon TM2 (for M238 PLC) |
| Input Channels | 16 |
| Input Type | Digital, sinking or sourcing |
| Input Voltage Range | 24 V DC ± 10% |
| Input Current | Max. 7 mA per channel |
| Isolation | Optically isolated |
| Response Time | Approx. 5 ms |
| Power Supply | Via PLC backplane ribbon cable |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 50 × 70 mm |
| Weight | Approx. 0.16 kg |
| Operating Temperature | 0°C to 55°C |
