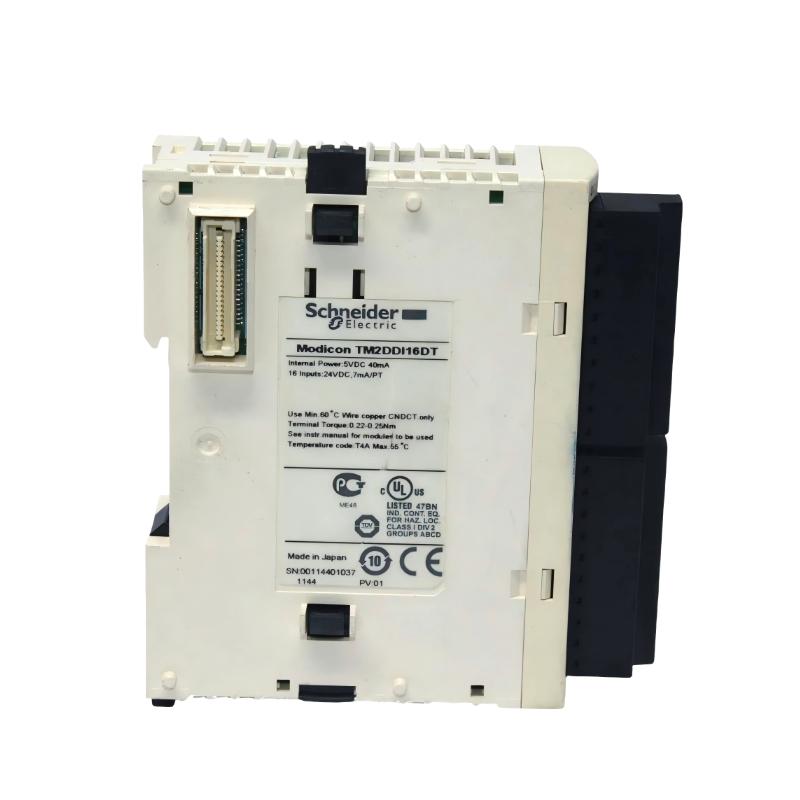

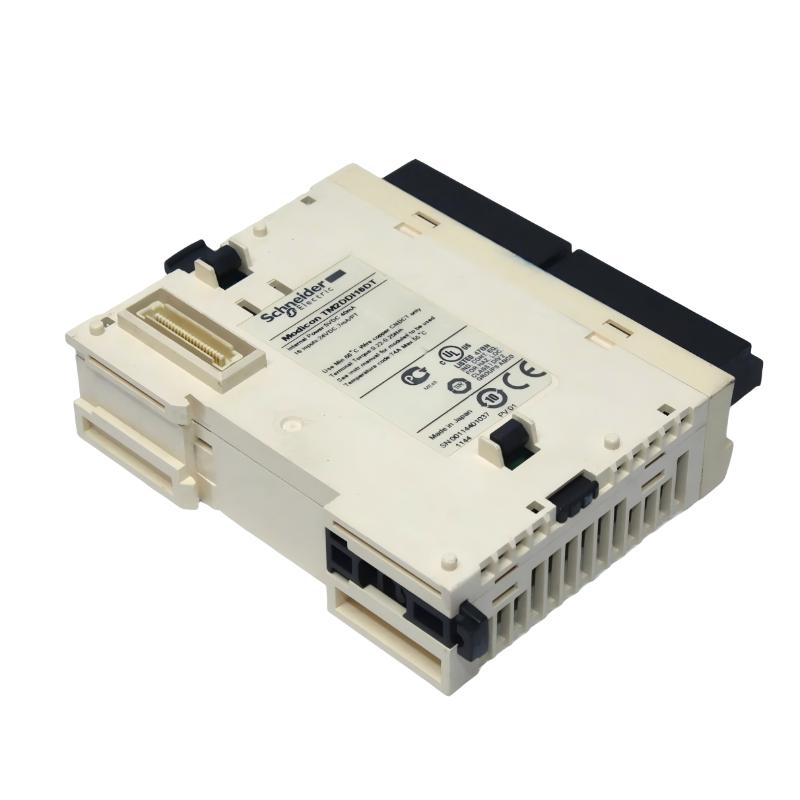

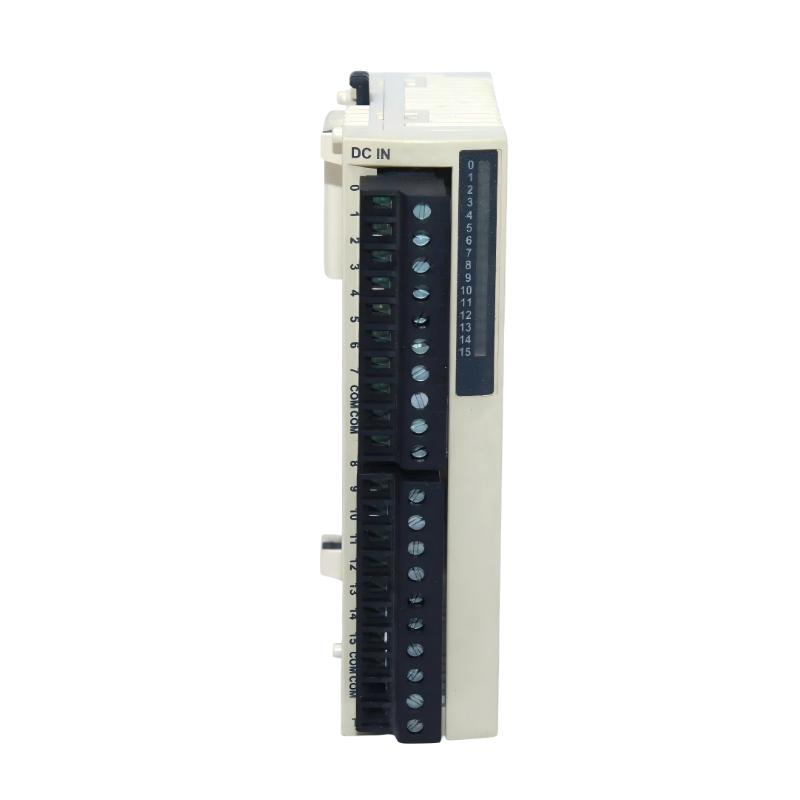

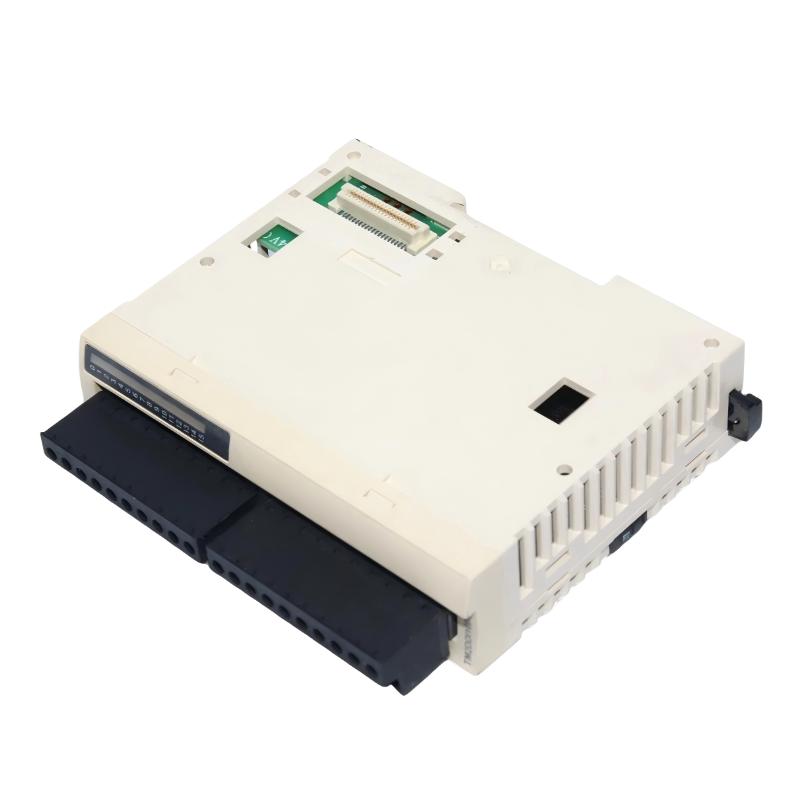

The Schneider Electric TM2DDI16DT is a 16-channel high-speed digital input module designed for Modicon M238 PLC systems. It provides fast and reliable detection of digital signals from switches, sensors, and other binary devices, ensuring accurate process monitoring and control in industrial automation environments.
Engineered for robust performance and compact installation, this module integrates seamlessly into TM2 modular PLC systems, offering high-density digital input capability in a space-saving form factor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Input Module |
| Series | Modicon TM2 (for M238 PLC) |
| Input Channels | 16 |
| Input Type | Digital, sinking or sourcing |
| Input Voltage Range | 24 V DC ± 10% |
| Input Current | Max. 7 mA per channel |
| Isolation | Optically isolated |
| Response Time | Approx. 1 ms (high-speed) |
| Power Supply | Via PLC backplane ribbon cable |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 50 × 70 mm |
| Weight | Approx. 0.17 kg |
| Operating Temperature | 0°C to 55°C |
Recommended Related Models
- TM2DDI8DT – 8-channel high-speed digital input module
- TM2DDO8DT – 8-channel high-speed digital output module
- TM3DI16 – 16-channel digital input module for TM3 PLC systems
