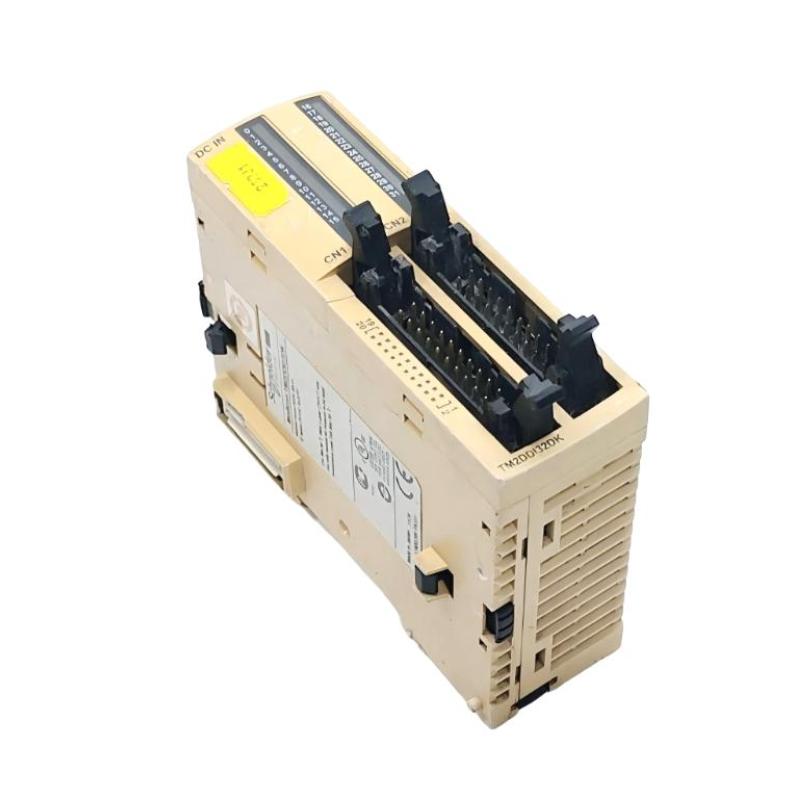

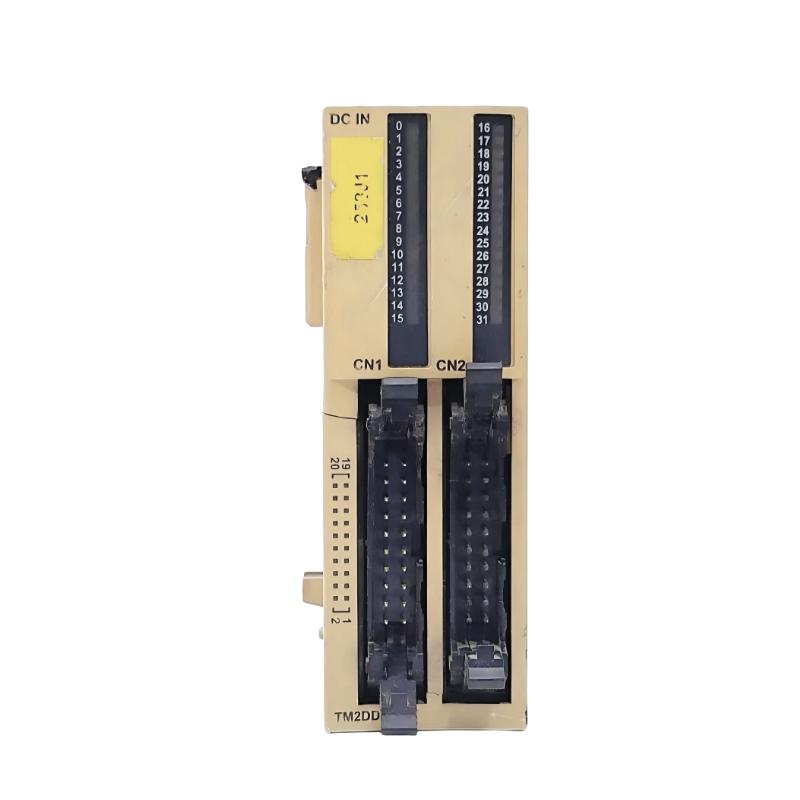

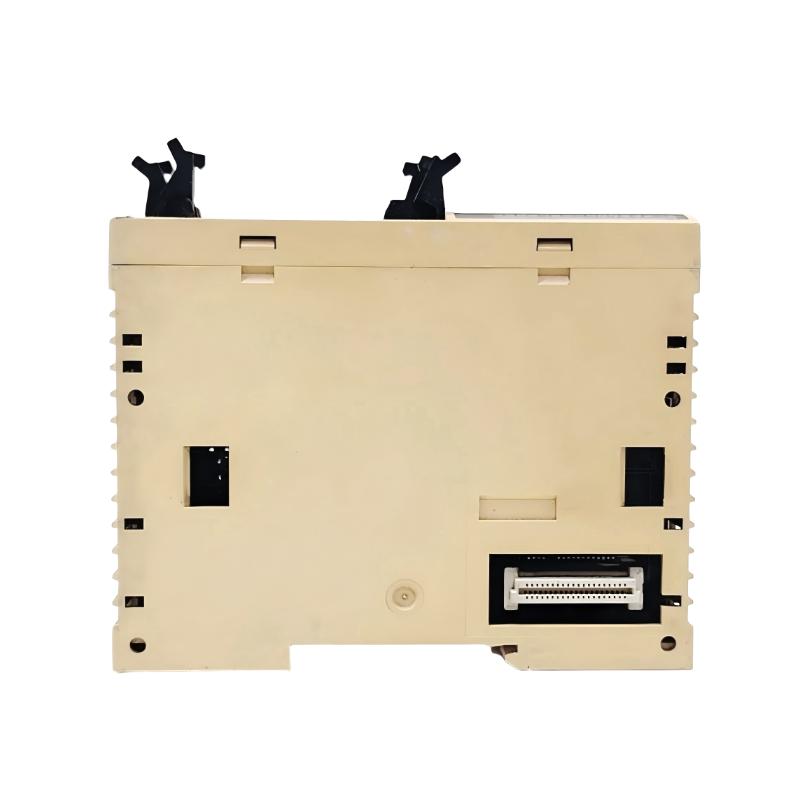

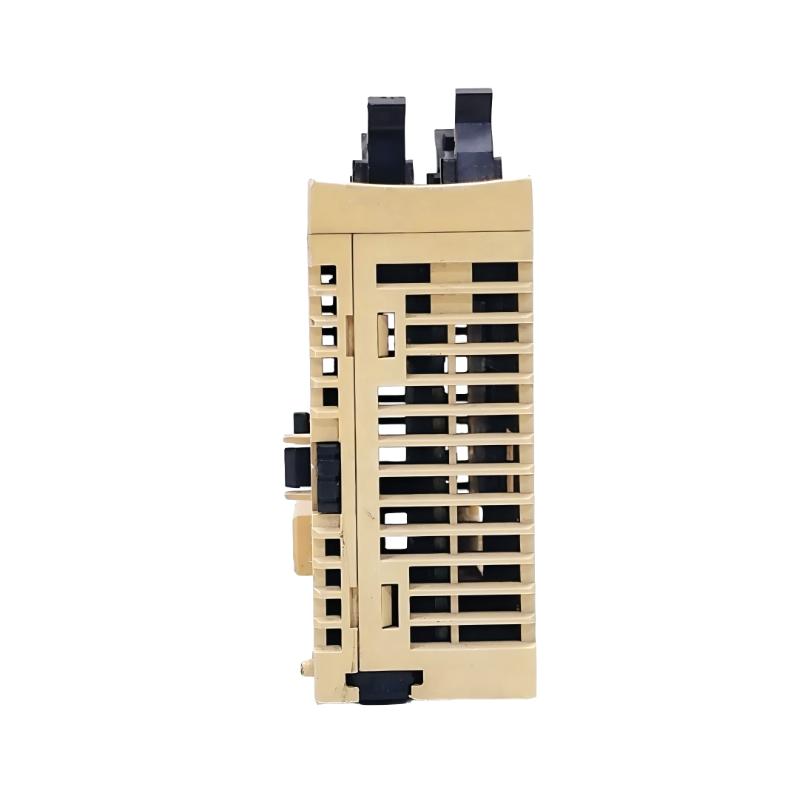

Schneider Electric TM2DDI32DK 32-Channel Digital Input Module for Modicon M238 PLC Systems

Applications

The TM2DDI32DK module is suitable for:

• High-density digital signal monitoring
• Industrial machine and production line automation
• Packaging and assembly machinery
• HVAC and environmental monitoring systems
• Water and wastewater process control

Advantages

• 32 Digital Channels: High-density input for multiple signals
• Fast Response: Approx. 5 ms per input
• Reliable Isolation: Optically isolated inputs for noise immunity
• Compact Design: Space-efficient DIN rail mounting
• Seamless PLC Integration: Optimized for Modicon M238 systems

Technical FAQs

1. How many input channels does the module provide?
   32 digital input channels.
2. What types of signals are supported?
   Sinking or sourcing 24 V DC digital signals.
3. What is the input voltage range?
   24 V DC ± 10%.
4. What is the maximum input current per channel?
   7 mA max per channel.
5. What are the module dimensions?
   Approximately 90 × 100 × 70 mm.
6. What is the weight of the module?
   Approximately 0.30 kg.
7. Are the inputs isolated?
   Yes, inputs are optically isolated.
8. What is the response time per input?
   Approximately 5 ms.
9. Can it be mounted on DIN rail?
   Yes, standard DIN rail mounting is supported.
10. Which PLC systems is this module compatible with?
    Designed for Modicon M238 PLC systems.
