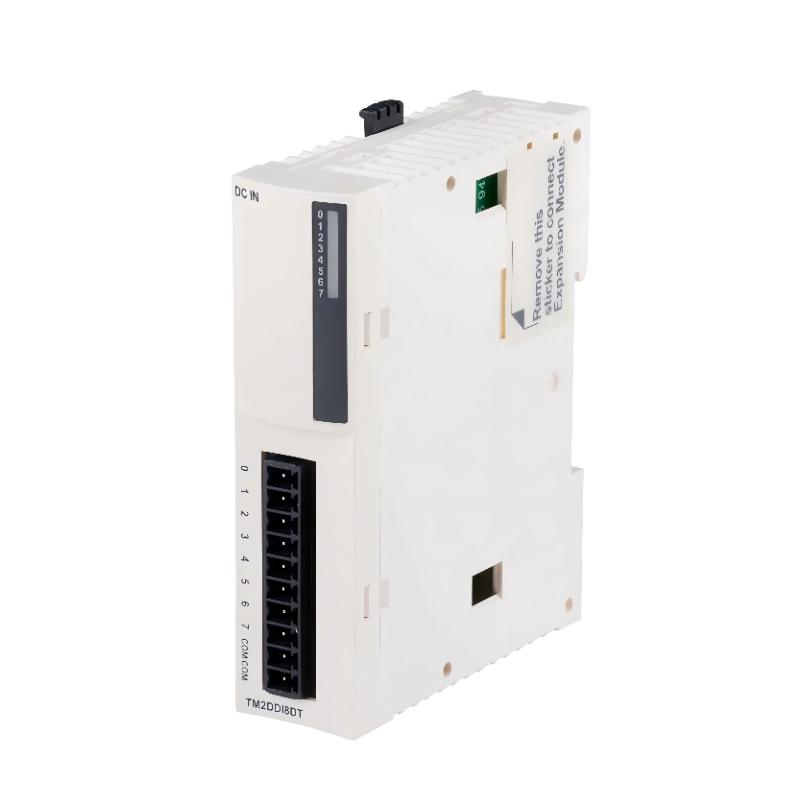

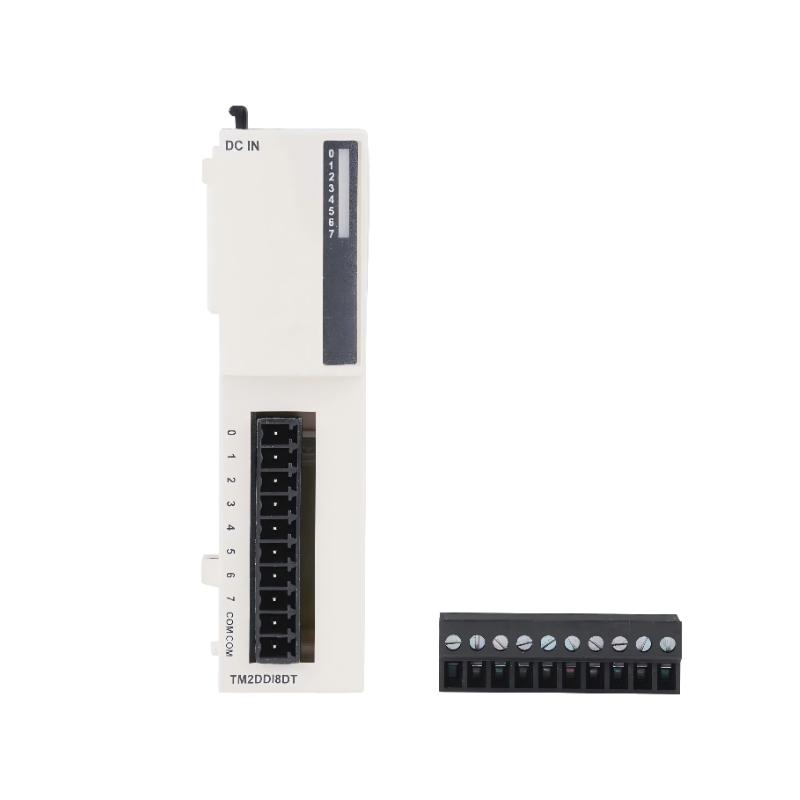

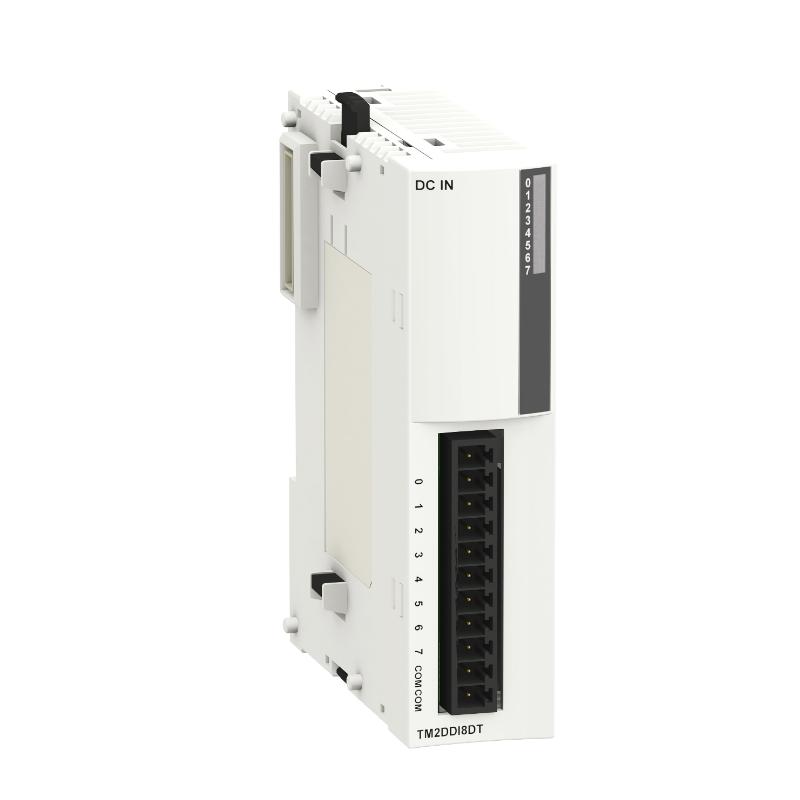

The Schneider Electric TM2DDI8DT is a high-speed 8-channel digital input module designed for Modicon M238 PLC systems. It provides fast and reliable detection of digital signals from switches, sensors, and other binary devices, ensuring accurate process monitoring and control in industrial automation environments.
Its compact design and DIN rail compatibility make it easy to integrate into TM2 modular PLC systems, offering efficient, high-speed digital input performance for various applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Input Module |
| Series | Modicon TM2 (for M238 PLC) |
| Input Channels | 8 |
| Input Type | Digital, sinking or sourcing |
| Input Voltage Range | 24 V DC ± 10% |
| Input Current | Max. 7 mA per channel |
| Isolation | Optically isolated |
| Response Time | Approx. 1 ms (high-speed) |
| Power Supply | Via PLC backplane ribbon cable |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 25 × 70 mm |
| Weight | Approx. 0.09 kg |
| Operating Temperature | 0°C to 55°C |
