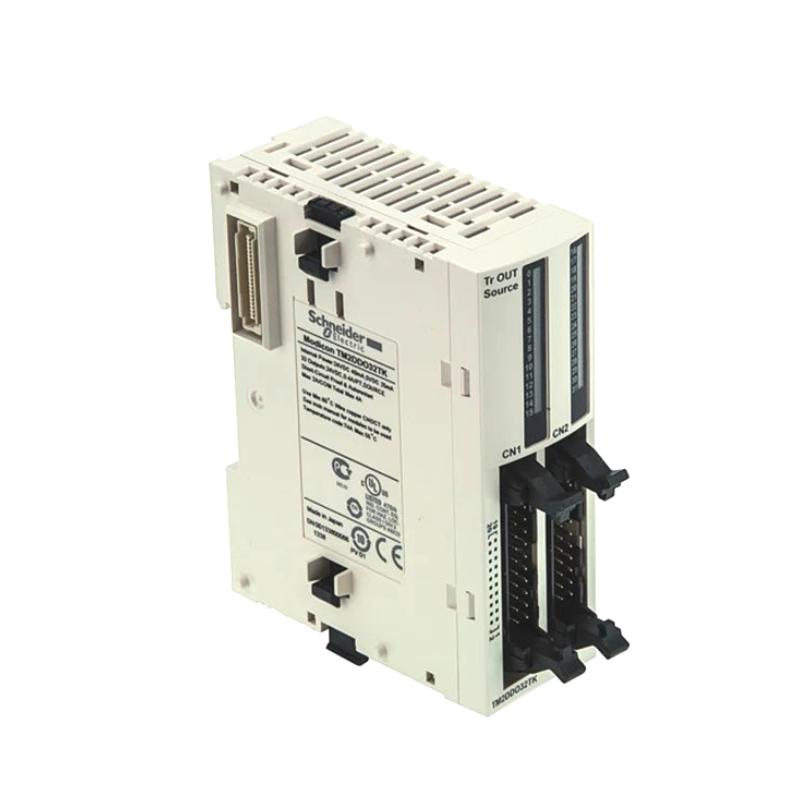

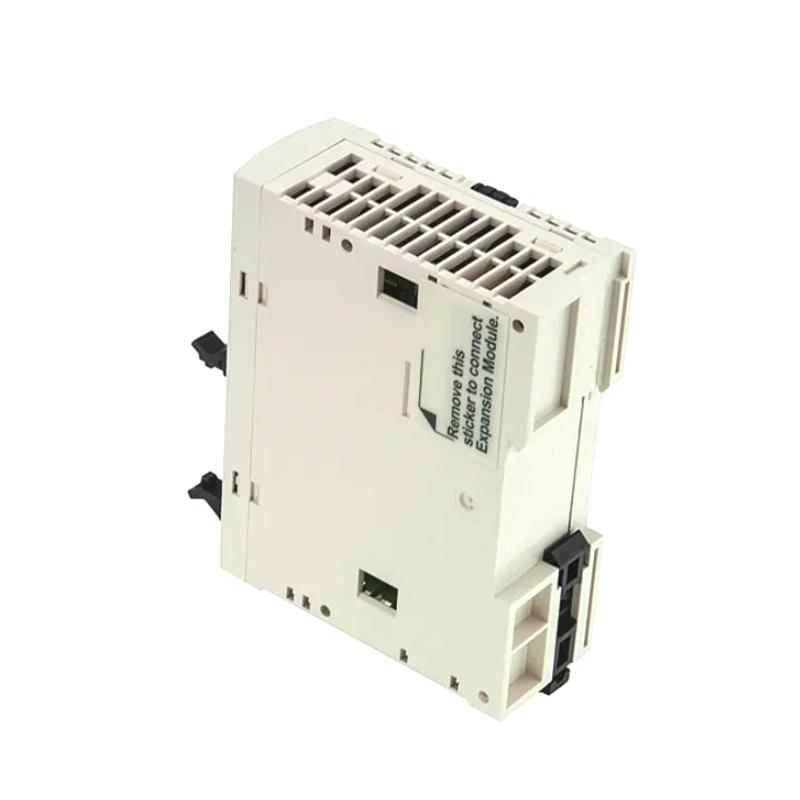

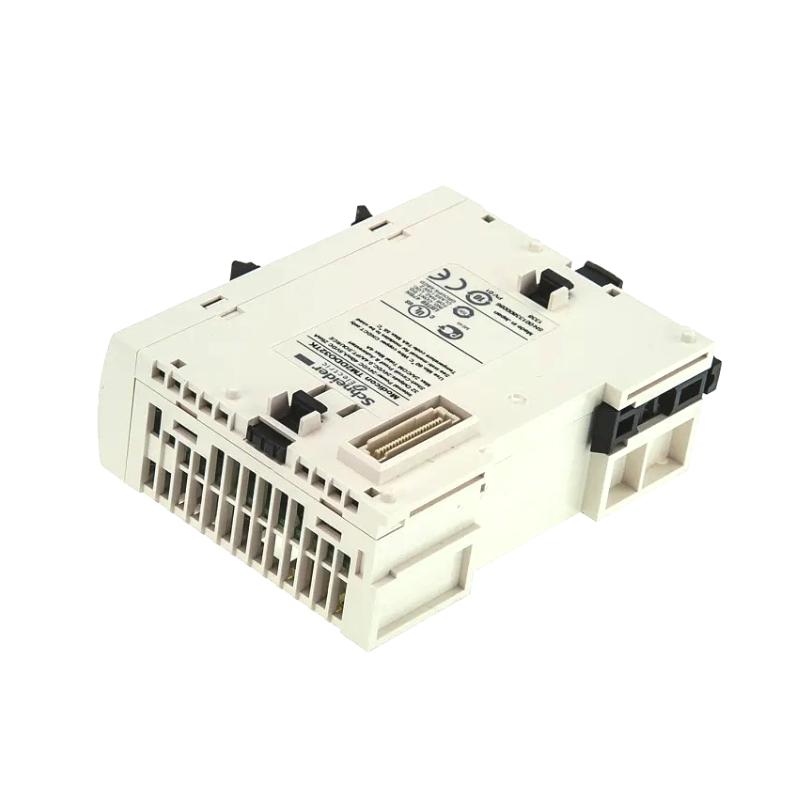

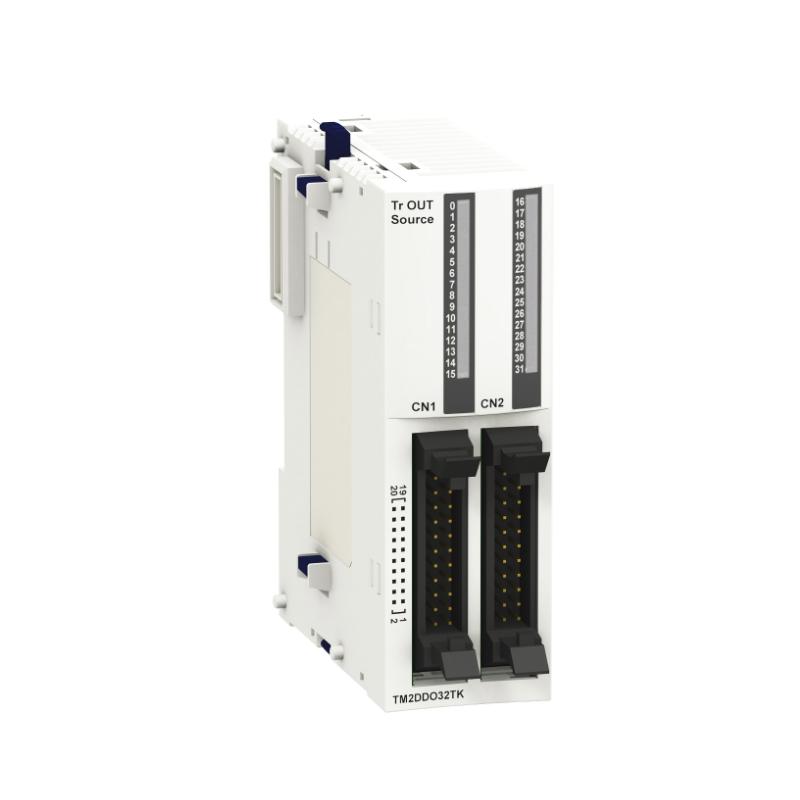

The Schneider Electric TM2DDO32TK is a high‑density digital output module designed for use with Modicon M238 PLC systems. With 32 individually addressable digital outputs, this module enables effective control of external devices such as relays, indicators, solenoids, and small actuators in industrial automation applications. Its compact form factor and rugged design make it ideal for machine control, production lines, and process automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Output Module |
| Series | Modicon TM2 (for M238 PLC) |
| Output Channels | 32 |
| Output Type | Digital, transistor |
| Nominal Output Voltage | 24 V DC |
| Maximum Output Current | 0.5 A per channel |
| Load Type | Resistive / Inductive |
| Isolation | Optically isolated |
| Response Time | Approx. 1 ms |
| Power Supply | Via PLC backplane ribbon cable |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 100 × 70 mm |
| Weight | Approx. 0.32 kg |
| Operating Temperature | 0°C to 55°C |
