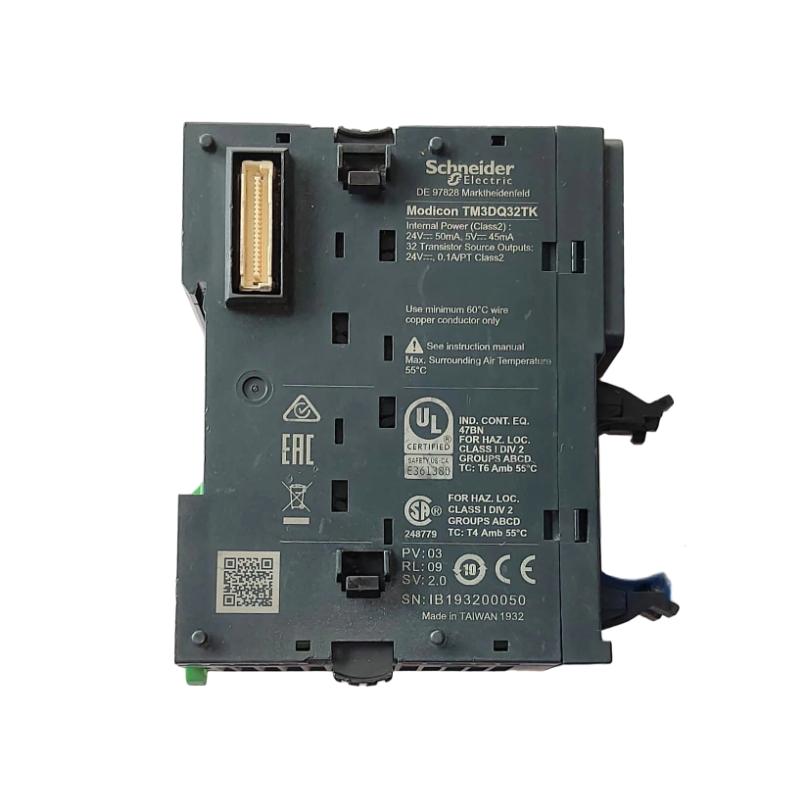

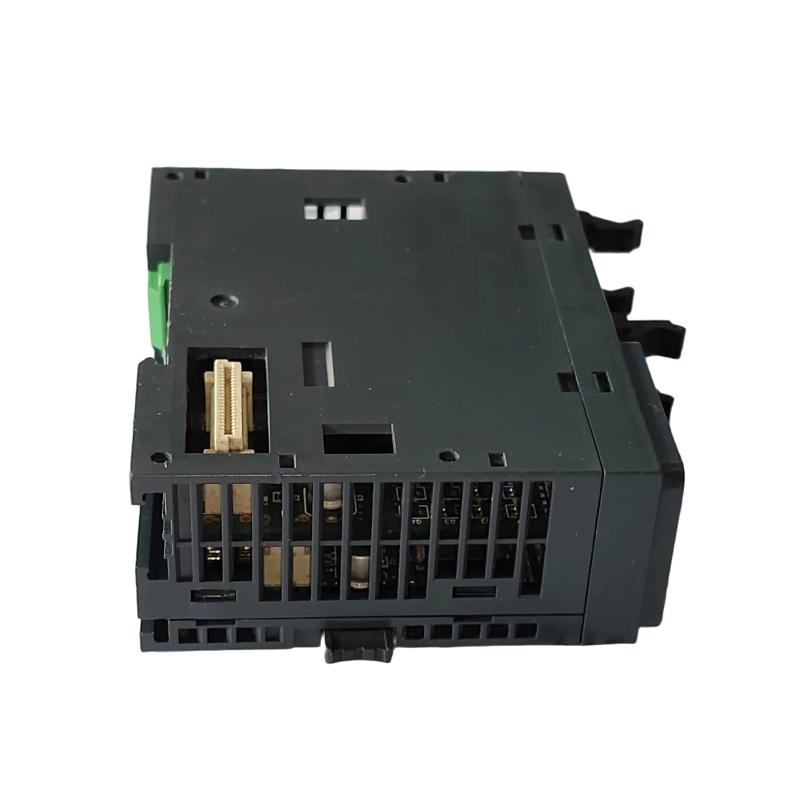

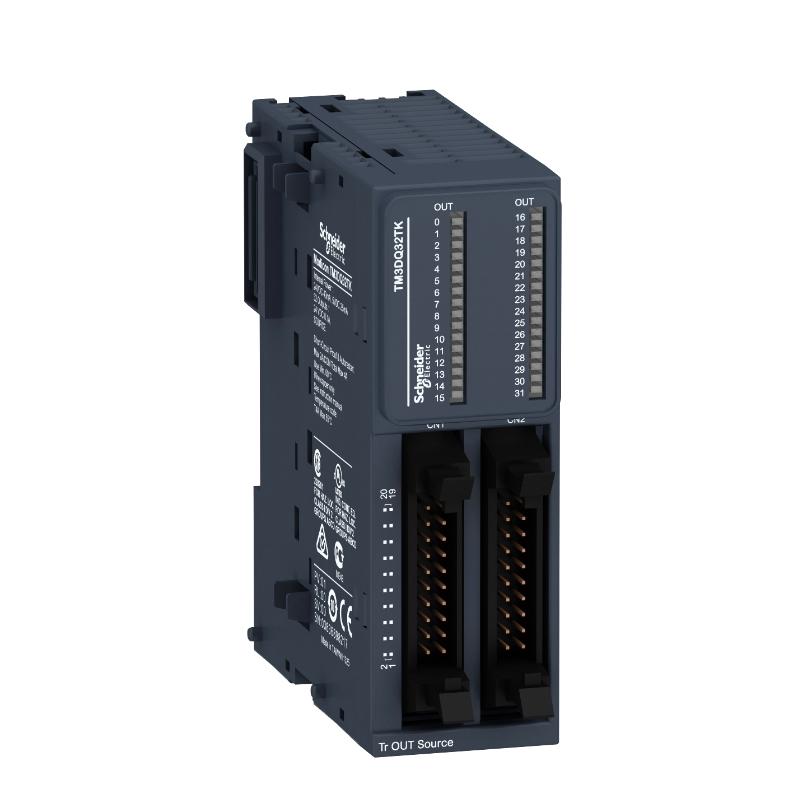

The Schneider Electric TM3DQ32TK is a high‑channel‑count digital output expansion module designed for use with Modicon TM3 PLC systems. Featuring 32 discrete transistor outputs, this module provides robust control of external devices such as relays, indicators, solenoids, and other actuators in industrial automation environments. Its compact modular design and reliable performance make it well suited for machine control, process automation, and large‑scale system integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Output Module |
| Series | Modicon TM3 (for TM3 PLC) |
| Output Channels | 32 |
| Output Type | Transistor output (PNP/NPN compatible) |
| Nominal Load Voltage | 24 V DC |
| Maximum Load Current | 0.5 A per channel |
| Load Compatibility | Resistive / Inductive |
| Output Isolation | Optically isolated |
| Response Time | Approx. 1 ms |
| Power Supply | Powered via PLC backplane |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 100 × 70 mm |
| Weight | Approx. 0.32 kg |
| Operating Temperature | 0°C to 55°C |
