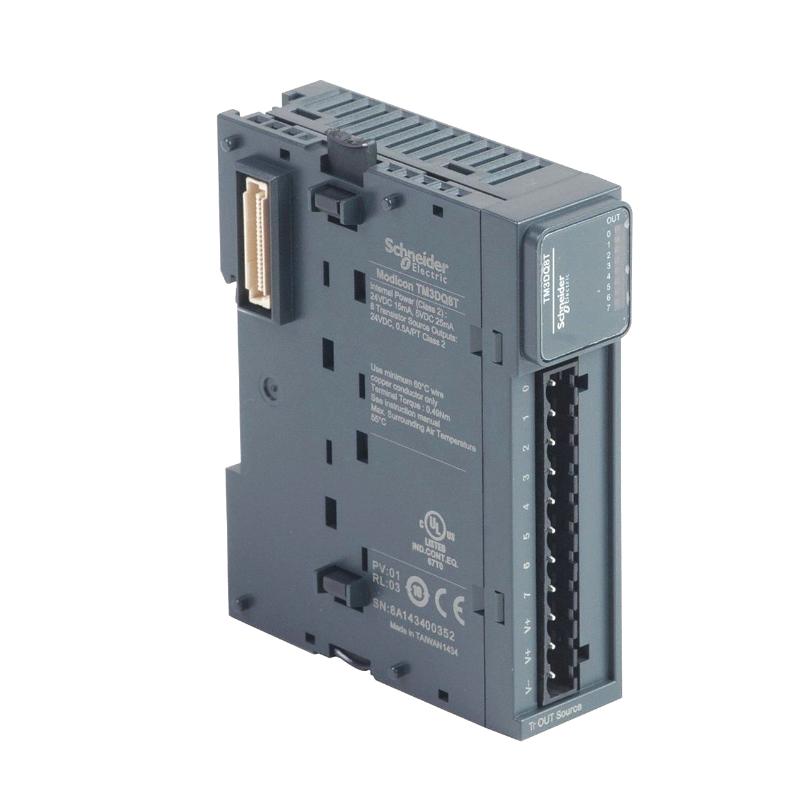

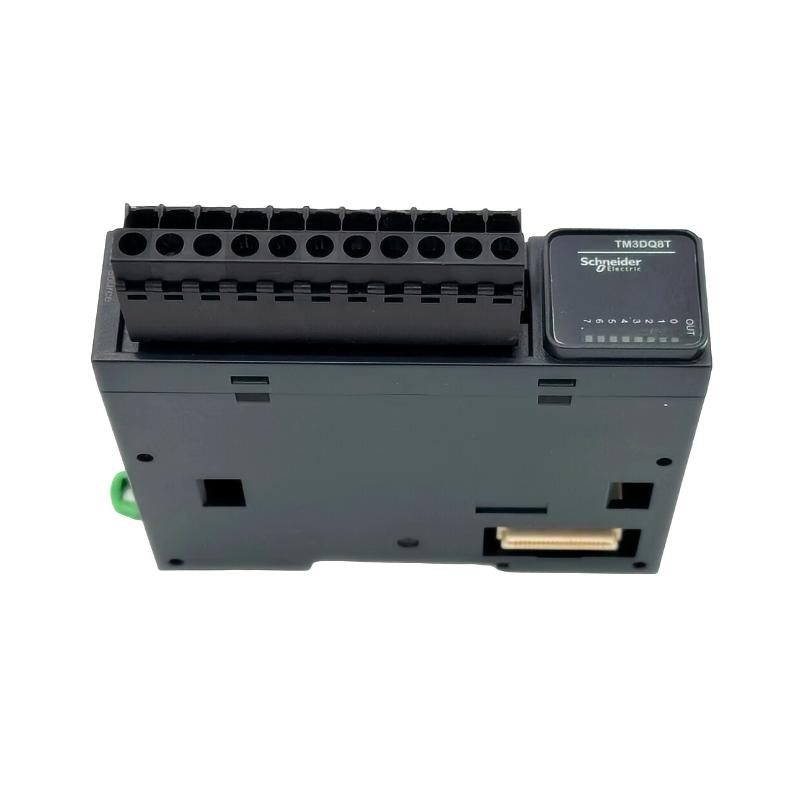

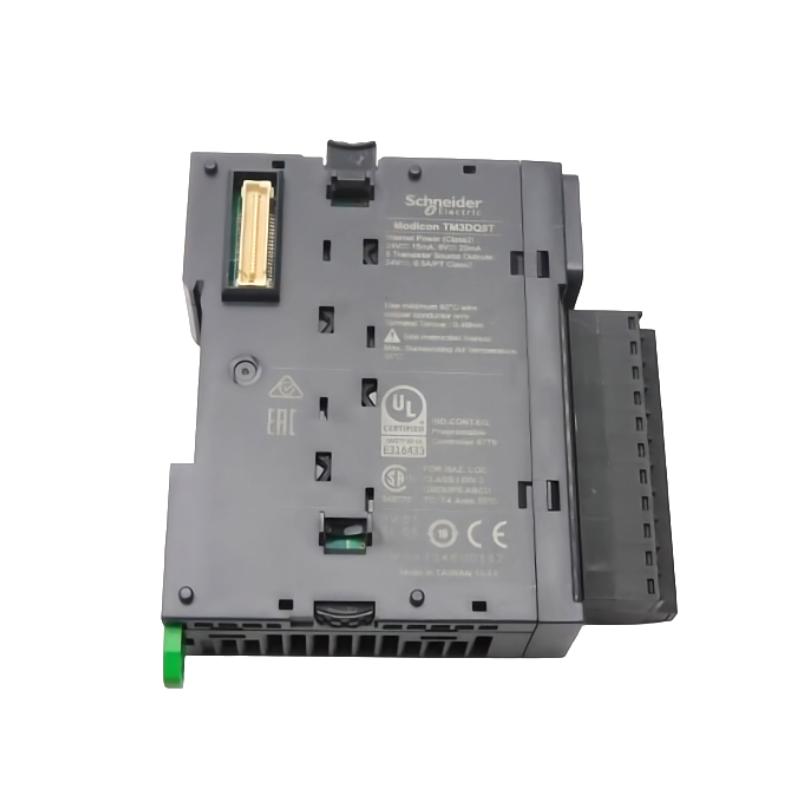

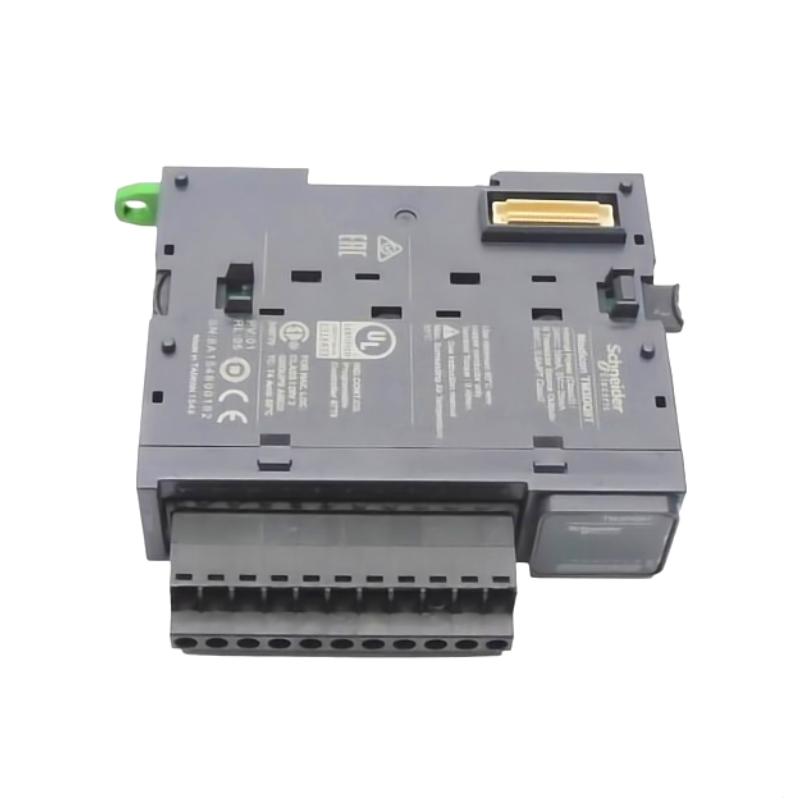

The Schneider Electric TM3DQ8T is a high‑speed 8‑channel digital output expansion module designed for Modicon TM3 PLC systems. It delivers fast and reliable switching of discrete digital signals, making it ideal for industrial automation, machine control, and process systems that require precise timing and robust output performance.
With a compact form factor and DIN rail mounting, the TM3DQ8T integrates seamlessly into modular PLC architectures where timing‑critical digital control is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital Output Module |
| Series | Modicon TM3 (for TM3 PLC) |
| Output Channels | 8 |
| Output Type | Transistor outputs |
| Nominal Load Voltage | 24 V DC |
| Maximum Load Current | 0.5 A per channel |
| Load Compatibility | Resistive / Inductive |
| Output Isolation | Optically isolated |
| Response Time | Approx. 1 ms |
| Power Supply | Powered via PLC backplane |
| Mounting | DIN rail |
| Dimensions (H × W × D) | Approx. 90 × 50 × 70 mm |
| Weight | Approx. 0.11 kg |
| Operating Temperature | 0 °C to 55 °C |
Recommended Related Modules
- TM3DQ8R – 8‑channel relay output module
- TM3DQ16TK – 16‑channel transistor output module
- TM2DDO8TT – 8‑channel high‑speed digital output for TM2 PLC systems
