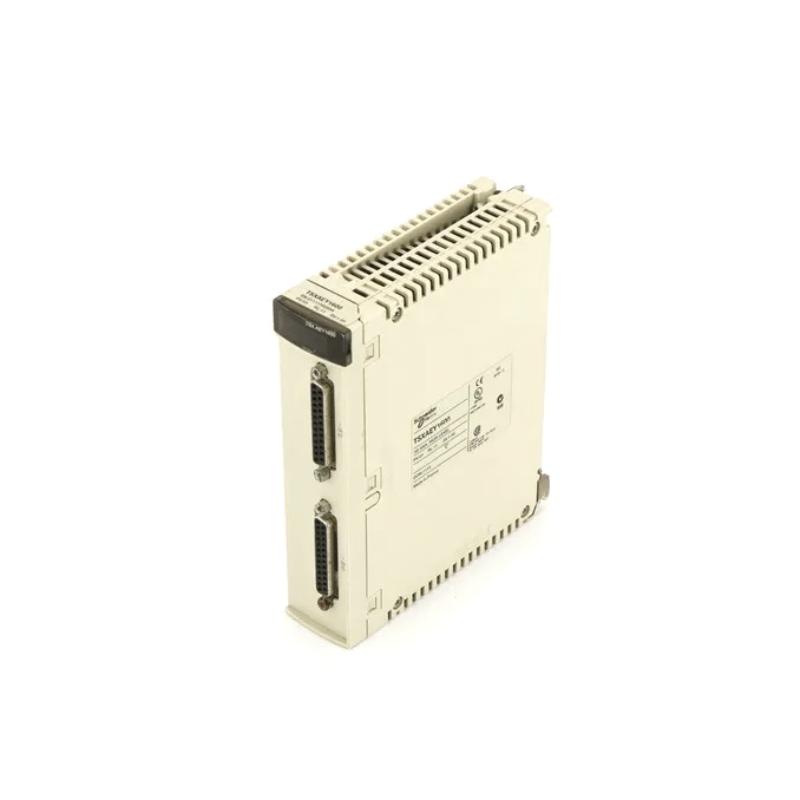

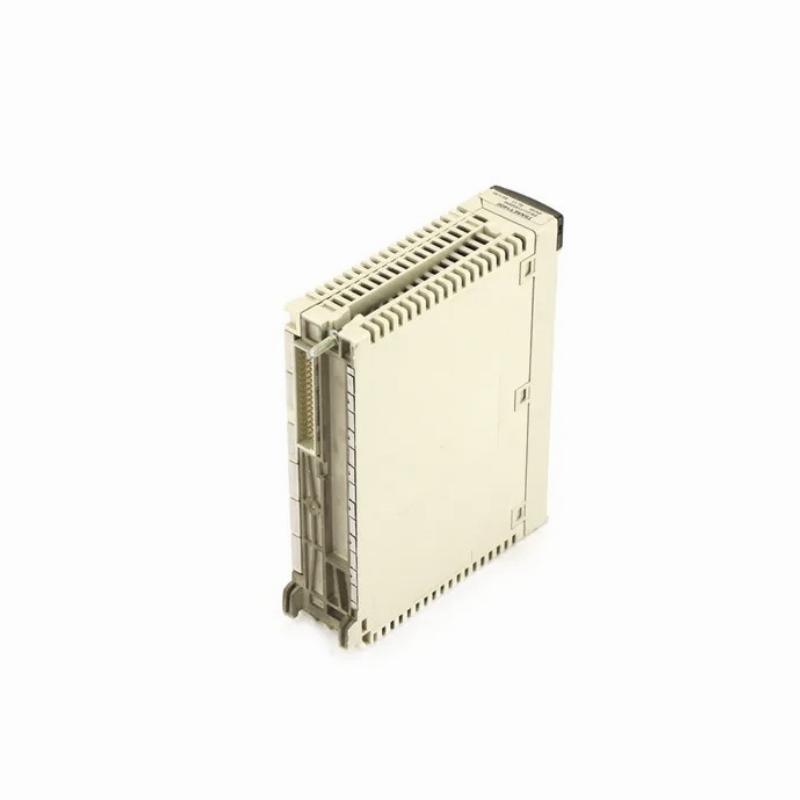

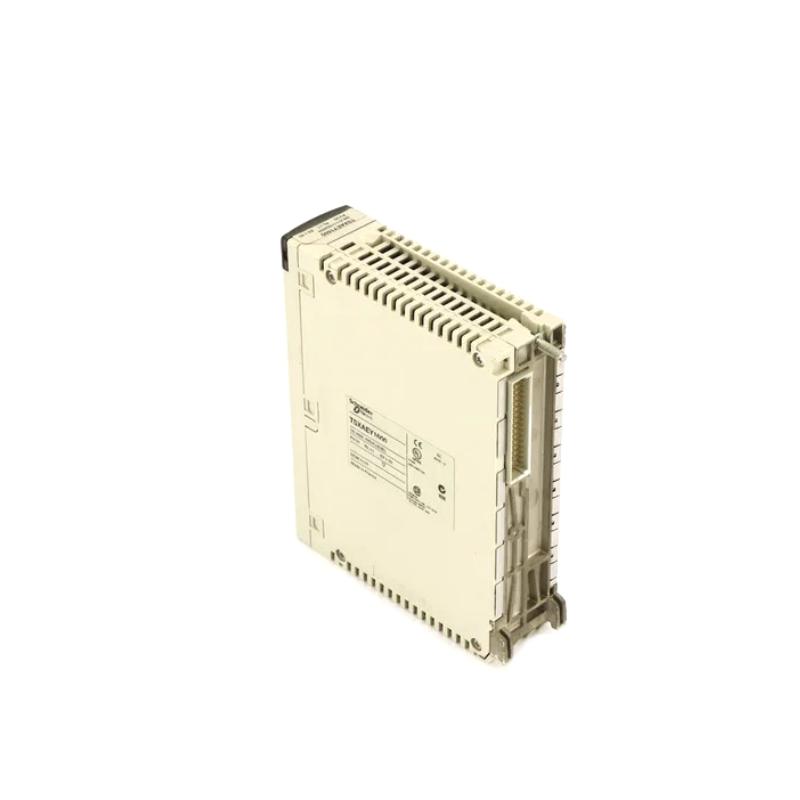

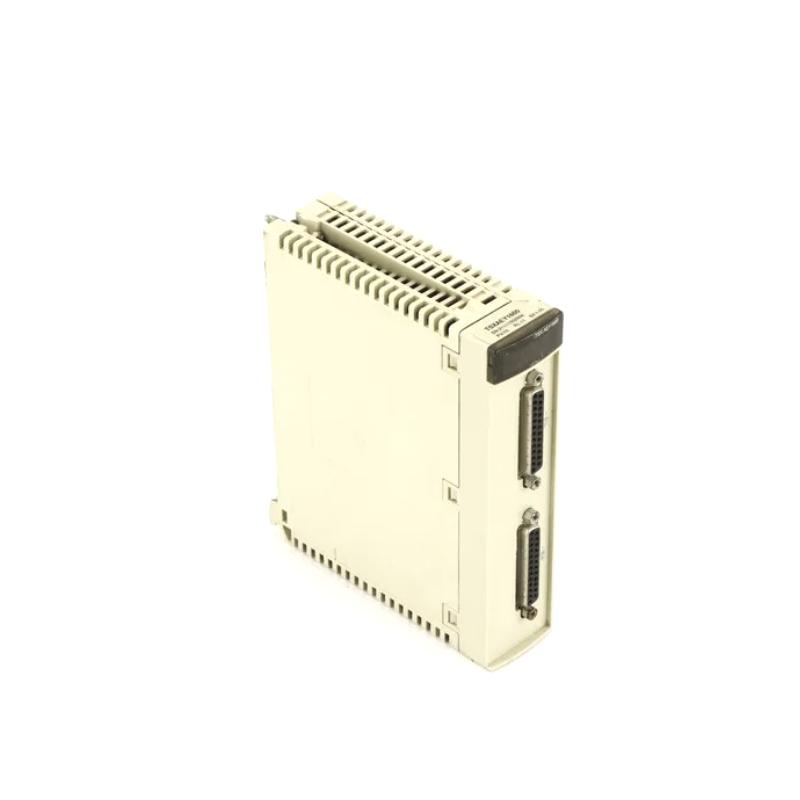

The Schneider TSXAEY1600 is a premium‑grade Analog Input Module meticulously engineered for use in Modicon Premium PLC systems where high‑accuracy data acquisition and signal conditioning are critical. With support for multiple industrial signal types and rapid conversion rates, this module delivers exceptional performance for demanding automation environments. Whether deployed in process monitoring, environmental sensing, or advanced control applications, the TSXAEY1600 stands out for its reliability, flexibility, and industrial durability.

Technical Specifications

Specification	Detail
Model	TSXAEY1600
Module Type	Analog Input Module
Platform	Modicon Premium automation
Number of Inputs	16 high‑level analog channels
Supported Input Types	Current: 0–20 mA, 4–20 mA Voltage: ±10 V, 0–10 V, 0–5 V, 1–5 V
Analog‑Digital Resolution	12 bits
Nominal Read Cycle	51 ms
Fast Read Cycle	3 ms + 3 ms per channel used
Measurement Accuracy (25 °C)	Voltage: ±0.1 % FS Current: ±0.16 % FS
Isolation	1000 Vrms between channels & bus/ground
Electrical Connection	2 × SUB‑D 25 connectors
Power Consumption	270 mA at 5 V DC
Operating Temp.	0 °C to 60 °C
Storage Temp.	-25 °C to 70 °C
Humidity	10 %–95 % non‑condensing
Protection Rating	IP20
Weight	~0.34 kg (0.75 lb)

Recommended Related Models

Model	Why It’s Recommended
Schneider TSXAEY1200	12‑channel analog input variant for smaller data acquisition needs
Schneider TSXAEY0800	8‑channel analog module ideal for space‑constrained panels
Schneider TSXAEY3200	Dual‑bank analog input with advanced filtering
Schneider TSXCXY1600	Complementary analog output module supporting 16 channels

Popular Schneider Models

Model	Key Strength
Schneider Modicon M221	Compact PLC with integrated communication options
Schneider Modicon M241	Mid‑range controller with Ethernet support
Schneider Modicon M580	High‑performance PAC for enterprise automation
Schneider Modicon Quantum I/O	Modular I/O family for large systems

Applications

The TSXAEY1600 is ideal in scenarios where precision analog measurements matter:

Monitoring temperature, pressure, or flow via analog sensors
Process control systems requiring fine signal resolution
Energy and utilities metering and reporting interfaces
Chemical plant instrumentation networks
Factory automation with mixed analog/digital I/O systems

Advantages

Multi‑Range Input Flexibility: Supports a wide variety of sensor signal types without separate conditioning hardware.
High Accuracy and Fast Conversion: Delivers precise readings with low error across temperature variations.
Robust Isolation: Industrial‑grade 1000 Vrms isolation enhances noise immunity and protects sensitive electronics.
Compact and Efficient: Lightweight design with modest power draw fits dense control cabinets.
Seamless Integration: Designed for straightforward backplane or rack connection within Modicon systems.

Technical FAQs

What is the primary function of the TSXAEY1600?
It’s a 16‑channel analog input module for precise signal acquisition in Modicon Premium systems.
How many analog inputs does it have?
Supports 16 high‑level analog input channels.
What signal types are supported?
Handles both current (0–20 mA, 4–20 mA) and voltage (±10 V, 0–10 V, etc.) inputs.
What is the resolution of the conversion?
Features 12‑bit analog‑to‑digital conversion for accurate measurements.
What is the nominal read cycle time?
Approx. 51 ms, with optional fast cycle processing.
Does it include isolation?
Yes — robust 1000 Vrms isolation between channels and bus/ground.
What power supply does it require?
Operates at 5 V DC with 270 mA consumption.
What physical protection does it offer?
Rated IP20 for general industrial environments.
Is this module suitable for harsh conditions?
Yes — capable of operating from 0 °C up to 60 °C with wide humidity tolerance.
Can it be mixed with digital I/O modules?
Absolutely — designed to integrate within modular PLC racks alongside digital I/O and communication units.
