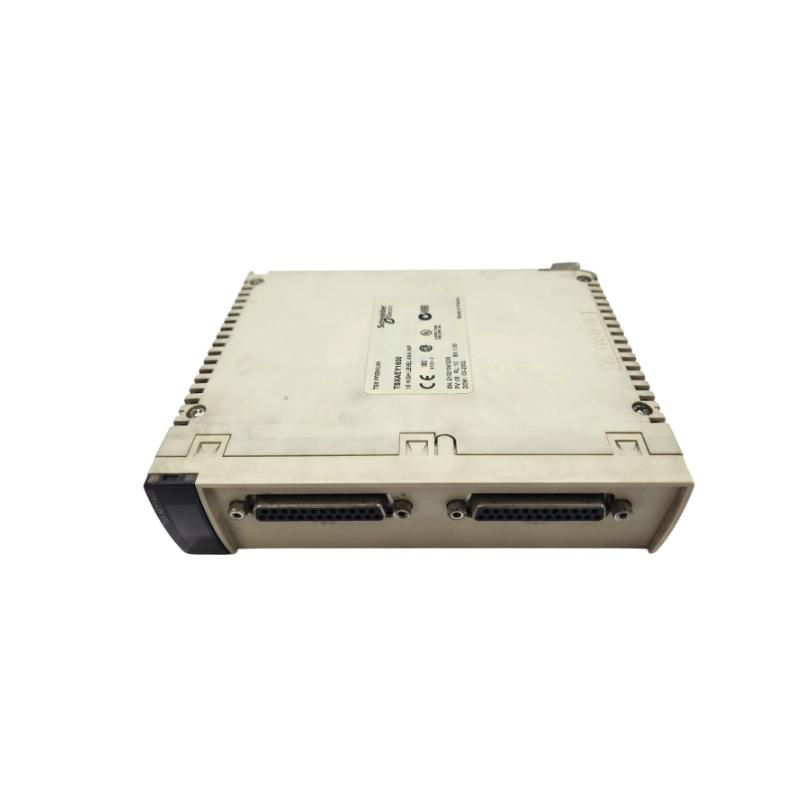

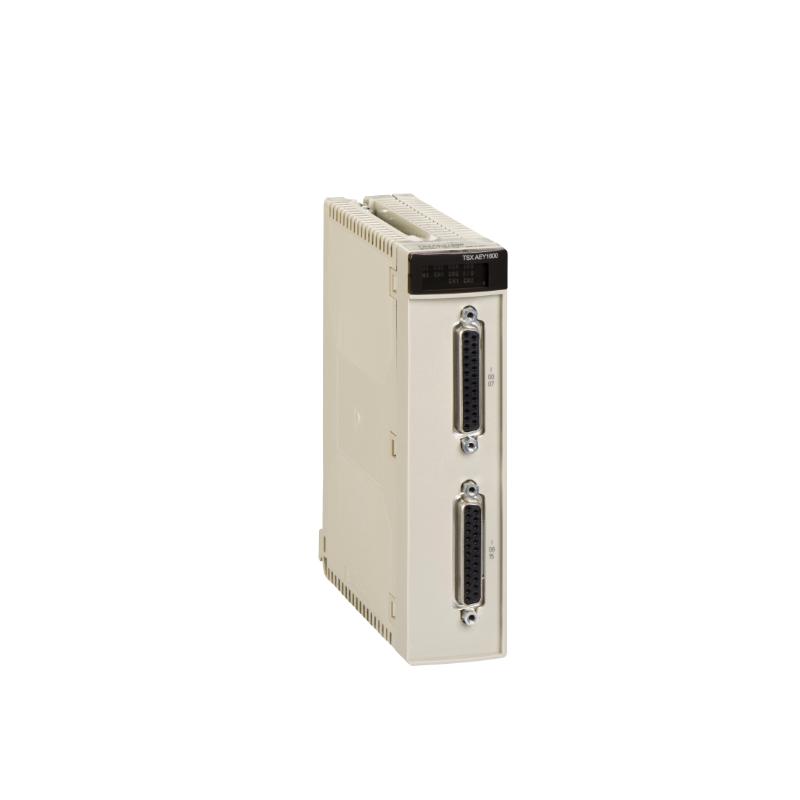

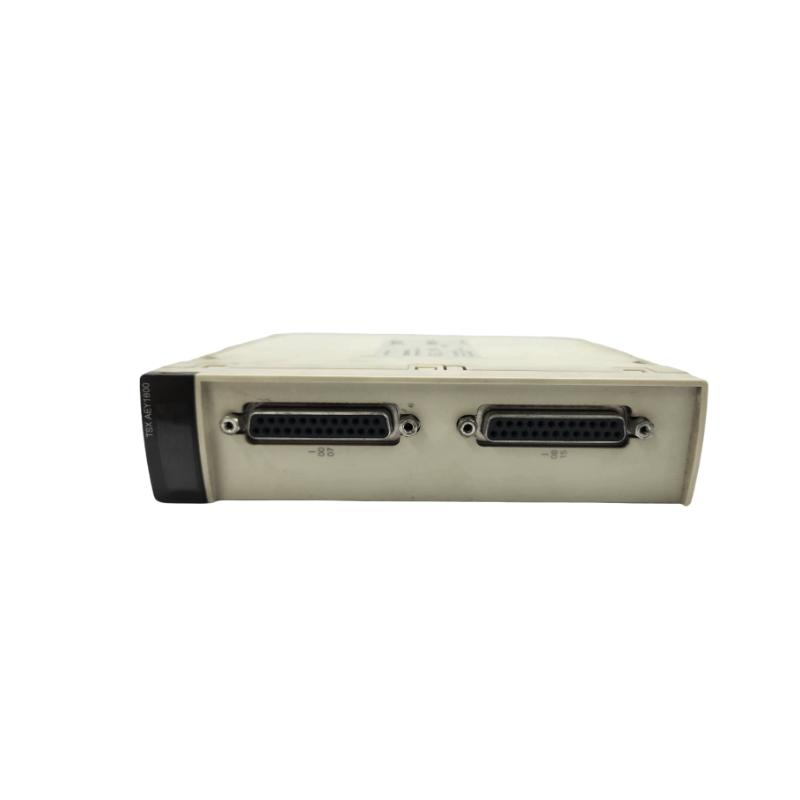

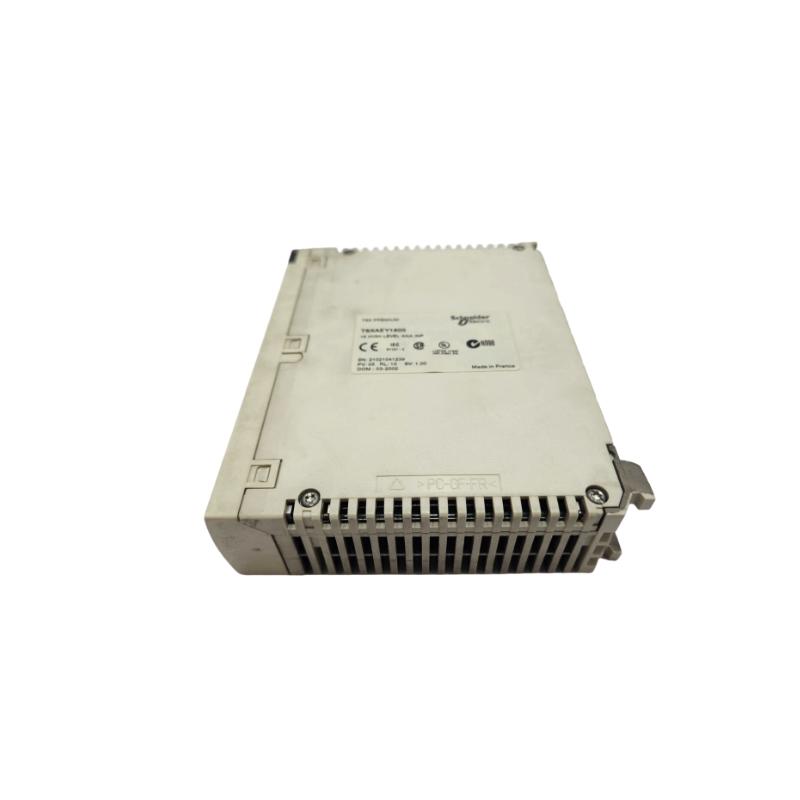

The Schneider TSXAEY1614 is a robust and versatile Analog Input Module within the Modicon Premium automation platform designed for industrial control systems requiring accurate analog data acquisition. Featuring 16 high‑level input channels with 16‑bit resolution, this module supports an extensive range of thermocouple types and low‑level voltage signals, making it ideal for temperature measurement and process monitoring. With solid galvanic isolation and efficient signal processing, the TSXAEY1614 delivers reliable performance in complex automation and control environments.

Technical Specifications

Specification	Detail
Model	TSXAEY1614
Module Type	Analog Input Module
Platform	Modicon Premium Automation
Number of Inputs	16 analog input channels
Supported Signal Types	Thermocouples (B, E, J, K, L, N, R, S, T, U) Voltage ±80 mV
Analog‑to‑Digital Resolution	16 bits
Nominal Read Cycle Time	~70 ms per channel
Isolation (Channels/Bus/Ground)	1000 Vrms
Common Mode Voltage	250 V AC / 280 V AC (between channels)
Electrical Connections	2 × SUB‑D 25 connectors
Power Consumption	300 mA @ 5 V DC
Protection Rating	IP20
Operating Temperature	0 °C to 60 °C
Storage Temperature	-25 °C to 70 °C
Dimensions (Approx., L×W×H)	210 mm × 45 mm × 130 mm (industry standard analog module size)
Weight	~350 g

Recommended Related Models

Model	Reason to Consider
Schneider TSXAEY1600	16‑channel voltage/current analog input module for broader signal flexibility
Schneider TSXAEY0800	Compact 8‑channel analog input module for smaller applications
Schneider TSXAEY3200	Dual‑bank analog module for larger system requirements
Schneider TSXCXY1600	Analog output counterpart supporting precision control

Popular Schneider Models

Model	Key Advantage
Schneider Modicon M221	Compact PLC with flexible I/O options
Schneider Modicon M241	Mid‑range automation controller with enhanced networking
Schneider Modicon M580	High‑performance PAC for enterprise‑scale automation
Schneider Modicon Quantum I/O	Scalable I/O platform for large industrial systems

Applications

The TSXAEY1614 is ideal in industrial automation for:

Precision temperature acquisition using thermocouples
Process control and data logging in manufacturing plants
Environmental sensing and condition monitoring
Energy systems requiring high‑resolution analog inputs
Integration with PLCs for automated process feedback and control

Advantages

High Resolution and Accuracy: 16‑bit conversion ensures precise signal interpretation critical for process control.
Broad Thermocouple Support: Compatible with many thermocouple types for flexible temperature measurement.
Strong Electrical Isolation: Robust isolation ensures signal integrity and safety in noisy environments.
Efficient Data Acquisition: Fast nominal read cycles help maintain real‑time monitoring performance.
Industrial‑Grade Design: Designed for reliability across typical industrial temperature and humidity ranges.

Technical FAQs

What type of inputs does the TSXAEY1614 support?
It supports thermocouples and low‑level voltage (±80 mV) inputs.
How many analog channels are available?
The module offers 16 analog input channels.
What is the resolution of the A/D converter?
The module uses a 16‑bit analog‑to‑digital converter.
What is the nominal read cycle time per channel?
Typically around 70 ms per channel.
Does the module isolate input channels?
Yes — channels are isolated at 1000 Vrms from bus and ground.
What connection type does the module use?
Uses dual 25‑pin SUB‑D connectors for analog wiring.
What power supply does it require?
It consumes around 300 mA at 5 V DC.
Is this module suitable for harsh environments?
Yes — it operates from 0 °C to 60 °C with wide humidity tolerance.
Can this module integrate with other Premium PLC components?
Yes — it fits into standard Modicon Premium racks and integrates with other I/O modules.
Is thermal compensation required for thermocouples?
When wiring thermocouples directly, appropriate cold‑junction compensation techniques should be applied.
