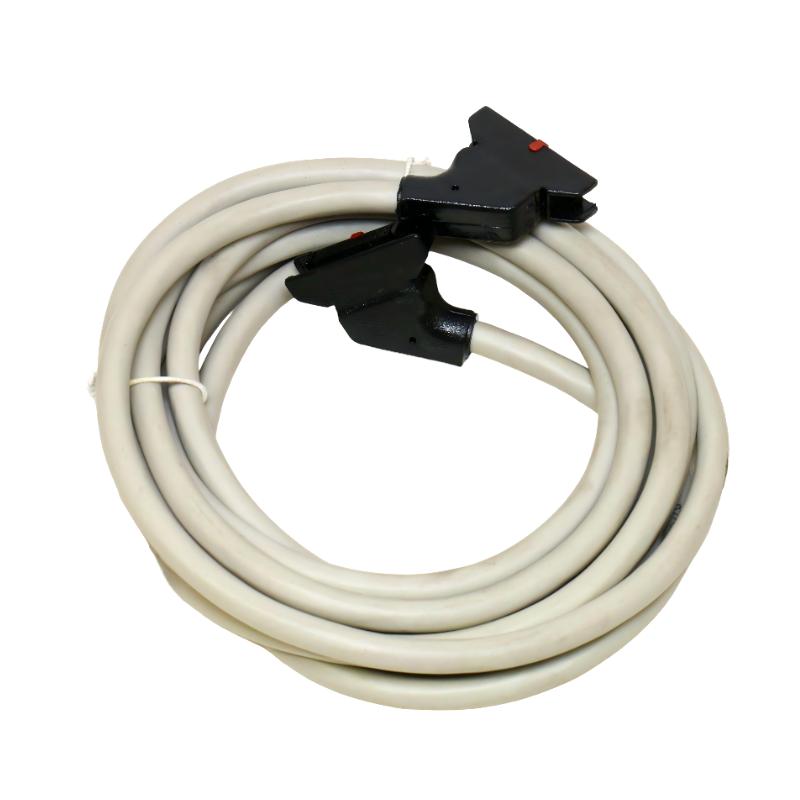

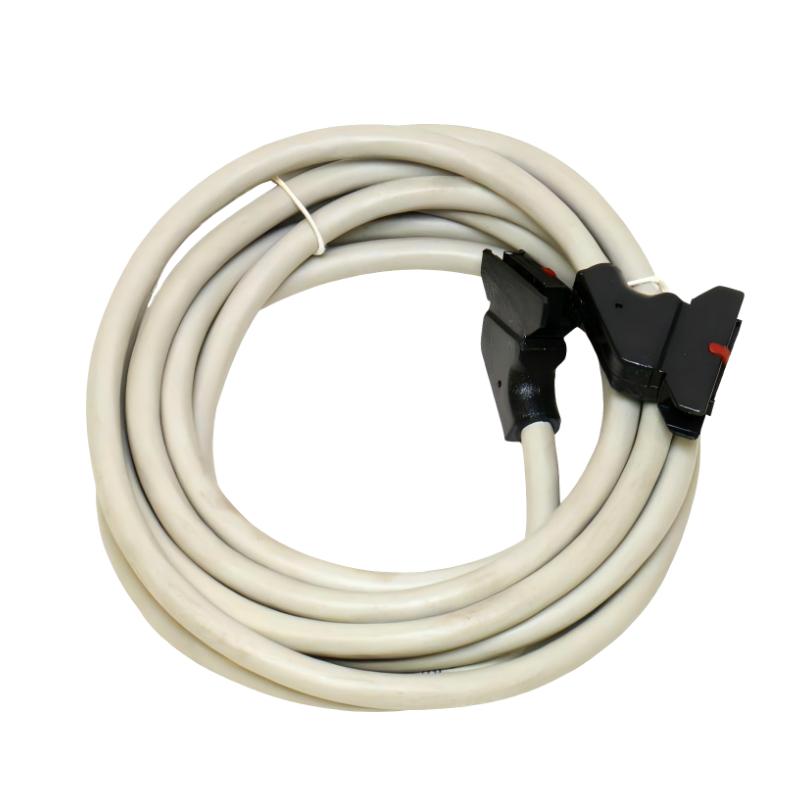

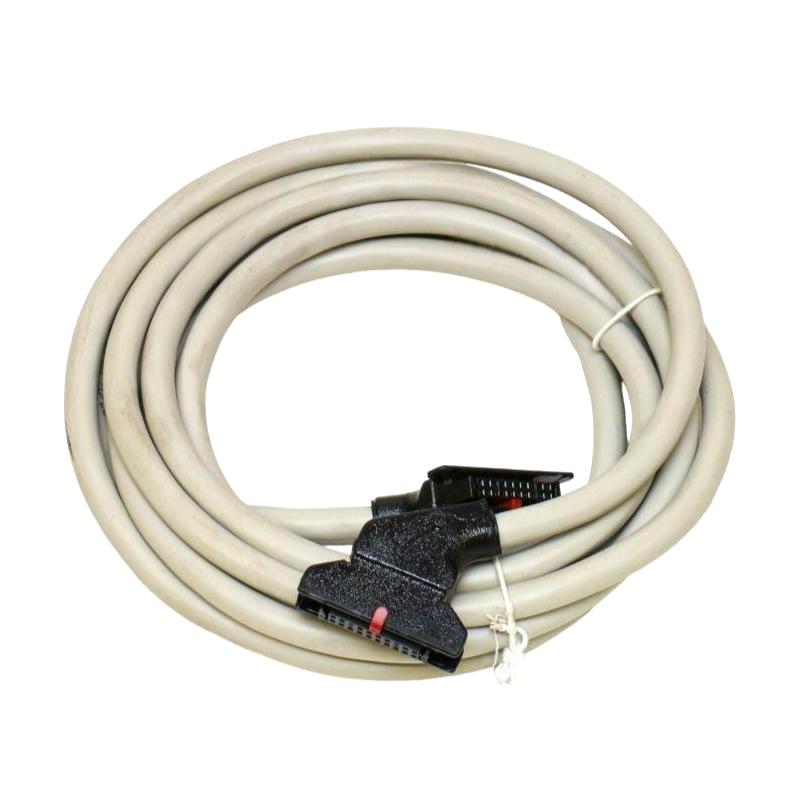

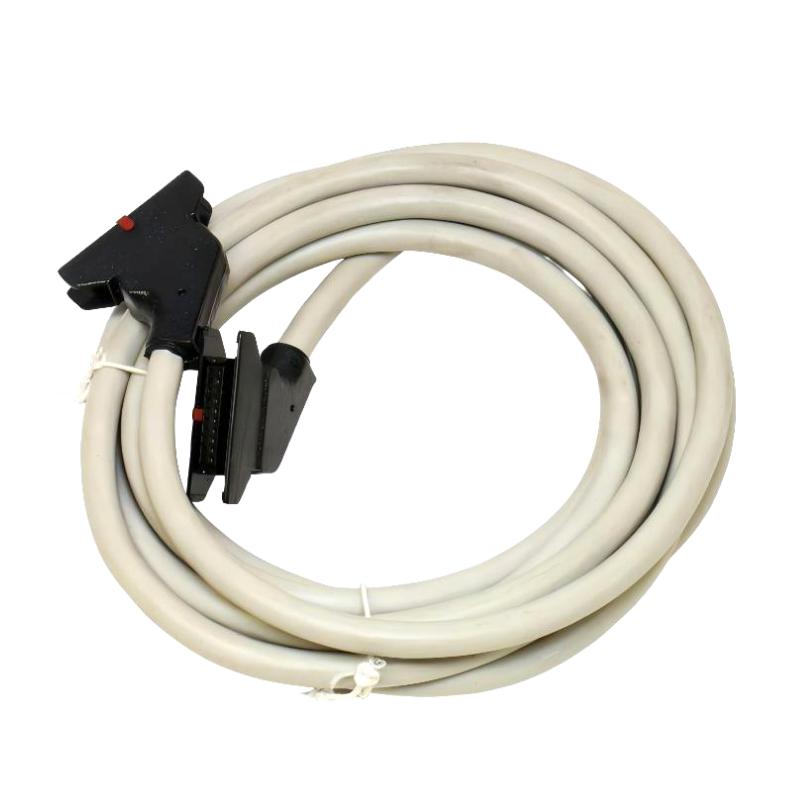

The Schneider TSXCDP303 is a purpose‑built connecting cable accessory designed to seamlessly link Modicon Premium series PLC modules — especially the ABE7H16R20 sub‑base — within industrial control systems. Its robust HE10 20‑way connectors at both ends ensure dependable signal continuity between I/O modules and the PLC rack, simplifying wiring and reducing installation complexity. With a practical 3 m length and industry‑standard construction, the TSXCDP303 is an essential link for automation panels requiring organized, reliable interconnections.

Technical Specifications

Specification	Detail
Model	TSXCDP303
Module Type	Connecting Cable
Compatible Platform	Modicon Premium PLC Series
Intended Use	Sub‑base ABE7H16R20 connection
Connector Type (Both Ends)	HE10, 20 ways
Cable Length	3000 mm (3 m)
Wire Section	0.324 mm² (AWG 22)
Shielding / Jacket	PVC industrial cable
Weight (Approx.)	410 g (~0.41 kg)
Operating Environment	Standard industrial wiring applications
Compliance	RoHS compliant / environmentally considered design
Discontinued Status	Officially discontinued by Schneider Electric (last known cataloged model)

Recommended Related Models

Model	Why It’s Recommended
Schneider TSXCDP301	Similar Modicon connecting cable for alternate sub‑bases
Schneider TSXCDP203	Shorter length connector for compact panels
Schneider ABE7H16R20	Matching sub‑base intended for use with this cable
Schneider TSXCUSB485	USB‑to‑industrial converter cable for programming and diagnostic links

Popular Schneider Models

Model	Key Strength
Schneider Modicon M221	Compact controller with flexible I/O options
Schneider Modicon M241	Mid‑range PLC with integrated Ethernet
Schneider Modicon M580	High‑performance PAC for enterprise systems
Schneider Modicon Quantum I/O	Scalable modular platform for large automation

Applications

The TSXCDP303 cable is typically used in:

Wiring between Modicon Premium PLC racks and discrete I/O modules
Panel installations requiring standardized HE10 20‑way connections
Factory automation systems where consistent signal paths are paramount
Control cabinets requiring tidy, durable interconnections
Retrofit assemblies where existing sub‑base boundaries are preserved

Advantages

Reliable Industrial Connectors: HE10 20‑way connectors ensure secure, vibration‑resistant connections in control cabinets.
Optimized Length for Cabinets: A 3 m cable length balances reach and routing convenience.
RoHS Environmental Compliance: Designed with environmentally responsible materials.
Standardized Wiring: Wire section and AWG 22 rating align with industrial norms to simplify maintenance.
Broad Compatibility: Works with multiple Modicon I/O families and sub‑base configurations.

Technical FAQs

What type of cable is the TSXCDP303?
It’s a 3 m connecting cable with HE10 20‑way connectors designed for Modicon Premium PLC sub‑base interfaces.
Which connectors does it use at each end?
HE10 type 20‑way connectors both on module and PLC ends.
What is the cable length?
The standard length is 3 m (3000 mm).
Is this product still current?
Schneider Electric lists it as discontinued, though compatible spare or refurbished units are available.
What wire gauge is the cable?
Wire section is 0.324 mm² (AWG 22).
Can this cable be used with other Modicon series?
It connects primarily with Modicon Premium sub‑bases, but HE10 physical interfaces may fit similar TSX I/O modules.
Does it support signal conditioning or transmission?
This cable provides physical link paths; it does not itself condition signals.
Is shielding provided?
Yes — standard industrial PVC jacket and construction support signal integrity in typical panel environments.
What environments is it suitable for?
General industrial wiring; avoid corrosive or high‑temperature conditions outside PLC cabinet specs.
Can it be cut to shorten?
Modifying factory connectors is not recommended — altering connectors may compromise fit and signal reliability.
