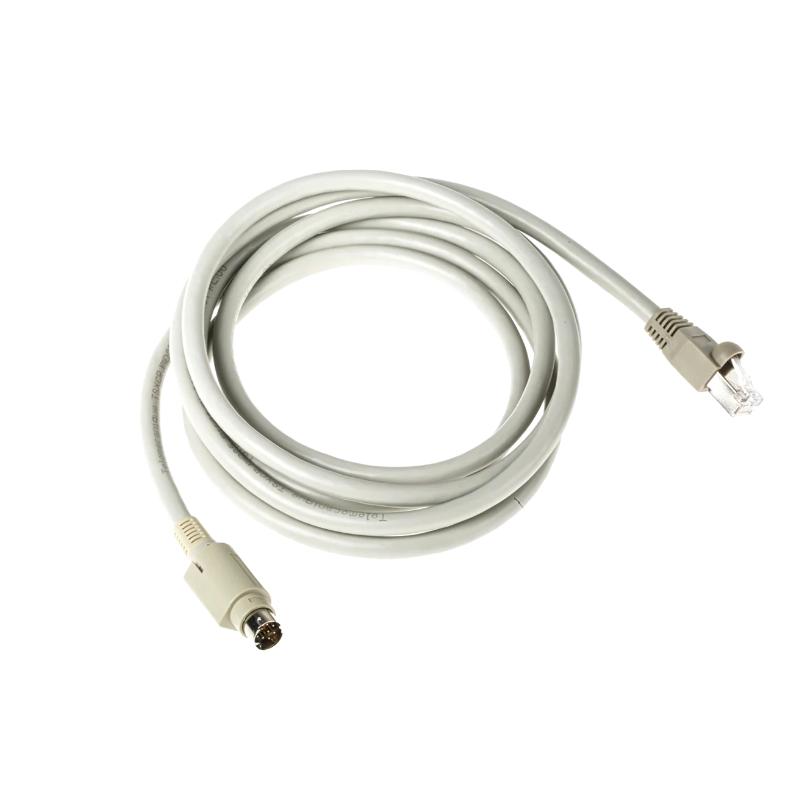

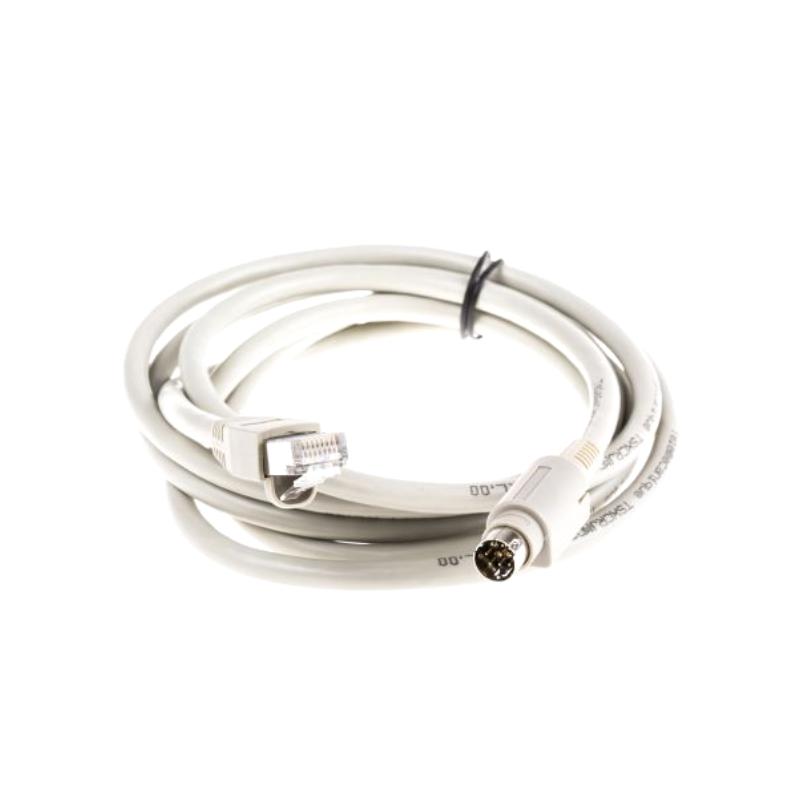

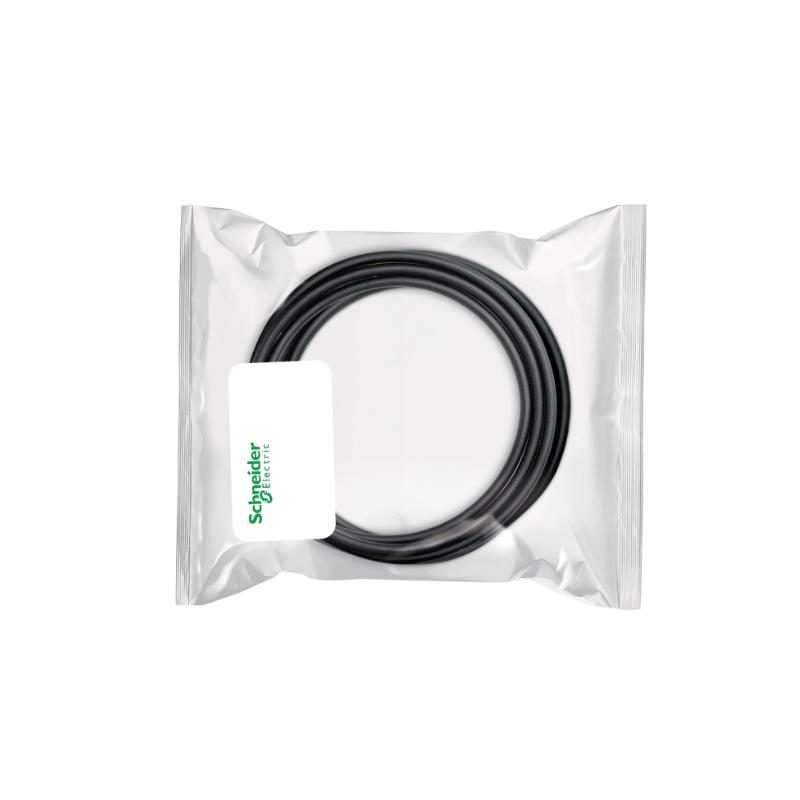

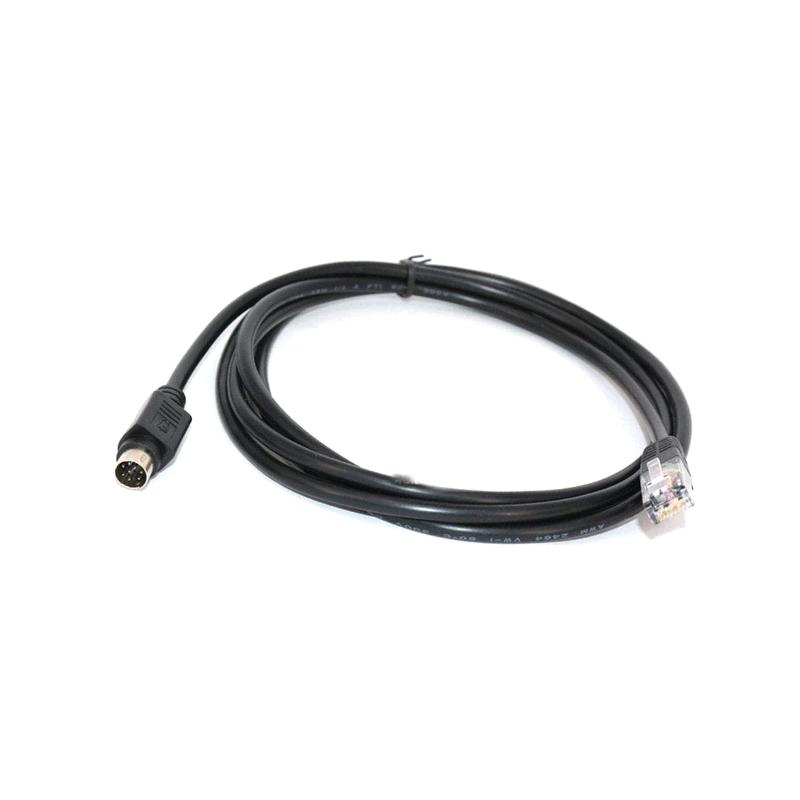

The Schneider TSXCRJMD25 is a high-quality connection cable engineered for seamless communication between a PC terminal and Modicon Premium or Quantum PLC processors. Its 2.5 m length and multi-interface design, including USB, RJ45, and Mini‑DIN connectors, provide flexibility for programming, configuration, and diagnostics in industrial automation environments. Robust construction ensures long-term reliability and stable signal transfer, making it an essential accessory for professional automation setups.
Technical Specifications
| Specification | Detail |
|---|
| Model | TSXCRJMD25 |
| Accessory Type | Connecting Cable / Cordset |
| Intended Use | PC → PLC processor connectivity |
| Compatible Platforms | Modicon Premium & Modicon Quantum |
| Connectors | USB (PC side), RJ45 & Mini‑DIN (PLC side) |
| Cable Length | 2500 mm |
| Cable Diameter | ~6 mm |
| Connector Dimensions (L×W×H) | USB: 60×15×12 mm; RJ45: 30×12×12 mm; Mini‑DIN: 28×12×12 mm |
| Approximate Weight | 150 g (0.15 kg) |
| Operating Environment | Industrial automation wiring |
| Compliance | RoHS |
| Product Status | Active |
