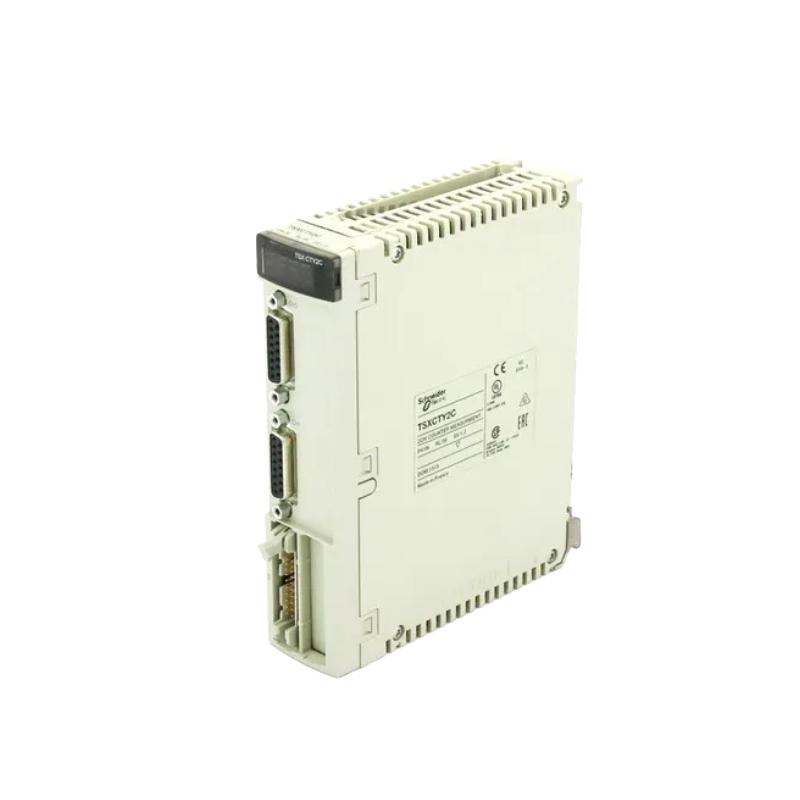

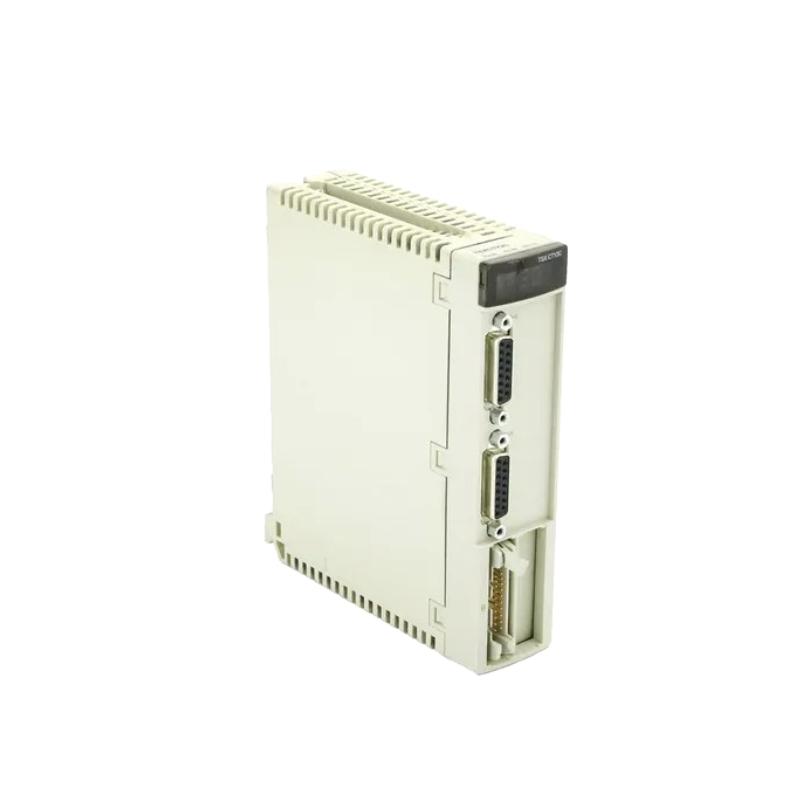

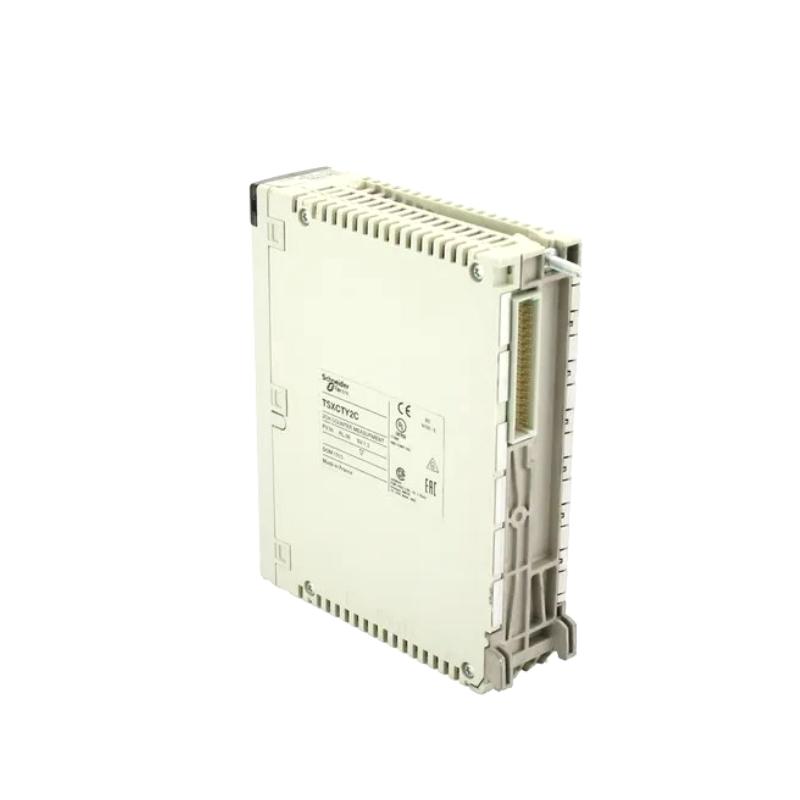

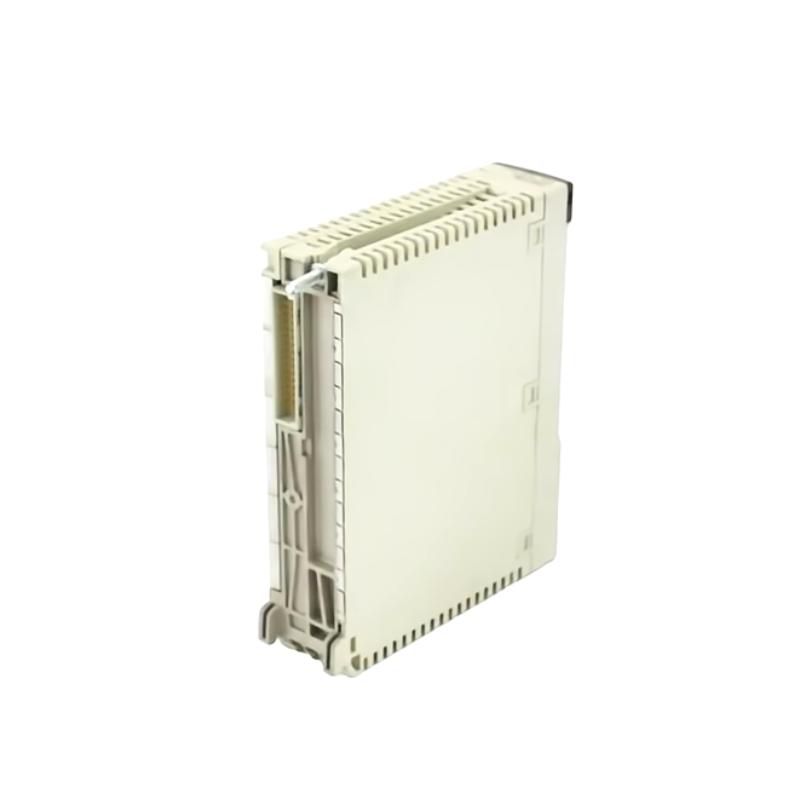

The Schneider TSXCTY2C is a high-speed 2-channel measurement and counter module designed for the Modicon Premium automation platform. Perfect for demanding industrial applications, it provides fast and accurate signal counting for encoders, proximity sensors, and other high-frequency inputs. Its robust design ensures reliable operation, precise event measurement, and seamless integration into modular control systems, making it a must-have for motion control, machine automation, and process monitoring.

Technical Specifications

Specification	Detail
Model	TSXCTY2C
Module Type	High-Speed Measurement & Counter Module
Compatible Platform	Modicon Premium Automation
Number of Channels	2 independent channels
Counting Frequency	Up to 1,000,000 Hz
Incremental Encoder Frequency X1/X4	500 kHz / 250 kHz
Power Dissipation	7–10 W
Cycle Time	1 ms
Input Logic	Positive logic, current sink inputs
Input Compatibility	Incremental encoders, PNP/NPN proximity sensors, SSI/parallel encoders
Output Voltage	24 V DC
Nominal Output Current	0.5 A
Protection Features	Overload, short-circuit, overvoltage, reverse polarity
Local Signaling	LEDs for RUN, channel diagnostics, I/O fault, internal fault
Connectors	1 × HE‑10 20‑pin, 2 × SUB‑D 15‑pin
Dimensions (L×W×H)	200×150×40 mm
Weight	0.34 kg
Operating Temperature	0 °C – 60 °C
Storage Temperature	−25 °C – 70 °C
Humidity	5–95 % non-condensing
Lifecycle Status	Discontinued; limited service support available

Recommended Related Models

Model	Reason for Recommendation
TSXCTZ2A	Alternative counter module compatible with TSX Micro systems
TSXCY2A	High-speed counter variant with similar features
Modicon M340 Counter Module	Modern Schneider replacement option
TSXCDP303	Modular connection cable for Premium rack setups

Popular Schneider Models

Model	Key Strength
Modicon M221	Compact PLC with flexible I/O
Modicon M241	Mid-range controller with integrated communication
Modicon M580	High-performance PAC for enterprise automation
Modicon Quantum I/O	Scalable I/O modules for complex machine systems

Applications

High-speed encoder feedback for motion control systems
Precise event counting in industrial machinery
Conveyor and packaging system monitoring
Process control requiring frequency and pulse measurement
Retrofit installations for legacy Modicon Premium PLC systems

Advantages

Ultra-High Counting Capability: Supports up to 1 MHz counting for demanding automation tasks
Dual Independent Channels: Simultaneous monitoring of separate signals
Comprehensive Protection: Safeguards against overload, short circuit, overvoltage, and reverse polarity
Standardized Connectivity: HE‑10 and SUB‑D connectors ensure secure and reliable rack integration
Diagnostic Indicators: Clear LED signals for RUN, channel status, and fault detection

Technical FAQs

What is the main purpose of the TSXCTY2C?
It is a 2-channel measurement and counter module for high-speed signal processing in industrial automation.
How fast can it count signals?
Up to 1,000,000 Hz (1 MHz).
Which encoder frequencies are supported?
X1: 500 kHz; X4: 250 kHz.
Which input types are compatible?
Incremental encoders, PNP/NPN proximity sensors, SSI/parallel encoder signals.
What protections are included?
Overload, short-circuit, overvoltage, and reverse polarity protection.
What is the operating voltage?
Nominal output: 24 V DC, 0.5 A.
Does the module provide status indications?
Yes — LEDs indicate RUN, channel diagnostics, I/O fault, and internal fault.
Is this module still in production?
No, it is discontinued with limited service support available.
Can it be integrated into existing Premium racks?
Yes — standard form factor and connectors ensure seamless rack integration.
Where is this module typically used?
In industrial control panels requiring precise high-speed counting and frequency measurement.
