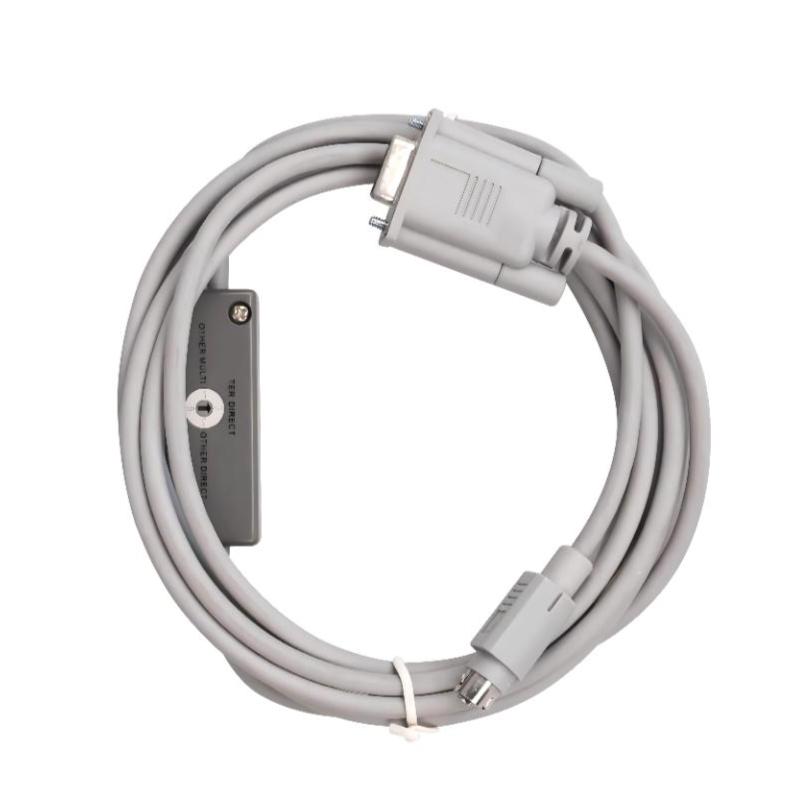

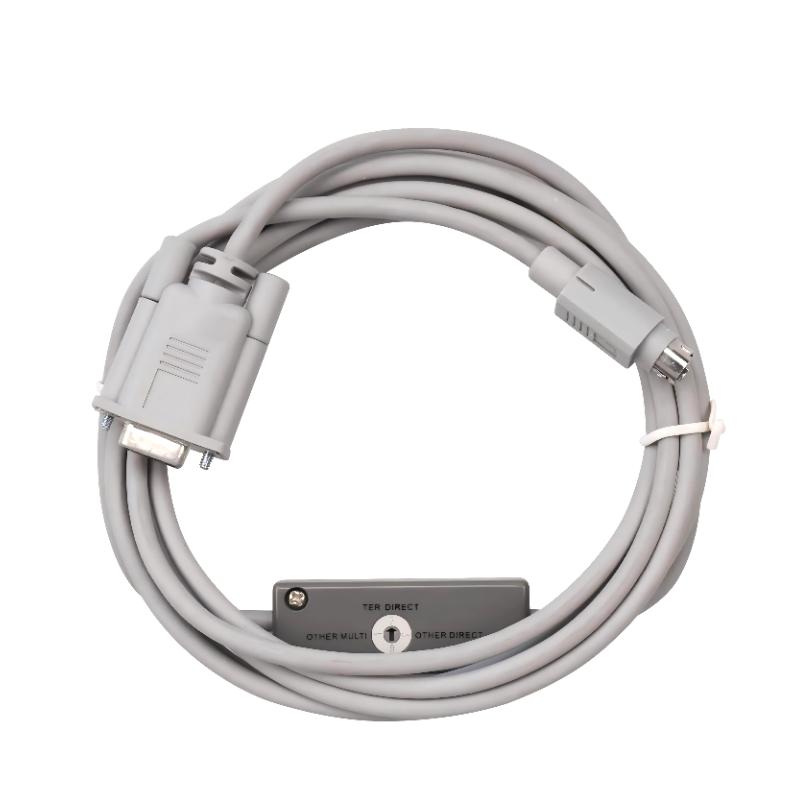

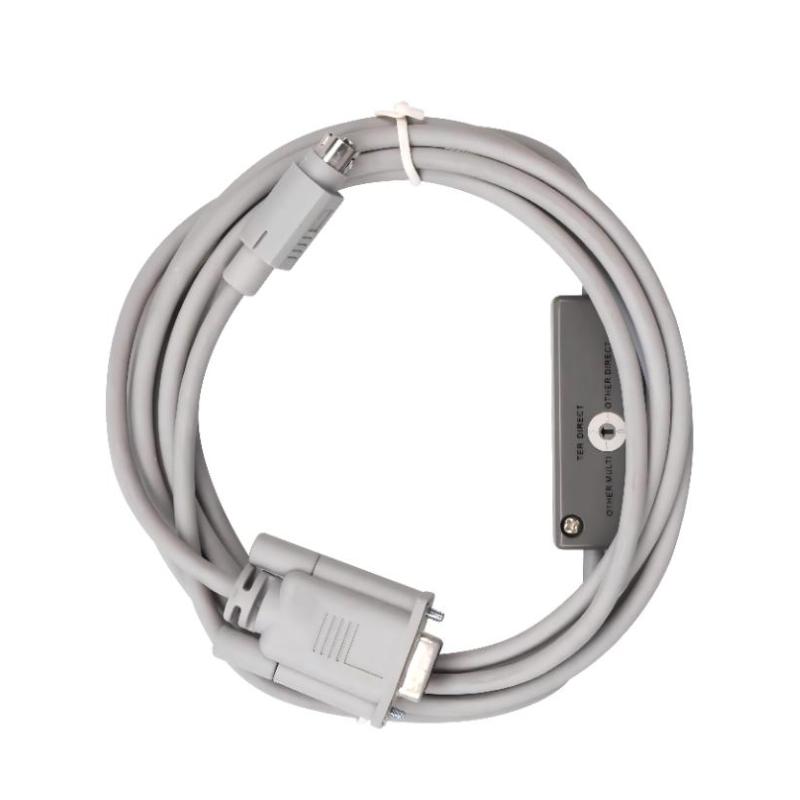

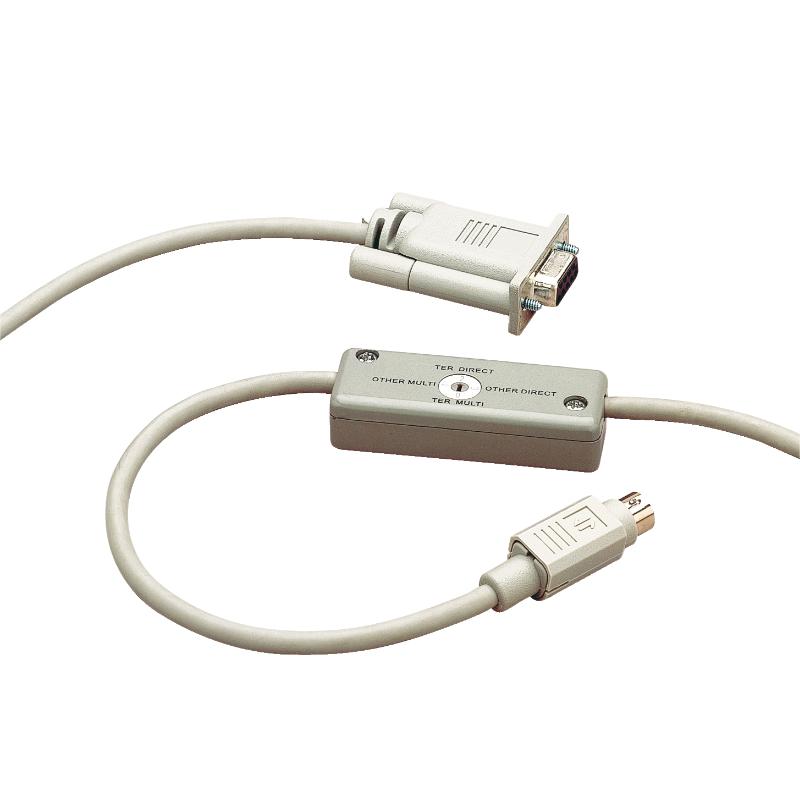

The Schneider TSXPCX1031‑C is a reliable RS‑232 connecting and programming cable for PC-to-PLC communication. Designed for Modicon Premium, TSX Micro, Twido, and Magelis GTO/XBT controllers, it allows seamless programming, diagnostics, and data transfer. Its durable construction ensures stable industrial performance, making it ideal for commissioning, service, and maintenance tasks.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | TSXPCX1031‑C |
| Accessory Type | RS‑232 Connecting & Programming Cable |
| Compatible Platforms | Modicon Premium, TSX Micro, Twido, Magelis GTO/XBT |
| Primary Function | PC to PLC programming and diagnostics |
| Cable Length | 2500 mm |
| Connectors | 1 × 8‑pin mini‑DIN (PLC/TER/AUX) 1 × 9‑pin SUB‑D (PC serial port) |
| Communication Interfaces | RS‑232, RS‑485 |
| Supported Protocols | Modbus, Uni‑Telway, Character Mode |
| Included Adapter | SUB‑D 9‑way female to 25‑way male |
| Physical Communication | Serial data transfer |
| Dimensions (L×W×H) | 2500×5×5 mm (cable diameter approx. 5 mm) |
| Weight | 0.17 kg |
| Operating Environment | Industrial automation wiring and cabinet connections |
| RoHS Compliance | Yes |
| Product Status | Active |
Recommended Related Accessories
- TSXCUSB485: USB‑to‑serial converter for modern PCs
- TSXCRJMD25: Multi-interface connection cable for Premium/Twido systems
- TSXCDP303: Sub-base interconnect cable for modular racks
- TSXCUSB232: USB‑to-RS‑232 adapter for legacy PLCs
