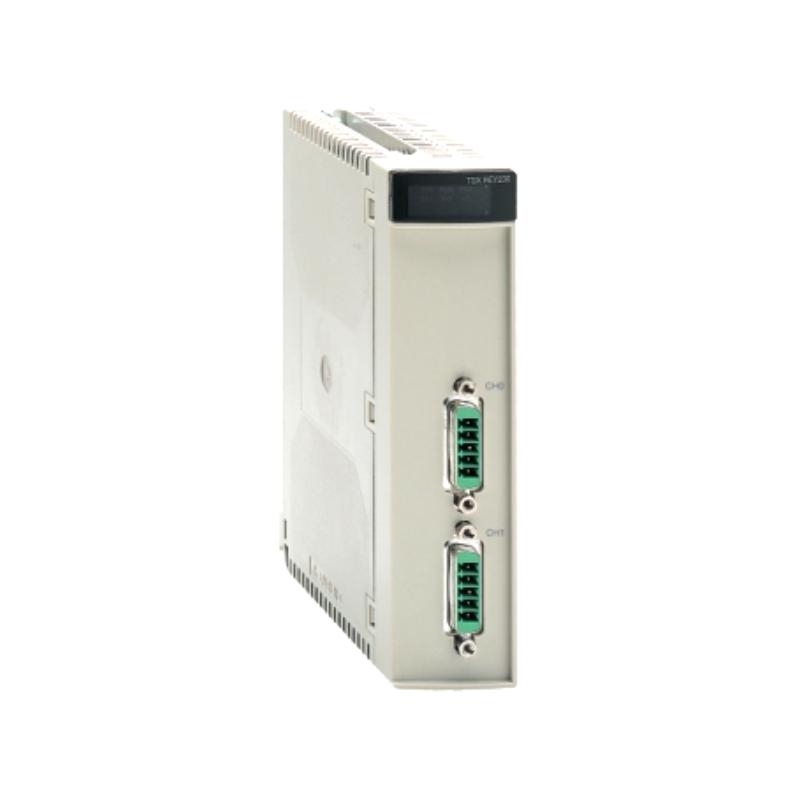

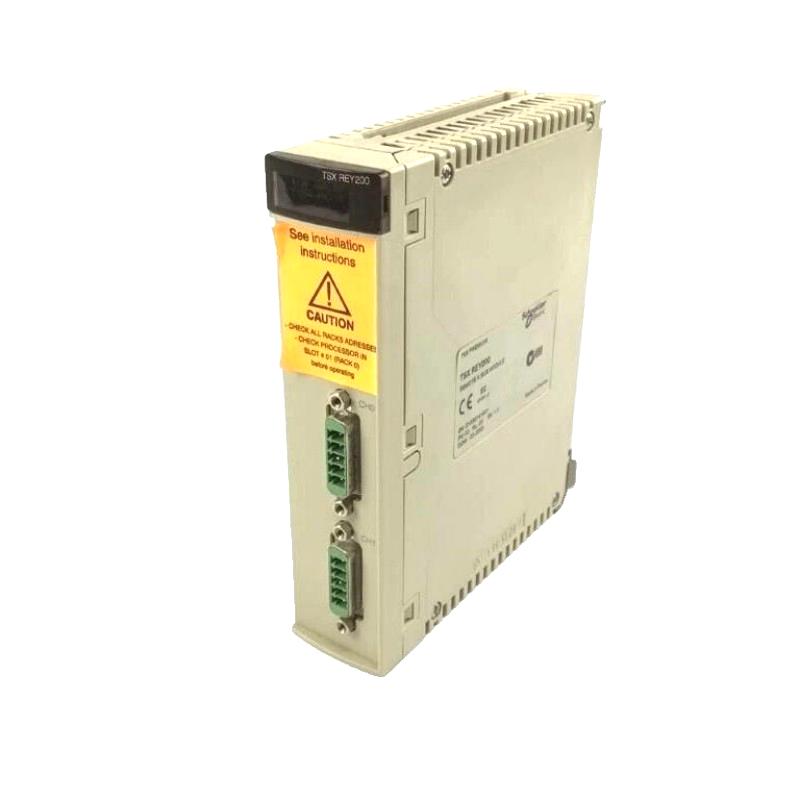

The Schneider TSXREY200 is a high-reliability Bus X Remote Rackmaster Module designed for the Modicon Premium automation platform. It enables efficient communication between the central PLC and remote I/O racks, making it ideal for distributed control architectures. With its dual-channel design and Master/Slave communication capability, this module provides scalable system expansion while maintaining stable and synchronized data exchange across industrial networks.
Technical Specifications
| Specification | Detail |
|---|
| Model | TSXREY200 |
| Module Type | Bus X Remote Rackmaster Module |
| Platform Compatibility | Modicon Premium Automation |
| Number of Channels | 2 |
| Communication Method | Master / Slave |
| Electrical Connection | 2 × SUB-D 9 connectors |
| Current Consumption | 500 mA @ 5 V DC |
| Maximum Bus Distance | Up to 250 m per segment (expandable system architecture) |
| Local Signaling | LEDs for CH0, CH1, I/O fault, internal error, run status, master/slave mode |
| Module Format | Standard rack module |
| Dimensions (L×W×H) | 150×140×40 mm |
| Weight | 0.52 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −25 °C to 70 °C |
| Humidity | 5–95 % non-condensing |
| Installation | Rack-mounted |
| Lifecycle Status | Discontinued (service support available) |
Recommended Related Models
| Model | Why It’s Recommended |
|---|
| TSXREY100 | Single-channel remote rack module for smaller systems |
| TSXETZ410 | Ethernet communication module for modern integration |
| TSXCDP303 | Rack interconnection cable for modular setups |
| TSXCTY2C | High-speed counter module for advanced automation tasks |
