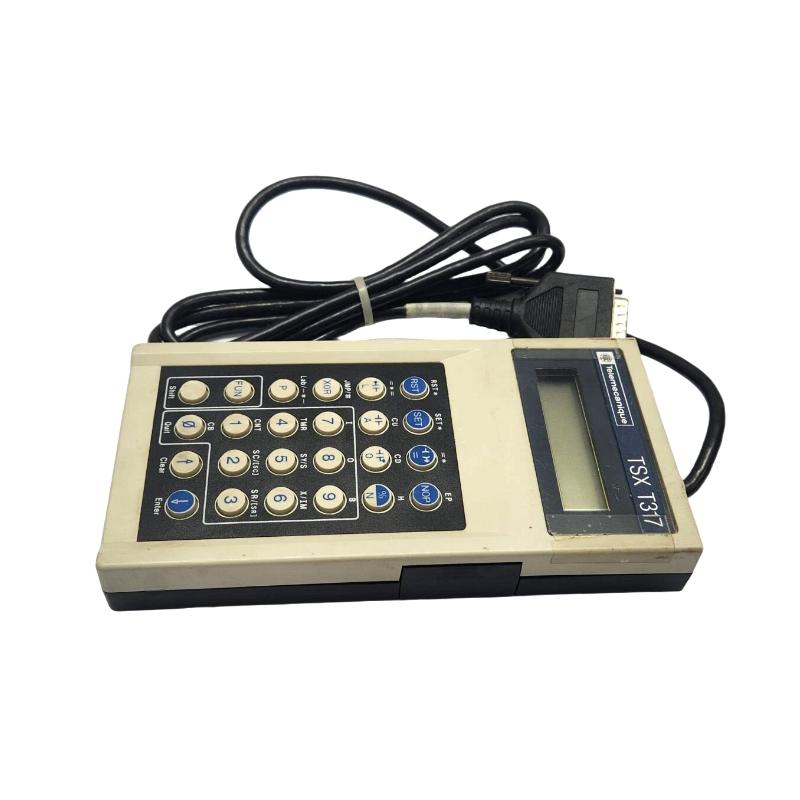

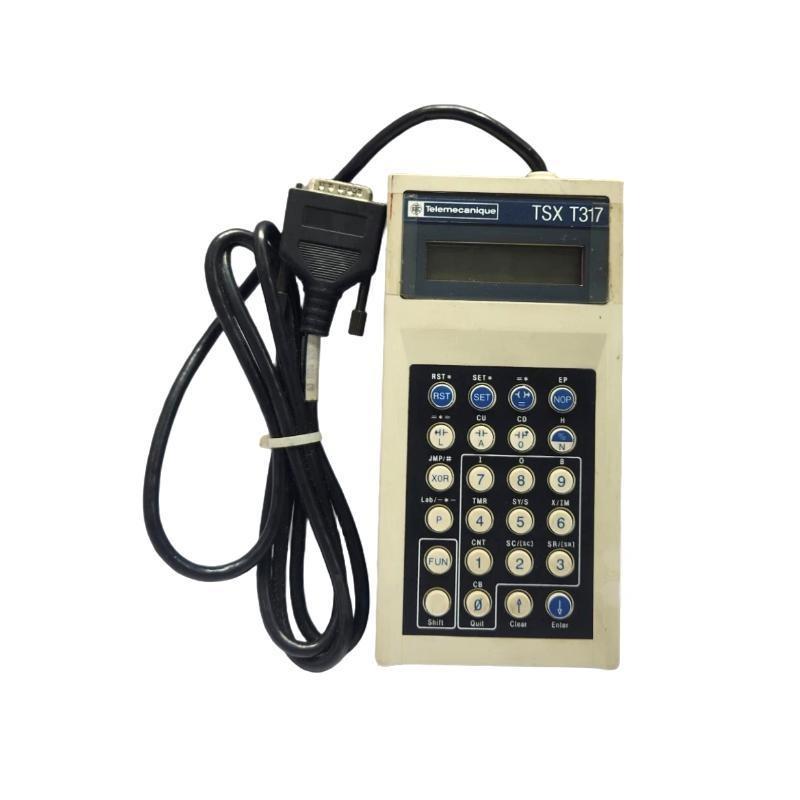

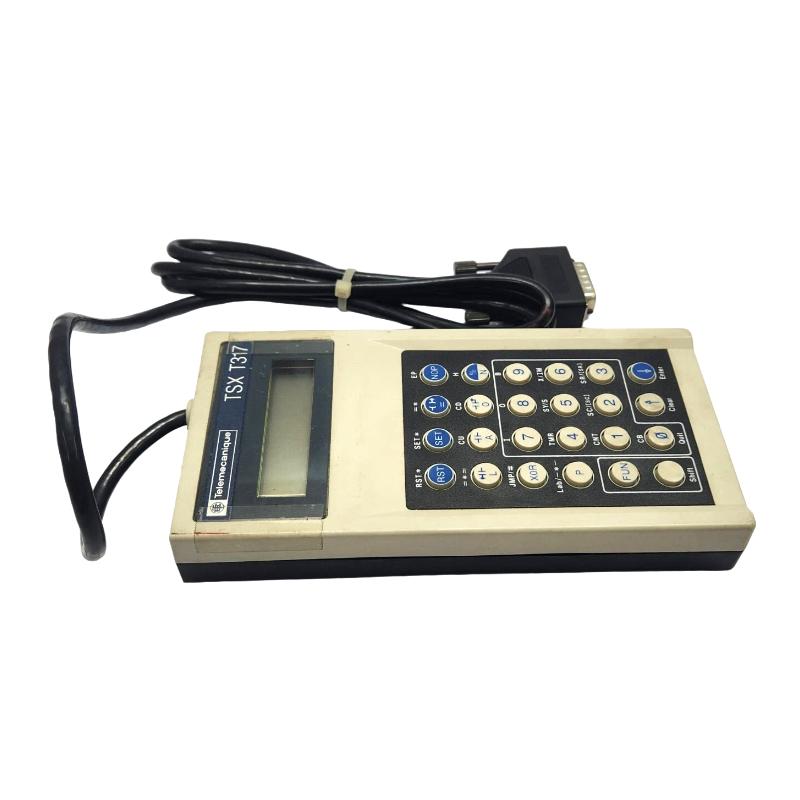

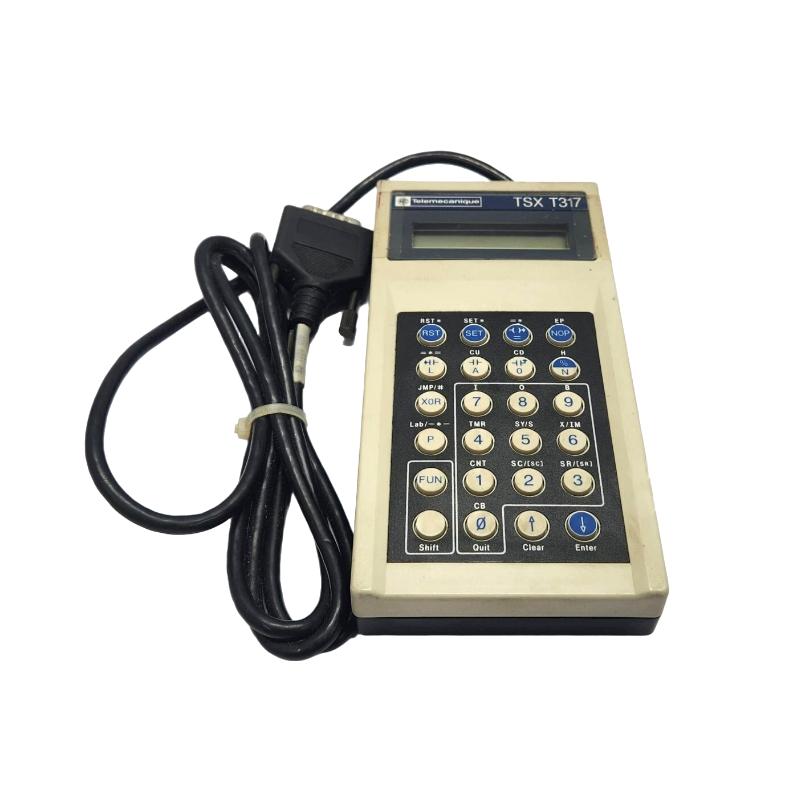

The Schneider TSXT3170 is a dedicated handheld programming terminal designed for use with Modicon TSX Micro PLC systems. It provides a portable and efficient solution for on-site programming, monitoring, and diagnostics without requiring a full computer setup. Compact, durable, and easy to operate, this terminal is ideal for engineers and technicians working in field environments where flexibility and reliability are critical.
Technical Specifications
| Specification | Detail |
|---|
| Model | TSXT3170 |
| Module Type | Handheld Programming Terminal |
| Platform Compatibility | Modicon TSX Micro |
| Function | PLC programming, monitoring, diagnostics |
| Interface Type | Dedicated terminal connection |
| Display Type | Integrated operator display |
| Input Method | Keypad interface |
| Installation | Portable handheld device |
| Dimensions (L×W×H) | 203×51×102 mm |
| Weight | 0.50 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −25 °C to 70 °C |
| Humidity | 5–95 % non-condensing |
| Protection Rating | IP20 |
| Lifecycle Status | Obsolete; available in refurbished market |
