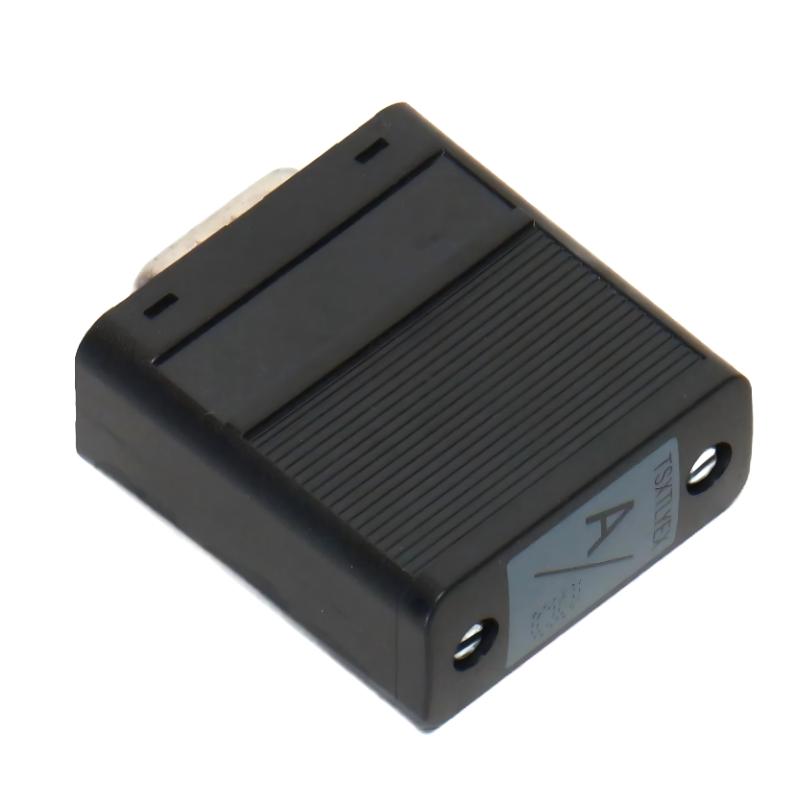

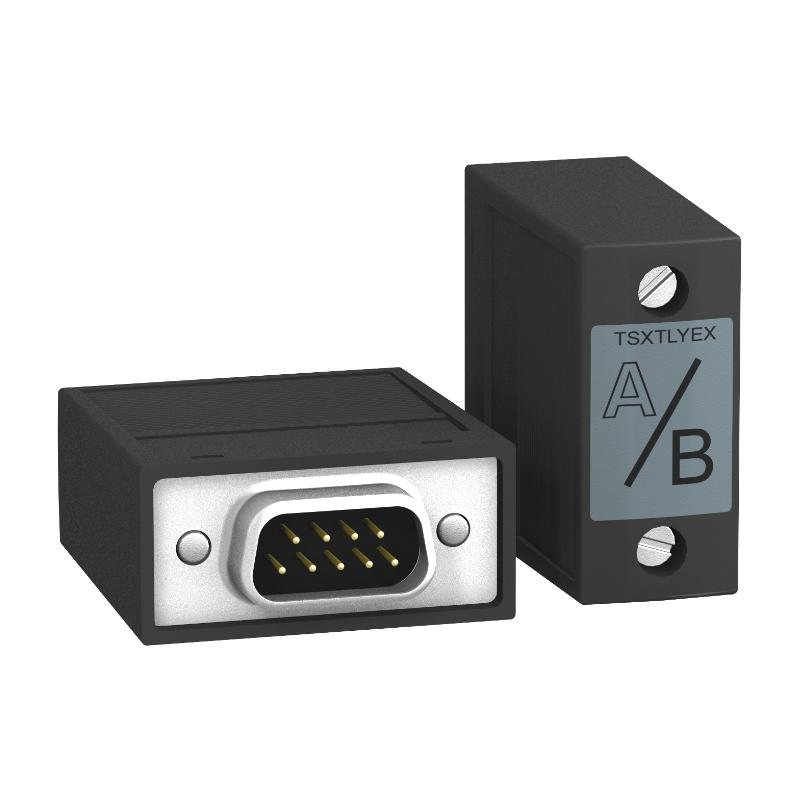

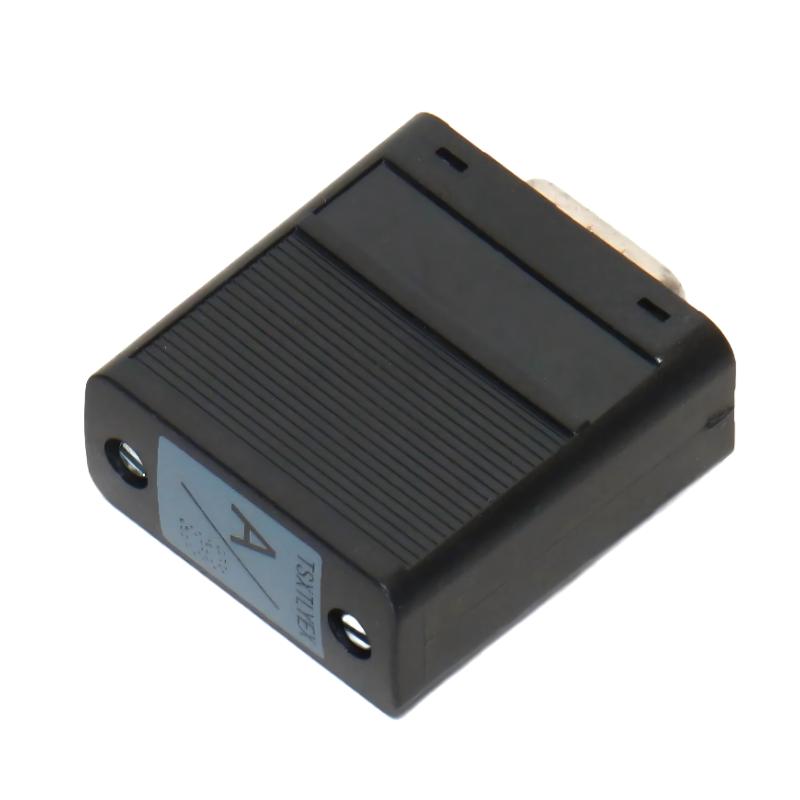

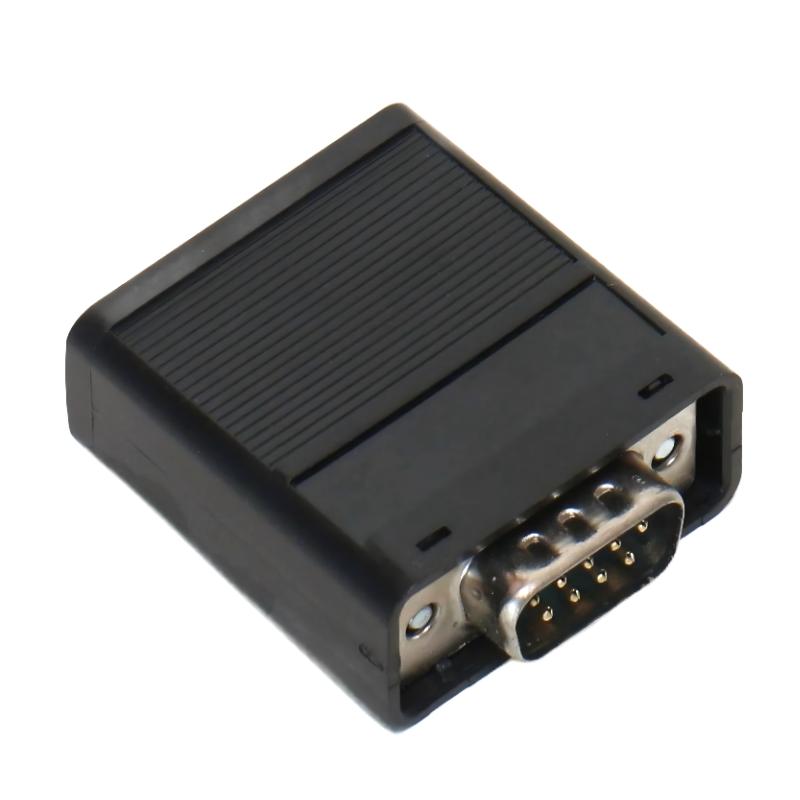

The Schneider TSXTLYEX is a specialized line terminator accessory designed for the Modicon Premium automation platform, ensuring stable and reliable communication at the end of PLC racks. Installed at the rack endpoint, this component eliminates signal reflection and maintains proper bus integrity, making it essential for distributed and multi-rack control systems. Compact and easy to install, it is a critical element for maintaining system performance and communication stability.
Technical Specifications
| Specification | Detail |
|---|
| Model | TSXTLYEX |
| Module Type | Line Terminator (Connection Accessory) |
| Platform Compatibility | Modicon Premium Automation |
| Function | Bus termination at rack end |
| Application Position | End of rack (TSXRKY..EX series) |
| Quantity per Set | 2 pieces |
| Connector Type | 2 × SUB-D 9 (A/B labeled) |
| Electrical Role | Signal termination / noise reduction |
| Installation | Plug-in at rack end |
| Dimensions (L×W×H) | 42×35×16 mm (per unit) |
| Weight | 0.05 kg |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | −25 °C to 70 °C |
| Mounting Position | First or last extension module |
| Protection Rating | IP20 |
| Lifecycle Status | Discontinued; available in aftermarket |
