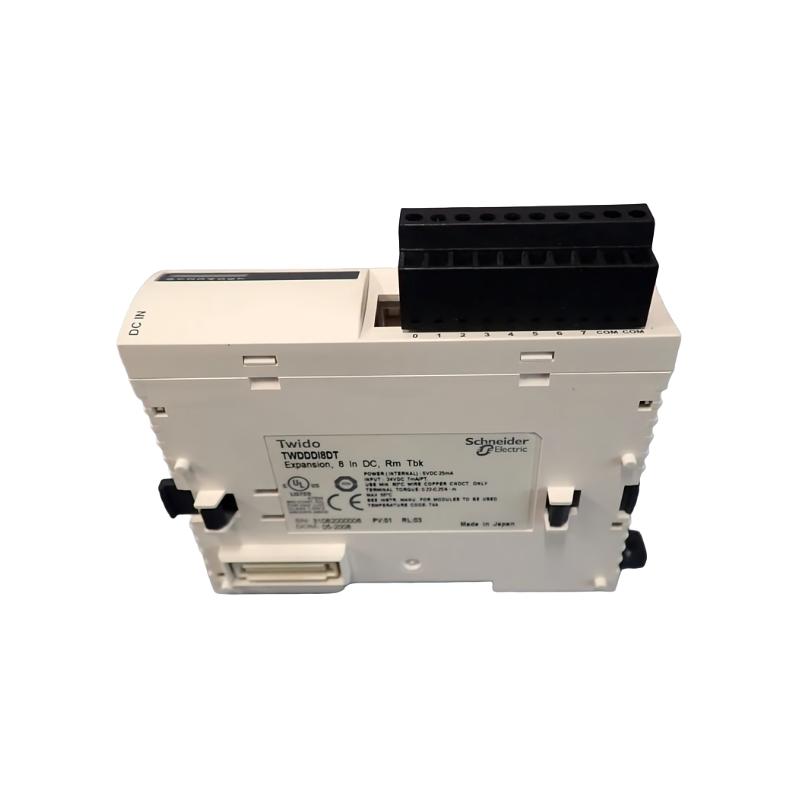

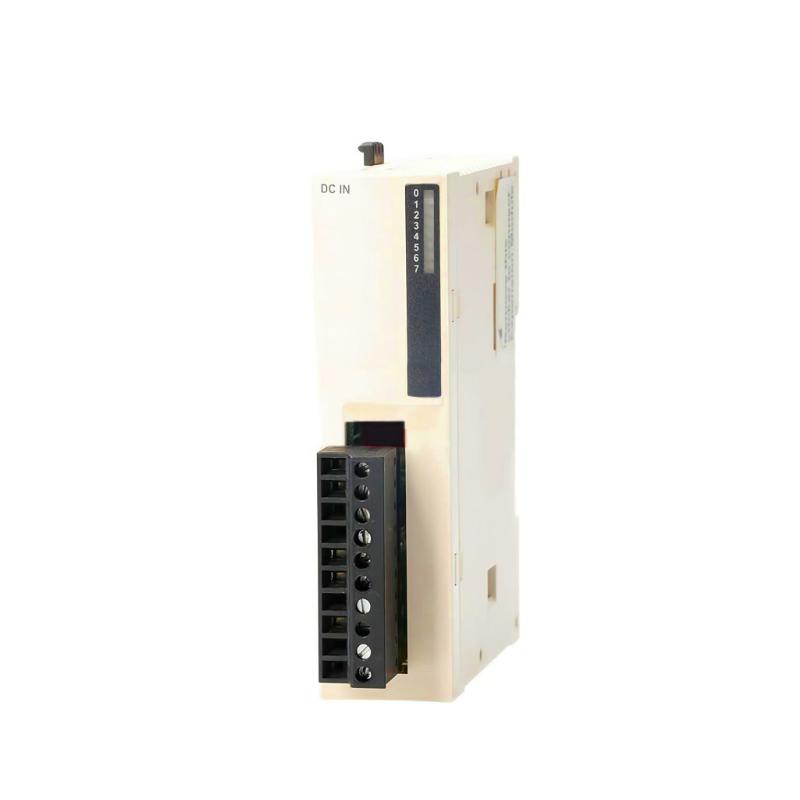

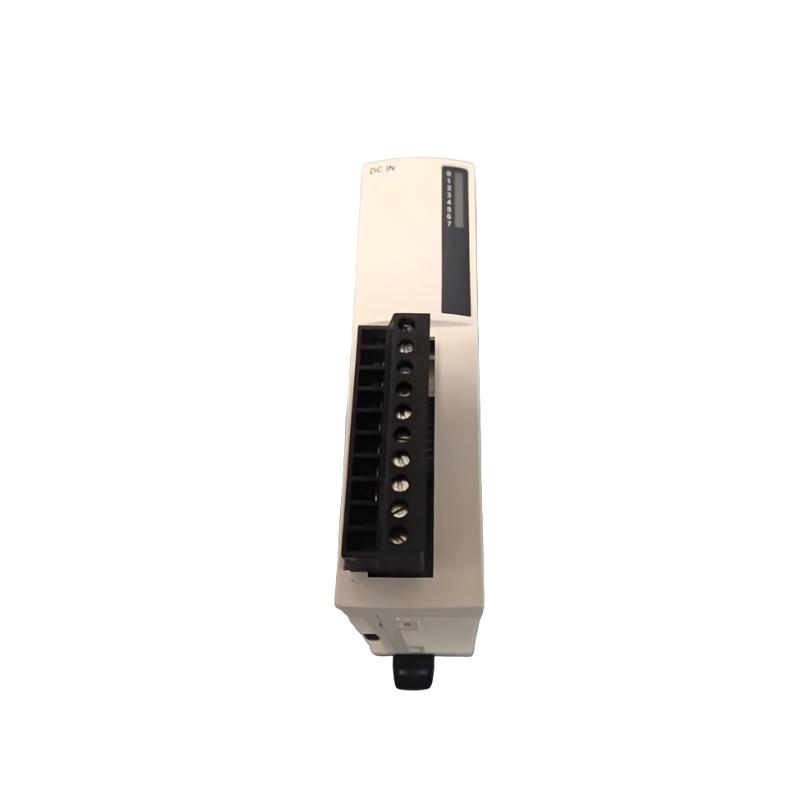

The Schneider TWDDDI8DT is a compact and reliable digital input module designed for the Twido PLC automation platform. Featuring 8 discrete 24 V DC inputs, it enables efficient signal acquisition from sensors, switches, and field devices. Built for stability and ease of integration, this module is widely used in small to medium automation systems where dependable digital input expansion is required.
Technical Specifications
| Specification | Detail |
|---|
| Model | TWDDDI8DT |
| Module Type | Digital Input Module |
| Platform Compatibility | Twido PLC |
| Number of Inputs | 8 digital inputs |
| Input Voltage | 24 V DC |
| Input Current | ~7 mA per channel |
| Input Type | Discrete (ON/OFF signals) |
| Connection Type | Screw terminal block |
| Installation | DIN rail / panel mount |
| Dimensions (L×W×H) | 95×30×75 mm |
| Weight | 0.10 kg |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | −25 °C to 70 °C |
| Humidity | 30–95 % non-condensing |
| Protection Rating | IP20 |
| Lifecycle Status | Discontinued; available in aftermarket |
Recommended Related Models
| Model | Why It’s Recommended |
|---|
| TWDDDI16DT | 16-channel digital input module for higher I/O density |
| TWDDDO8TT | Digital output module for control applications |
| TWDLMDA20DUK | Twido base controller with integrated I/O |
| TSXPCX1031-C | Programming cable for PLC communication |
