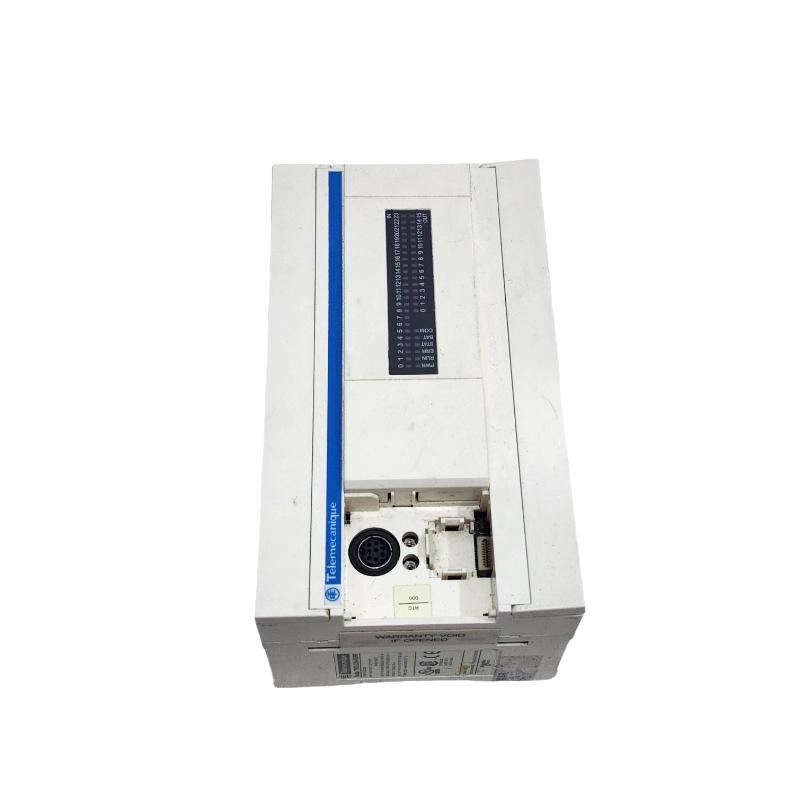

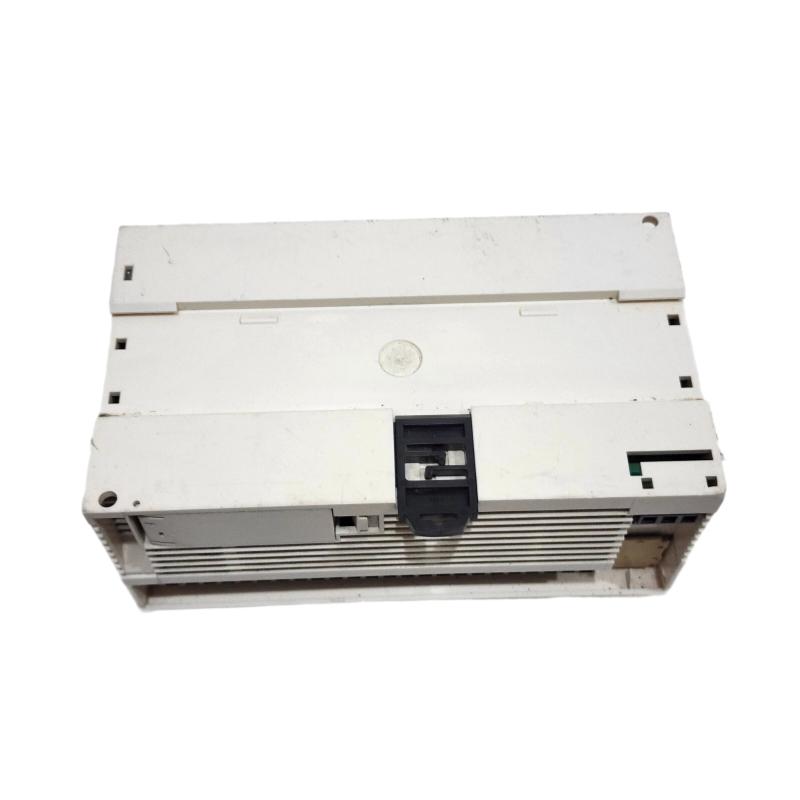

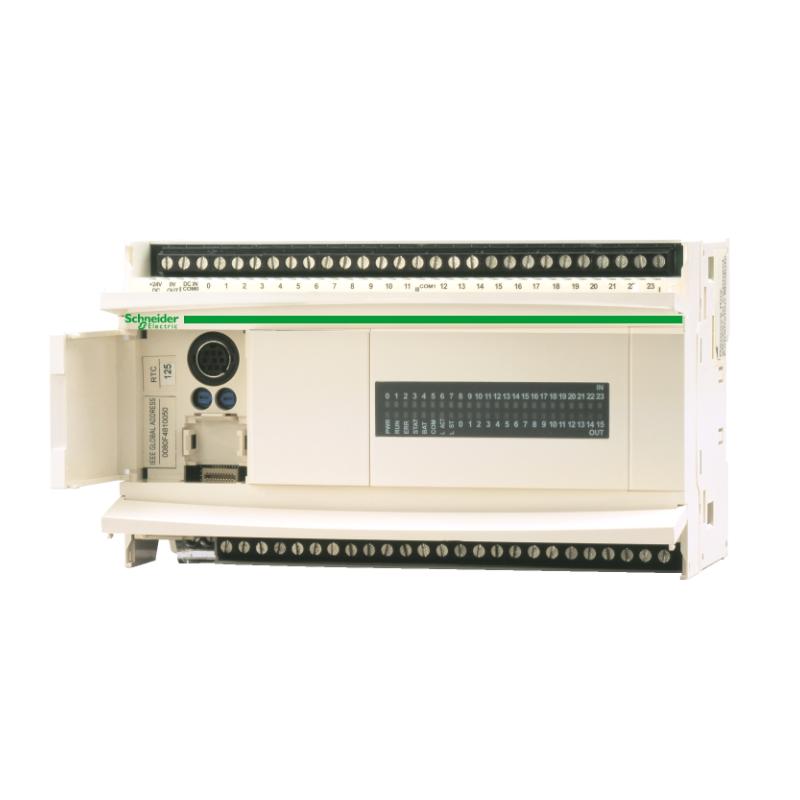

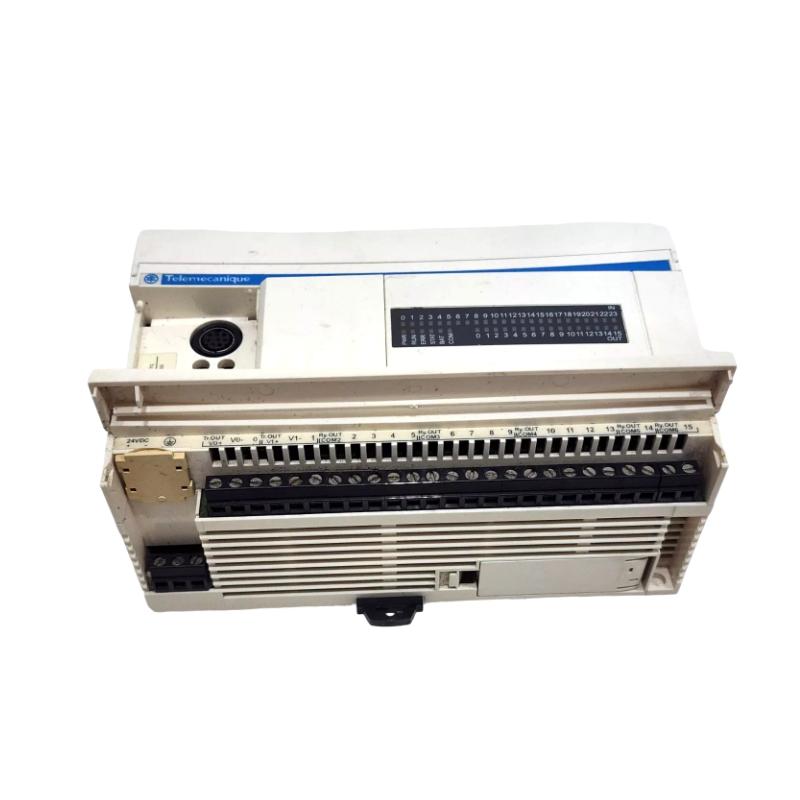

The Schneider TWDLCDA40DRF is a versatile compact PLC controller from the Twido family, engineered for industrial automation where flexibility and ease of use are priorities. With 40 I/O points combining digital inputs and mixed outputs, this controller is ideal for small to medium control tasks including machine automation, packaging, conveyor systems, and local logic. Its robust 24 V DC design enhances reliability in field environments, and modular capacity allows expansion with auxiliary I/O modules for greater system integration.

Technical Specifications

Specification	Detail
Model	TWDLCDA40DRF
Module Type	Compact PLC Controller
Series	Twido
Power Supply	24 V DC
Total I/O Points	40
Digital Inputs	24 V DC discrete
Digital Outputs	Mixed relay & transistor outputs
Output Type	Relay outputs for high‑power loads / Transistor outputs for fast switching
Communication Interface	RS‑485 serial (Modbus/ASCII/RTU)
Programming Software	TwidoSuite / Ladder Logic
Mounting Type	DIN rail
Protection Rating	IP20
Dimensions (L×W×H)	160×90×65 mm
Weight	0.34 kg
Operating Temperature	0 °C to 55 °C
Storage Temperature	−25 °C to 70 °C
Humidity	5–95 % non‑condensing
Lifecycle Status	Discontinued; legacy support available

Recommended Related Models

Model	Why It’s Recommended
Schneider TWDLCAA10DRF	Smaller 10‑point PLC controller
Schneider TWDLCAA16DRF	16‑point Twido controller for mid‑range systems
Schneider TWDDDI8DT	Digital input expansion module
Schneider TWDDRA16RT	Relay output expansion module

Popular Schneider Models

Model	Key Strength
Modicon M221	Modern compact PLC with enhanced connectivity
Modicon M241	Mid‑range PLC with advanced communication options
Modicon M340	Modular PLC platform for larger systems
Modicon M580	Enterprise‑grade PAC for demanding automation

Applications

The TWDLCDA40DRF fits a wide range of industrial applications:

Machine automation requiring discrete input/output control
Conveyor systems with mixed load outputs
Packaging lines with relay‑driven actuators
Industrial monitoring panels and small control cabinets
Retrofit systems replacing earlier Twido installations

Advantages

High I/O Count: 40 I/O points in a compact platform reduce need for external expansion.
Mixed Output Flexibility: Relay outputs handle high‑power loads; transistor outputs provide fast switching.
24 V DC Power: Standard DC supply enhances field compatibility and system stability.
Easy Programming: Ladder logic programming via TwidoSuite simplifies configuration.
Reliable Performance: Built for industrial environments with robust electrical characteristics.

Technical FAQs

What power supply does TWDLCDA40DRF use?
It operates on 24 V DC, ideal for industrial DC systems.
How many I/O points does it have?
A total of 40 discrete I/O points.
What types of outputs are included?
Mixed relay and transistor outputs for versatile load handling.
Can this controller communicate with other devices?
Yes — it supports RS‑485 serial communication with Modbus protocol.
What programming software is used?
TwidoSuite using ladder logic.
How is this PLC mounted?
Standard DIN rail installation.
What are its physical dimensions?
160×90×65 mm.
Is this controller still manufactured?
It has been discontinued but remains supported as legacy stock.
What environments can this be used in?
Typical industrial settings within specified temperature and humidity ranges.
Can it be expanded with modules?
Yes — compatible with auxiliary Twido I/O modules for system growth.
