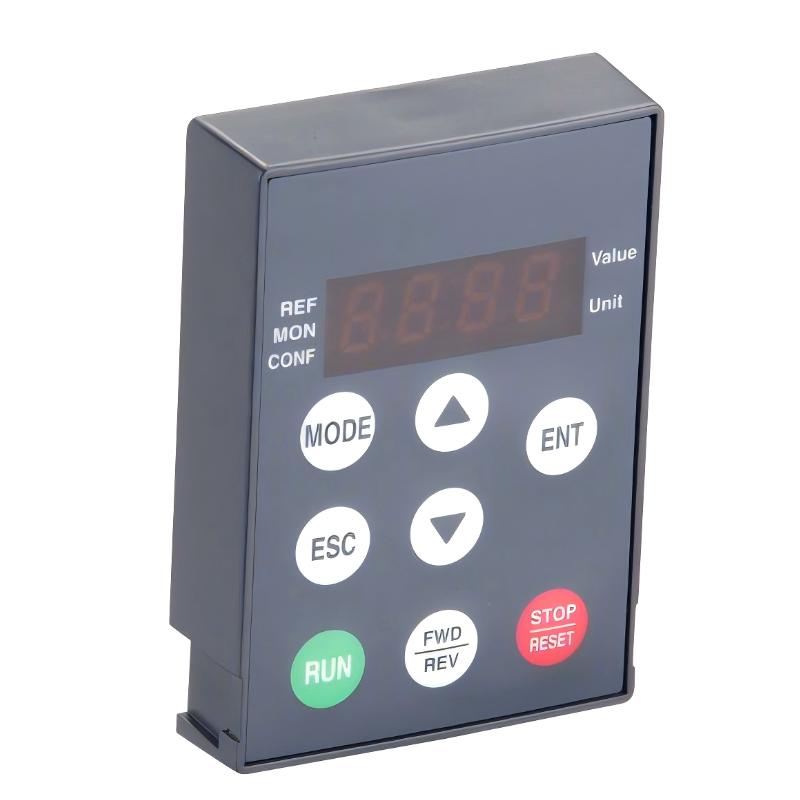

The Schneider VW3A1006 is a rugged remote terminal accessory designed for use with Altivar variable speed drives. It provides a convenient remote display and control interface mounted on an enclosure door, allowing operators to view drive status and adjust settings without accessing the drive directly. With an IP54 protection rating, this remote terminal is suited for industrial environments where dust and splashes may be present, and it supports several Altivar series for flexible application integration.

Technical Specifications

Specification	Detail
Model	VW3A1006
Accessory Type	Remote Terminal / Display Interface
Compatible Products	Altivar 12, Altivar 32, Altivar 312, Altivar 312 Solar, Altivar Easy 310, Altivar Machine ATV320 variable speed drives
Function	Remote display and interaction with variable speed drive
Mounting Location	Door of enclosure or accessible panel
Protection Rating	IP54 industrial protection
Weight	0.25 kg
User Interface	Remote display with operating controls
Display Type	Status and diagnostic readout
Dimensions (L×W×H)	87×67×46 mm (approx.)
Operating Temperature	Typical industrial range
Humidity Tolerance	Standard non‑condensing industrial
Installation	Panel‑mounted with cable to drive
Lifecycle Status	Active accessory for Altivar drives

Recommended Related Accessories

Model	Why It’s Recommended
VW3A1104R10 Remote Cable (10 m)	Required remote cable for installation
VW3A1104R30 Remote Cable (30 m)	Longer distance remote connection
Altivar Drive Keypad	Integrated keypad for variable speed drives
Drive Mounting Kit	Auxiliary mounting hardware for OEM panels

Popular Schneider Altivar Series

Series	Key Feature
Altivar 12	Compact VFD for small motor applications
Altivar 32	Versatile VFD for general industrial use
Altivar 312	Flexible drive with solar and energy options
Altivar Machine ATV320	High‑performance machine drive

Applications

The VW3A1006 remote terminal is ideal for:

Displaying variable speed drive data remotely in control cabinets
Adjusting speed and configuration parameters without opening enclosures
Industrial automation panels needing operator access at a distance
Monitoring drive status and error codes from the enclosure door
Integration with multiple Altivar series for flexible system design

Advantages

Remote Display Accessibility: Allows drive interaction from outside the enclosure
IP54 Rating: Protected against dust and splashes for industrial environments
Broad Compatibility: Works with several Altivar variable speed drives
Compact Form Factor: Easy to mount on control panels or doors
Improved Operator Convenience: Quick access to drive diagnostics and control

Technical FAQs

What is the VW3A1006 used for?
A remote terminal that provides a display and control interface for Altivar drives.
Which Altivar drives is it compatible with?
Compatible with Altivar 12, 32, 312, Easy 310, 312 Solar, and Altivar Machine ATV320 series.
What protection rating does it have?
IP54 — suitable for dust and splash protection in industrial settings.
Where is this accessory typically installed?
Mounted on the door of an enclosure or accessible control panel.
What does the display interface provide?
Status readouts, operational information, and drive configuration access.
Is a separate cable required?
Yes — a remote‑mounting cable such as VW3A1104Rxx is typically ordered separately.
What is the approximate weight?
Approximately 0.25 kg.
What are its dimensions?
87×67×46 mm (approximate remote terminal size).
Can it be used outdoors?
IP54 protection makes it suitable for industrial indoor use; additional weatherproofing would be needed for outdoor exposure.
Does it support diagnostic feedback?
Yes — it displays drive status and error codes remotely.
