Brand:ABB Bailey Item No.:IMASI02 Product Origin:Sweden (SE) Product Dimensions:50 x 134 x 162 mm Product Weight:0.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

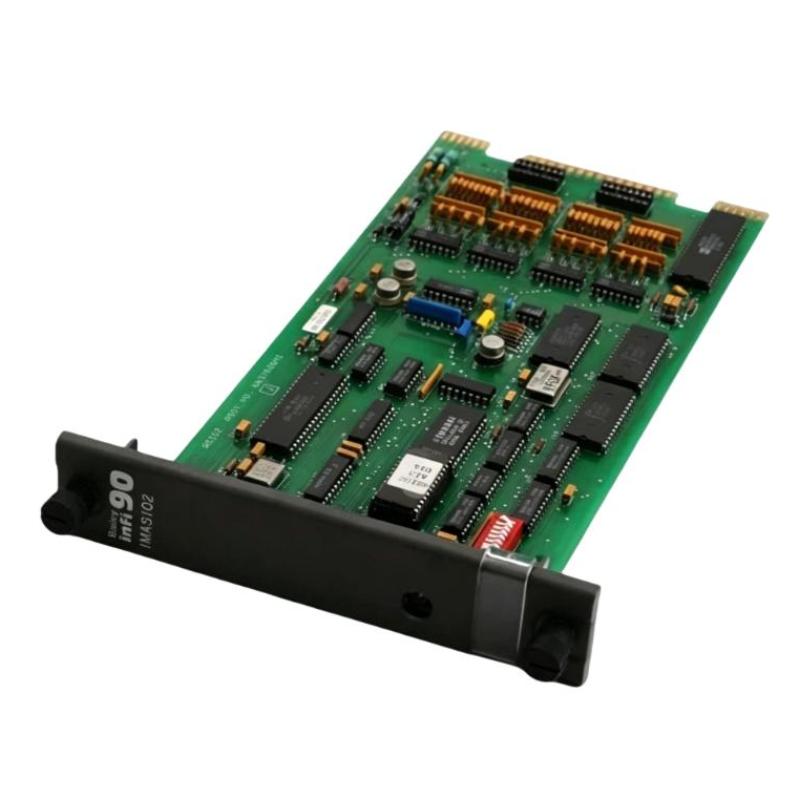

The ABB Bailey IMASI02 Analog Input Module provides reliable analog signal acquisition for control systems. It supports multiple input channels, delivers accurate measurements, and integrates seamlessly into ABB Bailey control architectures. Its robust design makes it ideal for industrial applications requiring precise and continuous analog data monitoring.
Technical Specifications
Parameter
Specification
Model
IMASI02
Type
Analog Input Module
I/O Channels
Multi-channel analog inputs
System Compatibility
ABB Bailey Control Systems
Mounting
Rack-mounted
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
50 × 134 × 162 mm
Weight
0.5 kg
Compatible and Complementary Options
Model
Product Name
IMASI01
Analog Input Module (Basic)
IMASI03
High-Density Analog Input Module
IMDSM01
Digital Signal Module
IIMSM01
Multi-bus Serial I/O Module
Frequently Selected Alternatives
Model
Product Name
IMASI04
Redundant Analog Input Module
IMASI05
Advanced Analog Input Module
IMDSM02
Digital I/O Module
IIMSM02
Multi-bus Serial I/O Module (Extended)
Applications
• Process automation – Acquires analog signals from field instruments
• Industrial control – Interfaces analog sensors with control systems
• Power generation – Monitors process parameters in real-time
• Oil & gas – Captures critical measurements for safe operation
• Manufacturing – Integrates analog inputs into control loops
Key Advantages
• Accurate signal acquisition – Ensures precise data measurement
• Multi-channel input – Supports multiple analog sensors simultaneously
• Easy integration – Compatible with ABB Bailey control systems
• Compact design – Fits efficiently into control cabinets
• Industrial-grade reliability – Built for harsh operating conditions
Technical Clarifications (FAQs)
1. What is the purpose of the IMASI02 module?
It acquires and converts analog signals for ABB Bailey control systems.
2. How many input channels does it support?
It supports multiple analog input channels for various sensors.
3. Can it be used with digital I/O modules?
Yes, it works alongside digital and other I/O modules in control systems.
4. How is it installed?
It is rack-mounted for integration into control cabinets.
5. Is it suitable for continuous industrial operation?
Yes, it is designed for long-term, reliable use.
6. What signal types are compatible?
It supports voltage, current, and other standard analog signals.
7. Can it be used in redundant systems?
Yes, it can be configured in systems requiring redundancy.
8. How is calibration performed?
Calibration is performed using ABB Bailey control system software.
9. What ensures measurement accuracy?
Precision circuitry and industrial-grade components maintain accuracy.
10. Which industries typically use this module?
It is commonly used in process automation, power generation, oil & gas, and manufacturing.
