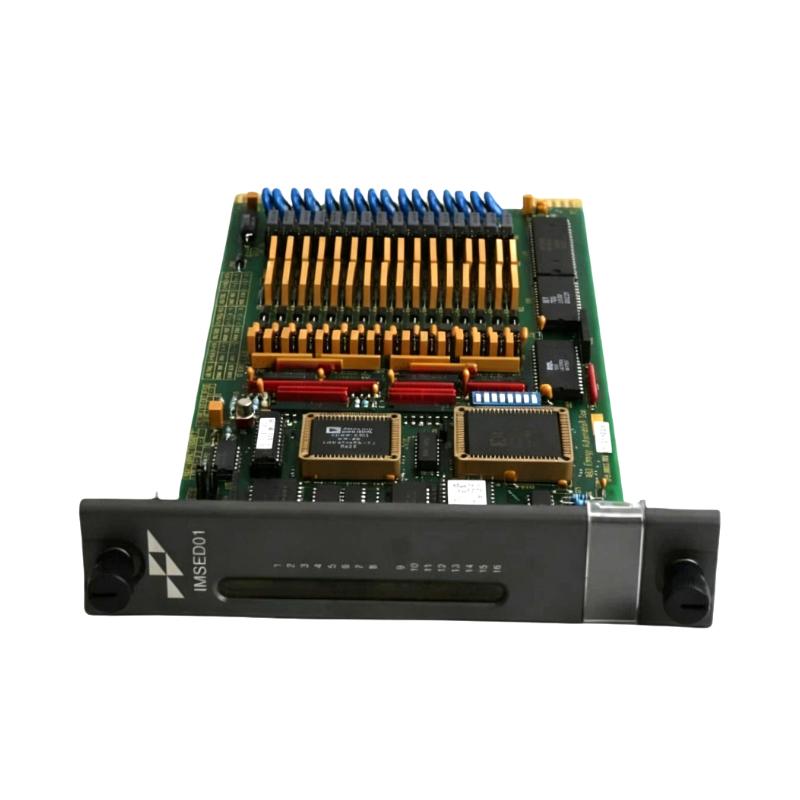

ABB Bailey IMSED01 Event Sequence Number Input Module
ABB Bailey IMSED01 Event Sequence Number Input Module
0.0
Points
Brand:ABB Bailey Item No.:IMSED01 Product Origin:Sweden (SE) Product Dimensions:163.2 x 120 x 40 mm Product Weight:0.281 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The ABB Bailey IMSED01 Event Sequence Number Input Module is designed for accurate event tracking in industrial control systems. Supporting multiple input channels, it allows precise sequencing of operations and integrates seamlessly into ABB Bailey systems. Its compact and robust design ensures reliable performance in industrial environments, making it ideal for process automation, manufacturing, and energy applications.
Technical Specifications
Parameter
Specification
Model
IMSED01
Type
Event Sequence Number Input Module
I/O Channels
Multi-channel event inputs
System Compatibility
ABB Bailey Control Systems
Mounting
Rack-mounted
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
163.2 × 120 × 40 mm
Weight
0.281 kg
Compatible and Complementary Options
Model
Product Name
IMDSM01
Digital I/O Module
IIMSM01
Multi-bus Serial I/O Module
IMASI02
Analog Input Module
IMFEC11
High-Accuracy Analog Input Module
Frequently Selected Alternatives
Model
Product Name
IMSED02
Event Sequence Number Input Module (Enhanced)
IMDSM02
Advanced Digital I/O Module
IIMSM02
Multi-bus Serial I/O Module (Extended)
IMASI03
High-Density Analog Input Module
Applications
• Process automation – Tracks sequence events for control processes
• Industrial control – Monitors event-driven inputs for system logic
• Power generation – Records operational events for analysis
• Oil & gas – Supports sequential process monitoring and safety functions
• Manufacturing – Interfaces event inputs with control systems
Key Advantages
• Accurate event tracking – Ensures precise sequencing of operations
• Multi-channel support – Handles multiple event inputs simultaneously
• Seamless integration – Fully compatible with ABB Bailey control systems
• Compact design – Fits easily in control panels and racks
• Reliable industrial-grade construction – Suitable for harsh operating conditions
Technical Clarifications (FAQs)
1. What is the main function of the IMSED01 module?
It captures and monitors event sequence numbers for process control systems.
2. How many channels does it support?
It supports multiple event input channels for tracking sequential operations.
3. Can it work with other I/O modules?
Yes, it integrates seamlessly with both analog and digital modules.
4. How is it mounted?
It is rack-mounted for installation within control cabinets.
5. Is it suitable for continuous operation?
Yes, it is designed for reliable long-term industrial use.
6. What types of events can it track?
It can track digital or discrete event signals from process devices.
7. Can it be used in redundant systems?
Yes, it can operate within redundant architectures if required.
8. How is configuration performed?
Configuration is done through ABB Bailey system software.
9. What ensures signal reliability?
Robust circuitry and industrial-grade components maintain accurate event tracking.
10. Which industries typically use this module?
Process automation, oil & gas, power generation, and manufacturing industries.
