Brand:ABB Bailey Item No.:NASM03 Product Origin:Sweden (SE) Product Dimensions:188 x 51 x 130 mm Product Weight:0.689 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

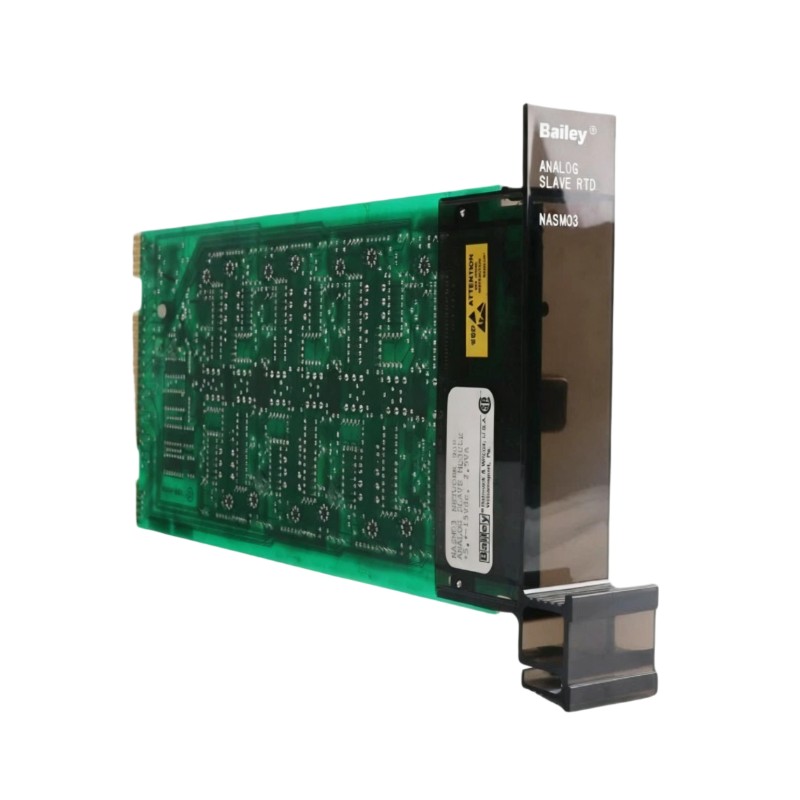

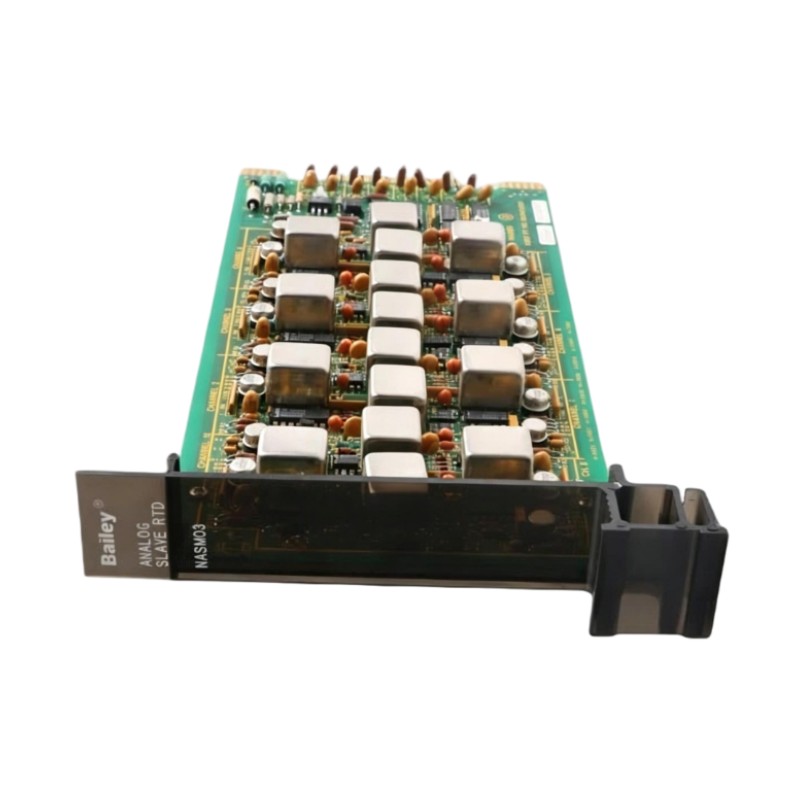

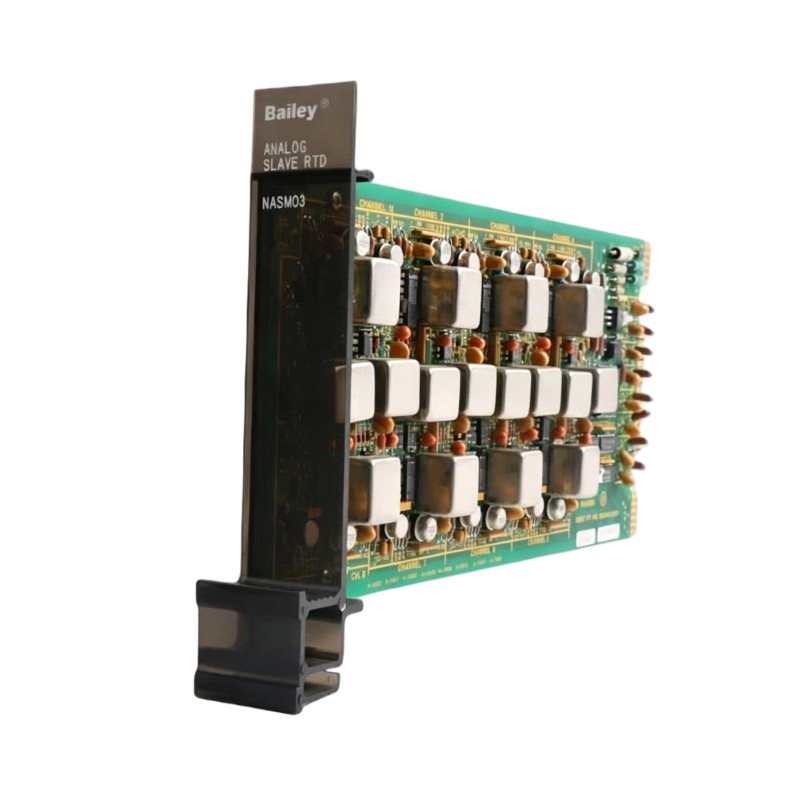

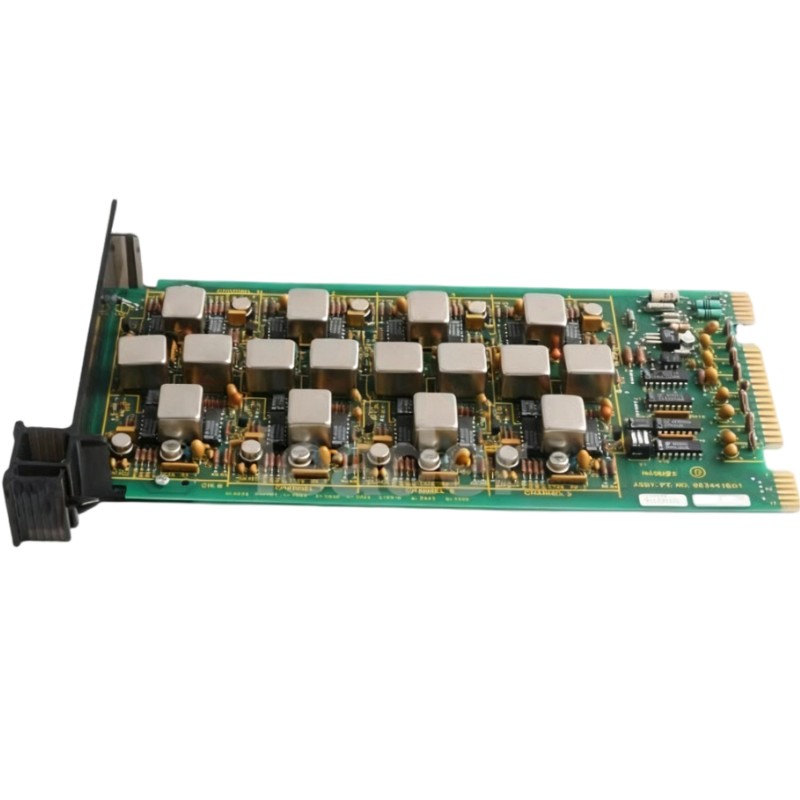

The ABB Bailey NASM03 Analog Slave Module provides reliable analog signal output extension for industrial control systems. With multi-channel support and seamless integration into ABB Bailey architectures, it ensures accurate signal delivery from master controllers to field devices. Its compact, durable design is ideal for process automation, manufacturing, and energy applications requiring distributed analog control.
Technical Specifications
Parameter
Specification
Model
NASM03
Type
Analog Slave Module
I/O Channels
Multi-channel analog outputs
System Compatibility
ABB Bailey Control Systems
Mounting
Rack-mounted
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
188 × 51 × 130 mm
Weight
0.689 kg
Compatible and Complementary Options
Model
Product Name
NAOM01
Analog Output Module
IMASI02
Analog Input Module
IIMSM01
Multi-bus Serial I/O Module
IMDSM01
Digital I/O Module
Frequently Selected Alternatives
Model
Product Name
NASM04
Analog Slave Module (Extended)
NAOM02
Analog Output Module (Extended)
IIMSM02
Multi-bus Serial I/O Module (Extended)
IMDSM02
Advanced Digital I/O Module
Applications
• Process automation – Interfaces analog signals to master controllers
• Industrial control – Acts as a remote analog I/O extension
• Power generation – Provides additional analog output capacity
• Oil & gas – Supports distributed control architectures
• Manufacturing – Expands analog signal management in control systems
Key Advantages
• Reliable analog communication – Ensures accurate signal transfer to master controllers
• Multi-channel support – Handles several analog outputs simultaneously
• Seamless integration – Compatible with ABB Bailey control systems
• Compact and robust – Fits efficiently in control cabinets
• Industrial-grade design – Built for continuous, reliable operation
Technical Clarifications (FAQs)
1. What is the purpose of the NASM03 module?
It serves as an analog slave module, extending analog output capabilities for control systems.
2. How many channels does it support?
It supports multiple analog output channels for simultaneous operations.
3. Can it work with master I/O modules?
Yes, it communicates directly with master analog or multifunction modules.
4. How is it mounted?
It is designed for rack-mounted installation within control cabinets.
5. Is it suitable for continuous operation?
Yes, it is engineered for long-term industrial reliability.
6. What signal types are supported?
It supports standard voltage and current analog signals.
7. Can it be used in redundant systems?
Yes, it can operate within redundant or distributed architectures.
8. How is configuration performed?
Configuration is done through ABB Bailey system software.
9. What ensures signal accuracy?
Precision analog circuitry and industrial-grade components maintain signal fidelity.
10. Which industries commonly use this module?
Process automation, manufacturing, power generation, and oil & gas.
