Brand:ABB Bailey Item No.:NDSM05 Product Origin:Sweden (SE) Product Dimensions:181 × 143 × 50 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

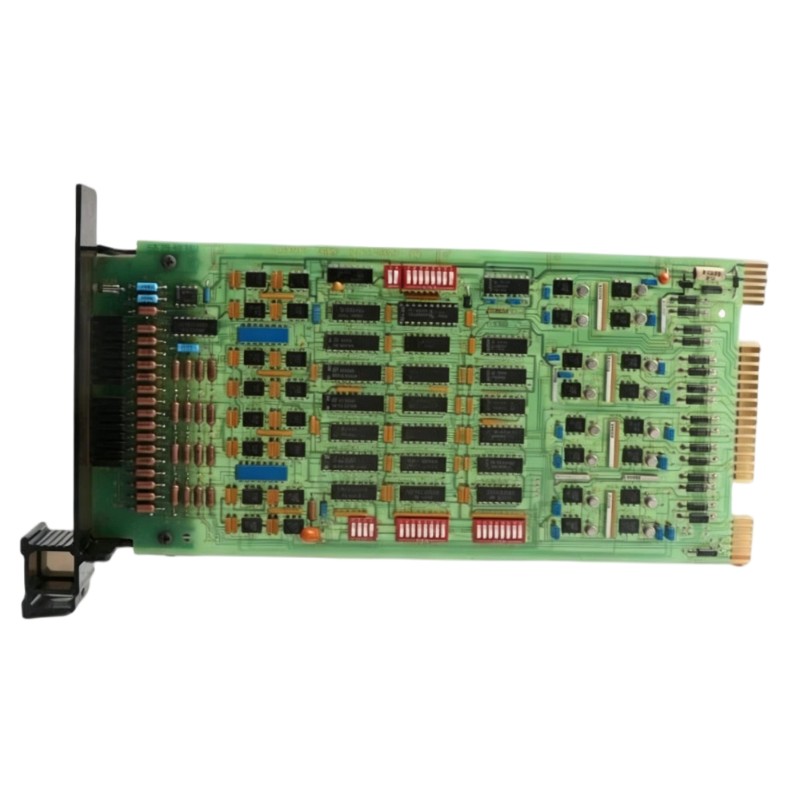

The ABB Bailey NDSM05 Numeric Subordinate Input Module provides reliable numeric signal acquisition from subordinate devices. It supports multiple input channels and integrates seamlessly into ABB Bailey control systems. Its compact and robust design ensures accurate data collection and continuous performance in industrial environments, making it ideal for process automation, energy, and manufacturing applications.
Technical Specifications
Parameter
Specification
Model
NDSM05
Type
Numeric Subordinate Input Module
I/O Channels
Multi-channel numeric inputs
System Compatibility
ABB Bailey Control Systems
Mounting
Rack-mounted
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
181 × 143 × 50 mm
Weight
0.3 kg
Compatible and Complementary Options
Model
Product Name
IMASI02
Analog Input Module
IMFEC11
High-Accuracy Analog Input Module
IIMSM01
Multi-bus Serial I/O Module
IMDSM01
Digital I/O Module
Frequently Selected Alternatives
Model
Product Name
NDSM06
Numeric Subordinate Input Module (Enhanced)
IMASI03
High-Density Analog Input Module
IIMSM02
Multi-bus Serial I/O Module (Extended)
IMDSM02
Advanced Digital I/O Module
Applications
• Process automation – Collects numeric data from subordinate devices
• Industrial control – Interfaces numeric input signals to master controllers
• Power generation – Monitors process parameters for accurate control
• Oil & gas – Supports distributed numeric data acquisition
• Manufacturing – Integrates numeric inputs into control systems
Key Advantages
• Accurate numeric data acquisition – Ensures reliable process monitoring
• Multi-channel support – Handles multiple numeric inputs simultaneously
• Easy integration – Compatible with ABB Bailey control systems
• Compact and robust – Saves cabinet space while ensuring durability
• Industrial-grade reliability – Designed for continuous operation
Technical Clarifications (FAQs)
1. What is the primary function of the NDSM05 module?
It acquires numeric input signals from subordinate devices for control systems.
2. How many channels does it support?
It supports multiple numeric input channels simultaneously.
3. Can it integrate with other I/O modules?
Yes, it works seamlessly with analog, digital, and numeric modules.
4. How is it mounted?
It is rack-mounted for installation in control cabinets.
5. Is it suitable for continuous industrial use?
Yes, it is designed for reliable long-term operation.
6. What type of numeric inputs does it support?
It supports numeric values from sensors, meters, and other field devices.
7. Can it operate in redundant systems?
Yes, it can function within redundant architectures.
8. How is configuration performed?
Configuration is done through ABB Bailey control system software.
9. What ensures data accuracy?
Precision circuitry and industrial-grade components maintain numeric signal reliability.
10. Which industries typically use this module?
Process automation, power generation, oil & gas, and manufacturing.
