Brand:ABB Bailey Item No.:NIDS01 Product Origin:Sweden (SE) Product Dimensions:158 x 140 x 51 mm Product Weight:0.26 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

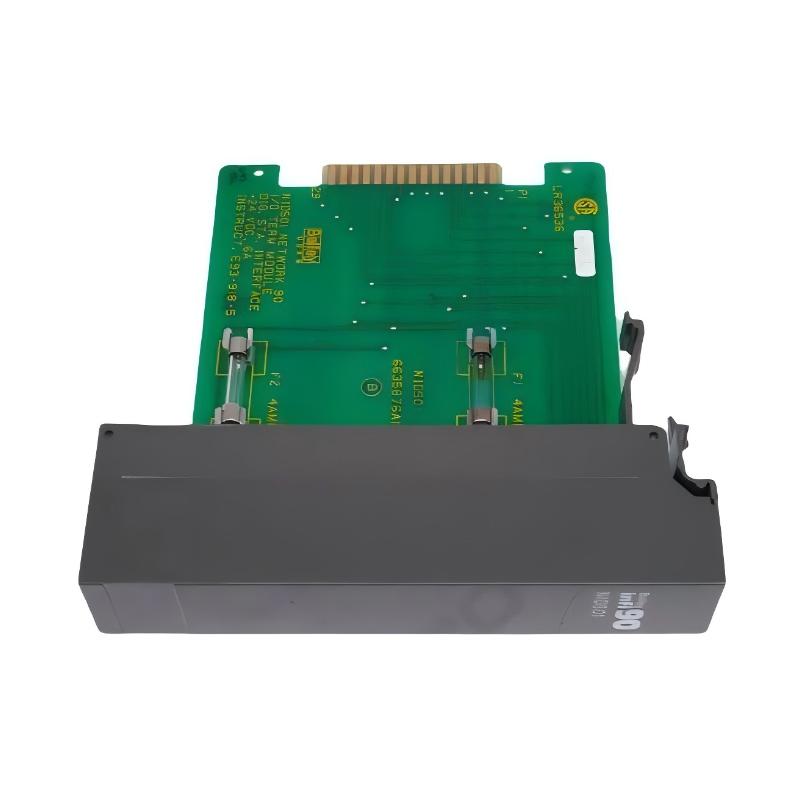

The ABB Bailey NIDS01 Digital Station Terminal Module provides reliable digital signal management for industrial control systems. Supporting multiple channels and easy integration into ABB Bailey architectures, it ensures accurate digital input/output communication. Its compact and durable design makes it ideal for process automation, manufacturing, and energy applications requiring precise digital control.
Technical Specifications
Parameter
Specification
Model
NIDS01
Type
Digital Station Terminal Module
I/O Channels
Multi-channel digital I/O
System Compatibility
ABB Bailey Control Systems
Mounting
Rack-mounted
Operating Temperature
-20°C to 60°C
Storage Temperature
-40°C to 85°C
Dimensions
158 × 140 × 51 mm
Weight
0.26 kg
Compatible and Complementary Options
Model
Product Name
IMDSM01
Digital I/O Module
IIMSM01
Multi-bus Serial I/O Module
NAOM01
Analog Output Module
IMASI02
Analog Input Module
Frequently Selected Alternatives
Model
Product Name
NIDS02
Digital Station Terminal Module (Enhanced)
IMDSM02
Advanced Digital I/O Module
IIMSM02
Multi-bus Serial I/O Module (Extended)
NASM03
Analog Slave Module
Applications
• Process automation – Interfaces digital signals from field devices
• Industrial control – Connects digital inputs and outputs to control systems
• Power generation – Monitors digital status signals for operational control
• Oil & gas – Supports distributed digital monitoring and control
• Manufacturing – Integrates digital signals into control loops
Key Advantages
• Accurate digital I/O – Ensures reliable signal transfer
• Multi-channel support – Handles multiple digital inputs and outputs
• Seamless integration – Fully compatible with ABB Bailey control systems
• Compact design – Fits efficiently in control cabinets
• Industrial-grade reliability – Designed for continuous operation in harsh environments
Technical Clarifications (FAQs)
1. What is the main purpose of the NIDS01 module?
It collects and transmits digital input and output signals within control systems.
2. How many channels does it support?
It supports multiple digital channels for simultaneous operations.
3. Can it work with analog or numeric modules?
Yes, it integrates with analog, numeric, and other digital I/O modules.
4. How is it installed?
It is rack-mounted for integration into control cabinets.
5. Is it suitable for continuous operation?
Yes, it is built for reliable long-term industrial use.
6. What types of signals does it handle?
It handles standard digital input and output signals from field devices.
7. Can it operate in redundant systems?
Yes, it can function within redundant architectures.
8. How is configuration performed?
Configuration is done via ABB Bailey system software.
9. What ensures signal reliability?
Robust circuitry and industrial-grade components maintain accurate digital signal transfer.
10. Which industries commonly use this module?
Process automation, oil & gas, power generation, and manufacturing.
