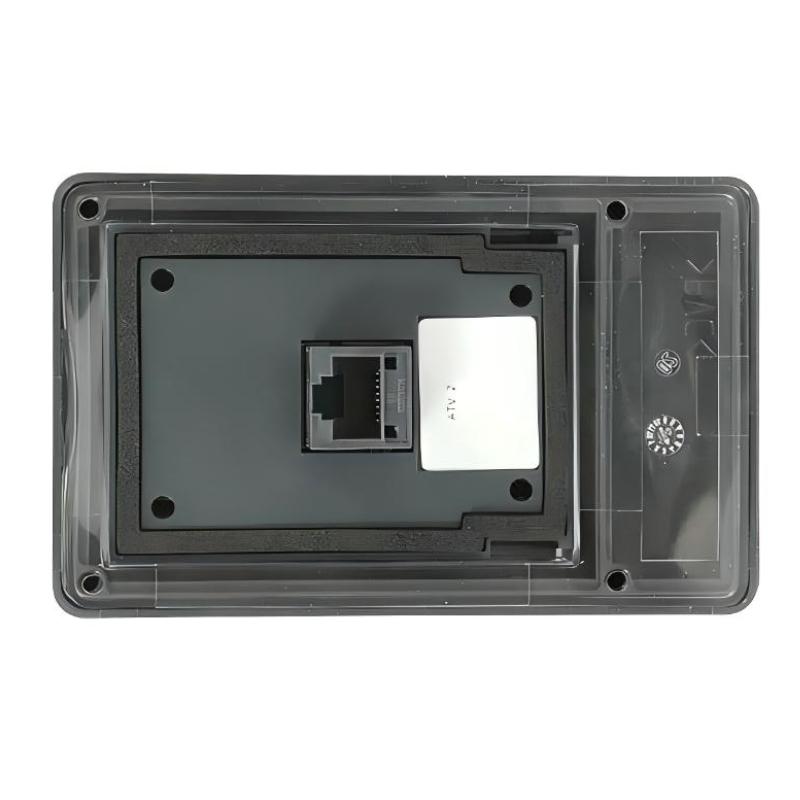

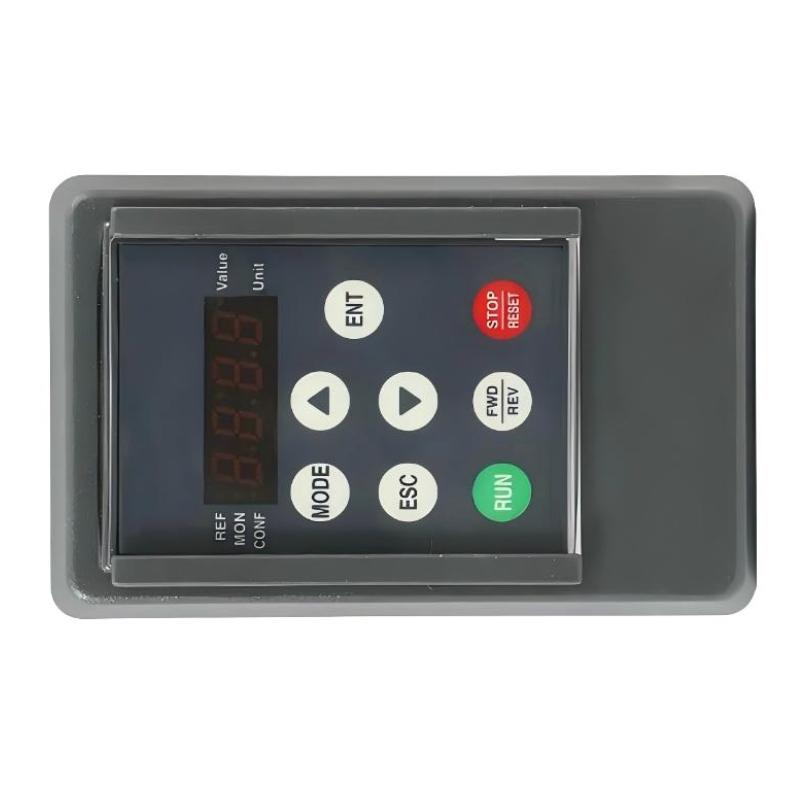

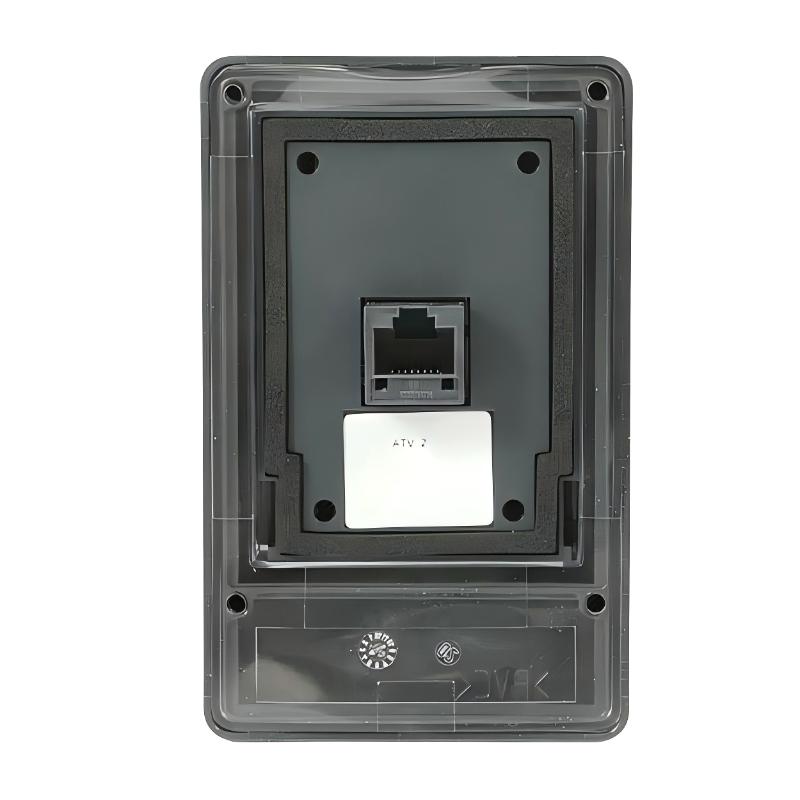

VW3A1007-1 VW3A1007-3 VW3A1007-4 VW3A1007-2

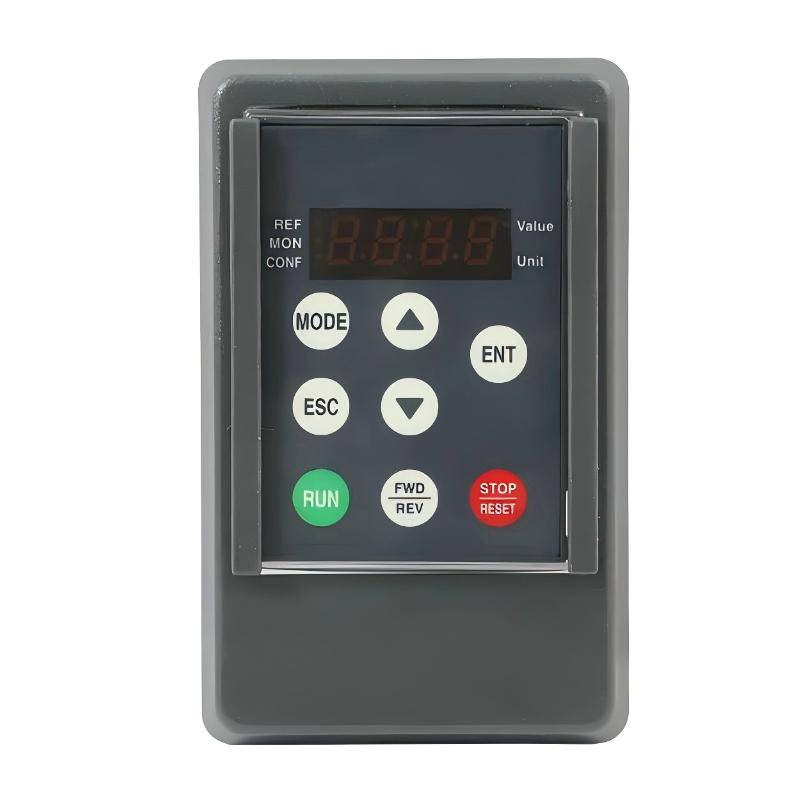

The Schneider VW3A1007 is a rugged remote terminal keypad designed for Altivar variable speed drives, enabling operators to monitor and control drives without opening the cabinet. With its IP65 protection rating, it offers superior resistance to dust and water, making it ideal for harsh industrial environments. This remote interface improves accessibility, reduces maintenance time, and enhances operational safety by allowing quick parameter adjustments directly from the panel door.

Technical Specifications

Specification	Detail
Model	VW3A1007
Module Type	Remote Terminal / Keypad Interface
Compatible Series	Altivar 12, 32, 312, 312 Solar, Easy 310, ATV320
Function	Remote monitoring, configuration, and control of drives
User Interface	8-button keypad with display
Protection Rating	IP65
Mounting Location	Enclosure door / panel front
Cable Requirement	Remote cable (VW3A1104Rxx series)
Dimensions (L×W×H)	50×70×22.7 mm
Weight	0.275 kg
Operating Temperature	−10 °C to 40 °C
Installation	Panel-mounted (screws + sealing membrane)
Lifecycle Status	Active

Recommended Related Models

Model	Why It’s Recommended
VW3A1006	IP54 version remote terminal for less demanding environments
VW3A1104R10	10 m remote cable for installation
VW3A1104R30	30 m remote cable for extended distance
Altivar ATV320	High-performance drive compatible with this terminal

Popular Schneider Altivar Series

Model	Key Strength
Altivar 12	Compact drive for simple machines
Altivar 32	Versatile general-purpose VFD
Altivar 312	Flexible drive with energy features
Altivar Machine ATV320	Advanced machine control drive

Applications

Remote operation of variable speed drives in control cabinets
Industrial panels requiring external HMI access
HVAC, material handling, and manufacturing systems
Environments where enclosure doors should remain closed
Machine installations requiring quick diagnostics and parameter tuning

Advantages

IP65 Protection: High resistance to dust and water for harsh environments
Remote Accessibility: Control and monitor drives without opening panels
Compact Design: Easy to integrate into control cabinet doors
Fast Diagnostics: Displays status, alarms, and error codes instantly
Plug-and-Work Installation: Simple setup reduces commissioning time

Technical FAQs

What is the VW3A1007 used for?
It is a remote keypad for controlling and monitoring Altivar drives.
What is the protection level?
IP65, suitable for dusty and wet industrial environments.
Where is it installed?
On the enclosure door or front panel for easy access.
Does it require a cable?
Yes, a VW3A1104Rxx remote cable is required.
What drives is it compatible with?
Altivar 12, 32, 312, Easy 310, and ATV320 series.
What interface does it provide?
An 8-button keypad with display for configuration and monitoring.
What are its dimensions?
50×70×22.7 mm.
Is it suitable for outdoor use?
IP65 allows use in harsh environments, but full outdoor protection depends on enclosure design.
What is the weight?
Approximately 0.275 kg.
Does it support diagnostics?
Yes, it displays operating status and fault codes in real time.
