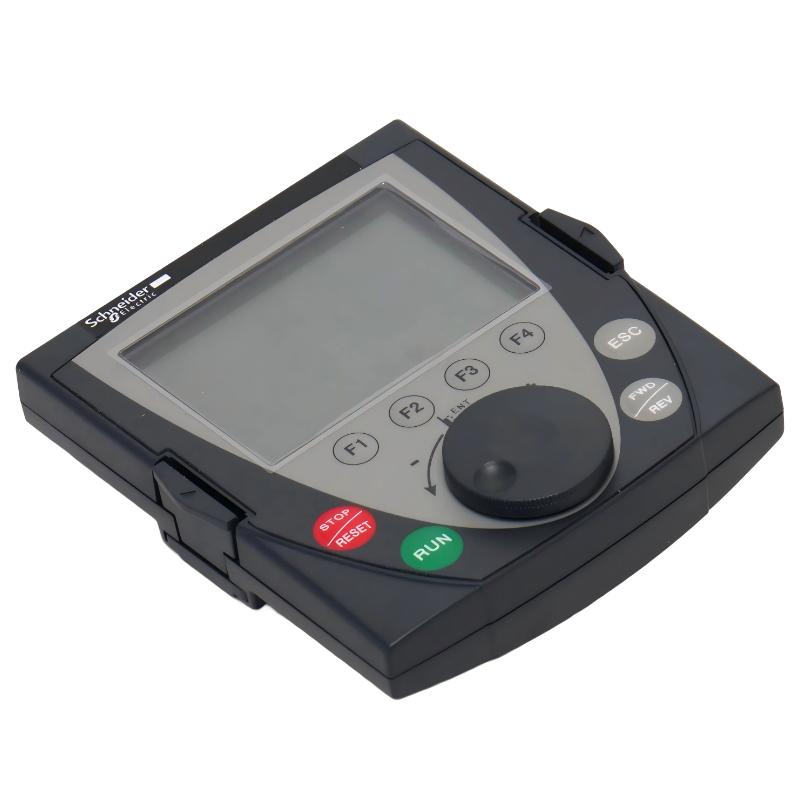

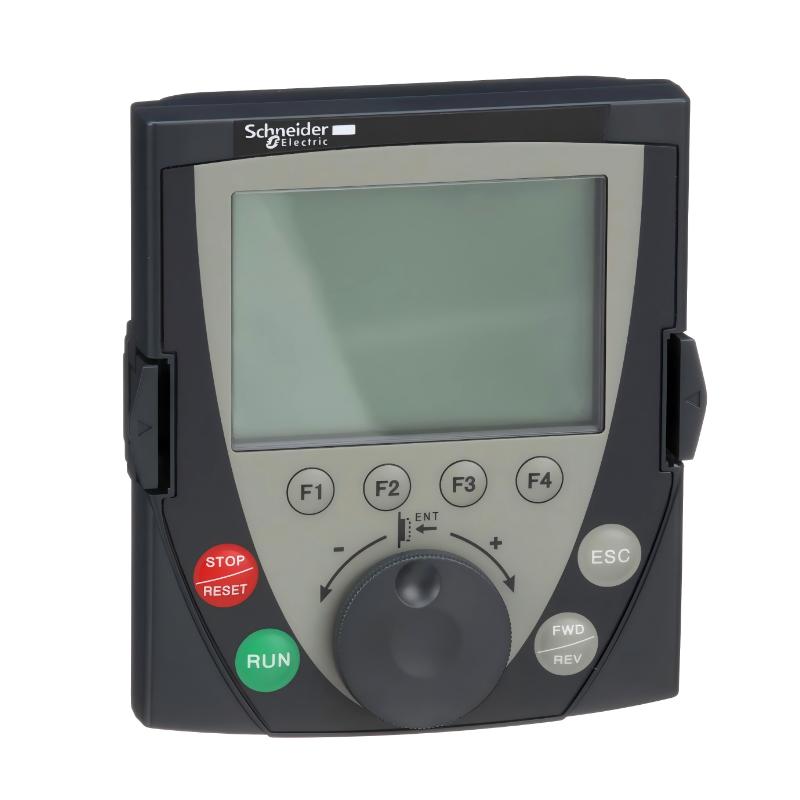

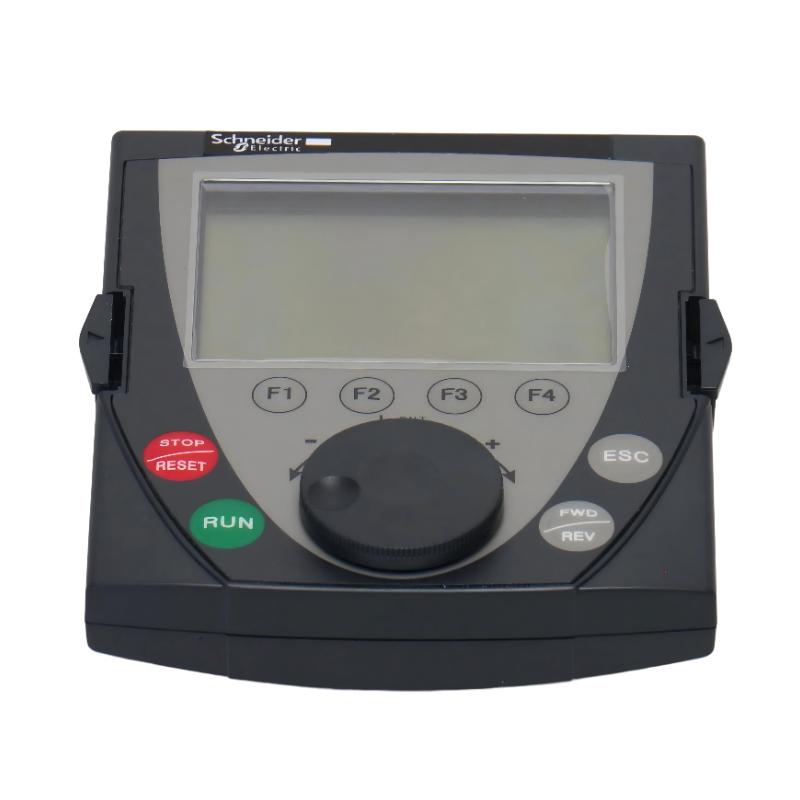

The Schneider VW3A1101 is a powerful remote graphic terminal designed for Altivar variable speed drives, providing a full-featured human-machine interface (HMI) for configuration, monitoring, and control. Equipped with a graphical display and intuitive navigation controls, it allows operators to access drive parameters and diagnostics directly from the cabinet door. Its IP54 protection rating and remote mounting capability make it an ideal solution for industrial environments requiring safe and convenient drive operation.
Technical Specifications
| Specification | Detail |
|---|
| Model | VW3A1101 |
| Module Type | Remote Graphic Terminal / HMI Interface |
| Compatible Series | Altivar drives (ATV12, ATV32, ATV312, ATV61, ATV71, ATV320, ATV340, etc.) |
| Display Type | Graphic LCD (240 × 160 pixels) |
| User Interface | Navigation wheel + function keys |
| Function | Drive configuration, monitoring, diagnostics, parameter storage |
| Protection Rating | IP54 (front panel) |

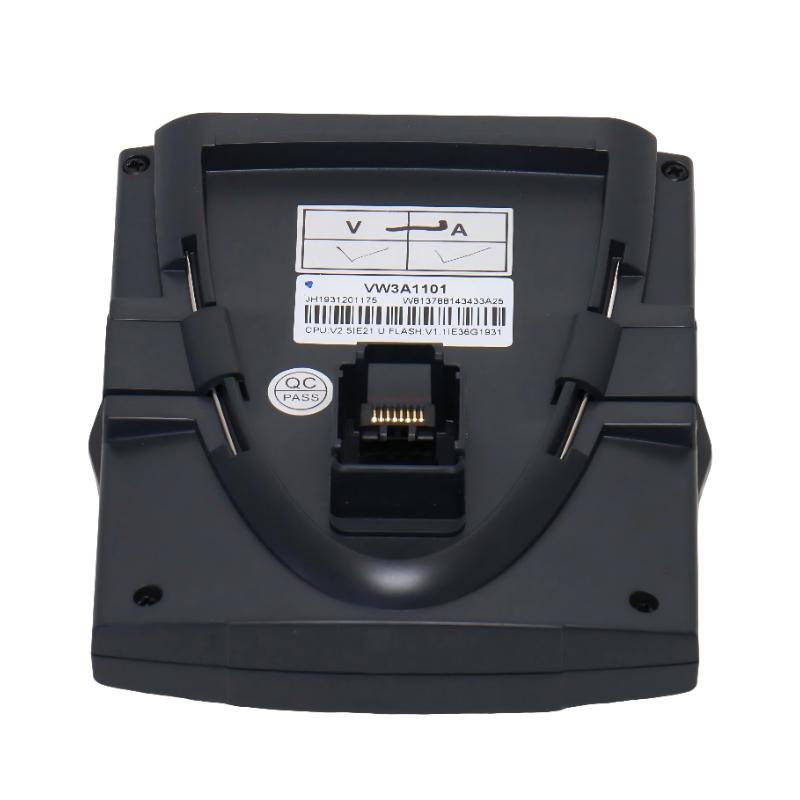

| Communication Interface | RJ45 connection to drive |
| Mounting | Panel / enclosure door mounting |
| Cable Requirement | VW3A1104Rxx remote cable (sold separately) |
| Dimensions (L×W×H) | 110×95×40 mm |
| Weight | 0.18–0.29 kg |
| Operating Temperature | −10 °C to 50 °C |
| Storage Temperature | −20 °C to 70 °C |
| Lifecycle Status | Active / widely used industrial accessory |
Recommended Related Models
| Model | Why It’s Recommended |
|---|
| VW3A1007 | IP65 keypad terminal for harsher environments |
| VW3A1006 | Basic remote terminal with IP54 protection |
| VW3A1105 | Adapter for remote mounting connection |
| VW3A1104Rxx | Connection cables (1 m / 3 m / 5 m / 10 m options) |
