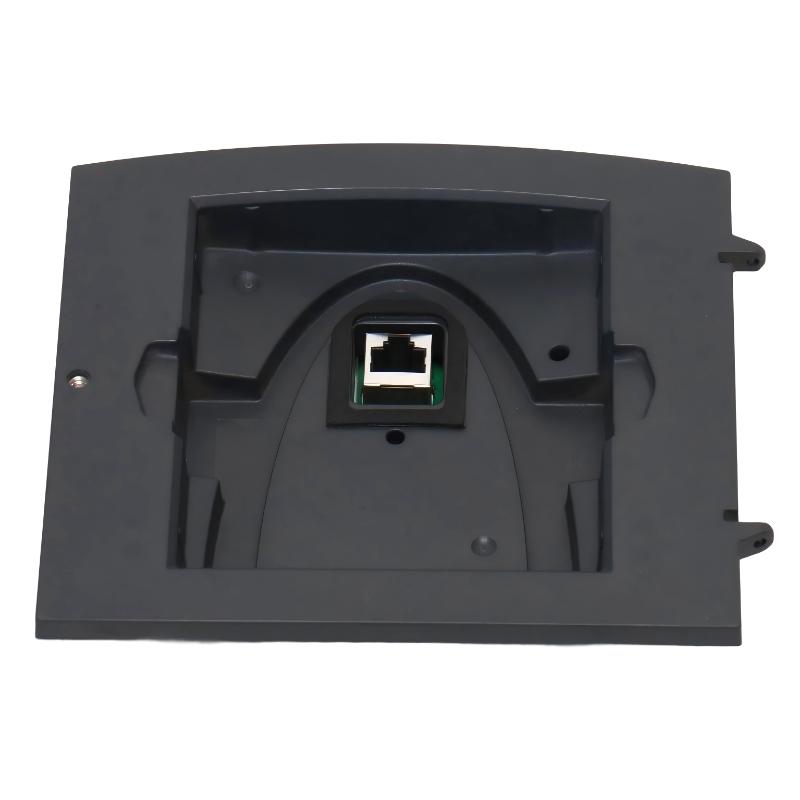

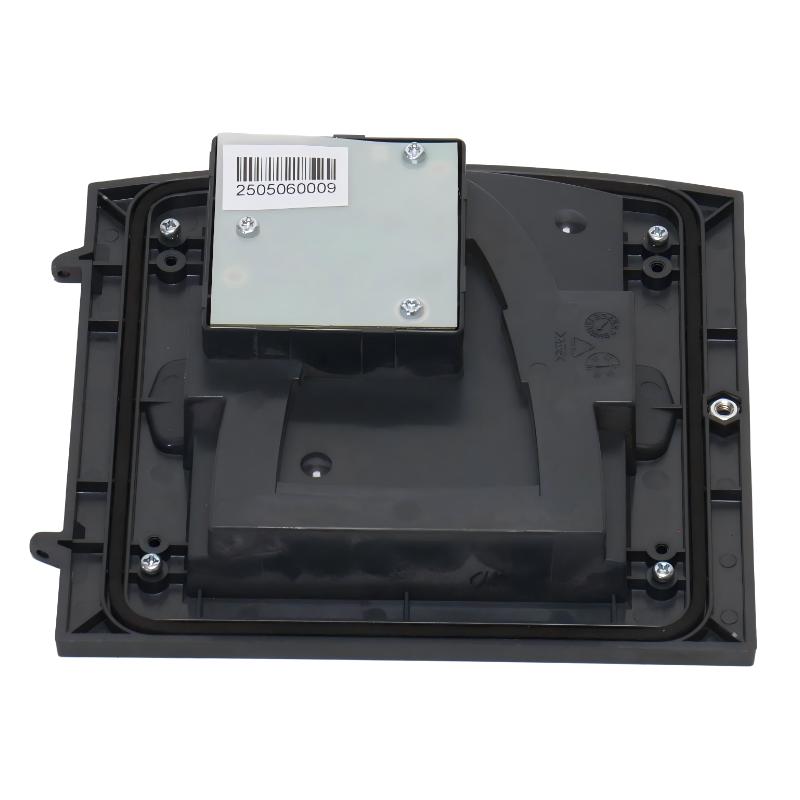

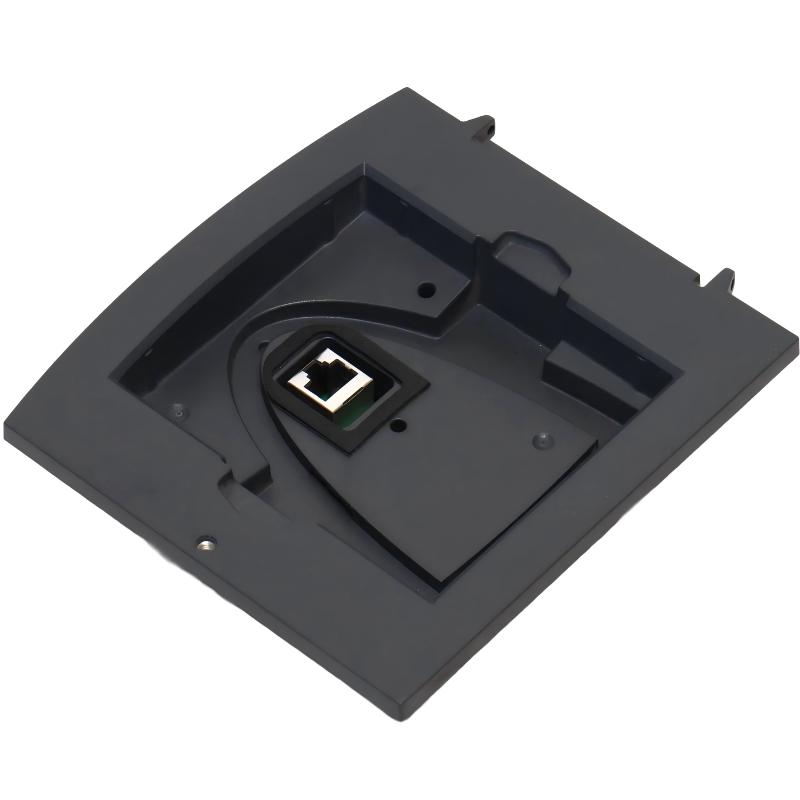

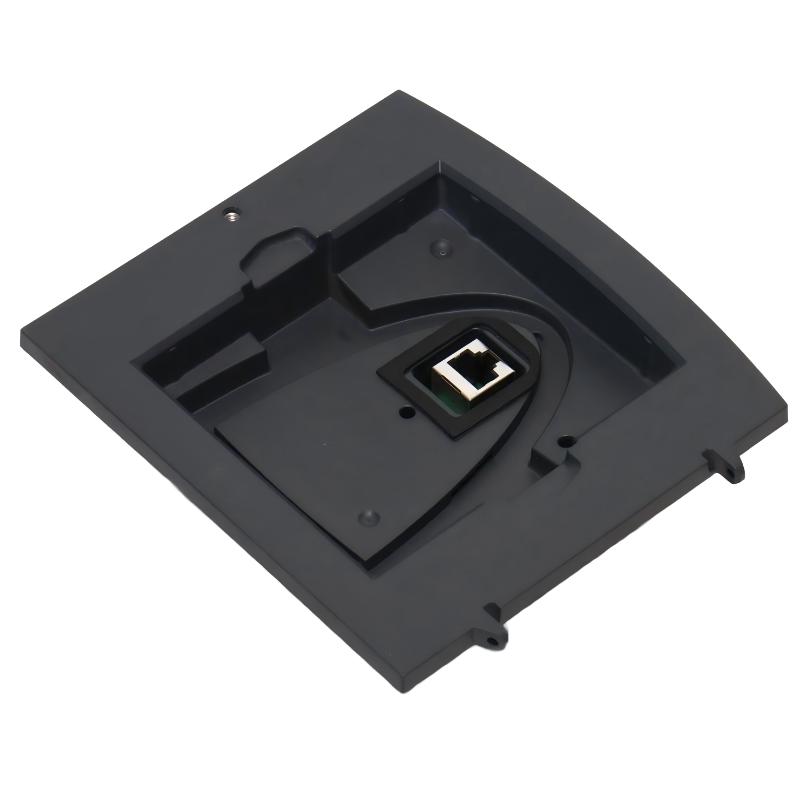

The Schneider VW3A1102 is a dedicated door mounting kit designed for installing remote graphic terminals on control panel doors in Altivar variable speed drive systems. It enables secure and convenient front-panel mounting of display interfaces, allowing operators to access drive parameters without opening the cabinet. With IP54 protection, this accessory ensures reliable operation in industrial environments while improving usability and maintenance efficiency.

Technical Specifications

Specification	Detail
Model	VW3A1102
Module Type	Door Mounting Kit / Installation Accessory
Compatible Products	Altivar 32, 61, 71, 212, ATV320 and related series
Function	Mount remote graphic terminal on panel door
Protection Rating	IP54
Kit Composition	Mechanical fittings, screws, mounting hardware
Mounting Method	Panel / enclosure door installation
Application	Remote display terminal installation (e.g., VW3A1101)
Dimensions (L×W×H)	110×95×40 mm
Weight	0.15 kg
Operating Environment	Industrial control cabinets
Installation Type	Fixed mounting with screws
Lifecycle Status	Active / widely used accessory

Recommended Related Models

Model	Why It’s Recommended
VW3A1101	Remote graphic terminal compatible with this mounting kit
VW3A1007	IP65 keypad terminal for harsher environments
VW3A1006	Basic remote terminal (IP54)
VW3A1104Rxx	Remote connection cables for terminal installation

Popular Schneider Altivar Series

Series	Key Strength
Altivar 12	Compact VFD for simple applications
Altivar 32	General-purpose industrial drive
Altivar 61	Process-oriented drive system
Altivar Machine ATV320	Advanced machine control drive

Applications

Mounting remote display terminals on control cabinet doors
Industrial automation panels requiring external operator access
Variable frequency drive systems needing safe parameter access
HVAC, pump, and conveyor control systems
Machine installations where enclosure opening should be minimized

Advantages

Secure Panel Installation: Ensures stable mounting of remote terminals
Improved Accessibility: Allows operator interaction without opening cabinets
IP54 Protection: Suitable for industrial environments with dust and splashes
Complete Kit: Includes all necessary mounting hardware
Wide Compatibility: Supports multiple Altivar drive series

Technical FAQs

What is the VW3A1102 used for?
It is a mounting kit for installing remote display terminals on panel doors.
Which devices is it compatible with?
Compatible with Altivar drive series such as ATV32, ATV61, ATV71, and ATV320.
What protection level does it provide?
IP54 front protection for industrial environments.
What does the kit include?
Screws, fittings, and mechanical mounting components.
Where is it installed?
On the enclosure door or control panel front.
What terminal is commonly used with it?
Typically used with remote graphic terminal VW3A1101.
What are its dimensions?
110×95×40 mm.
Is it suitable for outdoor use?
It is designed for indoor industrial environments; additional protection is needed for outdoor use.
Does it require electrical connection?
No, it is a mechanical mounting accessory.
What is its weight?
Approximately 0.15 kg.
