Brand:Honeywell DCS Item No.:10206/2/1 Product Origin:USA Product Dimensions:36 × 142 × 179 mm Product Weight:0.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

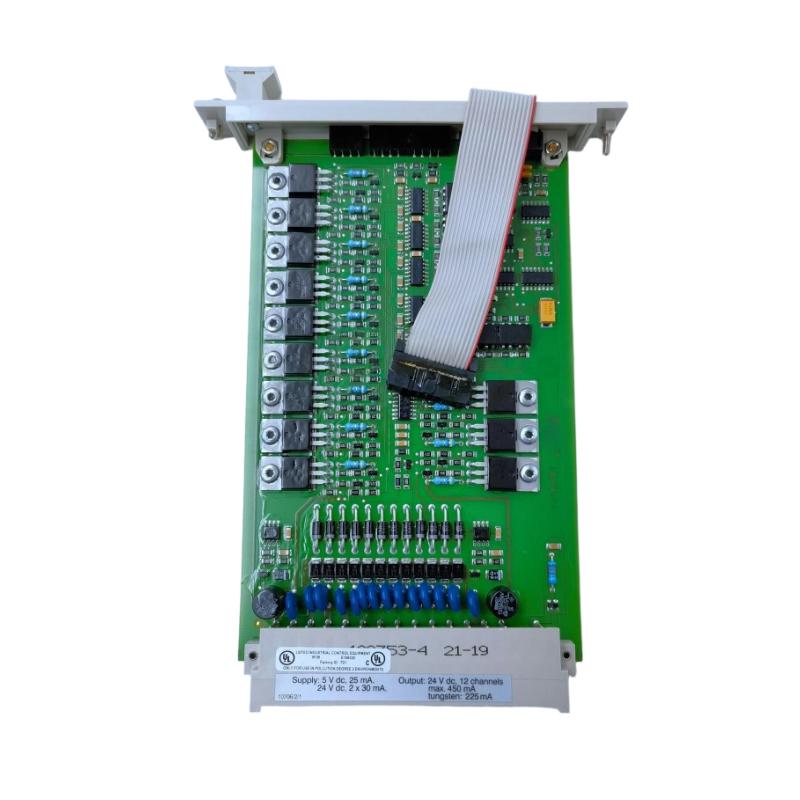

The Honeywell 10206/2/1 Digital Output Module is a high-reliability industrial control component designed for precise actuation of field devices in automation systems. It delivers 12 channels of 24 VDC output, making it suitable for controlling solenoids, relays, and other industrial loads.
With robust electrical protection, segmented output architecture, and stable solid-state design, this module ensures consistent performance in demanding process control environments where reliability and uptime are critical.
Technical Specifications
Parameter
Details
Product Model
10206/2/1
Manufacturer
Honeywell
Function
Digital Output Module
Output Channels
12 channels
Output Type
24 VDC solid-state
Max Current per Channel
0.55 A
Load Type
Resistive / Inductive
Protection
Short-circuit protection
Output Structure
2 groups × 6 channels
Operating Environment
Industrial automation
Dimensions
36 × 142 × 179 mm
Weight
0.3 kg
Recommended Companion Models
Model Number
Product Name
Honeywell 10106/2/1
Digital Input Module
Honeywell 10205/2/1
Analog Output Module
Honeywell 10209/2/1
Communication Interface Module
Honeywell 51199929-100
Control Processor Module
Popular Alternative Models
Model Number
Product Name
Honeywell 10206/1/1
Digital Output Module (Variant)
Honeywell 10207/2/1
Extended Output Module
Honeywell 51198674-100
Industrial I/O Module
Honeywell 51454416-100
Control System Interface Card
Application Fields
• Distributed control systems (DCS) for industrial automation
• PLC-based output control in process industries
• Actuator and solenoid control in manufacturing systems
• Power plant auxiliary control systems
• Oil, gas, and chemical process automation systems
Key Advantages
• 12-channel 24 VDC solid-state outputs ensure flexible control capability
• High current capacity (up to 0.55 A per channel) supports industrial loads
• Short-circuit protection improves system safety and reliability
• Dual-group output structure enables independent power segmentation
• Designed for stable operation in continuous industrial environments
Technical Questions & Answers
1. What is the main function of this module?
It provides digital output control for industrial automation systems.
2. How many output channels does it support?
It supports 12 digital output channels.
3. What type of loads can it drive?
It can drive resistive loads (lamps) and inductive loads (solenoids).
4. What is the output voltage level?
It operates at 24 VDC solid-state output.
5. Does it include protection features?
Yes, it includes short-circuit protection per channel.
6. How are outputs organized?
The outputs are split into two independent groups of six channels.
7. Is it suitable for safety-critical applications?
It is not designed for fail-safe applications.
8. What ensures stable operation?
Watchdog control de-energizes outputs during system shutdown.
9. Can it operate in harsh environments?
Yes, it is designed for industrial-grade conditions.
10. What improves installation flexibility?
Its modular design allows integration into standard control racks.
